Appearance

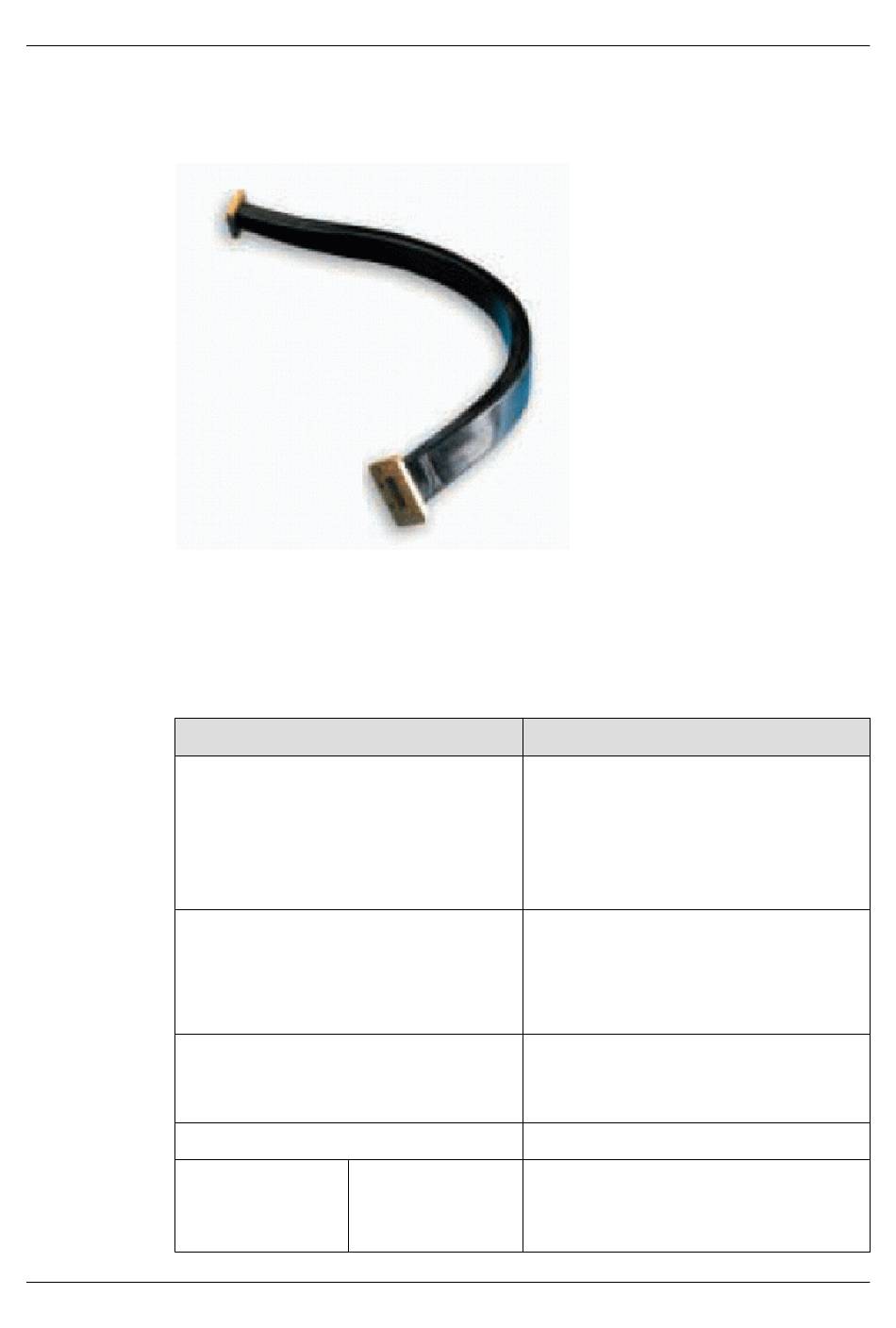

Figure 3-3 Appearance of a flexible waveguide

Performance

Table 3-3 Performance of a flexible waveguide

Item
Attenuation (dB)
Flatness (dB)
Standing wave ratio
Length (m)
Interface
Issue 06 (2010-05-30)
At the side of the
ODU adapter
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Performance
≤ 0.4 (7/8/11 GHz frequency band)
≤ 0.6 (13 GHz frequency band)
≤ 0.9 (15 GHz frequency band)
≤ 2.4 (18/23/26 GHz frequency band)
≤ 3.0 (28/32/38 GHz frequency band)
≤ 0.2 (7/8/11/13 GHz frequency band)
≤ 0.3 (15 GHz frequency band)
≤ 0.5 (18/23/26 GHz frequency band)
≤ 0.5 (28/32/38 GHz frequency band)
≤ 1.1 (7/8/11/13/15 GHz frequency band)
≤ 1.2 (18/23/26/28/32/38 GHz frequency
band)
0.9
154IEC-PBR84 (7/8 GHz frequency band)
154IEC-PBR100 (11GHz frequency band)
154IEC-PBR120 (13 GHz frequency band)
