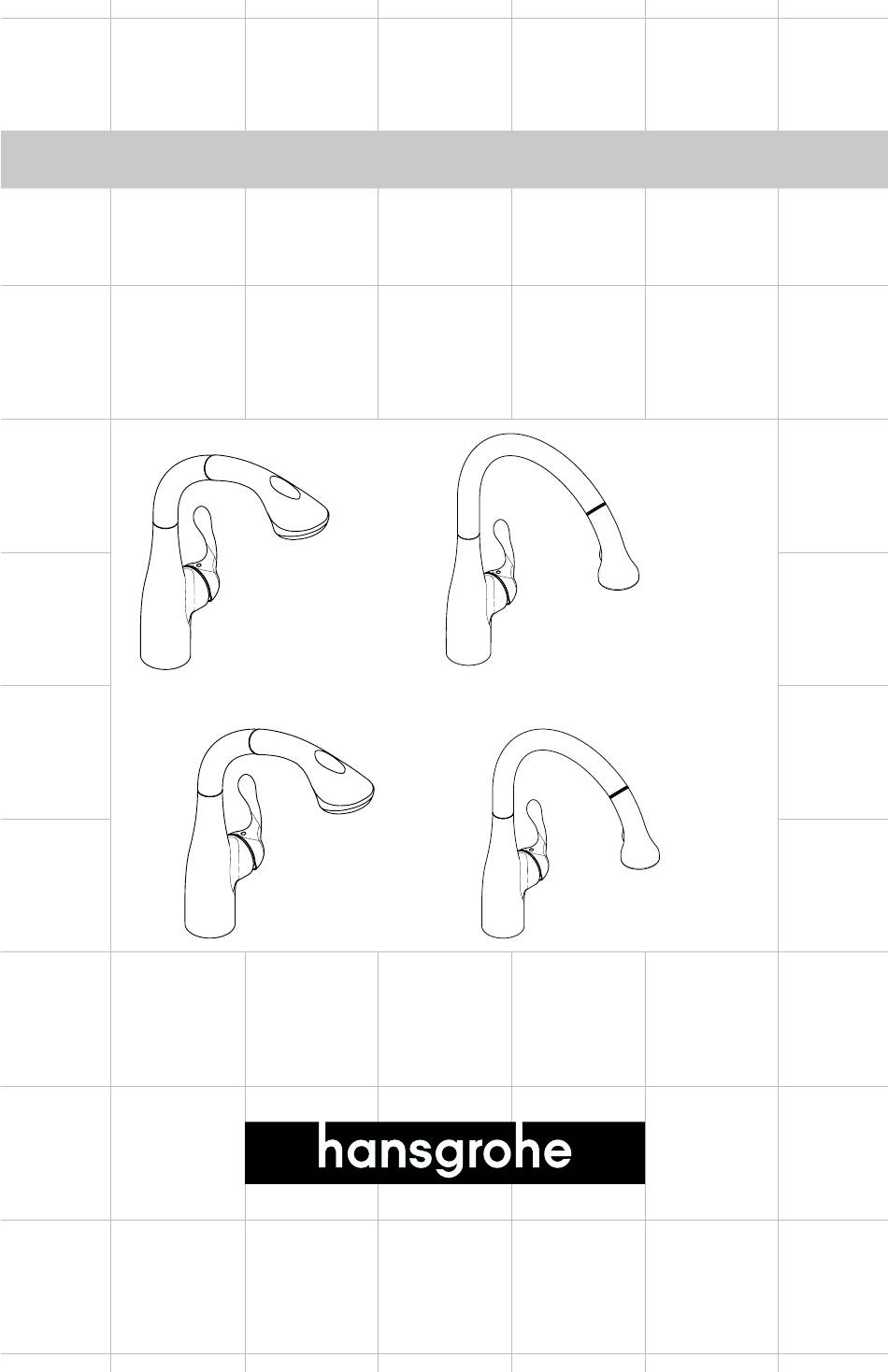

- Page 1 Installation Instructions / Warranty Allegro E Allegro E Gourmet 06461XX0 06460XX0 06461XX1 Allegro E Gourmet Allegro E 04066XX0 04067XX0 04066XX1...
- Page 2 06460XX0 04066XX0 04066XX1...
- Page 3 06461XX0 04067XX0 06461XX1...
- Page 4 Technical Information / Données techniques / Datos tecnicos Recommended water Pression d’eau recommandée Presión recomendada en servicio 14.7 - 72.5 psi pressure Max. water pressure Pression d’eau maximum Presión en servicio max. 147 psi Recommended hot water Température recommandée Temperatura recomendada del 120�...
-
Page 5: Installation Considerations
Installation Considerations • For best results, Hansgrohe recommends that • Protection against backflow is provided by this unit be installed by a licensed, profes- two check valves in the handspray. sional plumber. • Keep this booklet and the receipt (or other •... - Page 6 English Installation Place the faucet and sealing ring on the mounting surface. Install the plastic washer, friction washer, metal washer, and mounting nut. If the mounting surface is greater than 1⅜", or if there is insufficient space, omit the plastic washer. Tighten the mounting nut.
- Page 7 Français Español Installation Instalación Placez l'anneau d'étanchéite et le robinet sur la Coloque el oro de sellado y el grifo sobre la surface de montage. superficie de montaje. Installez la rondelle de plastique, la rondelle en fi- Instale la arandela plástica, la arandela de fibra, bre, la rondelle de friction, et l'écrou de montage.
- Page 8 English Connect the hot and cold supply hoses to the stops. Use two wrenches. Do not allow the supply hoses to twist. User Instructions The spout swivels 150°. Allegro Gourmet: When the water is turned on, it will come out in the stream mode. Press the diverter button to activate the spray mode.
-
Page 9: Instrucciones Para El Usuario
Français Español Connectez les tuyaux d'arrivée d'eau chaude et Conecte las mangueras de suministro de agua d'eau froide aux tuyau d'alimentation. caliente y fría a las alimentaciones de la red. Servez-vous de deux Use dos llaves, como se illus- clés, tel qu'illustre dans le tra en el diagrama. - Page 10 Replacement Parts / Pièces détachées / Repuestos 95340000 97735000 97350000 98598XX1 88655000 95008000 96059000 98597XX1 96468XX0 96461000 92730000 96316001 97523000 95561000 95049000 95506000 98551000 XX = colors / couleurs / acabados 00 = chrome 80 = steel optik...
- Page 11 97735000 88655000 98597XX1 95008000 96468XX0 96059000 95340000 97350000 98599XX1 96461000 92730000 96316001 95561000 97523000 95506000 95049000 98551000...
- Page 12 Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning. Cleaning Materials for Faucets and Showers Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points when cleaning faucets and showers:...
- Page 13 Nettoyez vos produits de robinetterie et de douche aussi souvent que nécessaire. • Utilisez la quantité de produit nettoyant et respectez la durée recommandée par le fabricant. Ne laissez pas le produit sur les articles de robinetterie plus longtemps que nécessaire. •...
-
Page 14: Limited Lifetime Consumer Warranty
Limited Lifetime Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and installed in either the United States or Canada. - Page 15 Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from State to State. You may be required by law to give us a reasonable opportunity to correct or cure any failure to comply before you can bring any action in court against us under the Magnuson-Moss Warranty Act.
- Page 16 Hansgrohe, Inc. • 140 Bluegrass Lakes Parkway • Alpharetta, GA 0004 Tel. 770-60-0 • Fax 770-60-7 www.hansgrohe-usa.com...
