E Thermostatic Trim w/Volume
Control

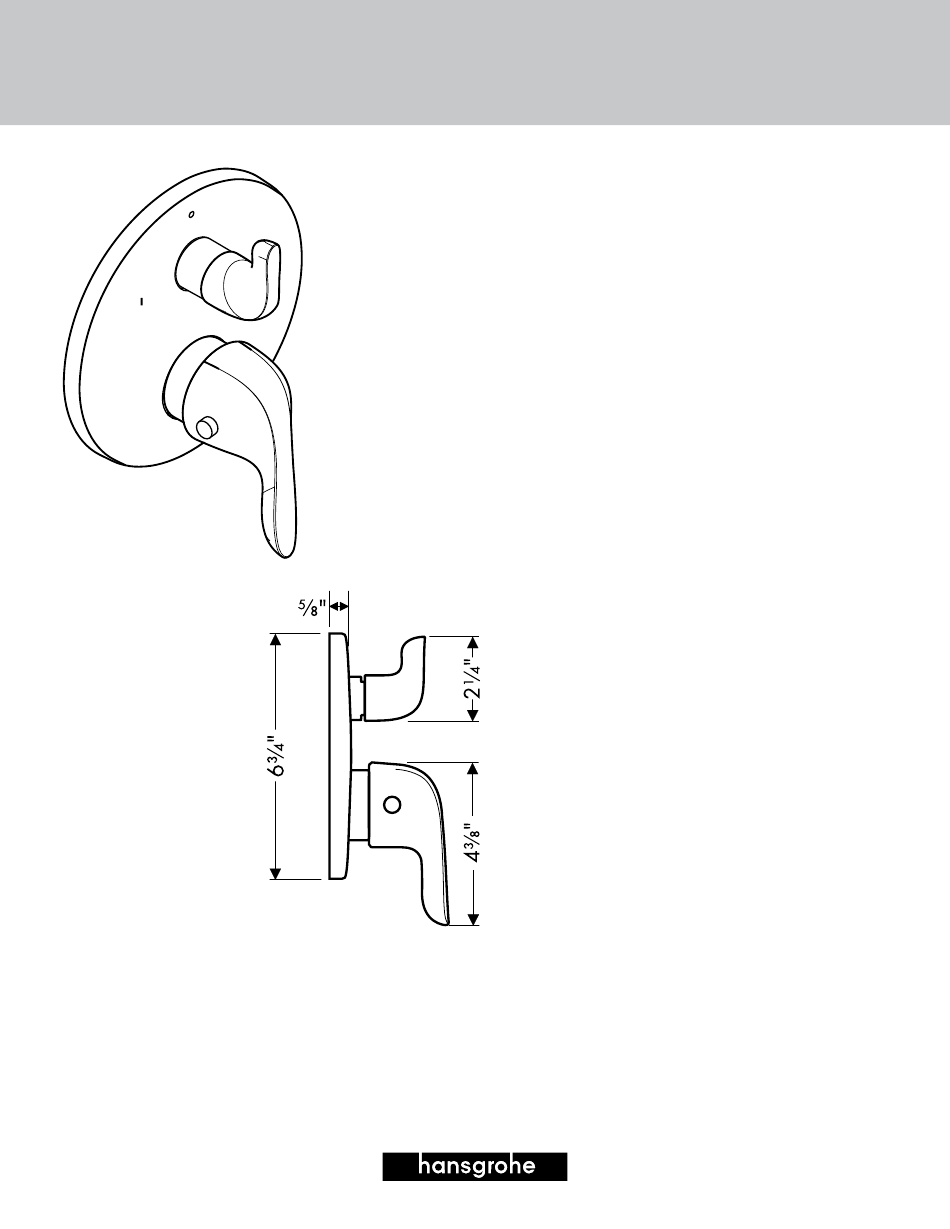

The measurements shown are for reference only.
Products and specifications shown are subject to change
without notice.
Specification sheet revised 8/2010
Product Features
•
Thermostatic temperature control
•
Volume control for one outlet
•
100° safety stop
•
Flow rate 8 GPM @ 44 psi
Code Compliance
This unit meets or exceeds the following:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
•
Listed by IAPMO
•
Approved for use in Massachusetts
Available Finishes
Chrome
Brushed Nickel
Polished Nickel
Polished Brass
Required Accessories
iBox Universal Plus rough valve
Optional Accessories
⅞" shallow rough-in set
04225XX0
04225000
04225820
04225830
04225930
01850181
13596xx0
Advertisement
Table of Contents
Related Manuals for Hans Grohe E 04225 Series
Summary of Contents for Hans Grohe E 04225 Series
- Page 1 04225XX0 E Thermostatic Trim w/Volume Control Product Features • Thermostatic temperature control • Volume control for one outlet • 100° safety stop • Flow rate 8 GPM @ 44 psi Code Compliance This unit meets or exceeds the following: • ASME A112.18.1 / CSA B125.1 •...
- Page 2 Installation Instructions / Warranty 04222XX0 04227XX0 04232XX0...
- Page 3 04222XX0 04227XX0 04232XX0...
-
Page 4: Installation Considerations
Installation Considerations • For best results, Hansgrohe recommends that • To prevent scald injury, the maximum output this unit be installed by a licensed, profes- temperature of the shower valve must be no higher than 120°F. In Massachusetts, the sional plumber. maximum output temperature of the shower •... - Page 5 English Installation Cut the plaster shield so that it extends ¹⁄₁₆" out- side the surface of the finished wall. Seal the wall around the plaster shield with water- proof sealant (1). Failure to seal the wall can lead to possible water damage.
- Page 6 Français Español Installation Instalación Coupez le protecteur de façon à ce qu’une partie Corte el protector de yeso de modo que sobre- de ¹⁄₁₆ po soit à l’extérieur de la surface du mur salga ¹⁄₁₆" de la superficie de la pared terminada. fini.
- Page 7 English Cut the extension spindle so that it extends ¾" outside the surface of the finished wall. Install the escutcheon. Install the nut and o-ring. Install the snap connector. Tighten the screw. Install the handle. 2.5 mm Tighten the screw using a 2.5 mm Allen wrench. Install the screw cover.
- Page 8 Français Español Coupez la tige d’extension de façon à ce qu’une Corte el husillo de extensión de modo que sobre- partie de ¾ po soit à l’extérieur de la surface du salga ¾" de la superficie de la pared terminada. mur fini.
- Page 9 English Press the icons into the escutcheon.
- Page 10 Français Español Installez les icônes sur l’écusson. Instale los iconos en el escudo.
- Page 11 Replacement Parts / Pièces détachées / Repuestos 95238XX0 96392000 94184000 95181000 95649xx0 98677XX0 88784xx0 95238XX0 96392000 94184000 95181000 95563xx0 98677XX0 94184000 95181000 88782xx0 88783xx0...
- Page 12 Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning. Cleaning Materials for Faucets and Showers Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points when cleaning faucets and showers:...
- Page 13 Recommandations pour le nettoyage des produits Hansgrohe Les robinetteries modernes de lavabo, de cuisine et de douche utilisent des matériaux très différents pour répondre aux besoins du marché en termes de conception et de fonctionnalité. Certaines règles de base doivent être respectées lors du nettoyage de ces Certaines règles de base doivent être respectées lors du nettoyage de ces Certaines règles de base doivent être respectées lors du nettoyage de ces produits afin d’éviter de les endommager ou d’avoir à...
-
Page 14: Indicaciones Importantes
Recomendación de limpieza para los productos de Hansgrohe Hoy en día, las griferías de baño y de cocina así como duchas modernas se componen de materiales muy distintos para satisfacer las exigencias del mercado respecto al diseño y la funcionalidad. Para evitar daños reclamaciones hay que tener en cuenta ciertos aspectos tanto en el uso como en su limpieza posterior. -
Page 15: Limited Lifetime Consumer Warranty
Limited Lifetime Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and installed in either the United States or Canada. - Page 16 Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from State to State. You may be required by law to give us a reasonable opportunity to correct or cure any failure to comply before you can bring any action in court against us under the Magnuson-Moss Warranty Act.
- Page 17 Hansgrohe, Inc. • 10 Bluegrass Lakes Parkway • Alpharetta, GA 000 Tel. 0-0-0 • Fax 0-0- www.hansgrohe-usa.com...
-
Page 18: Product Features
27466XX1 Raindance E 150 AIR 1-Jet Showerhead Product Features • Oversized spray face • AIR injection technology • Refreshing full spray • 96 no-clog spray channels • Quiclean™ self cleaning system • 2.5 gpm max. Code Compliance This unit meets or exceeds the following: •... -
Page 19: Code Compliance
Raindance E 100 AIR 3-Jet 28502XX1 Handshower Product Features • Oversized spray face • AIR injection technology • Rubit™ cleaning system • Three spray modes: AIR, Whirl AIR, Balance AIR • 65 no-clog spray channels • 2.5 gpm max. Code Compliance This unit meets or exceeds the following: •... -
Page 20: Optional Accessories
½" Standard Showerarm, 6" 27411XX3 Product Features • ½" male inlet • Includes escutcheon • Not for use with oversized or square showerheads Available Finishes Chrome 27411003 Oil Rubbed Bronze 27411623 Brushed Nickel 27411823 Polished Nickel 27411833 Rubbed Bronze 27411923 Polished Brass 27411933 Optional Accessories... - Page 21 Unica'E Wallbar 06890XX0 Product Features • Handshower holder moves up and down, pivots left and right • Knob with finger grip for easy slide adjustment • Angle adjustable acrylic holder • Includes soap dish Available Finishes Chrome 06890000 Oil Rubbed Bronze 06890620 Brushed Nickel 06890820...
- Page 22 Product data sheet Techniflex 63" Hose Description • With brass swivel connector to prevent hose twisting • Revolutionary solid color finish Finish Model no. List Price chrome 28276003 42.00 USD oil rubbed bronze 28276623 72.00 USD brushed nickel 28276823 72.00 USD polished nickel 28276833 62.00 USD...
- Page 23 Raindance AIR Bodyspray 28477XX1 Product Features • 4" large flat spray • Mounts flush to wall • AIR injection • 1 gpm • 1/2" NPT female inlet Code Compliance This unit meets or exceeds the following: • ASME A112.18.1 • CSA B125.1 •...
- Page 24 Product data sheet Wall Outlet with Check Valve Description • 1/2" NPT female inlet • Internal check valves • Fits all 1/2" hoses Finish Model no. List Price chrome 27458003 70.00 USD oil rubbed bronze 27458623 101.00 USD brushed nickel 27458823 101.00 USD polished nickel...
