VeEX FX120 User Manual

Xg(s)-pon analyzer
Hide thumbs Also See for FX120:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX120 and is the answer not in the manual?

Questions and answers

Related Manuals for VeEX FX120

Summary of Contents for VeEX FX120

  • Page 2: Table Of Contents

    Table of Contents 1.0 General Information 2.0 Safety Information 3.0 Introduction to FX120 3.1 FX120 Overview 3.2 What is xPON 3.3 Key Features 3. xPON Specifications 4.0 Basic Operation 4.1 Connector Panels 5.0 Preparing for Operation 5.1 Equipment Check List 5.2 xPON Test Standards...
  • Page 3 8.0 V-Test 9.0 Certifications and Declarations 10.0 About VeEX APPENDIX A xPON DEFINITIONS APPENDIX B xPON ABBREVIATIONS AND ACRONYMS Go back to top FX120_User_Manual_RevA02 Page 3 of 32...

  • Page 4: General Information

    VeEX, Inc. or VeEX's licensors. The purchaser of this device and/or software, downloaded or embedded, agrees that it has received a license solely to use the software as embedded in the device and/or provided by VeEX Inc., and to use it solely as intended and described in this manual.
  • Page 5 Go back to top Go back to TOC 1.4 Documentation Conventions Icons used in this manual: Marks a helpful tip (action or method), which can save time and improve usability of the product. Provides important information needed to use this product and avoid missteps.

  • Page 6: Safety Information

    Do not operate the instrument in the presence of flammable gases or fumes or any other combustible environment. VeEX Inc. assumes no liability for the customer's failure to comply with safety precautions and requirements.
  • Page 7 ESD: Electrostatic Discharge Sensitive Equipment Test modules could be affected by electrostatic discharge. To minimize the risk of damage when replacing or handling test modules, make sure to follow proper ESD procedures and dissipate any electrostatic charge from your body and tools and the use proper grounding gear. Perform all work at a workplace that is protected against electrostatic build-up and discharging.

  • Page 8: Fx120 Overview

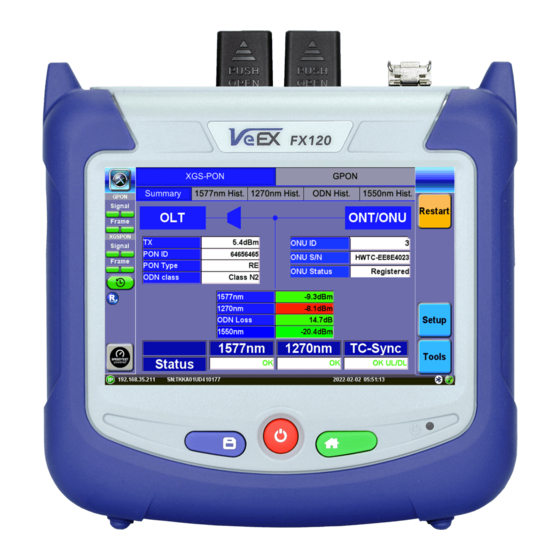

    3.0 Introduction 3.1 FX120 Overview The VeEX® FX120 XG(S)-PON Analyzer is designed to assist with PON ONT/ONU service activation and aid in troubleshooting. When connected at the customer site between the splitter and Optical Network Unit/Optical Network Terminal (ONU/ONT), the unit...

  • Page 9: Xpon Specifications

    PLOAM Capture/Decode PON Standard Compliance G-PON (ITU-T G984.2) XG(S)-PON (ITU-T G.9807.1) RF video signals 1550 nm (ANSI/SCTE 174 2010) Requires activation of PON-ID functionality in PON system per ITU-T G.984.3 Amd 3 Go back to top Go back to TOC 3.4 xPON Specifications Optical –...

  • Page 10: Basic Operation

    4.0 Basic Operation. 4.1 Connector Panels The FX120 connector panel features an ONU port (To ONU) and an OLT port (To OLT), and SFP+ port FX120 connector panel with, ONU, OLT and SFP+ ports Go back to top Go back to TOC...

  • Page 11: Preparing For Operation

    Fiberscope with Universal 2.5mm UPC and APC male tip, SC/APC bulkhead and SC/UPC bulkhead tips to inspect optical connectors. Patch cord – one to two patch cords depending on what is required to insert the FX120 between the splitter and ONT. Mating blue (UPC) with green (APC) connectors will result in excessive insertion loss, reflectance, and possible damage to the optical connector.
  • Page 12 5.2.2 10G PON Architecture Specifications Go back to top Go back to TOC FX120_User_Manual_RevA02 Page 12 of 32...

  • Page 13: Optical Power Meter (Opm) Test Mode

    6.0 Optical Power Meter (OPM) Test Mode GPON XGS-PON LED Indicators On screen LEDs indicate the status of upstream (Up) and downstream (Dn) signal and alarm/error traffic detection. Refer to LED Status for more information. FX120_User_Manual_RevA02 Page 13 of 32...

  • Page 14: Olt And Ont/Onu Messages And Measurements

    GPON/XGS_PON Diagram Network diagram of the GPON network. Connect the FX120 between the splitter and ONT/ONU. Do NOT connect the FX120 between the OLT and splitter. The FX120 should be connected between the splitter and ONT. 6.0.1 OLT and ONT/ONU Messages and Measurements OLT Information Table Below the OLT and splitter diagram block, a table displays the transmitting signal level (TX), PON ID, PON Type, and ODN class.

  • Page 15: Signal And Synchronization Status

    At any customer location after the OLT and splitter, the FX120 will display 1490nm and 1310nm signal level values for GPON, 1577nm and 1270nm for XGS-PON, and 1550nm for RF/CATV. ODN Loss is the difference between the transmitting signal from the OLT (TX) and the DS signal level measured at the FX120 location.

  • Page 16: Optical Power Meter (Opm) Test Procedure

    The FX120 is designed for use at the customer premises to aid with ONT/ONU activation and troubleshooting The FX120 is connected at the customer premise 1. Power up the FX120 test set. Testing should start automatically. Starting/stopping/restarting measurements from the OPM menu (see Information Table) starts/stops/resets items in the OPM Summary screen - the power level graphs and the Active ONU list in Advanced Mode.
  • Page 17 XGS-PON OPM Setup menu 3. Inspect and clean the FX120 test ports. Inspect and clean the fiber patch cord from the OLT and insert it into the FX120 OLT test port. Warning: Never look directly into the beam of an active optical source as this may result in harmful eye damage from radiation exposure 4.
  • Page 18 In order to synchronize with the ONU, the FX120 needs to see the ONU registration process. Therefore, only connect the ONU AFTER the FX120 application is already running. Otherwise, power cycle the ONU after the FX120 application is running if the ONU is already connected to the FX120.

  • Page 19: Histogram And Olt Loss History

    6.2 Histogram and OLT Loss History Tap on 1490/1577nm Histogram, 1310/1270nm Histogram, and ODN (Span Loss) Histogram tabs to Monitor Downstream and Upstream signals. Tap on t he upper left and right arrows to scroll through the measurement period. The + and – keys zoom in/out of the time axis. 1310nm Histogram showing Downstream signals 1490nm Histogram showing Downstream signals OLT Loss Histogram showing Downstream and Upstream signals...

  • Page 20: Advanced Mode

    7.0 Advanced Mode Advanced Mode features advanced troubleshooting tests beyond basic signal level measurements. Further investigation may be required when the OPM test mode indicates good signal level and TCSync is good but network is generating alarm or errors. Advanced Results provides a summary screen of network status and reports system errors/alarms status. PLOAM captures and decodes PLOAM messages exchanged between the Optical Line Terminal (OLT) and ONT.

  • Page 21: Advanced Setup

    7.1 Advanced Setup Advanced Setup - Measurements tab Advanced Setup options include PLOAM Decoder Filter options, and additional test management options. Filter Extended Burst Length: When active, prevents capture in the PLOAM Decoder log of Extended_Burst Length PLOAM messages from the OLT. Filter Sleep Allow: When active, prevents capture in the PLOAM Decoder log of Sleep_Allow PLOAM messages from the OLT.

  • Page 22: Active Onu

    7.2 Active ONU Active ONU lists all of the ONUs that have been activated by the OLT since the measurement was started/restarted from the OPM summary screen. Tap Clear to clear the list. Active ONU screen Go back to top Go back to TOC 7.3 PLOAM Decoder PLOAM Decoder screen Physical Layer Operations, Administrations and Maintenance (PLOAM).
  • Page 23 8.0 V-Test V-Test is a VeEX speed test. There are a few different server types that can be used to run the speed test. The following server types are available from Server Selection Mode: VeEX Managed (Server List): A list of servers maintained by VeEX initially provided by the user. Specific server names for each location are listed.
  • Page 24 Server Named FREMONT Can Be Added to server1 3. Server profiles and server lists created from here are available in Server Selection Mode > User Managed. FREMONT and server1 appearing in User Managed Go back to top Go back to TOC FX120_User_Manual_RevA02 Page 24 of 32...
  • Page 25 Starting a V-Test Select a server from User Managed or VeEX Managed. Enabling Ping mode simultaneously runs a Ping test. Ping Response results will appear under the Results tab. Tap Start to initiate testing. The download test starts first, followed by the upload test.
  • Page 26 V-Test - Results - Http Graphs Go back to top Go back to TOC FX120_User_Manual_RevA02 Page 26 of 32...
  • Page 27 VeEX Inc. is committed to comply with RoHS and WEEE Directives to minimize the environmental impact of our products. For more information about RoHS as it relates to VeEX Inc, go to the VeEX web site at www.veexinc.com/RoHS. Go back to top Go back to TOC...
  • Page 28 With a blend of advanced technologies and vast technical expertise, VeEX products address all stages of network deployment, maintenance, field service turn-up, and integrate service verification features across copper, fiber optics, CATV/DOCSIS, mobile 4G/5G backhaul and fronthaul, next generation transport network, Fibre Channel, carrier &...
  • Page 29 Appendix A xPON Definitions Activation: A set of distributed procedures executed by the OLT and the ONUs that allows an inactive ONU to join or resume operations on the PON. The activation process includes three phases: parameter learning, serial number acquisition, and ranging. Bandwidth allocation: An upstream transmission opportunity granted by the OLT for the duration of the specified time interval to the specified traffic-bearing entity within an ONU.
  • Page 30 Pre-assigned delay (PrD): The requisite delay that all the ONUs on the PON are required to use prior to completion of the ranging phase of the activation process. Quiet window: A time interval during which the OLT suppresses all the bandwidth allocations to the in-service ONUs in order to avoid collisions between their upstream transmissions and the transmission bursts from the ONUs that have just joined the PON and are undergoing the activation process.
  • Page 31 Appendix B xPON ABBREVIATIONS AND ACRONYMS AES - Advanced Encryption Standard Alloc-ID -Allocation Identifier ANI - Access Node Interface APS - Automatic Protection Switching BCH - Bose-Chaudhuri-Hocquengham BER - Bit Error Ratio BIP - Bit Interleaved Parity B-ISDN - Broadband Integrated Services Digital Network Blen - BWmap Length B-PON - Broadband Passive Optical Network BW - Bandwidth...
  • Page 32 PEE - Physical Equipment Error PHY - Physical Interface PIR - Peak Information Rate PLend - Payload Length downstream PLI - Payload Length Indicator PLOAM - Physical Layer OAM Operations, Administrations and Maintenance PLOAMd - Physical Layer OAM Operations, Administrations and Maintenance downstream PLOAMu - Physical Layer OAM Operations, Administrations and Maintenance upstream PLOu - Physical Layer Overhead upstream PLSu - Power Levelling Sequence upstream PMD - Physical Media Dependent PON - Passive Optical Network Port-ID - Port Identifier...
