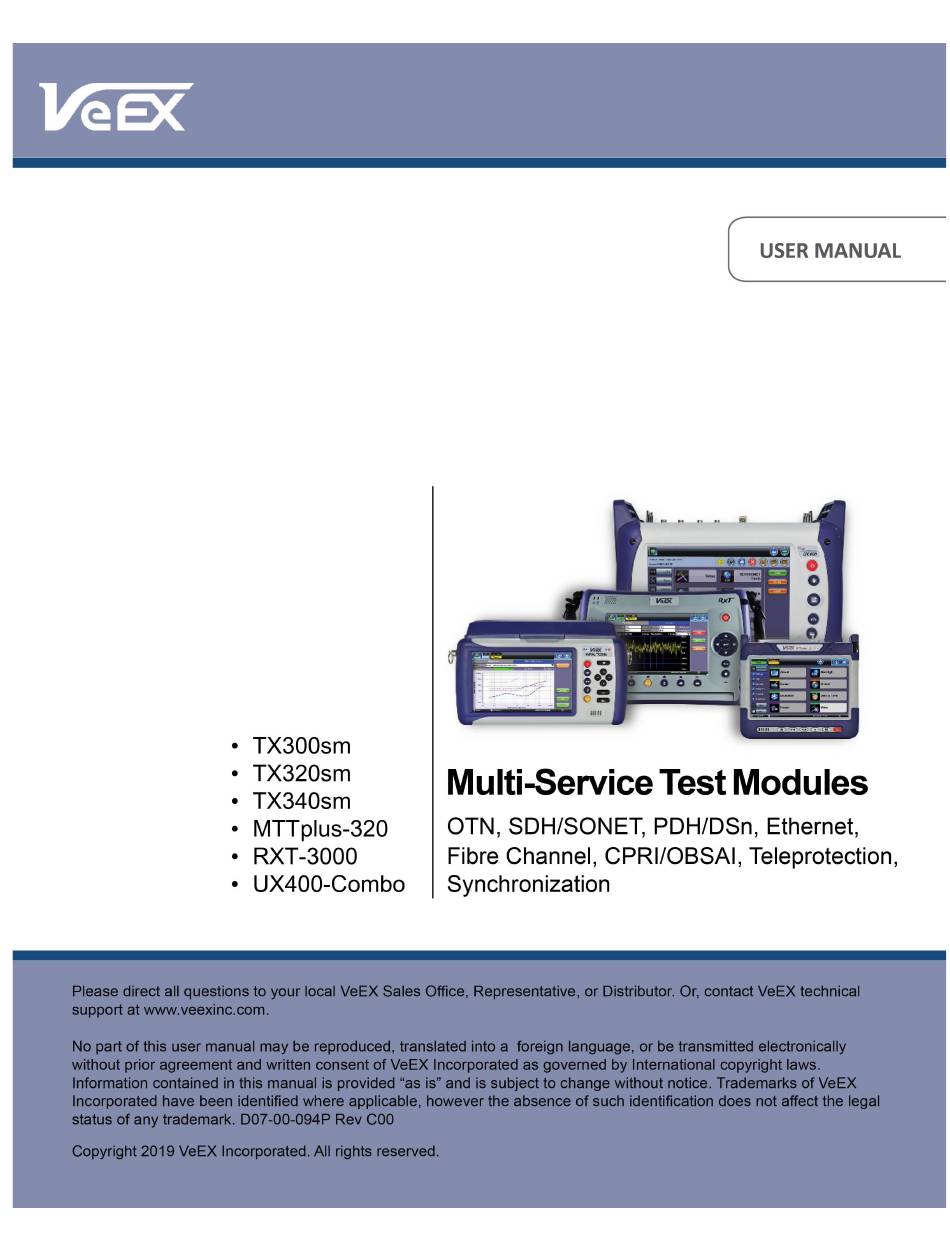

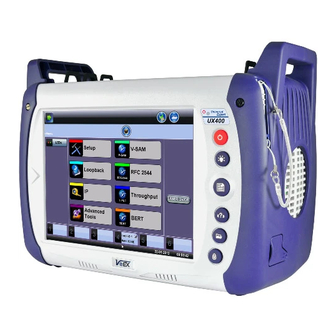

VeEX TX300sm User Manual

VeEX TX300sm User Manual

Multi-service test modules otn, sdh/sonet, pdh/dsn, ethernet, fibre channel, cpri/obsai, teleprotection, synchronization

page of 544

/ 544
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Download this manual

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the TX300sm and is the answer not in the manual?

Questions and answers

Summary of Contents for VeEX TX300sm

Page 2: Table Of Contents
Table of Contents 1.0 About This User Manual 2.0 Introduction 2.1 Connector Panels & Test Ports 3.0 Safety Information 4.0 Basic Operations 5.0 Utilities 6.0 Setup 6.1 Signal Overview 6.2 Setup: PDH 6.2.1 Transmitter/Receiver Setup 6.3 Setup: SDH 6.3.1 Transmitter Setup 6.3.2 Receiver Setup 6.4 Setup: SONET 6.4.1 Transmitter Setup...
Page 3 6.7.5 Service Disruption Test (SDT) 7.0 Results 7.1 Results: PDH 7.1.1 Summary 7.1.2 Errors and Alarms 7.1.3 Event Log 7.1.4 Signal 7.1.5 Histogram 7.1.6 Graph 7.1.7 Performance Analysis 7.1.8 Service Disruption Test (SDT) Results 7.2 Results: SDH 7.2.1 Summary 7.2.2 Errors and Alarms 7.2.3 Event Log 7.2.4 Signal 7.2.5 Histogram...
Page 4 7.4 Results: OTN 7.4.1 Summary 7.4.2 Errors and Alarms 7.4.3 Event Log 7.4.4 Signal 7.4.5 Histogram 7.4.6 Graph 7.4.7 Performance Analysis 7.4.8 Service Disruption Test (SDT) Results 8.0 Alarms/Errors 8.1 Alarm Generation 8.1.1 SDH Alarms 8.1.2 OTN Alarms 8.2 Error Insertion 8.2.1 SDH Errors 8.2.2 OTN Errors 9.0 OTN Tools...
Page 5 10.1.2 Overhead Analyzer 10.1.3 Overhead Generator 10.1.4 Pointer Tasks 10.1.4.1 Pointer Analysis 10.1.4.2 Pointer Generation 10.1.4.3 Pointer Sequences 10.1.5 Trace Identifier 10.1.5.1 Transmitted Traces (TX) 10.1.5.2 Received Traces (RX) 10.1.6 Payload Labels 10.1.7 APS Tasks 10.1.7.1 APS Timing 10.1.7.2 APS Sequence 10.1.8 Tandem Connection Monitoring (TCM) 10.1.9 Tributary Scan 10.1.10 Round Trip Delay...
Page 6 10.2.7.1 APS Timing 10.2.7.2 APS Sequence 10.2.8 Tandem Connection Monitoring (TCM) 10.2.9 Tributary Scan 10.2.10 Round Trip Delay 10.2.11 Jitter and Wander 10.2.12 STS-1 Monitor 10.2.13 SONET BERT 11.0 PDH Tools 11.1 E1 Pulse Mask 11.2 E3 Pulse Mask 11.3 E1 Sa Bits SSM QL (Clock Quality Level) 11.4 Round Trip Delay 11.5 E1 RX Data 11.6 V.54...
Page 7 13.4.2 Advanced Clock Wander & Phase Measurements 13.4.2.1 Clock Wander and Phase Measurements (Optional) 13.4.2.2 Built-in MTIE & TDEV Analysis (Optional) 13.4.3 VeEX MTIE/TDEV Wander Analysis PC Software 13.4.3.1 TIE Measurement Results 13.4.3.2 MTIE & TDEV Analysis 13.4.3.3 MTIE & TDEV Analysis Report in PDF 14.0 Ethernet over OTN (EoOTN)
Page 8 14.1 OTU2e & OTU1e Overview 14.2 OTU2e & OTU1e with Ethernet Payloads 14.2.1 Signal Setup 14.2.1.1 Hierarchy 14.2.1.2 Interface 14.2.1.3 Pattern 14.2.2 Measurements 14.2.3 General 14.3 OTU2e & OTU1e Results 14.4 OTU2e & OTU1e Ethernet Applications 14.4.1 OTU2e & OTU1e with 10GE BERT 14.4.2 OTN/10GE RFC 2544 Conformance Testing 14.4.3 OTN/10GE Throughput Testing (Multiple Streams) 14.5 ODU0 and ODUflex Overview...
Page 9 15.2 IP 15.2.1 IP Connection 15.2.1.1 Setup 15.2.1.2 Status 15.2.2 Trace Route 15.2.3 ARP Wiz 15.2.4 Ping 15.2.5 VoIP Testing 15.2.5.1 VoIP Check 15.2.5.2 VoIP Expert - Client/Server Mode 15.2.5.3 VoIP Expert - IP Phone Mode 15.2.5.4 Placing a Call 15.2.5.5 VoIP IP Phone Results 15.3 BERT 15.3.1 BERT Setup...
Page 10 15.4.1.1 Header Settings 15.4.1.2 Frame Settings 15.4.1.3 Threshold Settings 15.4.1.4 Throughput, Latency, Frame Loss, and Burst Settings 15.4.1.5 Starting/Stopping a RFC 2544 Measurement 15.4.2 Results - Standard Mode 15.4.3 Saving RFC 2544 Results 15.4.4 Advanced SLA Mode 15.4.5 Background Results - Advanced SLA Mode 15.4.6 Peer-to-Peer and Asymmetric Testing 15.5 V-SAM 15.5.1 V-SAM Setup...
Page 11 15.7 Ethernet OAM Testing 15.7.1 OAM Setup 15.7.1.1 Link Level 802.3ah OAM Setup 15.7.1.2 Service Level OAM: 802.1ag/Y.1731/G.8113.1 Setup 15.7.2 OAM Results 15.7.2.1 Link OAM Results 15.7.2.2 OAM Service Results 15.8 Monitor (Pass Through) Mode 15.8.1 Setup 15.8.2 Results 15.9 Advanced Monitoring 15.10 Loopback Mode 15.11 Scan 15.12 SyncE...
Page 12 15.14 PDV Analysis 15.15 Packet Capture 15.15.1 Packet Capture Setup 15.15.2 Packet Capture Results 15.16 IPTV 15.16.1 IPTV Setup 15.16.2 IPTV Analysis 15.16.3 IPTV Viewer 15.17 Layer 4+ Applications 15.17.1 V-Perf 15.17.2 V-Test 15.17.3 V-FTP 15.18 PESQ Testing 15.19 Phy Mode 15.20 Net Wiz 15.21 Autoscripting 15.22 L2CP Transparency...
Page 13 16.4 Loopback 16.5 Packet Capture 17.0 CPRI Optical Testing 17.1 Interface Specifications 17.2 CPRI Testing 17.2.1 CPRI/OBSAI Unframed BERT Setup 17.2.1.1 Test Pattern 17.2.1.2 Traffic Pattern 17.2.1.3 Error Injection 17.2.2 CPRI/OBSAI Unframed BERT Results 17.2.2.1 Summary 17.2.2.2 Signal 17.2.2.3 Errors 17.2.2.4 Alarms 17.2.2.5 Events 17.3 CPRI Layer 1 Framed Testing...
Page 14 17.5.3 Service Disruption Test (SDT) Results 17.5.4 Control Words 18.0 IEEE C37.94™ Testing (TX320s only) 18.1 Introduction 18.2 Getting Started 18.3 Testing C37.94 18.3.1 Test Setup 18.3.2 Test Results 18.3.3 Test Profiles 18.3.4 Round Trip Delay (RTD) 18.3.5 C37.94 Data (Received) 18.3.6 One-Way Delay Measurements (Latency and Asymmetry) 19.0 G703.64k Codirectional 19.1 Setup...
Page 15 21.5 Ethernet Stats 21.6 PDV Graphs 21.7 PDV Analysis 22.0 Profiles 23.0 Common Functions 24.0 Warranty and Software 25.0 Product Specifications 26.0 Certifications and Declarations 27.0 About VeEX Go back to top Multi-Service Test Module Manual Rev C00 Page 15 of 544...
Page 16: About This User Manual
(c) Copyright 2019 VeEX Inc. All rights reserved. VeEX, VePAL are registered trademarks of VeEX Inc. and/or its affiliates in the USA and certain other countries. All trademarks or registered trademarks are the property of their respective companies. No part of this document may be reproduced or transmitted electronically or otherwise without written permission from VeEX Inc.
Page 17 2.0 Introduction to Multi-Service Test Modules VeEX offers a variety of flexible Multi-Service Test Modules covering a wide range of transmission technologies, protocols, verification and troubleshooting test features, from 64 kbit/s up to 11Gbit/s. They also share similar user interfaces to ease the transitioning from one product or platform to another.
Page 18: Network Synchronization
RFC2544 SLA, Y.1564 V-SAM, OAM/MPLS-TP OAM (802.3ah, 802.1ag, Y.1731, G.8113.1) Layer 4 Throughput applications: V-PERF (TCP), VeTest (HTTP), FTP SyncE Master and Slave Emulation Clock Recovery and Translation Wander Measurements 1588v2 PTP (Precision Timing Protocol) Master and Slave Emulation with Clock Recovery and Translation PTP Message Capture, Decode and Export (pcap) Wander and Phase Measurements Fibre Channel (Storage Area Networks)
Page 19: Connector Panels & Test Ports
2.1 Connector Panels & Test Ports TX300S with two TX300SM blades TX300S with one TX300SM blade A separate test module may also be installed in the test port group 2 (e.g. OTDR module) TX300S with one TX320SM blade A separate test module may also be installed in the test port group 2 (e.g. OTDR or 100G/40G module)
Page 20 A separate test module may also be installed in the test port group 2 (e.g. OTDR or 100G/40G module) RXT-3000 module MTTplus-320 module UX400-Combo module Multi-Service Test Module Manual Rev C00 Page 20 of 544...
Page 21 Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 21 of 544...
Page 22: Safety Information
Do not operate the instrument in the presence of flammable gases or fumes or any other combustible environment. VeEX Inc. assumes no liability for the customer's failure to comply with safety precautions and requirements.
Page 23 batteries in deep discharge state may limit the initial charging current (pre-recharge) before starting their regular fast charging cycle. The pre-charging state may take several hours. Air transportation of Li-ion batteries is regulated by United Nations' International Air Transportation Association (IATA) Dangerous Goods Regulations and by country-specific regulations.
Page 24: Basic Operations
4.0 Basic Operations Refer to the TX300S, MTTplus, RXT-1200, or UX400 platform manuals for information about Basic Operations, Home menu, Launching Test Applications etc. Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 24 of 544...
Page 25: Utilities
5.0 Utilities Refer to the TX300S, MTTplus, RXT-1200, or UX400 platform manuals for information about all Utilities and Tools available. Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 25 of 544...
Page 26: Signal Overview
6.0 OTN, SDH/SONET, PDH/DSn Test Mode Accessing Setup: Please see the Getting Started section in the TX300S, MTTplus, RXT-1200, or UX400 platform manuals for information on launching Test Applications. SONET Home Menu The Setup page has four tabs for setting the OTN, SDH/SONET, and PDH parameters: Signal, Measurements, General, and Auto- Config tabs.
Page 27 Coupling TX and RX When the TX and RX signal structures are required to be identical or symmetrical, coupling the Transmitter and Receiver is possible. Tap on the blue "TX" or "RX" header to bring up the Copy menu. Copy menu options are Coupled, Tx=Rx, and Rx=Tx. Accessing the Copy Menu Copy Menu Options Coupled: TX and RX configurations are grouped as one block;...
Page 28 Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 28 of 544...
Page 29: Setup: Pdh
6.2 Setup: PDH SDH/SONET selection from the General tab SDH/SONET Selection from the General tab Accessing PDH Testing To display PDH options for the TX and RX block configuration, 1. Tap on the General tab from the Setup screen and select SDH from the SDH/SONET drop-down menu. 2.
Page 30 Network Type: Select PDH as the network type. High Rate: This is the physical data rate on the test port. Options are 1.5Mbps (DS1), 2Mbps (E1), 8Mbps (E2), 34Mbps (E3), 45Mbps (DS3), 140Mbps (E4). Refer to Low Rate for the logical test payload. Example: A DS3 (high) physical interface carrying a multiplexed DS1 (low) logical test channel.
Page 31 Clock Source (TX only), can be configured as follows: Internal clock: The clock for the transmitter is derived from the internal quartz oscillator. The internal clock has an accuracy of +/- 3.5ppm conforming to G.812 recommendations. External clock: 1.5MHz, 2MHz, 1.5Mbps, and 2Mbps signals are present on the SMA connector. Only 2Mbps signals are available on the RX2 balanced and RX2 BNC unbalanced ports.
Page 32 Low Rate (test payload): In DS1 (1.544Mbps) mode, the options are 1.544M or Fractional DS1 (Nx64 or Nx56) where: 1.544M: Configures the transmitter for full rate testing at 1.544Mbps Fractional DS1 (Nx64 or Nx56): Configures the transmitter for fractional testing using any combination of N or M 64kbps or 56kbps timeslots (contiguous or non-contiguous timeslots) In DS3 (45Mbps) mode, the options are 45M, 1.544M Mux (DS3/DS1 Mux) or Fractional DS1Mux (Nx64 or Nx56) where: 45M: Configures the transmitter for full rate testing at 45Mbps...
Page 33 For Nx64 and Nx56 rates: Select the timeslot by tapping the applicable boxes. Deselect the time slot by tapping the box again. Unused: AIS, Idle Channel: Input channel number to structure test payload. Other channels: Unequipped—used to fill up unused (idle) timeslots, broadcast Unframed signal types are not supported in the Nx64 fractional mode because framing is required to determine the location of timeslots.
Page 34 Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 34 of 544...
Page 35: Setup: Sdh
6.3 Setup: SDH SDH/SONET selection from the General tab Accessing SDH Testing To display SDH options for the TX and RX block configuration, 1. Tap on the General tab from the Setup screen and select SDH from the SDH/SONET drop-down menu. 2.
Page 36 Operating Mode: Normal, Payload, or Transparent. Normal Mode: Unit working as normal SDH mode. Payload Through Mode: Overhead overwrite Editing Thru mode allows for some intrusive error and alarm injection through overhead manipulation. Transparent Through Mode: All the traffic goes through the unit untouched and the unit can monitor it. It is comparable to Monitor mode with a 10/90 splitter.
Page 37 Rx: The clock for the transmitter is derived from the received signal, and the jitter of the incoming signal is suppressed. Offset: The clock for the transmitter is derived from the internal clock generator. It can change the offset while measurements are running.
Page 38 Tx Structure Setup - Graphical Mode AU4 Mapping: VC4-64C, VC4-16C, VC4-4C, VC4, VC3, and VC12 are available. AU3 Mapping: VC3,VC12, and TU11/VC11 are available. Bulk: Tap the check box to enable the setting. In bulk mode, the entire VT container is filled with a test pattern per ITU-T 0.181 recommendations.
Page 39 The high order paths are named using a C, B, A convention as follows: C: The AUG-4 are numbered 1 to 4 B: The AUG-1 are numbered 1 to 4 A: The AU-3 are numbered 1 to 3 Thus the naming convention per SDH rate is as follows: For STM-16: [C, B, A] convention is used For STM-4: [B, A] convention is used For STM-1 using AU-3 mapping: [A] convention is used...
Page 40: Receiver Setup
timeslots) In VC3 mapping mode/Tributary set to E3, the Low Rate option are 34M or 2M Mux (E3//E1 Mux) or Fractional E1 Mux (E3//E1 Mux w/Nx64) where: 34M: Configures the transmitter for full rate testing at 34Mbps 2M Mux mode: Configures the transmitter for full rate testing at 34Mbps signal with E1 payloads (1 to 16 channels) Fractional E1 Mux mode: Configures the transmitter for full rate testing at 34Mbps signal with E1 payloads (1 to 16 channels) for fractional testing using N or M 64kbps timeslots (contiguous or non-contiguous timeslots) Framing: Depends on low rate selected:...
Page 41 determine safe levels. Avoid looping back the Tx and Rx on a 1550nm XFP or SFP using a patchcord only – this will damage the SFP. Structure and Payload SDH Rx Structure and Payload configurations are the same as for SDH Tx setup described previously. Pattern Tapping the Pattern box opens the Rx Pattern setup screen.
Page 42: Setup: Sonet
6.4 Setup: SONET Selecting SONET from the General tab Setting up SONET Testing To display SONET options for the TX and RX block configuration, tap on the General tab from the Setup screen and select SONET from the SDH/SONET drop-down menu. Depending on whether SDH or SONET is selected from the SDH/SONET option under the General tab, TX and RX configuration screens will look slightly different.
Page 43 Operating Through Mode: Normal Mode: Unit working as normal SONET mode. Payload Through Mode: Overhead overwrite Editing Thru mode allows for some intrusive error and alarm injection through overhead manipulation. Transparent Through Mode: All the traffic goes through the unit untouched and the unit can monitor it. It is comparable to Monitor Mode with a 10/90 splitter.
Page 44 Mapping: STS-192C, STS-48C, STS-12C, STS-3C, STS-1 and VT1.5 is available. VT-2 is optional. STS mappings per Bellcore GR-253 and ANSI T1.105 recommendations are supported. The multiplexing structure is shown below. Tx Structure Setup - Graphical Mode Multi-Service Test Module Manual Rev C00 Page 44 of 544...
Page 45 Bulk: Tap the check box to enable the setting. In Bulk mode, the entire VT container is filled with a test pattern per ITU-T 0.181 recommendations. Tributary: Preset to DS1, E1, DS3, and E3 depending upon the options and mapping. Other channels:Unequipped—used to fill up unused (idle) timeslots, broadcast Sync: Async, Bit, Byte Channel Selection: The Tx channel is selected by entering the STS-N, VT-GRP, and VT-1.5 SPE channel.
Page 46 Tx Payload Setup Rate: Depends on mapping selected. In VT-1.5 mapping mode, The Low Rate options are 1.544M or Fractional DS1 (Nx64 or Nx56) where: 1.544M: Configures the transmitter for full rate testing at 1.544Mbps Fractional DS1 (Nx64 or Nx56): Configures the transmitter for fractional testing using N or M 64kbps timeslots (contiguous or non- contiguous timeslots) In STS-1 mapping mode/Tributary set to DS3, the Low Rate option are 45M or 1.544M Mux (DS3/DS1 Mux) or Fractional DS1 (Nx64 or Nx56) Mux where:...
Page 47: Receiver Setup
Pattern Tapping the Tx Pattern box opens the Tx Pattern Setup screen. Tx Pattern Setup Pattern: Use the pattern drop-down box to select the test pattern which will be inserted into the transmitted signal. Pseudo Random Bit Sequences (PRBS) defined by ITU-T 0.150 and 0.151 standards, fixed words and 24-bit or 32 bit user defined patterns are available.
Page 48 Tapping the Structure setup box opens the Rx Structure screen. The Structure setup options for the Rx are the same as for the Tx described previously. Payload Tapping the Payload setup box opens the Rx Payload screen. The Payload setup options for the Rx are the same as for the SONET Tx setup described previously.
Page 49: Setup: Otn/Sdh
6.5 Setup: OTN/SDH Selecting SDH from the General tab Setting up OTN/SDH To verify that the Tx and Rx block diagrams are OTN/SDH, verify that SDH is selected from the SDH/SONET drop-down menu under the General tab. Go back to top Go back to TOC 6.5.1 OTN Transmitter Setup This section of the manual describes the OTN configuration capabilities.
Page 50 ODTU12 Channel (OTU-2 only) OPU2 Mapping (OTU-2 only): BMP, AMP ODTU01 Channel OPU1 Mapping: BMP, AMP OPU0 Mapping: GMP ITU-T G.709 and both AU-4 and AU-3 signal mappings per G.707 recommendations are supported. The multiplexing structure is shown below. Scrambler: ON/OFF FEC: FEC encoder can be ON/OFF (activated / deactivated) OPU Type: SDH Test Rate: STM-1-155M, STM-4-622M...
Page 51 Tx Interface Setup Tx Structure Setup - Graphical Mode Tx Payload Setup Tx Pattern Setup Multi-Service Test Module Manual Rev C00 Page 51 of 544...
Page 52 Go back to top Go back to TOC 6.5.2 Receiver Setup Hierarchy Tapping the Hierarchy setup box opens the Rx Hierarchy screen. The Hierarchy setup options for the Rx are the same as for the Tx described previously. Interface Tapping the Interface setup box opens the Rx Interface screen. The Interface setup options for the Rx are the same as for the Tx described previously, except for clock offset, which is only available in Tx.
Page 53: Transmitter Setup
6.6 Setup: OTN/SONET Selecting SONET from the General tab To verify that the Tx and Rx block diagrams are OTN/SONET, make sure that SONET is selected from the SDH/SONET drop-down menu under the General tab. Go back to top Go back to TOC 6.6.1 Transmitter Setup This section of the manual describes the OTN configuration capabilities.
Page 54: Transmitter Setup
OTN Mapping: SYNC, ASYNC, and PRBS pattern ITU-T G.709 and STS mappings per Bellcore GR-253 and ANSI T1.105 recommendations are supported. The multiplexing structure is shown below. Scrambler: ON/OFF FEC: FEC encoder can be ON/OFF (activated / deactivated) Go back to top Go back to TOC Interface, Structure, Payload, and Pattern Interface, Structure, Payload, and Pattern TX block configurations are identical to configurations in Transmitter Setup...
Page 55 Tx Structure Setup - Text Mode Tx Structure Setup - Graphical Mode Multi-Service Test Module Manual Rev C00 Page 55 of 544...
Page 56: Receiver Setup
Tx Payload Setup Tx Pattern Setup Go back to top Go back to TOC 6.6.2 Receiver Setup Hierarchy Tapping the Hierarchy setup box opens the Rx Hierarchy screen. The Hierarchy setup options for the Rx are the same as for the Tx described previously.
Page 57 Go back to top Go back to TOC Interface Tapping the Interface setup box opens the Rx Interface screen. The Interface setup options for the Rx are the same as for the Tx described previously, except for clock offset, which is only available in Tx. Rx Interface Go back to top Go back to TOC Structure and Payload...
Page 58 Rx Payload Go back to top Go back to TOC Pattern Tapping the Pattern box opens the Rx Pattern setup screen. The Pattern setup options for the Rx are the same as for the Tx described previously, except for the Out of Service selection, which should be selected if the incoming signal is expected to contain a known test pattern.
Page 59 Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 59 of 544...
Page 60: Measurement Configuration
6.7 Measurement Configuration Tapping the Measurements tab opens the setup screen for the Timer, Performance Analysis, and General configurations. Measurements tab Go back to top Go back to TOC 6.7.1 Timer Setup Configure a test to run for a fixed duration and/or a delayed start. Mode: Manual, Timed, and Auto selections are available.
Page 61 The recommendations are briefly defined as follows: G.821: Error performance of an international digital connection operating at a bit rate below the primary rate and forming part of an Integrated Service Digital Network (ISDN) Long term error performance conducted Out of Service (OOS) Based on measuring bit errors Evaluation period of 30 days Since there is no overhead structure at these bit rates, in-service measurements are not recommended...
Page 62: General
for the performance analysis selected. Go back to top Go back to TOC 6.7.3 General The General setup page configures the audible alarm and APS protocol settings. Audible alarms may not be supported by all test sets, technologies and applications. General tab APS Protocol: Linear or Ring architectures are selectable.
Page 63 Auto-config tab The Auto-Config function automatically configures the test set’s interface to match the received signal. A search for SDH and PDH signals at both the electrical or optical inputs is performed to determine the signal structure. For electrical signals, both Terminated and PMP voltage ranges are searched and supported.
Page 64 condition (Gate Time) is met. If SDT is enabled and alarm/error triggers are selected, the results will appear in the Results section under the SDT tab. Testing Process The test set measures how long the event remains present after it is first recognized and will continue to measure the total service disruption time in the event of multiple disruptions.
Page 65 In the simplified example above, two events occur with 150ms of error free time in between. A gate time of 300ms counts them as one service disruption because the error-free section is less that the gate time. Using a gate time of 100ms to evaluate the same situation would coun two service disruptions, because the Gate Time condition is met within the error-free section.
Page 66 7.0 Results Accessing Results To access measurements for PDH, SDH, SONET, and OTN, tap on Start, which starts testing, or Results. Results Button Go back to top Go back to TOC 7.1 Results: PDH 7.1.1 Summary The Summary tab displays an overview of the major test parameters. At a glance, the user is able to see if there are any alarms, errors, or signal failure.
Page 67 The soft LEDs on screen are arranged logically and will depend on signal hierarchy, structure, payload and framing selected. The soft LEDs have a tricolor function: Green: No error or alarm is present. Red: An error or alarm condition is detected and is currently present. Yellow: Indicates a history condition.
Page 68 Errors/Alarms (Page 3) Page 3 lists the Errors in logical order that are associated with the signal under test. All errors are counted simultaneously and stored. Errors/Alarms - PDH (Page 3) Go back to top Go back to TOC Errors/Alarms (Page 4) Page 4 lists the Bit Error Performance (BERT) associated with the signal under test.
Page 69 Go back to top Go back to TOC 7.1.4 Signal Log The Signal tab displays the frequency and level result screen. Signal tab Frequency: The received signal frequency and offset is measured and displayed. For E1 signals, the measurement is performed on both balanced 100 ohm and unbalanced 75 ohm interfaces.
Page 70 Level: Measures the Peak and Peak-Peak voltage values of the incoming signal. The levels for the various signal types according to ITU-T G.703 recommendations are presented. Go back to top Go back to TOC 7.1.5 Histogram Log The Histogram tab displays a historical record of the Alarms and Errors recorded during the measurement interval. A dedicated page is available for errors and alarms including BER.
Page 71 table below. The screen below depicts BER and bit errors (LSS stand for Loss of Sequence Synchronization). Go back to top Go back to TOC 7.1.6 Graph The Graph tab displays a screen displaying a log of the errors recorded during the measurement interval. A dedicated page is available for each error type.
Page 72 This recommendation was originally specified for international circuit-switched N x 64kbps connections and later expanded to include higher bit rates. ES, SES, AS and UAS are evaluated and can be performed on the following events: FAS bit errors (FAS 2, FAS 34) CRC errors E bit errors Bit errors (TSE, Test Sequence Error)
Page 73 Severely Errored Second (SES): A one-second time interval in which more than 30% of the blocks are errored. Block Error (BE): A block containing one or more errored bits. Background Block Error (BBE): An errored block that is not a SES. Unavailable Second (UAS): A circuit is considered to be unavailable from the first of at least ten consecutive SES.
Page 74 Pass/Fail results are based on threshold values S1 and S2 for ES and SES. Settings for S1 and S2: Path allocation: 0.1 to 100% BISO multiplication factor: 0.1 to 100 The M.2100 evaluation can be performed on the following events: FAS bit errors (FAS2, FAS34, and FAS140) CRC-4 errors EBIT errors...
Page 75 If SDT is enabled in Setup, the SDT tab will display time measurements of detected errors/alarms specified by the user in SDT setup. Last SDT: The duration of the last service disruption detected Min/Max: Shortest and longest service disruption duration Result: Waiting for trigger or Measure Waiting for trigger: Testing is in progress and the unit is waiting to detect an error/alarm Measure: Error/alarm is in progress...
Page 76 7.2 Results: SDH 7.2.1 Summary The Summary tab displays a summary of test results and parameters. At a glance, the user is able to see if there are any alarms, errors, or signal failure pertaining to the SDH signal and its payload. Summary Go back to top Go back to TOC 7.2.2 Errors and Alarms...
Page 77 Tapping the individual soft LED will automatically link directly to the applicable result screen which provides detailed information. Depending on the settings chosen in Setup > Signal, the Alarms/Errors displayed and page length will vary, but the order in which they are presented remain the same. The LED headers are described in the table below: SDH Error and Alarm defection criteria per ITU-T G.707 and O.150 recommendations: Multi-Service Test Module Manual Rev C00...
Page 78 SDH Error and Alarm defection criteria per ITU-T G.707 and O.150 recommendations: Multi-Service Test Module Manual Rev C00 Page 78 of 544...
Page 79 Refer to PDH alarms in Results. Multi-Service Test Module Manual Rev C00 Page 79 of 544...
Page 80 Go back to top Go back to TOC Errors/Alarms (Page 2) Page 2 lists the SDH Errors in logical order that are associated with the signal under test. All errors are evaluated and stored. The Elapsed Time [ET] is shown in the right hand corner of the header. Error conditions are displayed in red including count and rate. Errors/Alarms (Page 2) Go back to top Go back to TOC Errors/Alarms (Page 3)
Page 81 Page 6 lists the PDH Alarms in logical order that are associated with the signal and payload under test. All alarms are evaluated and stored. Errors/Alarms (Page 7) Page 7 lists the PDH Errors in logical order that are associated with the signal and payload under test. All errors are evaluated and stored.
Page 82 Frequency (Page 2) The received signal frequency and offset is measured and displayed. For SDH signals, the measurement is performed on both electrical (BNC) and optical interfaces (SFP or XFP). Signal - Frequency (Page 2) Frequency: The received signal frequency and offset is measured and displayed. SDH Current: Indicates the frequency of the input signal.
Page 83: Histogram
Level: Measures the Peak and Peak-Peak voltage values or optical power of the incoming signal. Optical Information (Page 3) Page 3 displays the Optical module (SFP or XFP) information which includes Vendor name, Part number, and Optical Wavelength. Optical Information (Page 4) Page 4 displays the Optical module (SFP or XFP) Power Measurement Graph.
Page 84 The alarms and errors presented depend on the signal type and structure selected. A graphical timeline on the horizontal axis indicates when the event occurred. The upper left and right arrows allow the user to scroll through the measurement period while the + and – keys allow zooming in/out of the time axis. Histogram (Page 2) Page 2 displays the Errors associated with the Section Overhead (SOH).
Page 85 Histogram (Page 7) Page 7 displays the Alarms associated with the payload. The measured parameters depend on the payload selected. Histogram (Page 8) Page 8 displays the BERT Errors associated with the test pattern. Go back to top Go back to TOC 7.2.6 Graph The Graph tab displays the screen displaying a log of the Errors recorded during the measurement interval.
Page 86 The Analysis tab displays measured objectives from ITU-T performance tests selected from the Measurements tab (Setup > Measurements). See Performance Analysis in the PDH section for information on the Analysis tab and test definitions. For a brief description of supported G-Series and M-Series performance tests as well as setup instructions, please see Performance Analysis the Measurement Configuration section.
Page 87 7.3 Results: SONET 7.3.1 Summary The Summary tab displays a summary of test results and parameters. At a glance, the user is able to see if there are any alarms, errors, or signal failure pertaining to the SONET signal and its payload. Summary Go back to top Go back to TOC 7.3.2 Errors and Alarms...
Page 88 Tapping the individual soft LED will automatically link directly to the applicable result screen which provides detailed information. Depending on the settings chosen in Setup > Signal, the Alarms/Errors displayed and page length will vary, but the order in which they are presented remain the same. The LED headers are described in the table below: SONET Error and Alarm definitions per Bellcore GR.253 and ANSI T1.105 recommendations: Multi-Service Test Module Manual Rev C00...
Page 89 SONET Error and Alarm defection criteria per Bellcore GR.253 and ANSI T1.105/231: Multi-Service Test Module Manual Rev C00 Page 89 of 544...
Page 90 Refer to PDH alarms in the PDH Results section. Go back to top Go back to TOC Errors/Alarms (Page 2) Page 2 lists the SONET Errors in logical order that are associated with the signal under test. All errors are evaluated and stored. The Elapsed Time [ET] is shown in the right hand corner of the header.
Page 91 The alarms associated with the Section and Line are displayed separately for ease of interpretation. Errors/Alarms (Page 4 and 5) Page 4 & 5 lists the STS Path and VT path in logical order that are associated with the signal under test. All alarms are evaluated and stored.
Page 92 Event Log Go back to top Go back to TOC 7.3.4 Signal The Signal tab displays the Level and Frequency screen. Page 1 displays the level measurement in electrical units (volts) for OC-3, OC-12, OC-48 and OC-192 signals. Loss of Signal (LOS) and the Saturation level for optical signals is shown graphically including the level measurement in dBm. Signal (Page 1) Go back to top Go back to TOC Signal >...
Page 93 Frequency: The received signal frequency and offset is measured and displayed. SONET Current: Indicates the frequency of the input signal. Offset: Indicates the difference between the standard rate and the rate of the input signal. Min (ppm): Indicates the difference between the standard rate and the minimum deviation detected in the input signal. Max (ppm): Indicates the difference between the standard rate and the maximum deviation detected in the input signal.
Page 94 Go back to top Go back to TOC Optical Information (Page 3) Page 3 displays the Optical module (SFP or XFP) information which includes Vendor name, Part Number and Optical Wavelength. Signal - Optical (Page 3) Signal > Optical Information (Page 4) Page 4 displays the Optical module (SFP or XFP) Power Measurement Graph.
Page 95 the measurement period while the + and – keys allow zooming in/out of the time axis. Go back to top Go back to TOC Histogram (Page 2) Page 2 displays the Errors associated with the SONET Errors. Histogram - SONET Errors (Page 2) Go back to top Go back to TOC Histogram (Page 3) Page 3 displays the Alarms and Errors associated with the STS PATH.
Page 96 UNEQ-V (VT-Unequipped) PLM-V (VT-Payload Mismatch) TIM-V (VT-Trace Identifier Mismatch) RDI-V (VT-Remote Defect Indication) RFI-V (VT-Remote Fault Indication) BIP-V (VT-Bit Interleaved Parity) REI-V (VT-Remote Error Indication) Go back to top Go back to TOC Histogram (Page 7) Page 7 displays the Alarms and Errors associated with the payload. The measured parameters depend on the payload selected. Go back to top Go back to TOC Histogram (Page 8) Page 8 displays the Bit Errors associated with the test pattern.
Page 97 G.821 Analysis The Analysis tab displays measured objectives from ITU-T performance tests selected from the Measurements tab (Setup > Measurements). See Performance Analysis in the PDH section for information on the Analysis tab and test definitions. For a brief description of supported G-Series and M-Series performance tests as well as setup instructions, please see Performance Analysis the Measurement Configuration section.
Page 98 7.4 Results: OTN Measurements are accessed by tapping the Results button in the main menu. The results comprise a range of tabbed pages, similar to the setup pages. 7.4.1 Summary The Summary tab displays a summary page of test results and parameters. At a glance, the user is able to see if there are any alarms, errors or signal failure pertaining to the OTN/SDH or OTN/SONET signal and its payload.
Page 99 Tapping the colored LEDs will automatically link directly to the applicable result screen which provides detailed information. Depending on the settings chosen in Setup > Signal, the Alarms/Errors displayed and page length will vary, but the order in which they are presented remain the same (from physical layer on the left, to payload and test pattern on the far right).
Page 100 Multi-Service Test Module Manual Rev C00 Page 100 of 544...
Page 101 Multi-Service Test Module Manual Rev C00 Page 101 of 544...
Page 102 Refer to Errors and Alarms in the SDH Results section for more information on SDH errors/alarms. Refer to Errors and Alarms in the SONET Results section for more information on SONET. Go back to top Go back to TOC Errors/Alarms (Page 3) Page 3 lists the OTU Errors in logical order that are associated with the signal under test.
Page 103 Page 6 and 7 lists the ODU/OPU errors and alarms in logical order that are associated with the signal under test. All alarms are evaluated and stored. Errors/Alarms (Page 6) Errors/Alarms (Page 7) Errors/Alarms (Page 8 to 14) Pages 8 to 14 lists the SDH/PDH Alarms in logical order that are associated with the signal and payload under test. All alarms are evaluated and stored.
Page 104 signal. Loss of Signal (LOS) and the Saturation level for optical signals are shown graphically including the level measurement in dBm. Optical Level (Page 1): The optical level measurement for OTU-1 and OTU-2 signals is displayed in dBm. Loss of Signal (LOS) and the Saturation levels is shown both graphically and in dBm. Signal (Page 1) Go back to top Go back to TOC Frequency (Page 2)
Page 105 Optical Information (Page 3) The Optical Transceiver (SFP, SFP+, or XFP) information including Vendor name, Part #, Firmware revision #, Optical Wavelength, Min/Max bit rates supported and Dynamic Range. Signal (Page 3) Go back to top Go back to TOC Optical Signal Histogram (Page 4) Displays the Optical Transceiver (SFP or XFP) Power Measurement Graph.
Page 106: Graph
The Histogram tab displays a historical record of Alarms and Errors recorded during the measurement interval in a graph format for easy time correlation. This helps identify the sequence of events that occurred before and after a disruption. A dedicated page is available for errors and alarms including BER.
Page 107: Performance Analysis
Scroll through the various pages to display the anomaly of interest. A status pop-up screen can be accessed by tapping on the graph area. Graph - OTU2 FAS Go back to top Go back to TOC 7.4.7 Performance Analysis G.821 Analysis The Analysis tab displays measured objectives from ITU-T performance tests selected from the Measurements tab (Setup >...
Page 108: Alarm Generation
8.0 Alarm Generation and Error Insertion Accessing Alarm Generation and Error Insertion Tap on Home (main menu) > Alarm/Error The alarm and error functions are used in conjunction with the drop-down menu which has dedicated buttons for error injection and alarm generation.
Page 109: Otn Alarms
The following SDH Alarms can be generated: STM-1/4/16/64 (depends on signal structure): LOS, LOF, MS-AIS, MS-RDI, RS-TIM, AU-LOP, AU-AIS, HP-UNEQ, HP- PLM, HP-RDI, HP-TIM, TU-LOM, TU-LOP, TU-AIS, LP-UNEQ, LP-PLM, LP-RDI, LP-RFI, LP-TIM Payload alarms (depends on payload): DS1-AIS, DS1-LOF, 2M-AIS, 2M-RDI, 2M-LOF, 34M-AIS, 34M-LOF, 34M-RDI, 45M-AIS Mode: Static (enable/disable) using drop-down menu function.
Page 110: Error Insertion
Go back to top Go back to TOC 8.2 Error Insertion OTN, SDH, PDH and T-Carrier errors can be generated. Go back to top Go back to TOC 8.2.1 SDH Errors The following SDH errors can be generated: STM-1/4/16/64 signals: FAS, B1, B2, MS-REI, B3, HP-REI, LP-BIP, LP-REI, Depends on payload: 2M-FAS, 2M-CRC, 2M-REI, 34M-FAS, 45M-FAS, 1.5M-FAS SDH Error Type Go back to top Go back to TOC...
Page 111 Go back to top Go back to TOC Error Flow: OTN, SDH, SONET, PDH signals Injects different anomalies into the transmit signal. Error insertion flow modes include: Single: Inserts a single error every time the insertion button is tapped Count: Specific count or number of errors when the insertion button is tapped Rate: Specific rate between 1x10 and 5x10 The list of available error types depends on the type of framing being used and the SDH or PDH hierarchies and line interfaces that...
Page 112: Otn Tools
9.0 OTN Tools 9.1 Shortcuts Accessing OTN Tools Tap on Home (main menu) > OTN Tools OTN Tools Menu Overhead Analyzer: Displays the Optical Channel Transport Unit (OTU) Displays Optical Channel Data Unit (ODU) Displays Optical Channel Payload Unit (OPU) bytes of the received channel Overhead Generator: Used to edit Optical Channel Transport Unit (OTU) Used to edit Optical Channel Data Unit (ODU)
Page 113: Otn Frame Analysis
Overhead Analyzer Menu The Overhead is color coded for simplified viewing. Decoding Bytes Tapping the applicable byte enables an automatic decode – a byte description including the Hexadecimal and Binary value is provided. For some bytes, an advanced decode of the various bits is also available. Byte Analyzer - Advanced Decode 9.2.1 OTN Frame Analysis The OTU framing is divided into two portions: FAS and MFAS.
Page 114: Optical Transport Unit (Otu) Analysis
9.2.2 Optical Transport Unit (OTU) Analysis The OTU overhead is comprised of the SM, GCC0, and RES bytes. Section Monitoring (SM) Bytes are used for the Trail Trace Identifier (TTI), Parity (BIP-8) and the Backward Error Indicator (BEI) (also known as the Backward Incoming Alignment Error [BIAE]), Backward Defect Indicator (BDI), and Incoming Alignment Error (IAE).
Page 115: Optical Data Unit (Odu) Analysis
Reserved (RES) bytes are currently undefined in the standard. Go back to top Go back to TOC 9.2.3 Optical Data Unit (ODU) Analysis The ODU overhead is divided into several fields: RES, PM, TCMi, TCM ACT, FTFL, EXP, GCC1/GCC2 and APS/PCC. Reserved (RES) bytes are undefined and set aside for future applications.
Page 116 Go back to top Go back to TOC Fault Type and Fault Location (FTFL) Reporting communication channel field used to create a message spread over a 256-byte multiframe Provides the ability to send forward and backward path-level fault indications FTFL Type Multi-Service Test Module Manual Rev C00 Page 116 of 544...
Page 117 Go back to top Go back to TOC Experimental (EXP) Field not subject to standards and is available for network operator applications EXP Type Go back to top Go back to TOC General Communication Channels 1 and 2 (GCC1/GCC2) Fields are very similar to the GCC0 field, except that each channel is available in the ODU GCC1 Type Multi-Service Test Module Manual Rev C00 Page 117 of 544...
Page 118: Optical Payload Unit (Opu) Analysis
Go back to top Go back to TOC Automatic Protection Switching and Protection Communication Channel (APS/PCC) Supports up to eight levels of nested APS/PCC signals associated to a dedicated-connection monitoring level depending on the value of the multiframe APS/PCC Type Go back to top Go back to TOC 9.2.4 Optical Payload Unit (OPU) Analysis Payload Structure Identifier (PSI)
Page 119: Payload Label (Payload Structure Identifier)
The other fields in the OPU overhead are dependent on the mapping capabilities associated to the OPU. For an asynchronous mapping (the client signal and OPU clock are different), Justification Control (JC) bytes are available to compensate for clock rate differences.
Page 120: Trace Identifier (Trail Trace Identifier)
PSI[0] contains a one-byte Payload type. PSI[1] to PSI[255] are mapping and concatenation specific. Additional Payload types include the following: Hex Code Interpretation PCS Ethernet FC-1200 into OPU2e STM-1 mapping into OPU0 STM-4 mapping into OPU0 Go back to top Go back to TOC 9.4 Trace Identifier (Trail Trace Identifier) Tap the Trace Identifier button to display the screen shown below.
Page 121: Tcm Tasks (Tandem Connection Monitoring)
Trail Trace Identifier TTI similar to the J0 byte in SONET/SDH, is used to identify the signal from the source to the destination within the network. The TTI contains the so called Access Point Identifiers (API) which are used to specify the Source Access Point Identifier (SAPI) and Destination Access Point Identifier (DAPI).
Page 122 LTC: Loss of Tandem Connection Signal OCI: Open Connection Indication AIS: TC Alarm Indication Signal LCK: Locked Defect BDI: Backward Defect Indication IAE: Incoming Alignment Error BIAE: Backward Incoming Alignment Error BEI: TC Backward Error Indication Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 122 of 544...
Page 123: Sdh/Sonet Tools
10.0 SDH/SONET Tools 10.1 SDH/SONET Tools Accessing SDH/SONET Tools Tap on Home (main menu) >SONET/SDH Tools 10.1.1 Shortcuts SDH/SONET Tools Menu Overhead Analyzer: Displays the Section Overhead (SOH) and Path Overhead (POH) bytes of the received channel. Overhead Generator: SDH mode. Used to edit Section Overhead (SOH) and Path Overhead (POH) bytes of the transmitted channel.
Page 124 Tapping the applicable byte enables an automatic decode – a byte description including the Hexadecimal and Binary value is provided. For some bytes, an advanced decode of the various bits is also available. Section Overhead The following is a partial list of SOH bytes and their corresponding functions: Section Layer Framing Bytes (A1/A2) The A1/A2 bytes indicate the beginning of the STM-N frame and provide a frame alignment pattern...
Page 125 The checksum value is placed in the RS overhead of the following STM-1 before scrambling Path Trace Byte (J0) Order Wire Byte (E1) Local order wire channel for voice communication between regenerators, cross connects, hubs and remote terminal locations F1 Byte Section user channel Byte is allocated for user purpose to carry proprietary messages The channel is terminated at each regenerator location...
Page 126 Go back to top Go back to TOC Line Layer / Multiplexer Section B2 Byte (MS-BIP) A 24-bit interleaved even parity code used to determine if transmission errors have occurred over the Multiplexer Section Its calculated over all the bits of the STM-1 frame except those in the Regenerator Section overhead The computed checksum is placed in the MSOH of the following STM-1 frame K1 Byte (APS-Linear) Used to activate and deactivate the switching between the main and protection paths on a multiplexer section...
Page 127 1011 Signal fail (ring) 1010 Signal degrade (protection) 1001 Signal degrade (span) 1000 Signal degrade (ring) 0111 Manual switch (span) 0110 Manual switch (ring) 0101 Wait to restore 0100 Exercise (span) 0011 Exercise (ring) 0010 Reverse request (span) 0001 Reverse request (ring) 0000 No request Bits 5-8 are the destination node ID 0000 Null channel...
Page 128 Go back to top Go back to TOC Data Communications Channel (DCC) Bytes (D4-D12) DCC – together these nine bytes form a 576kbps message channel for OAM purposes. They can be used for internally or externally generated messages or BER function. S1 Byte (Synchronization Status) Synchronization status message byte contains information about the quality of the embedded timing and is used to inform the remote Multiplexer of the clock quality used to generate signals.
Page 129 It’s a channel used by craft persons and will be ignored as it passes through regenerators. The relief byte is used for ring protection Go back to top Go back to TOC Path Overhead Layer The following is a partial list of POH bytes and their corresponding functions: J1 byte (STS Path Trace) High Order VC-N path trace byte A unique message is assigned to each path in a SDH network –...
Page 130 Go back to top Go back to TOC G1 byte (Path status) High Order path status byte Used to convey the path terminating status back to the originating path, thus allowing bidirectional monitoring of the complete path Bits 1-4: Remote Error Indication (HP-REI) indicates number of bit errors detected by B3 Bit 5: Remote Defect indication (HP-RDI) set to 1 if signal failure is detected Bits 6-7: Enhanced RDI information to differentiate between payload defects (HP-PLM), connectivity defects (HP-TIM, HP-UNQ) and server defects (HP-AIS, LOP)
Page 131 Go back to top Go back to TOC F2 byte (HP user channel) High Order Path user channel VC-4 path user channel used for communication between path elements H4 byte (TU Indicator) Position or Sequence Indicator Multiframe phase indicator used for tributary structured payloads F3 byte (LP) user channel Used for communication between path elements and is payload dependent.
Page 132 Bit 8 is the VC12 path LP-RDI normally set to zero unless there is an error condition (AIS) V5 Byte (VT signal label) Go back to top Go back to TOC J2 byte (LP) Used to transmit a configurable 16-byte identifier that enables the receiving path to continuously verify its connection with the transmitter Uses the same byte structure as the J0 and J1 bytes N2 byte (LP)
Page 133 Go back to top Go back to TOC Summary The Summary tab displays the summary screen listing the major bytes of the received SDH signal. Displays the Path Trace Identifiers (J0, J1, J2), APS (K1, K2), Synchronization status (S1), and HP (C2) and LP (V5) Signal Label bytes.
Page 134 Tap the Overhead Generator button to display the OH screens shown below. There are three tabs: SOH TX, which allows editing of select bytes associated with the Section Overhead. Editing of J0, K1, K2, S1 is permitted as follows: Hexadecimal value using pop-up keypad. Binary values using simple on-screen bit toggle or pop-up keypad.
Page 135: Pointer Tasks
Overhead Generator Programming most overhead bytes is possible using the OH Generator feature, however dedicated test functions are available for Pointer Tasks, Payload Labels, Trace Identifier, APS Testing, TCM testing. In some instances, more advanced editing is possible using the dedicated functions. Go back to top Go back to TOC 10.1.4 Pointer Tasks Tap the Pointer Tasks button to display the Pointer testing screens.
Page 136: Pointer Generation
NDF or New Data Flag. NDF is enabled when all bits match “1001” (or "0001", "1101", "1011" and "1000") and is disabled when all bits match "0110" (or "1110", "0010", "0100", "0111"). Difference and Sum Analysis > AU tab For TU pointers: Pointer value LOP (Loss of Pointer) PJE and NJE...
Page 137: Pointer Sequences
For TU pointers TU Pointer value: Set value in a range of 0 to 784 (TU-3) and 0 to 139 (TU-12) TU-11 Pointer value: Set value in a range of 0 to 109 (TU-11) Increment (INC) or Decrement (DEC) pointer value by 1 byte is single steps Generator >...
Page 138 Unit: Select the type of unit to count: Frames N: Specify the number of pointer adjustments in a row: 1—9999 (default=6) T: Specify the average pointer spacing in time. T is known as T1 to T5 in G.783: (default=4) T1, T4: 0.25ms to 600s or 2 to 4,800,000 frames/multiframes T2, T3: 0.25ms to 10s or 2 to 80,000 frames/multiframes T5: 0ms to 600s or 0 to 4,800,000 frames/multiframes G.873 >...
Page 139: Trace Identifier
It is recommended to run one sequence with positive adjustments followed by a sequence with negative adjustments. Performing the measurement at the maximum positive and negative frequency offset applicable to the line rate increases the stress on the pointer processor. The test procedure includes an initialization period followed by a cool down period of 30 seconds with no pointer movements.
Page 140: Received Traces (Rx)
Go back to top Go back to TOC 10.1.5.2 Received Traces (RX) J0 [RS]: Regenerator section trace Program a 1 or 16-byte identifier to set and check the expected trace Enable or disable the TIM (Trace Identifier Mismatch) alarm J1 [HP Path]: High order path section trace. Program a 16 or 64-byte identifier to set and check the expected trace Enable or disable the TIM (Trace Identifier Mismatch) alarm J2 [LP Path]: Low order path section trace...
Page 141 Tap the Payload Label Button to display the payload label screens. There are dedicated tabs for Transmitted and Received payload labels and setups: C2 [HP Path]: Path signal label Specifies the mapping type in the VC-n Program the TX or RX label by editing the hexadecimal value or by using the convenient drop-down menu selection For the RX label, enable or disable the Payload Mismatch (PLM) Alarm TX C2 [HP] V5 [LP Path]: Path signal label...
Page 142: Aps Tasks
Go back to top Go back to TOC 10.1.7 APS Tasks 10.1.7.1 APS Timing This function measures the Automatic Protection Switching (APS) limits of the network. APS applies only to the Multiplex sections of a SDH network and enables network elements to re-route traffic to a backup circuit in the event of network failure or problems. The protection mechanism is coordinated by the K1 and K2 bytes in the Multiplexer Section Overhead.
Page 143: Aps Sequence
Go back to top Go back to TOC 10.1.7.2 APS Sequence The associated K1/K2 sequence and received K1/K2 bytes may be captured. Event Details Go back to top Go back to TOC 10.1.8 Tandem Connection Monitoring (TCM) HP Setup Multi-Service Test Module Manual Rev C00 Page 143 of 544...
Page 144: Tributary Scan
TCM Standards The Tandem paths are defined in ITU recommendation G.707 Annex D and Annex E G.707 Annex D for VC4 and VC3 G.707 Annex E for VC2 and VC1 G.707 defines a tandem connection source and sink and describes the responses of each when defect (alarm) and error conditions are detected Tandem connection maintenance signals are carried in: N1 byte for VC4 and VC3...
Page 145 K.L.M.: ITU-T Tributary numbering scheme Report: Pass (OK) J2 trace: Corresponds to the VT trace being transmitted Label: Corresponds to the V5 byte signal label being transmitted Tributary Scan Go back to top Go back to TOC 10.1.10 Round Trip Delay The Round Trip Delay (Propagation Delay) measurement works by sending a test pattern with an error.
Page 146: Round Trip Delay
10.2 SONET Tools Accessing SDH/SONET Tools Tap on Home (main menu) >SONET/SDH Tools 10.2.1 Shortcuts SDH/SONET Tools Menu Overhead Analyzer: Displays the Section/Line Overhead (SOH) and STS Path Overhead (POH) bytes of the received channel. Overhead Generator: Used to edit Section/Line Overhead (SOH) and STS Path Overhead (POH) bytes of the received channel.
Page 147 Tapping the applicable byte enables an automatic decode – a byte description including the Hexadecimal and Binary value is provided. For some bytes, an advanced decode of the various bits is also available. Section Overhead The following is a partial list of SOH bytes and their corresponding functions: Section Layer Framing Bytes (A1/A2) The A1/A2 bytes indicate the beginning of the STS-N frame and provide a frame alignment pattern...
Page 148 The checksum value is placed in the SECTION overhead of the following STS-N before scrambling B1 (Section-BIP) Byte Order Wire Byte (E1) Local order wire channel for voice communication between regenerators, cross connects, hubs and remote terminal locations F1 Byte Section user channel Byte is allocated for user purpose to carry proprietary messages The channel is terminated at each regenerator location...
Page 149 H1 Pointer Byte Go back to top Go back to TOC Line Layer B2 Byte A 24-bit interleaved even parity code used to determine if transmission errors have occurred over the Section Layer Its calculated over all the bits of the STS-3 frame except those in the Section overhead The computed checksum is placed in the TOH of the following STS-N frame B2 Byte K1 Byte (APS-Linear)
Page 150 0001 Do not revert 0000 No request Other codes are unused Bits 5-8 selects channel used by APS messages 0000 Null channel 0001 to 1110 Channels 1 thru 14 1111 Extra traffic channels K1 Byte (APS-Linear) K1 Byte (APS-Ring) Used to activate and deactivate the switching between the main and protection paths on a multiplexer section APS message type conforms to ITU-T G.841/ Bellcore GR.253 Ring Network architectures Bits 1-4 are the condition 1111 Lockout of protection...
Page 151 110 RDI-L 111 AIS-L Others Not used K2 Byte (APS-Ring) Conforms to and follows ITU-T G.841 Bellcore GR.253 recommendations Used to activate and deactivate the switching between the main and protection paths on a multiplexer section Used to communicate Alarm Indication Signal (AIS) and Remote Defect Indication (RDI) conditions Bits 1-4 are the source node ID Bit 5 is the path code 0 Short path...
Page 152 Order Wire Byte (E2) A 64 kbps voice communication channel between multiplexers. It’s a channel used by craft persons and will be ignored as it passes through regenerators. The relief byte is used for ring protection Go back to top Go back to TOC Path Overhead Layer The following is a partial list of POH bytes and their corresponding functions: J1 byte (STS Path Trace)
Page 153 B3 Byte (STS Path BIP) C2 byte (STS path signal label) Indicate the type of payload being transported in the STS, SPE, including the status of the mapped payloads. The table below indicates the standard C2 binary values: C2 Byte (STS Path signal label) C2 byte structure per GR.253 recommendations Code[hex] Payload type...
Page 154 STS-1 payload with 4 VT-x payload defects STS-1 payload with 5 VT-x payload defects STS-1 payload with 6 VT-x payload defects STS-1 payload with 7 VT-x payload defects STS-1 payload with 8 VT-x payload defects STS-1 payload with 9 VT-x payload defects STS-1 payload with 10 VT-x payload defects STS-1 payload with 11 VT-x payload defects STS-1 payload with 12 VT-x payload defects...
Page 155 F2 byte (Path user channel) STS Path user channel STS-3# path user channel used for communication between path elements H4 byte (VT Indicator) Position or Sequence Indicator Multiframe phase indicator used for tributary structured payloads H4 Byte (VT Indicator) Z3/Z4 byte (STS Path) Allocated for future use.
Page 156 Z5 Byte (Path TCM) V5 byte (VT path overhead) The first byte of a VT SPE provides the functions of error checking, signal label and path status. Continuous monitoring of anomalies or defects and payload composition at the path end or along the path Bits 1-2 provides error checking (BIP-2) Bit 3 is the REI-V (0 = no error, 1 = errors), that is sent back towards an originating VT PTE if errors were detected by the BIP-2.
Page 157 J2 byte (VT path trace) Used to transmit a configurable 16-byte identifier that enables the receiving path to continuously verify its connection with the transmitter Uses the same byte structure as the J0 and J1 bytes Z6 byte (VT-TCM) Provides VT tandem connection monitoring function (TCM-V) for the VT-1.5, VT-2 levels. Bits 1-2: even parity error checking BIP-2 for the tandem connection Bit 3: Set to “1”...
Page 158 Z7 byte (VT path Extended Label) If bits 5-7 of V5 byte are set to 101 (value = 5), then: The signal label in Z7 byte becomes valid where: This is a 32-bit multi-frame string Bit 1 is allocated to the extended signal label Bit 2 is allocated to virtual concatenation Bits 3 and 4 are unassigned and are reserved for VT APS signaling Bits 5, 6, 7 are allocated for optional use...
Page 159 10.2.3 Overhead Generator Tap the Overhead Generator button to display the OH screens shown below. There are three tabs: SOH TX, which allows editing of select bytes associated with the Section Overhead. Editing of J0, K1, K2, S1 is permitted as follows: Hexadecimal value using pop-up keypad.
Page 160: Overhead Generator
Overhead Generator Programming most overhead bytes is possible using the OH Generator feature, however dedicated test functions are available for Pointer Tasks, Payload Labels, Trace Identifier, APS Testing, TCM testing. In some instances, more advanced editing is possible using the dedicated functions. Summary displays the Path Trace Identifiers (J0, J1, J2), APS (K1, K2), Synchronization status (S1), HP (C2), and LP (V5) Signal Label bytes.
Page 161: Point Generator
SS bits – displays bits 5 and 6 of the H1 byte to indicate SONET [10], SONET [00], Unknown [01] and [11] signal type Pointer value – displays the H1 and H2 values (addresses) indicating the offset in bytes between the pointer and first byte of the STS-n LOP (Loss of Pointer) PJE and NJE...
Page 162: Pointer Sequences
Pointer value: Transmits a new pointer address or value with or without a new data flag (NDF). Configurable in a range of 0 to 782 pointers. Increment (INC) or Decrement (DEC) pointers with identical polarity by 1 byte in single steps. Generator >...
Page 163: Trace Identifier
87-3 Add: Generate an 87-3 pattern (87 consecutive pointer adjustments, 3 consecutive pointer value, with added to have an additional pointer value) 87-3 Cancel: Generate an 87-3 pattern (87 consecutive pointer adjustments, 3 consecutive pointer value, with reduce the number of adjustments by one) Unit: Select the type of unit to count :Frames N: Specify the number of pointer adjustments in a row: 1—9999 (default=6) T: Specify the average pointer spacing in time.
Page 164: Transmitted Traces (Tx)
SDH/SONET Tools Menu Go back to top Go back to TOC 10.2.5.1 Transmitted Traces (TX) J0 [Section]: Regenerator section trace Program a 1 or 16-byte identifier to check the connection between regenerators J1 [STS Path]: High order path section trace Program a 16 or 64-byte identifier to check the high order transmission path The message is transmitted one byte per STS-3 frame J2 [VT Path]: Low order path section trace...
Page 165: Payload Labels
Program a 16 or 64-byte identifier to set and check the expected trace Enable or disable the TIM (Trace Identifier Mismatch) alarm To program or edit the received trace, tap on the applicable trace box and this will launch the QWERTY keyboard. RX - JO [S] Go back to top Go back to TOC 10.2.6 Payload Labels...
Page 166: Aps Tasks
V5 [VT Path]: Path signal label Program the TX and RX label by editing the hexadecimal value or by using the convenient drop-down menu selection For the RX label, you can enable or disable the Payload Mismatch (PLM) Alarm Go back to top Go back to TOC 10.2.7 APS Tasks 10.2.7.1 APS Timing This function measures the Automatic Protection Switching (APS) limits of the network.
Page 167: Aps Sequence
APS Test Procedure: The test set should be connected to a tributary port of network element or transmission system to ensure that the switching time is measured for the service transported by the SONET network Ensure that no errors or alarms are present on the transmission system because this will impact the measurement The measurement will be triggered depending on the condition configured The test set measures how long the AIS event remains present after the event is first recognized and will continue to measure the total disruption time in the event of multiple disruptions...
Page 168: Tandem Connection Monitoring (Tcm)
Go back to top Go back to TOC 10.2.8 Tandem Connection Monitoring (TCM) HP Setup TCM Standards The Tandem paths are defined in ITU recommendation G.707 Annex D and Annex E. ITU-T recommendation G.707 defines a tandem connection source and sink and describes the responses of each when defect (alarm) and error conditions are detected. Tandem connection maintenance signals are carried in the Z5 byte for STS-N and in the Z6 byte for VT's.
Page 169: Tributary Scan
10.2.9 Tributary Scan This function requires VC12 or VT-1.5 mapping and allows you to quickly check the signal structure, trace identifier and the payload. Tributary Scan An important part of any Add Drop Multiplexer (ADM) installation process is the verification of the path routing. Considering that an STS-3 contains 84 x VT-1.5’s and a STS-12 contains 336 x VT-1.5’s checking each path manually can be very time consuming.
Page 170: Jitter And Wander
Select SONET as TX/RX standard. View the Round Trip Delay of a looped back signal. Set check box on Setup RX pattern to Out-of-Service. Go back to top Go back to TOC 10.2.11 Jitter and Wander For more information on Jitter and Wander, please see the Jitter and Wander Application section.
Page 171: Monitor
10.2.12 STS-1 Monitor STS-1 Auto Monitor scanning the signal STS-1 Auto Monitor mode automatically configures the unit to the incoming (receiving) signal structure. Once the signal structure is configured, tap OK to begin testing or Exit to exit the screen. The Summary tab displays SONET test results and measurements alarms, errors, or signal failure pertaining to the SONET signal and payload.
Page 172: Pdh Tools
11.0 PDH Tools Accessing PDH Specific Tools Tap on Home (main menu) > PDH Tools PDH Menu Go back to top Go back to TOC 11.1 E1 Pulse Mask This function captures and analyzes E1 (2.048Mbps) pulse shape. The purpose of maintaining the correct pulse shape is to reduce inter-symbol interference –...
Page 173: E3 Pulse Mask
Go back to top Go back to TOC 11.2 E3 Pulse Mask This function captures and analyzes E3 (34.368Mbps) pulse shape. The purpose of maintaining the correct pulse shape is to reduce inter-symbol interference – if the logic 1s and 0s cannot be detected by the receiver correctly, bit and code errors will result. The pulse amplitude and overall shape are superimposed and compared with ITU-T G.703 pulse conformance template.
Page 174 11.3 E1 Sa Bits & SSM QL (Clock Quality Level) The Sa bits, or spare bits, are part of the NFAS (non-Frame Alignment Signal), which is sent at the beginning (time slot 0) of each odd frame. NFAS Word E = Ebit (Far-end CRC block error indication) A = Alarm (Remote Defect Indication) San = Sa bits The Sa bits have multiple applications, including point-to point serial communications or messaging.
Page 175: Round Trip Delay
SSU-B 1000 Reserved 1001 Reserved 1010 SETS/SEC 1011 Reserved 1100 Reserved 1101 Reserved 1110 Do not use for sync 1111 E1 Sa Bits SSM QL Go back to top Go back to TOC 11.4 Round Trip Delay Refer to Round Trip Delay in SDH/SONET Tools for more information.
Page 176: V.54
Go back to top Go back to TOC 11.6 V.54 The V.54 menu features the Loop Up and Loop Down functions for Loopback testing. To access V.54, set the payload to Nx64 (Setup button (Home menu) > Signal > Payload > Rate > Nx64). Tap Loop Up or Loop Down to create or cancel a loopback.
Page 177: E1 Isdn Pri
11.7 E1 ISDN PRI E1 and DS1 ISDN PRI offer identical test options. Setup instructions for both E1 and DS1 are discussed below. 11.7.1 ISDN PRI Call 11.7.1.1 Setup (PRI Call Setup) Configuration parameters for ISDN PRI Call are as follows: Page 1 Mode: TE, NT, or Monitor.
Page 178: Setup (Pri Call Setup)
Page 2 Caller ID: Blocked/Allow. Call Answer: Prompt, Accept or Cancel. Prompt: Prompts the user to answer or reject incoming calls. Selecting Prompt displays an answer and reject button on the Call tab. Accept: Automatically answers incoming calls. Cancel: Automatically rejects incoming calls. Sub Addr Type: NSAP or User.
Page 179: Signal
RDY indicates that the test port is Ready for use. The port number in this example is 1. Go back to top Go back to TOC 11.7.1.2 Signal Line Code: HDB3 or AMI Clock Source: Internal, External, Rx, or Offset. If the test set is in TE mode, select Rx to receive timing signals from the master clock Termination: Terminated, Monitor, or Bridge DS1/E1 Framing: Unframed, PCM31, PCM31C for E1;...
Page 180 Press the Call button to initiate a call to the receiving number. If Prompt was selected for Call Answer in the Setup tab, the unit receiving the call will ring and the user can press Answer or Reject to accept or reject the call. The caller can tap Hangup on the transmitting unit while the call is in progress.
Page 181: Call - Data Setup
Message Details Go back to top Go back to TOC 11.7.1.4 Call - Data Setup Press the Call button to bring up the Call Setup menu. Data calls follow the same setup procedure as voice calls but with a few minor differences.
Page 182: Data Call Bert Results (Result Tab)
Pattern Setup Press Call and the other unit should ring. Go back to top Go back to TOC 11.7.1.5 Data Call BERT Results (Result tab) After successfully placing a data call, the BER is available. The Result tab presents the measurement parameters specified in G.821.
Page 183: Supplementary Service Scan
Data Call - BERT - Signal Data Call - BERT - Analysis Go back to top Go back to TOC 11.7.1.6 Supplementary Service Scan In ETSI protocol, a Supplementary Service Scan scans a line to determine which of a variety of supplementary services are available on it.
Page 184 Supplementary Scan Setup SubAddress Type: NSAP to select the Network Service Access Point subaddress User to use a subaddress defined by a user (no standard applied) When the test is finished, the screen displays a list of these services: Supplementary Scan Results CLIP: Calling Line Identification Presentation - presents the Calling Party Number to the called user.
Page 185 AOC-D/E/S: Advice of Charge - Determines when charging information is available to the served user; during the call, when the call is terminated, when the call is established. MCID: Malicious Call Identification - the called party, on a per call basis, requests the network to register the called party phone number, the calling party number, and the date and time of the calls.
Page 186 Creating a Phone Number List Use VeEX ReVeal RXTS PC software’s ISDN Phone Number List function (Home > Profiles > ISDN Phone Number List) to create a customized Number List. After creating the list, use the Upload function (Home > Profiles > Upload) to transfer it to test sets. The list can contain multiple destination phone numbers with individual characteristics: Call Type: Voice, Data64K, Audio3.1K...
Page 187: Dtmf
Go back to top Go back to TOC 11.7.1.8 DTMF During the call DTMF tones can be transmitted. To transmit DTMF tones, access the DTMF tab. An alphanumeric keypad will be displayed. DTMF tones are transmitted as soon as they are typed. DTMF Go back to top Go back to TOC 11.7.2 ISDN PRI Monitor...
Page 188: E1 Vf
The ISDN PRI Monitor's setup and results resemble those found in ISDN PRI Call. Please refer to ISDN PRI Call for more information on these respective sections: Setup: Setup (PRI Call Setup) Signal: Signal BMap Line: Detects active traffic on the timeslots. The user can listen to the conversation by pressing on active call cells. Please see Multi Call for more information.
Page 189 Setup: Time Slot: Channel to test for both transmitting and receiving. Input a number from 1 - 31. Mode: Talk or send a tone on the transmit signal. It is possible to transmit audio data from the external headset into selected timeslot.
Page 190: Ds1/3 Tools
12.0 DS1/3 Tools Accessing DS1 and DS3 Specific Tools Tap on Home (main menu) > DS3/1 Tools DS1/3 Tools Home Menu (International version) DS1 Tools Home Menu (USA version) DS3 Tools Home Menu (International version) Multi-Service Test Module Manual Rev C00 Page 190 of 544...
Page 191: Ds1 Pulse Mask
The user interface (GUI) appearance can be changed in >Utilities > Settings > Global >General Settings >User Interface. The simplified USA menus and function are customized for the North American (T1, T3 and SONET) market. Go back to top Go back to TOC 12.1 DS1 Pulse Mask This function captures and analyzes DS1 (1.544Mbps) pulse shape.
Page 192: Ds1/3 Loop
Go back to top Go back to TOC 12.3 DS1/3 Loop When in DS1 mode, users can tap the DS1 Loop button on the right side of the screen. In DS3 mode, this appears as a DS3 button with DS3 Loopback features. Select the appropriate loopback command set by pressing on the corresponding check box.
Page 193 Select the loopback command set. In-band, ESF DFL, and HDSL Abbreviated Loopbacks functions allow only one element in loopback mode. Loop down any previous element before addressing a new one, or else a warning message "Error - Pre-existing loop found" will display. In-band Use this mode to loop up and loop down CSU and NIU using in-band loop codes.
Page 194 (CO/Network or CPE), the network element to be addressed, and the Loop up or Loop down command. The white arrow is used as a visual indicator to remind the user in which direction the codes are being sent. DS3 Loopback Commands DS3 Loopback is possible with NIU and Line commands.
Page 195 Loop Command Status Message The long codes will allow multiple elements to be in loopback mode, as long as the elements are looped up from farthest to nearest. The white arrow on the DS1 Loop Setup screen is used as a visual indicator to remind the user in which direction the codes are being sent.
Page 196 HDSL2 and HDSL4 Command Reference Table Confirmation based on number of errors received. User The user code allows sending programmable codes of up to 16 bits (LSB first) and can be used for those codes or elements not directly supported by the DS1 Loopback feature. Tap in the binary field and use the on-screen keypad to enter the binary combination, and press the Apply button to return to the main screen.
Page 197: Round Trip Delay
12.4 Round Trip Delay DS1/3 Round Trip Delay is the same measurement described as the Round Trip Delay in SDH/SONET Tools. Please see that section for more details. Go back to top Go back to TOC 12.5 DS1 RX Data DS1 RX data shows received data and captures the current timeslots.
Page 198: Ds1 Isdn Pri
Alarm TYPE DS3 Equip. Failure (Service Affecting) DS3 LOS DS3 OOF DS3 AIS RCV DS3 IDLE RCV DS3 EQUIQ FAIL (NON-SERVICE AFFECT) COMMON EQUIP. FAIL (NSA) MULTIPLE DS1 LOS DS1 EQUIP FAIL SINGLE DS1 LOS DS1 EQUIP FAIL (NON-SERVICE AFFECT) LOOP TYPE: Options: NIU, LINE FEAC Tasks RX Go back to top Go back to TOC...
Page 199: Csu/Niu Emulation For Ds1
The VF Tasks menu performs a variety of talk/listen functions. DS1 VF Tasks Setup Do not attempt to enter VF Tasks if the Frame LED is not green. Green LEDs indicate that the framing found on the received signal matches the framing selected in the Setup screen. It is impossible to talk, listen, or perform other channelized functions in the absence of frame synchronization, since channels can be identified only within a framed signal.
Page 200 CSU/NIU Emulation Emulation Type: NIU or CSU Receiving Remote Command: “None”. After the remote command disappears, “None” is displayed. When receiving command, the following are displayed: In-band loop up In-band loop down ESF FDL Line loop up ESF FDL Line loop down ESF FDL payload loop up ESF FDL payload loop down When in un-loop state, Line 1 TX sends AIS...
Page 201: Ds1/3 Auto Monitor
In SF mode, only in-band commands can be checked. In ESF mode, FDL and in-band commands are both checked. Remote loopback control qualification time is 5 seconds (that is, must receive loopback commands for 5 seconds before activate or deactivate loopback state) Go back to top Go back to TOC 12.11 DS1/3 Auto Monitor Auto Monitor mode automatically configures the unit to the incoming (receiving) signal structure.
Page 202: Ds1 Bert
Go back to top Go back to TOC 12.12 DS1 BERT DS1 Interface, Payload, and Pattern settings can be configured in the Summary tab using the drop-down menus. Signal status, error and alarms, and Pass/Fail indicators are also displayed. Refer to Results: PDH for more information on the test result tabs.
Page 203: Ds1 (Stress) Multi-Bert
Go back to top Go back to TOC 12.13 DS1 (Stress) Multi-BERT DS1 (Stress) Multi-BERT brings into service and troubleshoots DS1 links quickly by automatically generating different test patterns in a sequential BER test. Since certain test patterns can help identify and test for specific problems or behaviors, the test sequence can be customized with specific test patterns and timings to target these test scenarios, like checking for proper line coding settings, framing, or clock recovery.
Page 204 For SSM to be useful, connected Network Elements must be configured with instructions for actions to be taken in event of degradation of the SSM code. For example, a normal SSM message of Stratum 1 (PRS) indicates the T1 or E1 signal is traceable back to a Stratum 1 source.
Page 205: Jitter Measurement & Generation (Jitter Icon)
13.0 Jitter and Wander Accessing Jitter and Wander Go to OTN/SDH/SONET Testing from the Test Mode Selection, then select the following: For PDH or DS3/1 signals: Home (Main Menu) > PDH or DS3/1 Tools > (DS1/3) Jitter & Wander For SONET or SDH signals: Home (Main Menu) > SONET/SDH Tools > More > Jitter & Wander Jitter &...
Page 206: Max Jitter Tolerance (Mtj)
Jitter Measurement and Generation Menu The Jitter measurements menu allows the user to measure and analyze received signal jitter. The measurement example is shown above (the vertical grid spacing is 2.0 UIpp). The red bar indicates Max. peak jitter during testing and the yellow bar indicates the current peak jitter.
Page 207 problem. Error Message: Configuration Suggestions Loss of Signal (LOS) Check If the LOS condition is detected at any time during the MTJ test, the data will become invalid and the test will stop automatically. An error message will appear to notify the user to correct the condition before running the test again. LOS Error Message Table Table values include:...
Page 208: Jitter Transfer Function (Jtf)
Graph A cross (x) indicates the maximum jitter value tolerated at the frequency. Yellow triangles (▲) indicate that the data point is greater than, while the green "X" symbols represent actual measured values. Greater than implies that the jitter tolerance of the DUT (device under test) is much better than the value measured by the test set. Users should expect all data points above the mask (curve) to pass.
Page 209 2. Device Under Test (DUT) Before starting the test, "Connect Device Under Test" will appear. Connect the test set to the DUT then press Start to begin testing. Frequency (Hz): Frequency measured JTF (Jitter Transfer Function) (dB): Jitter in divided by jitter out value (in dB) Mask (dB): Jitter output in relationship to the input Progress: The bar at the bottom of the graph shows the test progress A green cross (x) indicates the the jitter transfer value has passed.
Page 210: Wander Measurements And Analysis
Wander TIE logging and real-time export to USB Built-in MTIE/TDEV Wander Analysis VeEX MTIE/TDEV Wander Analysis PC software Individual screens, fields and selections may vary among products or technologies, and depend on the options/licenses loaded or available for each test set. Nonetheless, the concepts and procedure flow are very similar.
Page 211: Test Result
TIE or TE measurements to a FAT32 USB Memory stick for further analysis. The test set itself may also offer a built-in MTIE/TDEV Wander Analysis option to analyze the data or it can also be done by using the free VeEX Wander Analysis PC Software that can be downloaded from www.veexinc.com.
Page 212 GPS-disciplined clock (built-in option or external). The Wander (TIE) and Phase (TE) data logs can be saved in real time to a USB Memory using VeEX proprietary format (to be analyzed by the built-in or PC-based MTIE/TDEV Analysis software) or exported to an open CSV format.
Page 213: Built-In Mtie & Tdev Analysis (Optional)
PASS/FAIL assessment, without the need for a PC. The test set may allow the analysis to be performed while the test is still running for run-time verification. Longer test take a lot longer to be analyzed, so the VeEX Wander Analysis PC Software is recommended for tests longer than 24 hours.
Page 214 1. Date and Time stamp indicating when the test was started 2. Total of seconds recorded during the test 3. Beginning and end of the data set to be analyzed and displayed in the graph (5) below. Tap in the Start and/or End field and enter the desired time limits, then press the Set Range button to apply these changes.
Page 215: Veex Mtie/Tdev Wander Analysis Pc Software
Standard and user-programmable masks PDF report generation Conversion of TIE data file, fro VeEX’s proprietary format to an open CSV format Fully resizable window, to accommodate any screen size and provide detailed zoom levels Compact stand-alone Windows® software. It can be carried in the same USB memory as the TIE data. No installation is necessary.
Page 216: Mtie & Tdev Analysis
Click on the MTIE/TDEV Analysis button to go to the wander analysis function. 13.4.3.2 MTIE & TDEV Analysis Select the desired tolerance masks from the pull-down list and click on the Analyze button to perform the MTIE and/or TDEV analysis. 13.4.3.3 MTIE &...
Page 217 Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 217 of 544...
Page 218: Ethernet Over Otn (Eootn)
14.0 Ethernet over OTN (EoOTN) ODU0, ODUflex, OTU2e and OTU1e are commonly used for Ethernet over OTN (EoOTN) transport applications. 14.1 OTU2e & OTU1e Overview Overclocked OTN Testing An Overclocked option verifies extended bit rates to ITU-T series G supplement 43 standards. Overclocked OTN compensates for the rate mismatch between 10 GbE LAN and OPU2 payload by raising the overall OTU2 data rate from the standard 10.709 Gbps to fit the 10GbE LAN client signal.
Page 219: Otu2E & Otu1E With Ethernet Payloads
14.2 OTU2e & OTU1e with Ethernet Payloads OTU2e (11.1 Gbps), OTU1e (11.05 Gbps), or OTUXe, also referred to as overclocking, is an adaptation technology that increases the frequency (data rate) of the standard OTU2 (10.7 Gbps) interface, in order to better accommodate 10GE payloads (which the standard ODU2 was not capable to achieve transparently).
Page 220: Interface
Test Rate: Options are OTU-1e and OTU-2e (referring to 11.049G and 11.095G respectively). OTN Mapping: 10GE SYNC, 10GE ASYNC, and Test pattern (Bulk) Scrambler: ON/OFF. FEC: FEC encoder can be ON/OFF Go back to top Go back to TOC 14.2.1.2 Interface Tapping the Interface box opens the Interface Setup screen.
Page 221: Measurements
PRBS Pattern: Use the pattern drop-down box to select the test pattern which will be inserted into the transmitted signal. Pseudo Random Bit Sequences (PRBS) defined by ITU-T 0.150 and 0.151 standards, fixed words and 24-bit or 32 bit user defined patterns are available.
Page 222: Otu2E & Otu1E Results
Results on start: On or Off. Provides an automatic move to Result screen when it starts. Auto Save: Automatically saves the results file, when the test is stopped. Measurement Clock Source: Select Internal Clock or Tx Clock Source as the references for rates, frequency and offset measurements.
Page 223: Otu2E & Otu1E Ethernet Applications
14.4 OTU2e & OTU1e Ethernet Applications Accessing Ethernet Applications from OTU-Xe To enable and access Ethernet applications from the Home menu (RFC 2544, BERT, Throughput), tap on Setup [Home menu] > Hierarchy > OTN Mapping and select 10GE SYNC or 10GE ASYNC from the drop-down menu. Hierarchy Setup After configuring the OTU-Xe signal, press the Home Key on the keypad and tap on the desired Ethernet test.
Page 224: Odu0 And Oduflex Overview
ODU0 (1.25 Gbps) can accommodate a 1GE client transparently. As its name implies, ODUflex adds flexibility in the data rate and is capable of carrying Nx1.25 Gbps payloads, including Ethernet. Refer to VeEX's OTN Reference Guide, QG20, for a technological overview of ODU0 and ODUflex.
Page 225: Measurements
Pattern The pattern setup appears when OTN Mapping is set to a PRBS Test Pattern. Pattern Setup PRBS Pattern: Use the pattern drop-down box to select the test pattern which will be inserted into the transmitted signal. Pseudo Random Bit Sequences (PRBS) defined by ITU-T 0.150 and 0.151 standards, fixed words and 24-bit or 32 bit user defined patterns are available.
Page 226: General
Manual: This is linked to the Start/Stop function on the drop-down menu. Timed: The test duration can be set by the user. The test duration can be set in seconds, minutes, hours or days. The test is activated by the Start/Stop function on the drop-down menu. Auto: A predetermined start time can be set by the user.
Page 227: Ge Port-Config
14.6.4 GE Port-config GE Port-config tab GE Port-configuration is available for GE OTN Mapping. Auto Negotiation: On or Off. Matches the test set's negotiation settings to those of the link partner. Speed: Default set to 1000 Mbps. Duplex: Default set to Full. Flow Control: TX On, RX On, Both On, or Off.
Page 228 Multi-Service Test Module Manual Rev C00 Page 228 of 544...
Page 229: Otn Tools
14.8 OTN Tools The OTN Tools applications featured in ODU0 and ODUflex Test Mode are the same as the ones featured in OTN/SDH Single and Dual Test Modes. Refer to OTN Tools in the OTN/SDH section for more information on these test applications. OTN Tools in ODU0 and ODUflex Test Mode Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00...
Page 230: Alarm/Error
14.9 Alarm/Error The Alarm/Error application featured in ODU0 and ODUflex Test Mode is the same as the application in OTN/SDH Single and Dual Test Modes. Refer to Alarm/Error in the OTN/SDH section for more information. Alarm/Error in ODU0 and ODUflex Test Mode Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 230 of 544...
Page 231: Ethernet
15.0 Ethernet Setup Test Port Selection Port Setup Measurement Settings MX Discover and Control OAM Discover ViPAG/V-Route Router Test ViPAG/V-Route Setup ViPAG/V-Route Results 15.1 Ethernet Setup 15.1.1 Test Port Selection Test mode, test port(s), and network settings are required prior to performing any measurements or applications. Ethernet test modes are accessed by selecting the Test Application button at the top of the screen .
Page 232: Port Setup
The Test Mode Selection screen may appears differently depending on the unit you are using. When the dual port interfaces and software options are enabled, the test module can operate a combination of two ports at the same time. Port selection buttons are available on the left side panel below the History tab.
Page 233 Port setup or test interface configurations are accessed via the Setup menu located on the Home page. The available configuration settings depend on the interface selected in the Test Mode selection. Select the operation mode and the interfaces that will be used to carry out tests. Once the operating mode and interfaces are selected, independently configure the auto-negotiation, speed, duplex, and flow control settings for each port (where applicable).
Page 234 1 GE Fiber Port Auto Negotiation: On or Off. Matches the test set's negotiation settings to those of the link partner Speed: Default set to 1000 Mbps Duplex: Default set to Full Flow Control: TX On, RX On, Both On, or Off When flow control is enabled, the test set will respond to pause frames received by the link partner by adjusting the transmit rate When flow control is disabled, the test set ignores all incoming pause frames from the link partner and continues...
Page 235 Go back to top Go back to TOC 10 GE Port 10GE Mode: LAN or WAN WIS Mode (only available in WAN mode): SDH or SONET Flow Control: Enable chosen as default option Clock Offset (ppm): The frequency may be offset in parts per million Link Fault Response: Disable or Enable (also enables Local link and failure, remote, failure) Transmit Ignore Link Status: On/Off Synchronous Ethernet: (SyncE) Disabled or Enabled.
Page 236: Measurement Settings
Go back to top Go back to TOC 15.1.3 Measurement Settings 10GE Measurement Setup The measurement and event log settings are configured in this screen. Mode: Manual, timed, or auto mode are available. Manual mode: Starts and stops the measurements manually. Timed mode: Defines the duration of the test;...
Page 237 If using OAM Discover, it is unnecessary to assign an IP address to the local or remote unit. Using MX Discover MX Discover enables the test set to discover other VeEX VePal test sets and devices with an assigned IP address on the same subnet. To discover other devices using MX Discover: 1.
Page 238 The Peer-to-Peer option is available only for RFC 2544 testing. For more information on Peer-to-Peer mode, please see Peer-to-Peer and Asymmetric Testing. Go back to top Go back to TOC OAM Discover Like MX Discover, OAM Discover can also be used to discover far-end test units without manually configuring the local or remote unit's destination address.
Page 239: Vipag/V-Route Test
Fill out each screen and press NEXT to proceed to the next page or Previous to go back to the previous screen. Select the test type: SILO/Router Wrap Test, End-to-End Test (VeEX to VeEX), End to Loopback Test Step 1: Select the router test interface. "Local unit" denotes a router wrap test while "end-to-end" conducts an end-to-end test.
Page 240 Step 7: Enable up to 3 VLAN tags. Configure ID, Priority, Type, and Drop Eligible. Step 8: Enter the IP address, Subnet, and Gateway for port 2, following the same procedure detailed in Step 4. Step 9: Enter the frame size. The default frame size for each option is 256 bytes. Step 10: Review the settings for both ports.
Page 241 Setup Test sets come preconfigured. To customize settings for both ports, go to the Setup tab. For configuration instructions, please refer to BERT. Setup Go back to top Go back to TOC Results Summary Results Multi-Service Test Module Manual Rev C00 Page 241 of 544...
Page 242 The Summary tab lists the Pass/Fail status of each ARP, Ping, and Throughput test along with test measurements. The Results tabs for each port lists statistical results similar to those featured in the BERT Results section. Please see BERT Results for more information.
Page 243 and/or Secondary DNS if required. IP Setup - IPv4 IPv4 or IPV6 IP Type: IPv4 or IPv6 IP Address: Static, DHCP (IPv4 only) or AUTO (IPv6 only) Static: The user is required to enter a Local IP, Gateway address, and Subnet. All Static fields can be filled by tapping on the section to access an alphanumeric keyboard Local IP: IPv4/IPv6 address of the test set Gateway: IPv4/IPv6 address of the network gateway...
Page 244 IP: PASS indicates that the IP address assigned has been verified to be unique in the network. Gateway: PASS indicates that the gateway IP address is valid. DNS: PASS indicates that the DNS IP address is valid. Go back to top Go back to TOC 15.2.2 Trace Route Trace Route is a common method used to find the route to the destination IP address or URL.
Page 245 Encoding: Select Codec. The ICMP ping will be sent with a payload content and size similar to the selected codec. Supported codecs are G.711 A-law, G.711 μ-Law, G.729, G.723. Jitter Buffer: Enter the size in ms of the jitter buffer. This value is used to emulate a jitter buffer on the received traffic. ICMP Ping Replies received after this duration will be discarded, and negatively impact the quality scores.
Page 246 15.2.5.2 VoIP Expert - Client/Server Mode VoIP Expert is a simple and effective tool for pre-qualifying VoIP service and verifying triple play implementations. It allows the user to assess end-to-end VoIP QoS under simulated or live network conditions where packet loss, latency, jitter, bandwidth congestion, link disconnects, IP version type, VLAN and MPLS routing and concurrent triple play traffic all play a role.
Page 247 In the Setup tab, make the following configurations: Mode: Select Client from the drop -down menu. Server: Type in the destination server address (Test set configured in Server mode or VX1000 server). Test Duration: Configures the duration of the voice test file. Encoding: Select the codec from the drop -down menu.
Page 248 VoIP Expert Status Server side: Start the test. The Server waits for a connection from the Client. If the server is running on a V100+/V300 series unit, only one Client connection can be active. If the server is running on a VX1000 server, up to 16 connections can be active simultaneously. Client side: Start the test.
Page 249 Go back to top Go back to TOC VoIP Expert - Client/Server Results Voice Quality measurements are displayed for both directions. Upstream results = Outgoing stream Downstream results = Incoming stream MOS/R tab indicates: The Mean Opinion Score (MOS) and R-factor measurements are performed by a Telchemy™ VQmon® VoIP quality measurement engine which is integrated into the test set.
Page 250 UP: Indicates that the results are for the upstream direction - transmitted packets. DN: Indicates that the results are for the downstream direction - received packets. Note that Client and Server results will show with reversed measurements. MOS-LQ: Listening Quality MOS score, this score is based on packet metrics -codec, packet loss, discard and jitter. Per ITU-T G.107 converted on a MOS scale.
Page 251 Packet Statistics (Page 1) Data Throughput: Average Data rate in kbps. Packets Received: Number of packets received. Packet Loss Rate: Average Packet Loss rate in kbps. A lost packet is never received by the application. Packet Loss Count: Number of packets not received. Packet Discard Rate: Average Packet Discard rate in kbps.
Page 252 be the mean deviation of the difference in packet spacing at the receiver compared to the sender for a pair of packets. If Si is the timestamp from packet i, and Ri is the time of arrival for packet i, then for two packets i and j, D(i,j) = (Rj - Ri) - (Sj - Si).
Page 253 Select the result(s) you would like to view by clicking the corresponding check box. Click the View button to display the selected result(s). MOS/R Results Multi-Service Test Module Manual Rev C00 Page 253 of 544...
Page 254 Go back to top Go back to TOC MOS/R Results UP: Indicates that the results are for the upstream direction - transmitted packets. DN: Indicates that the results are for the downstream direction - received packets. Note that Client and Server results will show with reversed measurements. MOS-LQ: Listening Quality MOS score, this score is based on packet metrics - codec, packet loss, discard and jitter.
Page 255 Packets received: Number of packets received. Packets lost: Number of packets not received. Packets discarded: Number of packets received too late that have been dropped by the jitter buffer. Packets early: Number of voice stream packets arriving early, but still within the jitter buffer range. Packets late: Number of voice stream packets arriving late, but still within the jitter buffer range.
Page 256 Go back to top Go back to TOC MOS/R - Degradation Factors Loss Degradation: The percentage of the overall quality degradation that can be attributed to network packet loss Discard Degradation: The percentage of the overall quality degradation that can be attributed to jitter buffer discard (i.e. jitter) CODEC Degradation: The percentage of the overall quality of degradation that can be attributed to codec Delay Degradation: The percentage of the overall quality of degradation that can be attributed to delay...
Page 257 Burst/Gap Count: Number of bursts that occur on the voice stream Avg Burst/Gap Loss rate: The average percentage of MIUs lost and/or discarded during burst conditions Avg Burst/Gap Length (ms): The average burst length in ms Avg Burst/Gap Length (pkts): The average burst length in packets Burst/Gap R: The average listening R-factor for the gap periods Avg.
Page 258 15.2.5.3 VoIP Expert - IP Phone Mode IP Phone mode emulates an IP phone and can place and receive calls using SIP or H.323 protocols, sending or receiving live audio (with headset) or prerecorded file. Comprehensive Codec support and call destination options verify voice encoding and translation provisioning. Real-time evaluation of voice quality with a complete set of measurements available at the end of the call, including packet statistics, jitter statistics, and MOS and R-factor call quality scores.
Page 259 Codec: G.711 µ-law and G.711 A-law Headphone: On: Requires you to plug in the VeEX provided USB headphone. Talk/Listen through the headphone Off: Unit will transmit a pre-recorded audio file during the test Press Register to start registration to the Gatekeeper.
Page 260 SIP Configuration (Page 1) For SIP Phone Setup, fill out these additional parameters: SIP Phone Setup (Page 1) Mode: Select IP Phone from the drop -down menu. Profile: Select from Delete, Save, Save as..., or Default. Protocol: Select SIP from the drop -down menu. Registrar: On/Off.
Page 261 SIP Phone Setup (Page 2) Headphone: On: Requires you to plug in the VeEX provided USB headphone. Talk/Listen through the headphone. Off: Unit will transmit a pre-recorded audio file during the test. Note: Headphone ON is required for G.723.1 or G.729 codecs.
Page 262 After pressing the Register key, the Status screen displays the registration status. If the registration is successful, you can place a call to a remote party. Peer URL: Remote party phone number or URL Press the Call button to place a call. When the call is connected, press the MOS On key to start voice quality measurements.
Page 263 All the measurements are provided for the downlink direction, on the voice stream from the remote party to the test set. MOS/R and Packets results are discussed in VoIP Expert - Client/Server Results. Trace In this tab, all of the signaling packets are captured and displayed. Trace Results Tap on a packet link to open a window with additional information.
Page 264 15.3 BERT 15.3.1 BERT Setup Tap on Advanced Tools (Home Menu) > BERT button to access BER testing features. Overview: BER testing at Layer 1, 2, 3, and 4 is supported. The BERT can be configured to use either regular PRBS test patterns, stress patterns (specifically for 10Gigabit Ethernet) or user defined test patterns to simulate various conditions.
Page 265 Ethernet Type I-SID Backbone VLAN ID, Priority, Type Test: Select the test layer to perform the BERT Options are Layer 1 Unframed, Layer 1 Framed, Layer 2, Layer 3, and Layer 4 Frame Type: Select the Ethernet frame type for Layer 2 or Layer 3 802.3 Raw (IEEE 802.3 frame without LLC) - Not available when Layer 3 is selected 802.3 LLC (IEEE 802.3 frame with LLC header) 802.3 SNAP (IEEE 802.3 frame with SNAP header)
Page 266 MAC Destination: Configure the destination MAC address of the far-end partner test set or use the ARP or ARP GW keys to determine the MAC address of the destination IP address (ARP) or the Gateway (ARP GW). Note: A valid IP connection needs to be up to use these functions.
Page 267 BERT Setup - VLAN Tag configuration (Layer 3) Go back to top Go back to TOC MPLS Tab: In the MPLS tab the following parameters are configured: MPLS label: Configurable in the range 16 through 1,048,575 (labels 0 to 15 are reserved). Composed of 20 bits which allows for the creation of over one million labels.
Page 268 Go back to top Go back to TOC IP Tab: In the IP tab the user must configure the destination IP address and source address. The user may also configure the following IP header fields: IP Type: IPv4 IP Src and IP Dest: For IP Src, if the IP connection is up, refer to Connection.
Page 269 Data Tab: User selects a test pattern that will be encapsulated in the Ethernet frame payload (for framed mode). Depending on the test layer, different test pattern options are available. Layer 1 Framed Test Patterns CRPAT: Compliant Random Pattern provides broad spectral content and minimal peaking for the measurement of jitter at component or system level.
Page 270 RDPAT (Random Data Pattern): Designed to provide energy across the entire frequency spectrum providing good simple BER testing. JTPAT (Jitter Tolerance Pattern): Designed to verify jitter tolerance on the receivers by exposing a receiver's CDR to large instantaneous phase jumps. The pattern alternates repeating low transition density patterns with repeating high transition density patterns.
Page 271 Go back to top Go back to TOC RX Filter Tab: Allows the user to filter incoming streams. When checked, the incoming traffic flows not matching these criteria will not be considered for these results. MAC Destination address MAC Source address VLAN VLAN Priority VLAN Eligible...
Page 272 Constant: The selected frame is transmitted continuously according to the selected bandwidth %. Ramp: The selected frame is transmitted at maximum bandwidth according to the selected duty cycle and burst period. Burst: The selected frame is transmitted in a staircase profile according to user selectable step time, number of steps, and maximum bandwidth.
Page 273: Error Injection
BERT Setup - Error Injection Error Inj. Function Error Injection After pressing Start, error injection can be enabled by pressing the Error Inj. button on the right side of the screen. Go back to top Go back to TOC 15.3.1.4 Starting/Stopping a BERT Once all configurations have been made, the user can start the BERT test (press the Start button on the top right section of the screen).
Page 274 Go back to top Go back to TOC 15.3.2 BERT Results 15.3.2.1 Summary Summary tab: The following results including the Start (ST) and Elapsed (ET) times are displayed: Line Rate (Mbps): Negotiated rate of the interface (10M, 100M, or 1000M). This value is always fixed since it depends on the maximum capacity of the link under test, hence the test interface that is configured.
Page 275 Go back to top Go back to TOC 15.3.2.3 Events Events tab: A time stamped record or log of anomalies, alarms, test status (start/stop) and test application are displayed. BERT Results - Events Go back to top Go back to TOC 15.3.2.4 Traffic Traffic tab: The following Traffic statistics are displayed: Frame type: Test and non-test frames...
Page 276 Go back to top Go back to TOC Frames tab: The following Frame distribution statistics are displayed in Count (#) and Percentage (%): Received (RX) frames: Total frames Test frames VLAN tagged frames Q-in-Q VLAN stacked frames Non-test frames Transmitted (TX) frames: Total frame - Total # frames transmitted Pause frames: Total number of transmitted and received Ethernet pause flow-control frames BERT Results - Frames...
Page 277 Go back to top Go back to TOC Frame Size tab: The following Frame distribution statistics are displayed in Count (#) and Percentage (%): < 64 bytes frames 64-127 byte frames 128-255 byte frames 256-511 byte frames 512-1023 byte frames 1024-1279 byte frames 1280-1518 byte frames >...
Page 278 BERT Results - Rates Go back to top Go back to TOC 15.3.2.6 Delay Delay tab: Delay measures the interpacket gap, start of the frame, and preamble duration. Frame arrival statistics are displayed in tabular format: Current Minimum Maximum Variation (Current) - Interframe delay variation BERT Results - Delay Go back to top Go back to TOC 15.3.2.7 Alarms...
Page 279 Total: Total accumulated duration of the service disruptions Min/Max: Minimum and maximum duration of the service disruption events No. of Occurrences: Counter of service disruption events BERT Results - Alarms Go back to top Go back to TOC 15.3.2.8 Signal The Signal tab (fiber ports only) displays the optical level measured by the SFP or XFP transceiver.
Page 280 Signal (Page 3) BERT Results - Signal (Page 3) The received signal frequency and offset is measured and performed on the optical interface (SFP or XFP). Current: Indicates the frequency of the input signal. Offset: Indicates the difference between the standard rate and the rate of the input signal. Min (ppm): Indicates the difference between the standard rate and the minimum deviation detected in the input signal.
Page 281 15.4 RFC 2544 Conformance Testing Overview Setup - Standard Mode Header Settings Frames Settings Threshold Settings Peer-to-Peer Asymmetric Testing Throughput Settings Latency Settings Frame Loss Settings Burst Settings Starting / Stopping a RFC2544 Measurement Results - Standard Mode Status Summary Signal Events Latency / Jitter...
Page 282 MPLS: MAC, VLAN, MPLS, IP, and Test Pattern Configurations: MAC Header Tab Data Tab: No payload selection is possible. The payload area is populated with a VeEX signature field and other proprietary data. RX Filter Tab VLAN Tab MPLS Tab...
Page 283 Go back to top Go back to TOC 15.4.1.2 Frames Settings Frames tab: User configures the following: Preset Frames: User selects from a list of recommended test frame sizes defined in RFC 2544: Test frames are 64, 128, 256, 512, 1024, 1280, and 1518 bytes. The default selected frames are 64 and 1518 bytes.
Page 284 When enabled, threshold settings can be configured for all of the test frames selected in the frame settings tab. A Pass/Fail criteria will be applied when the threshold settings are enabled. Select a rate type from the drop-down menu that will be used to determine pass/fail criteria.
Page 285 90% of the line rate. Resolution: Input any value between 0.001% and 1%. The default value is 1%. Resolution refers to the resolution in searching for the throughput rate. If 1% is selected, the throughput rate will be searched with ±1% accuracy. Duration: 5 to 999 seconds.
Page 286 Go back to top Go back to TOC Frame Loss tab: Max Rate: Up to 100% of the negotiated line rate. The default value is 100%. This is the maximum transmit rate to perform the frame loss test for each test frame size. The user may configure this rate as a % of the total line rate or in Mbps.
Page 287 Maximum Duration: Selectable up to 999 seconds. The default value is 20 seconds. This is the duration of the second burst, which must be greater than the minimum burst. Repetitions: Selectable in the range 1 to 100. The default value is 1. This is the amount of times that the burst test will be repeated for each test frame size.
Page 288 Results tab: Navigate the respective sub-tabs (throughput, latency, frame loss, or burst) to view the results for each test. For the burst test, the results can be viewed in summary table format or test log format. Status tab: The status of each test is displayed including a stamped log of each test. RFC 2544 Results - Status Go back to top Go back to TOC Summary tab: The following results including the Start (ST) and Elapsed (ET) times are displayed:...
Page 289 RFC 2544 Results - Signal (Page 1) Go back to top Go back to TOC Events tab: A time stamped log of each test is displayed. RFC 2544 Results - Events Go back to top Go back to TOC Throughput tab The Throughput tab displays the maximum throughput rate of the link under test.
Page 290 RFC 2544 Results - Throughput (Summary Table) RFC 2544 Results - Throughput (Test Log Table) Go back to top Go back to TOC Latency and frame jitter measurements results are displayed in the following formats. Use the drop-down menu to select the Latency format: Graphical: Latency results displayed in line graph form (Latency [us] vs Frame size [bytes]).
Page 291 Rate (%): Percentage of frames transmitted. Data rate used for latency test. Pass/Fail test status. RFC 2544 Results - Latency (Summary) RFC 2544 Results - Latency (Graphical) RFC 2544 Results - Latency (Test Log) RFC 2544 Results - Latency (Jitter Graphical) Multi-Service Test Module Manual Rev C00 Page 291 of 544...
Page 292 RFC 2544 Results - Latency (Jitter Summary) RFC 2544 Results - Latency (Jitter Test log) Go back to top Go back to TOC Frame Loss tab: Frame loss displays the percentage of frames not received. Use the drop-down menu to select the Frame Loss format: Summary and Test log tables display test frame length, byte size, frame loss (%) from received traffic, and rate (%) transmitted.
Page 293 RFC 2544 Results - Frame Loss (Summary) RFC 2544 Results - Frame Loss (Graphical) RFC 2544 Results - Frame Loss (Test log) Go back to top Go back to TOC Burst tab: Burstability (back-back) results are the number of frames successfully transmitted/received at the line rate. It is displayed in the following formats: Summary table: Displays Average Frame Count received for each test frame length Test log table: Displays Average Frame Count and Duration (seconds) for each test frame length...
Page 294 RFC 2544 Results - Burstability (Summary) RFC 2544 Results - Burstability (Test Log) Go back to top Go back to TOC 15.4.3 Saving RFC 2544 Results Once the test has been stopped the results can be saved by pressing the Save key on the VePAL’s keypad. The results will be saved and named automatically.
Page 295 Go back to top Go back to TOC Setup For Header, Frames, Thresholds, Throughput, Latency, Frame Loss, and Burst, please refer to Setup - Standard Mode. Go back to top Go back to TOC Background - General # of Back. Streams: From 1 to 7 streams. RFC 2544 Test Stream (%): This is the max rate set in frame loss.
Page 296 Setup - Background - Traffic Starting/Stopping an Advanced SLA Mode Please see Starting/Stopping a RFC 2544 Test for information on starting/stopping the test. Go back to top Go back to TOC 15.4.5 Background Results - Advanced SLA Mode For information on Global and Per Stream Results in Advanced SLA Mode, please refer to Throughput Results.
Page 297 Go back to top Go back to TOC 15.4.6 Peer-to-Peer and Asymmetric Testing Remote Partner Control When the local unit connects to the remote (peer) partner, it loads the same configuration profile (header, traffic, and frame size) to the remote partner, with the MAC and IP addresses inverted. From the peer-to-peer menu, asymmetric testing becomes available. Asymmetrical links provide different line rates in the two directions.
Page 298 Unit as Controller Setup Process Step 1: Select Controller. Mode: Select an asymmetric test configuration. Asymmetric Up: Tests traffic in the upstream direction (local to remote direction). Asymmetric Down: Tests traffic the downstream direction (remote to local direction). Asymmetric Up & Down: Test traffic in both upstream and downstream direction. Step 2-6: Make the following selections for the Controller and Remote units: Layer, IP Address, Subnet, Gateway, and VLAN tags.
Page 299 Steps 8-11: Set up and enable/disable tests for the Local unit. Step 8: Local Throughput testing setup. See the Throughput section for a description of menu options Step 9: Local Frame Loss testing setup. See the Frame Loss section for a description of menu options. Step 10: Local Burst testing setup.
Page 300 Test Results P2P Test Results While the test is running the option to Stop and Save results appears as a right side button. After testing finishes, the option to Test More IPs with the same settings, Restart, or Save test results become available as right side buttons. For more information on retrieving saved test results, refer to File Management in the TX300S, MTTplus, RXT-1200, or UX400 platform manuals for more information.
Page 301 Event Log Overview V-SAM (VeEX Service Activation Methodology) is an automated Ethernet service activation test feature conforming to the ITU-T Y.1564 standard, created to address and solve the deficiencies of RFC 2544: • RFC 2544 was limited to test at the maximum throughput line rate for a single service. SAM is able to run multiple...
Page 302 Phase 2: Service Performance test: The services running on the same line are tested simultaneously over an extended period of time, to verify network robustness. Test Application Phase 1: Service Configuration Test The service configuration test is broken down into three steps. The steps are tested individually for all the services delivered on the same line.
Page 303 V-SAM Profile: Delete, Save, Save as..., Default, or Last Configuration. # of Services: Select the number of services to run. Up to 8 services can be chosen for a 1 GE interface and up to 10 services can be chosen for a 10 GE interface. Service Configuration Test: Enable or Disable the configuration test.
Page 304 CIR Test Config.: Select Simple Test, Step Load Test, or Simple and Step. Simple Test: Starts the tests at the CIR. Step Load Test: Starts the test below the CIR and continues in steps until it reaches the CIR. Simple and Step Load Test: Step Load Test performs only if the Simple Validation test fails. Tap on the Test Duration box to input a test duration (test duration must be less than 999 sec).
Page 305 Please see RFC 2544 Setup and follow the setup procedure to configure the remaining Header Settings for V-SAM. V-SAM Setup - Services - Header Settings V-SAM Setup - Services - EMIX Frame Size Settings V-SAM Setup - Services - MPLS-TP Settings Go back to top Go back to TOC 15.5.1.2 Service Attributes Multi-Service Test Module Manual Rev C00...
Page 306 Bandwidth Profile Parameters The Bandwidth Profile specifies how much traffic the customer is authorized to transmit and how the frames are prioritized within the network. In the Bandwidth table, the user specifies the following bandwidth criteria: CIR: Committed Information Rate. This is the guaranteed maximum rate at which the customer can send frames that are assured to be forwarded through the network without being dropped.
Page 307 Enabling/Disabling Tests A check next to the parameters in the Service Attributes table indicates that the test for the corresponding service is set to run. Tap on the box to remove the check and cancel the test for that service. Go back to top Go back to TOC Service Acceptance Parameters The user establishes Pass/Fail test criteria for the following Service Acceptance Criteria.
Page 308: Copying Services
MX Discover and Control. Peer-to-Peer Setup Peer-to-Peer and asymmetric testing via the P2P Setup button is also available. Refer to Peer-to-Peer and Asymmetric Testing section for more information. X-loop is for looping non-VeEX networking equipment. Packet Capture Packet Capture is available on V-SAM.
Page 309 To run the test, make sure that traffic is being looped back at the far-end of the network under test. Configuration Test The Config. Tests tab lists the Pass/Fail status of each service and test. Tapping on the table displays a screen with CIR, CIR/EIR and Policing Test results for the chosen Service.
Page 310 CIR/EIR test: The test passes if the received IR value is between the CIR (minus the margin allowed by the FLR) and CIR+EIR. Policing Test - Service 1 Policing test: The test passes if the received traffic rate is at least at the CIR (minus the margin allowed by the FLR) but does not exceed the allowed CIR+EIR.
Page 311 Go back to top Go back to TOC Performance Test The Service # tabs display min, mean, and max values for IR Mbps, FTD, FDV, Frame Loss Count, Frame Loss Ratio (%), Availability, and Errored Frame Count. Pass/Fail/Pending status of each test is displayed on the top of each table. IR Mbps, FTD, FDV, Frame Loss Count, Frame Loss Ratio (%) definitions are listed in the Configuration Test section.
Page 312 Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 312 of 544...
Page 313 15.6 Throughput Testing (Multiple Streams) Setup General Settings MX Discover and Control Settings Per Stream Configurations Traffic Settings Error Injection Settings Alarm Injection Settings Summary Starting/ Stopping a Throughput Test Results Viewing Throughput (Multiple Streams) Test Results Global Aggregate Results Per Stream Results Saving Throughput (Multiple Streams) Results Overview:...
Page 314 Page 2: #of Streams: From 1 to 10 streams. # of Streams can be specified either on Page 1 or Page 2. It will be reflected on both pages. Delay Measurement Mode: Disable, Round Trip Delay. Local One way delay measurement, Atomic one way delay, or GPS one way delay are also available depending on the Glock Synchronization device selected in the Setup (home menu) >...
Page 315: Multiple Streams
MX Discover and Control. Peer-to-Peer Setup Peer-to-Peer and asymmetric testing via the P2P Setup button is also available. Refer to Peer-to-Peer and Asymmetric Testing section for more information. X-loop is for looping non-VeEX networking equipment. Packet Capture Packet Capture is available for Throughput Testing.
Page 316 Multiple Streams - MAC/IP Address Setup If all of the streams are going to the same far-end unit, then the MAC/IP destination addresses must be the same on all of the streams. If any of the traffic streams are going to more than one far-end unit then ensure the correct MAC/IP destination addresses are configured for the respective streams.
Page 317 error, a specific count, or rate. Count and Rate: The user will be able to configure the error count via numeric keypad. Throughput Test - Error Injection Settings per Stream Go back to top Go back to TOC 15.6.1.6 Alarm Injection Settings Alarm injection can be performed during the test.
Page 318 Throughput Test - Summary (MAC List) Throughput Test - Summary (IP List) Throughput Test - Summary (VLAN List) Throughput Test - Summary (Port List) Multi-Service Test Module Manual Rev C00 Page 318 of 544...
Page 319 Throughput Test - Summary (MPLS List) Go back to top Go back to TOC OAM Discover Like MX Discover, OAM Discover can also be used to discover far-end test units without manually configuring the local or remote unit's destination address. If OAM is enabled on the test set, any link partner that supports the IEEE 802.3ah protocol will be discovered automatically and displayed under the OAM Discover tab.
Page 320 OAM Discovered Menu Go back to top Go back to TOC 15.6.1.8 Starting/Stopping a Throughput (Multiple Streams) Test Once all configurations have been made, the user can start the Throughput test (press the Start button on the top right section of the screen).
Page 321 manual. Enter the MAC and/or IP address of the far-end unit. Send the loop up command by tapping on the Loop Control button and pressing Loop Up. Once the far-end unit has been looped back, start the test by pressing the Start button. When the all of the selected test are completed, the Throughput test suite will stop automatically.
Page 322 IP Network QoS Class Definitions and Network Performance Objectives (Classes 4-7) Go back to top Go back to TOC The Aggregate screen displays these parameters: Multi-Service Test Module Manual Rev C00 Page 322 of 544...
Page 323 Line Rate (Mbps): Negotiated rate of the interface (10M, 100M, or 1000M). This value is always fixed since it depends on the maximum capacity of the link under test, hence the test interface that is configured. Utilization: % of Line Rate. For example, if we transmit 100Mbps on a 1Gbps interface then the utilization value is 10% (or 100Mbps) of the total link capacity (or Line Rate).
Page 324 Current: Indicates the frequency of the input signal. Offset: Indicates the difference between the standard rate and the rate of the input signal. Min (ppm): Indicates the difference between the standard rate and the minimum deviation detected in the input signal. Max (ppm): Indicates the difference between the standard rate and the maximum deviation detected in the input signal.
Page 325 Go back to top Go back to TOC The Global Events screen displays the Time, Event Type, Number of Events, and Test Type. Throughput Results - Global Events The Global Traffic screen displays: Frame Type of all streams Traffic Type of all streams Frame size of all streams Throughput Results - Global Traffic Summary Multi-Service Test Module Manual Rev C00...
Page 326 Tap on the bar graph for frame and traffic distribution statistics. Frames tab: The following Frame distribution statistics are displayed in Count (#) and Percentage (%): Received (RX) frames: Total frames Test frames VLAN tagged frames Q-in-Q VLAN stacked frames Non-test frames Transmitted (TX) frames: Total frame - Total # frames transmitted...
Page 327 screen. Round trip delay measurement requires a traffic loop at the far-end. Rates: Rate information associated with each stream. Throughput Results - Summary per Stream Go back to top Go back to TOC The Per Stream Errors screen displays the Current and Total error count of each stream. Bit: Indicates errors related to test pattern (Bit Error or LSS [Pattern Loss]) BER: Bit Error Ratio FCS/CRC: Number of received frames with an invalid Frame Check Sequence (FCS)
Page 328 Go back to top Go back to TOC Service Disruption Test (SDT) Total: Total cumulative service disruption for the duration of the test. Last: Last SDT measured during the test. Min/Max: Minimum and maximum SDT measured during the test. No. of Occurrences: Number of service disruption events (SDTs). No.
Page 329 Go back to top Go back to TOC The Per Stream Traffic screen displays the frame type and frame size distribution pertaining to each stream. Throughput Results - Traffic per Stream Go back to top Go back to TOC The Per Stream Delay screen displays the frame delay information pertaining to each stream. The Histogram shows the sampling points for the delay.
Page 330 Throughput Results - Round Trip Delay Histogram One Way Delay Results and Histogram (Table and Graph) Throughput Results - Delay per Stream (One Way Delay) Throughput Results - One Way Delay Histogram Graph Multi-Service Test Module Manual Rev C00 Page 330 of 544...
Page 331 Throughput Results - One Way Delay Histogram Table Go back to top Go back to TOC The Per Stream Rate screen displays the frame rate and data rate pertaining to each stream. Tap on either dial to see rate details. Throughput Results - Rates per Stream Throughput Results - Rates per Stream (Rate Details) Multi-Service Test Module Manual Rev C00...
Page 332 Go back to top Go back to TOC 15.6.2.4 Saving Throughput (Multiple Streams) Results Once the test has been stopped the results can be saved by pressing the Save key on the VePAL’s keypad. The results will be saved and named automatically. Once the results are saved, the user may view or rename the results file by going to Utilities > Files >...
Page 333: Ethernet Oam Testing
15.7 Ethernet OAM Testing Ethernet OAM provides automatic defect detection, fault management and performance monitoring tools for network links and end-to-end Ethernet Virtual Circuits (EVC). The OAM service supports IEEE 802.3ah, IEEE 802.1ag, ITU-T Y.1731, and G.8113.1. Go back to top Go back to TOC 15.7.1 OAM Setup 15.7.1.1 Link Level 802.3ah OAM Setup 802.3ah functions include:...
Page 334 802.3ah OAM Tap on the check box to start 802.3ah protocol testing. Transmission of OAM PDUs starts as soon as the box is checked. OAM Mode Select Active or Passive mode from the drop-down menu. Active and passive mode determines the type of actions the test set will take.
Page 335: Service Level Oam: 802.1Ag/Y.1731/G.8113.1 Setup
MIB Retrieval: Retrieves information on network devices and interfaces. Unidirection: Checks for unidirectional transmission. Go back to top Go back to TOC 15.7.1.2 Service Level OAM: 802.1ag/Y.1731/G.8113.1 Setup Under the Service Level OAM tab, the user has the option of starting the 802.1ag, Y.1731, or G.8113.1 test. Fill out the given parameters.
Page 336 Differences between 802.1ag, Y.1731, and G.8113.1 Selecting 802.1ag enables Continuity Check Messages (CCM), Loopback Message (LBM) and Link Trace Message (LTM). ITU-T Y.1731 provides all of the 802.1ag functionality with additional performance monitoring capabilities including Frame Loss (LM), and Delay (DM). ITU-T G.8113.1 provides further monitoring of MPLS-TP traffic.
Page 337 Maintenance Point Roles Go back to top Go back to TOC OAM Services Setup Under the same tab, OAM Services pertaining to 802.1ag, Y.1731, and/or G.8113.1 can be enabled. The tests listed include: Continuity Check (CCM) Loopback (LBM/LBR) Link Trace (LTM/LTR) Loss Measurement (LMM/LMR) (Y.1731 and G.8113.1) Delay Measurement (DMM/DMR) (Y.1731 and G.8113.1) Multi Protocol Label Switching Transport Profile (MPLS-TP) (G.8113.1 only)
Page 338 802.1ag/Y.1731/G.8113.1 Connectivity Fault Management Functions Connectivity Fault Management Functions supported by the test set are as listed: Fault Detection – Continuity Check: CCM "heartbeat" messages are transmitted at a configurable periodic interval by MEPs. Network/Path Discovery – Link trace message: Equivalent to a traceroute test.
Page 339 CCM Configuration Parameters CCM: Enable/Disable sending Continuity Check messages. Type: Unicast/Multicast. If CCM is set to Enable, this field is ignored. In unicast mode you must enter the MAC address of the destination unit. Priority: 802.1p priority in the CCM VLAN Tag. Tx Interval: Choose from the supported CCM intervals: 1 s, 10 s, 1 min, 10 min.
Page 340 MPLS-TP is a Layer 2 technology that combines the benefits of MPLS and removes the complexity of IP networking. It uses the MPLS Label switching mechanism, but with static route provisioning (no Label Distribution Protocol LDP or RSVP-TE). MPLS-TP supports an advanced set of OAM functions and path protection mechanisms.
Page 341 Link Trace Response Format Go back to top Go back to TOC Loopback Message (LBM/LBR) LBM (Loopback Message) are unicast messages transmitted on demand to a destination MAC address. A destination address responds with an LBR (Loopback Reply Message). LBM Diagram (LBM/LBR) Loopback Message Format LBM/LBR, LTM/LTR Settings - Service Level OAM (Page 3) Multi-Service Test Module Manual Rev C00...
Page 342 Go back to top Go back to TOC Link Trace (LTM/LTR) and Loopback Message (LBM/LBR) Config. Parameters Destination MEP: Sends LTM/LBM to the destination MEP as configured on Page 1. MAC: Sends LTM/LBM to a destination MAC address. Priority: 802.1p priority in the LTM/LBM VLAN Tag. Destination MAC: Configure the destination MAC address used for the LTM/LBM.
Page 343: Oam Results
Press Start to initiate testing. Frame Loss Measurement Two local counters for each peer MEP: TxFCf: Counter for in-profile data frames transmitted towards peer MEP RxFCf: Counter for in-profile data frames received from peer MEP Single-ended ETH-LM: On demand OAM MEP sends LMM frame (Unicast DA or Multicast Class 1 DA) and receives LMR frame (Unicast DA) with counters CCM frames contain frame counters.
Page 344 Link OAM Discovery The discovery page lists Local (the current test unit) and Remote (far-end device) parameters. OAM - Link - Discovery (Page 1) Mode: Lists Active or Passive mode configuration. Supported and unsupported capabilities advertised during Discovery are listed, including: Unidirection, Link Events, Remote Loopback, MIB Retrieval, and MTU Size.
Page 345: Oam Service Results
OAM PDU Go back to top Go back to TOC OAM PDU Transmitted and received 802.3ah OAM PDU are displayed with other Link OAM statistics: Information: Information OAM PDU acts as a "heartbeat" message. Discovery must be restarted if no OAM PDU is received after 5 seconds.
Page 346 OAM CCM Results RDI, LOC, XCON, UNEXP, and Alarm will display an I or A status with I = Inactive, A = Active. MPID: MEP ID of the remote MEP. Remote MAC: MAC address of the remote MEP. RDI: The CCM received contains the RDI flag set. LOC: The MEP detects loss of connectivity.
Page 347 OAM - Service - LTM OAM LTM Results Action: RlyHit indicates that the LTM has reached the destination MAC/MEP (i.e., final point) MAC: MAC address of the responder TTL: TTL field on the response, indicated how many hops have been traversed Flags: If set, indicates that only MAC addresses learned in a Bridge's Filtering Database, and not information saved in the MIP CCM Database, is to be used to determine the Egress Port Go back to top Go back to TOC...
Page 348 OAM LMM Parameters Go back to top Go back to TOC OAM - Service - DMM OAM - DMM Message Multi-Service Test Module Manual Rev C00 Page 348 of 544...
Page 349 OAM DMM Parameters DMM Status: Lists status (In progress, Fail, or Complete) Delay Samples: Number of frames transmitted Average Delay: Average round trip delay over the number of delay samples Average Variation: Average round trip delay variation over the number of delay samples Last Delay: Last round trip delay value measured Last Variation: Last round trip delay variation value measured Go back to top Go back to TOC...
Page 350: Results
15.8 Monitor (Pass Through) Pass through monitor mode enables the test set to be used for long term in-service testing. This allows for bi-directional monitoring of up to full gigabit Ethernet line rate on the two 1000Base-X ports or the two 10/100/1000T ports. Pass Through functionality allows the following: In-line traffic monitoring in both directions Long or short term network monitoring for troubleshooting network traffic problems...
Page 351: Advanced Monitoring
Monitor Mode Results Monitor Mode Results features the same statistics as BERT Results. Please see BERT Results. The Status screen displays the following statistics: Utilization (%) CRC Errors Service Disruption (ms) Go back to top Go back to TOC 15.9 Advanced Monitoring The Advanced Monitoring application analyzes incoming traffic and filters for specified header types.
Page 352 6. To enable logical operators (and, or, xor), select another header for comparison from the NONE box. Repeat steps 1-5 until the number of desired subfilters and filters are enabled. When finished, press the green Start button to begin monitoring. The Summary lists the Enable/Disable status of all filters.
Page 353: Loopback Mode
The Per Filter tab displays received traffic information for each individual filter. Measurements include RX Total Frames RX Frame Rate (fps) RX Total Bytes RX CRC Error RX IP Checksum Error RX TCP/UDP Checksum Error Advanced Monitoring - Results - Pass Through Result The Pass Through Result tab records the same measurements featured in the Throughput application.
Page 354 The Loopback application in the main menu allows the user to establish a manual loopback on the test set. The loopback function is used when an end-to-end test needs to be performed with one of the test partners in software loopback mode. The loopback function will loopback the incoming traffic to the test set back into the network under test.
Page 355 Loopback Filter Loopback Per Stream Summary Results Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 355 of 544...
Page 356: Scan
15.11 Scan VLAN Scan Setup VLAN Scan scans up to 4096 VLAN IDs for switch configuration and displays VLAN ID bandwidth rates, useful for identifying top bandwidth users based on VLAN ID. Monitor mode monitors up to eight live traffic streams (in terminate mode) and filters them based on VLAN ID configuration, providing key traffic metrics such as frame type, rates, and errors and alarms.
Page 357: Monitoring Traffic
Monitoring Traffic To only receive traffic streams meeting specific criteria, stop the scan and go to the Setup > Monitor tab to configure filter criteria. Tap on a parameter box to configure it. Place a check next to a parameter to only receive traffic that matches this criteria. For descriptions of each parameter, please see Setup for Throughput Testing (Multiple Streams).
Page 358 Monitor Per Stream Results If no stream information is displayed in the Per Stream tab, return to the VLAN ID tab (Results > Scan > VLAN ID) and verify that the VLAN ID boxes are checked. Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 358 of 544...
Page 359: Synce
15.12 SyncE Setup Port Selection Mode SyncE Wander Measurements Setup Results Built-in TIE, MTIE & TDEV Analysis (Optional) ESMC SSM Setup Results Monitor Capture Go back to top Go back to TOC 15.12.1 SyncE Setup Port (Test Port selection) Prior to starting the SyncE operation, the selected test port must be connected to a network that supports SyncE timing synchronization.
Page 360 Port Page 2 - Mode Selection Master and Slave Mode Master Mode emulates a SyncE Master clock device and slave mode emulates a SyncE Slave clock device. Both modes operate out of the Ethernet test port (10/100/1000BaseT, 100/1000BaseX, or 10GE) and can use an internal or external reference clock. SyncE Master-Emulation Mode Synchronous Ethernet: Enabled or Disabled.
Page 361 Indicator Symbols An M or S indicates that the test set is in Master or Slave Mode. A green light indicates a successful Slave to Master connection. If the light is solid red, there may be an issue with setup and the test will not work. Symbol Description Test set is in Master mode.
Page 362 Press the Stop button to terminate the test. If Save TIE to USB is set to ON, then remove the USB memory stick from the test set, bring it to a computer, and open it with the VeEX Wander Analysis PC software. For further MTIE, TDEV, and masks analysis (refer...
Page 363: Esmc Ssm
Go back to top Go back to TOC 15.12.3 ESMC SSM Overview Ethernet Synchronization Message Channel (ESMC) Synchronization Status Messages (SSM) are supported by both SDH and Ethernet networks. SDH is supported by the transport overhead channel and is unidirectional; Ethernet is defined as Organization Specific Slow Protocol (OSSP).
Page 364 QL TLV Format TLV: Type Length Field QL: Quality Level Hierarchy of Quality Levels in Option I of Synchronization Networks Hierarchy of Quality Levels in Option II Synchronization Networks Multi-Service Test Module Manual Rev C00 Page 364 of 544...
Page 365 The SyncE ESMC SSM option has the following features: Generates “information” at a programmable interval, IPG, (default 1 sec) Generates “event” upon changing the QL-TLV followed by “information” Count message types Monitor and decode messages on screen Capture ESMC/SSM messages and output in pcap file for further off-line protocol analysis Go back to top Go back to TOC Setup IPG(s): Value can be entered by clicking in the box next to it.
Page 366 The Results screen shows Messages, Protocol Monitor, and Capture. Message: A list of all the SSM quality levels with the results of the QL selected in Setup next to it. SyncE ESMC SSM Results- Message SyncE ESMC SSM Results- Capture Go back to top Go back to TOC Monitor The Tracer shows the messages as they are sent or received.
Page 367 Message Details Go back to top Go back to TOC Capture Press Start to Capture Packets. The number of captured packet results is displayed. To store these results packets, press Stop, then press Save as. Enter a name for the results file. Press Apply to save the file. The file is saved under the Files folder on the unit in pcap format.
Page 368 SyncE ESMC SSM Capture Save Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 368 of 544...
Page 369: Mode Setup
15.13 1588v2/PTP Mode Setup Master Emulation Mode Setup Master Clock Settings Slave Emulation Mode Setup Slave Clock Settings Test Results PTP Messages Overview Protocol Monitor 1588v2 Wander Measurement Simultaneous SyncE and IEEE 1588v2/PTP operation 1588v2/PTP Under Advanced Tools Go back to top Go back to TOC 15.13.1 Mode Setup Before proceeding with IPv4 or IPv6 tests, tap on the IP button on the Home screen to configure the Port and IP connection.
Page 370 uses an internal or external reference clock. Emulation Mode: Select Master Protocol Mode: IPv4 UDP, IPv6 UDP or Layer 2 IPv4 UDP: The PTP messages are transmitted with an IPv4 and UDP encapsulation. IPv6 UDP: The PTP messages are transmitted with an IPv6 and UDP encapsulation. Layer2: The PTP messages are encapsulated directly in an Ethernet frame without IP or UDP header.
Page 371 Go back to top Go back to TOC 15.13.1.3 Slave Emulation Mode Setup Setup Home Slave Slave mode emulates a 1588v2 PTP Slave clock device from the Ethernet test port (10/100/1000BaseT or 100/1000BaseX). Slave mode does not filter incoming packets based on PDV. Quasi-slave Mode Due to network PDV, Packet-based timing signals are not always stationary or Gaussian in nature.
Page 372 measurements have additional parameters. Both modes require a 1 PPS clock source (Ext. 1PPS, Atomic 1PPS, or GPS 1PPS). End to End (M>S, S>M): Measures the Master to Slave, Slave to Master delay from the Sync and Delay request/response messages. End to End: Average Window: Enter the averaging window for delay measurements.
Page 373 Measurement Clock Reference: Select between an internal or external clock source. This setting defines the reference clock used for 1588 Slave clock wander measurement. Possible external clock sources: 1.5444MHz,1.544Mbps, 2 MHz, 2Mbps (E1 signal), 10MHz, 25MHz, 125MHz or External1 pps. The external clock source is connected to the SMA port on each Test Module, this port is marked CLK on the connector panel.
Page 374 The Summary screen displays the 1588v2 message statistics including the number of Total messages, Event messages, and General messages along with information on Lost, Duplicated, Out of Sequence and Unidentified messages. Tap on Page 2 to see more detailed message error information. Summary (Page 2) Additional message information is displayed on the Messages screen.
Page 375 Restart button (slave only) clears the counter and restarts the test. Graphs (Slave Only) Tap on the Graphs tab to access graphical statistics. Select PDV, RTD, or IPG graph from the Type menu to view. PDV: Delay Request, Asymmetry, and Sync PDV min and max information. Delay Request: The Delay_Req PDV measures t4-t3 (delay message jitter).
Page 376 Go back to top Go back to TOC Overview of timing - PTP Messages 1. The master starts the exchange by sending a Sync message to the slave. The message contains the time t1 at which the packet was sent. The slave notes the time t2 at which this message was received. Depending on the master hardware capabilities, the sending time may not be accurate enough in the original Sync message;...
Page 377 The TE Events tab displays TE Threshold crossing events with a timestamp. Go back to top Go back to TOC 15.13.3 Protocol Monitor The Tracer shows the 1588v2 messages from both Master and Slave clock devices. There are four function keys: Pause/Continue - to pause or continue the tracer.
Page 378 Capture Go back to top Go back to TOC 15.13.4 1588v2 Wander Measurements The wander measurements in the IEEE 1588v2 section are specific to 1588v2 Slave modes. Make sure that a PTP sync has been established and enough "warm up" time is given to the protocol to provide an accurate and stable recovered clock (test signal). For this application it is recommended to use Quasi-Slave mode.
Page 379 Press the Stop button to terminate the test. If Save TIE to USB is set to ON, then remove the USB memory stick from the test set, bring it to a computer, and open it with the VeEX Wander Analysis PC software. For further MTIE, TDEV, and masks analysis (refer Built-in MTIE &...
Page 380 15.14 PDV Analysis in 1588v2/PTP Through Mode & PDV Analysis chapter for more information. Refer to PDV Analysis Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 380 of 544...
Page 381: Packet Capture
15.15 Packet Capture 15.15.1 Packet Capture Setup The packet capture function can be used to capture packets to Ethernet test ports. The packet capture format is compatible with Wireshark and can be viewed on a PC. Configure the following Capture Mode parameters: Profile: Drop-down selections are Default, Delete, Save, Save As...
Page 382 Select from the following Filter options: MAC and IP Mode Disable: All IP packets to and from the unit are captured MAC and IP: Only traffic frames matching the MAC and IP source and destination addresses are captured UDP and TCP: Only TCP, Only UDP or both TCP/UDP are captured Press the green Start button to begin packet capture.
Page 383 Destination Protocol Length Info Middle and Lower Sections: Frame details Ethernet frame details Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 383 of 544...
Page 384 15.16 IPTV The IPTV application performs IPTV testing in a Triple Play network. The feature supports: Codecs: MPEG2, MPEG4 (Part 2), and MPEG4 Part 10 (H.264) Probe function with streams auto-detection Real time TV channel viewer to confirm proper channel configuration MOS_Video MOS_Audio TR 101 290 Metrics...
Page 385 Type: IPv4 Unicast or IPv4 Multicast URL: Enter the IP address using the pop-up keypad Port: Enter the port number Dir: NONE Control: NONE Transport: Auto Codec: Auto MPEG: TS ISO Once configurations are completed, press the Start key to begin. IPTV Setup - Probe Probe The Probe function is a packet sniffer.
Page 386 Select a stream from Stream # to view stream measurements: Total Bandwidth, # of Actual Programs, Other Programs, Transport Errors. Total PID Count (Packet Identifier), BW (Bandwidth), BW(%), and Pkt Count (Packet Count), for Video, Audio, Tables and Others IPTV Stream Analysis Up to three streams can be analyzed, and the bandwidth associated with the whole TS is displayed.
Page 387 Go back to top Go back to TOC Details: PID Map Stream #: Select a stream to view. Program #: Select the program number to view. Statistics for each program are provided including video compression (SD or HD). PAT: Program Association Table. Always appears in PID 0x0000. Identifies MPEG-2 programs and gives PIDs for the PMT, Video, and Audio.
Page 388 Details: Video (Page 1) The following detailed statistics are reported: Absolute MOS-V: Considers image resolution, frame rate, codec and compression level, transmission impairments, frame loss concealment. Relative MOS-V: A MOS score relative to the ideal for the particular codec and image resolution in use. MOS-AV: 1 to 5 score that considers picture &...
Page 389 Using H.264 video compression, the picture can be segmented into sequences of macroblocks called slices. The encoder can choose the prediction style distinctly on each individual slice (SI & SP frames). Identifies I, P, and B frames in unscrambled and encrypted video streams Bandwidth used by I, P, B, SI &...
Page 390 Go back to top Go back to TOC IPTV Analysis - ETR 290 IPTV Analysis - ETR 290 The table summarizes the TR 101-290 MPEG Stream evaluation parameters. First priority parameters are necessary for decodability: Sync loss, sync byte error, PAT/PAT2 error, Continuity error, PMT/PMT2 error, PID error. Second priority parameters are recommended for continuous or periodic monitoring: Transport error, CRC error, PCR discontinuity, PCR accuracy error.
Page 391 Program Clock Reference (PCR) MPEG TS normally contain a built-in timing packet known as the Program Clock Reference (PCR). Recovering the 27MHz clock at the decoder end of the transmission system is necessary to re-create the video signal. The PCR values need to be correct at the signal origin and should not be distorted along the transmission path to a point where decoding the compressed signal becomes problematic.
Page 392 Go back to top Go back to TOC 15.16.3 IPTV Viewer The IPTV viewer displays the streaming video for the selected channel (Stream #), which is useful as a channel identifier to verify PID allocation. It is not designed to evaluate image quality. The video stream will appear within 20-30 seconds depending on buffering and decoding time.
Page 393 15.17 Layer 4+ Applications Stateful TCP testing refers to the validation of TCP connections used for the TCP/IP Protocol Stack. A V-Perf test will validate that the TCP parameters in the network were set up correctly. The optional V-PROBE is used as remote server to establish TCP connections and validate that the network is configured correctly for seamless passing of TCP traffic.
Page 394 TCP is a connection oriented protocol. A Connection is established prior to data transmission between the two end devices (client and server). A 3-way handshake procedure is used to establish connection. When a connection is established, the data transfer can start. TCP uses sequence numbers to reassemble data and verify that no data has been lost.
Page 395 TCP Bandwidth Delay Product is the theoretical maximum of data that can be transmitted based on network delay and throughput rate. Link Bandwidth (bps) x RTT (s) BDP (Bytes) = To completely occupy the available bandwidth the Window size must be set to the BDP value. The ideal TCP transfer time is based on the Maximum achievable TCP transfer rate, calculated based on the Bottleneck Bandwidth (BB) and the layer 1-2-3-4 overheads associated with the network path.
Page 396 2. For testing on SFP/XFP ports, turn the Laser On. Tap the IP button. Configure a static IP address for testing. If you are in an environment that supports DHCP, select DHCP from the IP Address menu, then tap Connect. 3.
Page 397 Test results can be saved to the File Server using the Folder hardkey . Results can be retrieved via USB drive or remotely using the Web UI. Refer to File Management in the TX300S, MTTplus, RXT-1200, or UX400 platform manuals for more information on saving files.
Page 398 2. Set the other test set as a Client. Tap on Page 2 to configure the Throughput Test Mode type. MTU Search, Round Trip Time Search, Bottleneck Bandwidth, and Window Size options are also on Page 2. Test Set #2 - V-Perf Setup - Client 3.
Page 399 Test Set #2 - Client - Results - MTU Test Set #2 - Client - Results - Event Test Set #2 - Client - Results - Per Stream TCP Graphs Multi-Service Test Module Manual Rev C00 Page 399 of 544...
Page 400 Go back to top Go back to TOC Bi-Directional Configuration and Results (VeEX Enhanced Testing Methodology Implementation) The Bi-Directional TCP testing methodology is unique as it allows two separate tests to run simultaneously on the same link in different directions. Both Test Sets are actually configured as Client & Server at the same time, saving the time of having to run each direction separately.
Page 401 Go back to top Go back to TOC 15.17.2 V-Test V-Test is a VeEX speed test. There are three different server types that can be used to run the speed test. The following server types are available from Server Selection Mode: VeEX Managed (Server List): A list of servers maintained by VeEX initially provided by the user.
Page 402 Go back to top Go back to TOC Creating New Server Profiles and Server Lists 1. From the Setup tab, select Manual from Server Selection Mode. 2. Tap on Update List and select a file to transfer. The File Name and Path will populate into the field. After setting up the new server profile, tap the Add To Server List drop-down menu.
Page 403 Starting a V-Test Select a server from User Managed or VeEX Managed. Enabling Ping mode will simultaneously runs a Ping test. Ping Response results will appear under the Results tab. Tap Start to initiate testing. The download test starts first, followed by the upload test.
Page 404 FTP File Selection Window V-FTP - Download - Results Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 404 of 544...
Page 405 15.18 PESQ Testing Introduction Located in a central location, the VeEX PESQ server allows technicians using the VePal 100+ or 300 series field test set to establish a VoIP or ISDN connection and measure end to end voice quality. VeEX’s PESQ Server brings the power of ITU-T P.862 PESQ algorithm to live network field testing. VeEX’s PESQ Server accepts up to 50 simultaneous connections from compatible VeEX VePAL 300 or 100+ series products.
Page 406 Red: 0-2.33 Yellow:2.33-3.66 Green:3.66-4.50 A detailed connection report is also generated: Voice Quality Trend Analysis: Post processing tools allow trending analysis over time. Multi-Service Test Module Manual Rev C00 Page 406 of 544...
Page 407 Procedure: Place VoIP to PESQ Server. Upstream, Roundtrip and Average voice quality measurement is displayed. Multi-Service Test Module Manual Rev C00 Page 407 of 544...
Page 408 Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 408 of 544...
Page 409 15.19 Phy Mode Puts the Phy chip in a special mode to transmit a specified wave form. Exiting the menu automatically returns the PHY chip to normal operation. Phy Mode Menu Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 409 of 544...
Page 410 15.20 Net Wiz The Net Wiz function tests the Ethernet cable and associated network environment. A typical application is shown below. Typical Net Wiz Application Net Wiz Test functionalities include: Cable Analysis with distance (Ethernet RJ45 Test port only, not available on Ethernet RJ45 Management port) to switch with MDI mode (Straight or Crossover) to fault, type of fault (Open, Short, Impedance Mismatch) Analyze the network and automatically report...
Page 411 Press Start to begin the test. The test set will return the connection type (Straight or Cross Over) if connected to an end device. If fault is detected (Open or Short) the fault will be indicated as well as the distance to the fault. Go back to top Go back to TOC Discovery Setup Discovery Setup...
Page 412 Summary indicates the test status and reports: TX/RX Frames: Total number of TX (transmitted) and RX (received) frames RX Errors: Received frames in error Speed Advert: Speed advertised Duplex Advert: Duplex mode advertised Total number of Devices and Networks found Go back to top Go back to TOC The Devices tab reports global and detailed device information.
Page 413 Detail displays the Attribute, MAC and IP Addresses, Group and Machine Names and Ping test results of each device discovered. Go back to top Go back to TOC Discovery Results - Networks Networks reports the number of IP Subnets, Hosts, Domain, and Named Hosts found. Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 413 of 544...
Page 414 15.21 Autoscripting Autoscripting runs BERT and Throughput test profiles in succession. Profiles are configured from the test application or ReVeal software. Autoscripting - BERT Setup Autoscripting Setup File Prefix: Prefix added to name of test results. The default prefix is "Autoscript." If Alarm/Error detected: Choose to Continue or Exit testing if an alarm/error is detected.
Page 415 File Manager - Saved Results Go back to top Go back to TOC 15.22 L2 Control Protocol Transparency Test (L2CP) L2CP tests network transparency to Layer 2 Control Protocols by transmitting a number of preselected L2 control protocol frames from Test set A and making sure that they are received on Test set B through the network under test. L2CP Transmit/Receive Mode L2CP Loopback Mode Multi-Service Test Module Manual Rev C00...
Page 416 Go back to top Go back to TOC Setup Press the green Start button to start the test with previous settings or NEXT to continue with the step-by-step setup process. Procedure Step 1 Transmit: Unit is setup to transmit and Receive L2CP frames. If the unit is selected as a transmitter, the option to Automatically Loop Up/Down becomes available.
Page 417 Step 4 Configure the VLAN Tag(s) that will be used for the test frames. VLAN can be disabled or enabled with up to 3 tags. L2CP Transparency Test - Transmitter - Step 4 Step 5 Select the number of test frames that will be transmitted for each L2CP. Configurable from 1 to 100. Configure Test Frame Rate: From 1 to 10 frames per second.
Page 418 Step 6 Select the type of frames that will transmitted during the test. Please see the List of Protcols section for more information. Add a check mark to each L2CP to test or select all. L2CP Transparency Test - Transmitter - Step 6 When the test starts, the screen displays L2CP frames transmitted and received for each protocol.
Page 419 Go back to top Go back to TOC List of Protocols Multi-Service Test Module Manual Rev C00 Page 419 of 544...
Page 420 Go back to top Go back to TOC 15.23 IP Monitoring Multi-Service Test Module Manual Rev C00 Page 420 of 544...
Page 421 The IP Monitoring tab displays incoming bandwidth statistics. Top talkers displayed in Net Wiz are listed from highest to lowest bandwidth consumption. Measurements featured in IP Monitoring are the same as BERT Results. Please see BERT Results. IP and Traffic buttons located in the Application tab display IP and Traffic measurements, respectively. To perform Trace Route testing (located in Net Wiz >...
Page 422 Net Wiz >Trace Route >Setup Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 422 of 544...
Page 423: Fiber Channel
16.0 Fiber Channel Fiber Channel Applications Introduction Enterprises worldwide rely on complex IT infrastructures to store and maintain critical data and applications. Storage Area Networks (SANs) have evolved to improve availability, resiliency, performance, modularity and geographical distribution of data storage systems and Fiber Channel is an important technology for linking SANs together.
Page 424 Buffer-to-Buffer Credit Estimation - To avoid loss of frames during transmission, the Fibre Channel protocol uses a buffer-to-buffer flow control mechanism between link partners. During the login process, the remote node informs the local nodes as to the number of receive buffers it has available.
Page 425 The Fiber Channel Main Menu provides shortcut application buttons for FC BERT, FC RFC 2544, FC Throughput, FC Loopback, and IP testing. Some test capabilities or test rates may be specific to the product configuration or may require the purchase of a software option in order to be displayed or be enabled.
Page 426 Offline (OLS) Not Operational (NOS) Link Reset (LR) Link Reset Response (LRR) Topology: Point-to-Point (P-to-P) mode is supported. In Point-to-Point mode, only two ports are used, connected by a fiber optic link. The transmitter of each port is connected directly to the receiver of the opposite port. There is no ambiguity in addressing, and there is no question of availability. Note: Fibre Channel defines three topologies: 1) Point-to-Point, 2) Arbitrated Loop, and 3) Fabric;...
Page 427 The test set complies with ANSI NCITS FC-FS recommendations and has the ability to test 1, 2, 4, 8 and 10 Gigabit Fibre Channel. 1/2/4/8/16G Fiber Channel: The unit verifies the 8B/10B PCS Layer with a basic primitive set at FC-1 or FC-2 lower layers. 10/16G Fiber Channel: The unit verifies the 64B/66B PCS Layer with a basic primitive set at FC-1 or FC-2 lower layers.
Page 428 Flow Control Classes of Service Login/Logout Topologies Segmentation and Reassembly Fiber Channel layers and functionality FC-3 defines common services that may be available across multiple ports in a node. This level has no standard now. Services for multiple ports on one node FC-4 defines the mapping between the lower levels of Fibre Channel, and the command sets that use Fibre Channel.
Page 429 FC-1 Frame Structure FC-2 BERT - Header Setup FC-2: Only FC-2 frames have a header, so these fields are not available for FC-1 frames. Defines the framing rules and mechanisms for controlling the different service classes. The following building blocks are defined by the standard: Ordered Set Frame...
Page 430 Is used to control link operations and device protocol transfers as well as detect missing or out of order frames Available in FC-2 frame format only CRC - The Cyclic Redundancy Check (CRC) Is a four byte field that follows the Data Field and is used to verify the data integrity of the Frame Header and Data Field. SOF and EOF delimiters are not included in the CRC verification The CRC field is calculated on the Frame Header and Data Field prior to encoding for transmission and after decoding upon reception...
Page 431 SOF Normal (SOFnx) The following delimiters identify the start of all frames other than the first frame of a Sequence based on class of service. SOFnx is used to indicate SOFn1, SOFn2, SOFn3 and SOFn4. SOF_n3: Contains a code value of 0x36 indicating SOF Normal Class 3. The SOFn3 shall be used for all frames except the first frame of a Sequence for Class 3 Service.
Page 432: Test Patterns
improve the relationship between measurements on signals and receiver performance in terms of bit errors. The unit transmits a "compliant pattern" which consists of a valid Fiber Channel protocol frame (SOF, payload, CRC, EOF) containing a test pattern as the payload.
Page 433 FC-2 BERT - Payload Setup BERT Testing Tips A BERT samples every incoming bit and looks for something that doesn't occur often. This traditional method typically used in SONET/SDH measurements, can however take a very long time. For example, in a 1Gbps Fiber Channel system, errors occur on average once every 1000 s (about 17 –12 Min) for 1x10 BER, so you would need to detect at least 10 to 100 errors before you can have...
Page 434 FC-2 Header Format The Frame Header is the first field of the frame content and immediately follows the SOF delimiter. The Frame Header is used to control link operations and device protocol transfers as well as detect missing or out of order frames. The values of each field can be edited depending on network setup and test scenario.
Page 435 The S_ID is a three-byte field (Word 1, Bits 23-0) that contains the address identifier of the source Nx_Port. Type (Data Structure Type): The data structure type (TYPE) is a one-byte field (Word 2, Bits 31-24) that identifies the protocol of the frame content for Data frames.
Page 436 Go back to top Go back to TOC Error Injection Setup Error injection can be performed during a test. The type of errors and error injection rate or flow are configured in the Error Injection tab. Error type: Select from Bit and CRC. Injection Flow: Determines how the selected errors will be injected.
Page 437 Go back to top Go back to TOC General tab (Throughput only) RTD Measurement: Enable or Disable Round Trip Delay Measurement SDT Measurement Trigger (>µs): Any inter-frame gap that is equivalent or greater than the configured threshold will trigger the SDT measurement.
Page 438 FC - Throughput - Summary Go back to top Go back to TOC Errors Current and Total values for: Bits: Number of bits received BER: Bit error ratio based on PRBS received or ratio of payload bit errors to total received payload bits Symbol: Symbol error or Code Violation is a bit error or disparity error occurring in a primitive sequence or Ordered Set FCS/CRC: Number of frames with either a bad or missing CRC or Frame Check Sequence Oversize: Number of Oversize frames received (>...
Page 439 Throughput - Errors (Page 1) Throughput - Errors (Page 2) Go back to top Go back to TOC Alarms Current and Total values for: LOS: Number of times the Link has transitioned to a Loss of Signal state in the measurement interval. Generally loss of optical signal. LOSync: Number of times the Link has transitioned to a Loss of Sync state in the measurement period Pattern Loss: Number of times test pattern or test sequence was lost Service Disruption...
Page 440 Last: Last disruption measurement time Min/Max: Minimum and Maximum disruption time No. of Occurrences: A count of the disruption events over the measurement period FC-BERT/FC-Throughput - Alarms Go back to top Go back to TOC Service Disruption Test (SDT) (Throughput only) Total: Total cumulative service disruption for the duration of the test.
Page 441 Throughput - Events Go back to top Go back to TOC Traffic Distribution Overview Graphical representation of: Frame type: Test frames in BER mode Traffic type: Class of service set by the SOF delimiter Frame size: FC-1 mode - the frame size is determined by the test sequence being used FC-2 mode - the frame size corresponds to the frame size configured in the traffic menu FC-BERT/FC-Throughput - Traffic Summary Multi-Service Test Module Manual Rev C00...
Page 442 Go back to top Go back to TOC Traffic Distribution Details - Frames RX (Received) Frames Total: Total number of frames received Test: Number of test frames received Non-Test: Number of non-test frames received TX (Transmitted) Frames Total: Number of test frames transmitted Flow Control: Flow control is the FC-2 control process to pace the flow of frames between Nx_Ports, an Nx_Port and the Fabric and within the Fabric to prevent overrun at the receiver.
Page 443 Go back to top Go back to TOC Frame Size Distribution Indicates the number and percentage of different frame sizes received during the test period. FC-BERT/FC-Throughput - Frame Size Distribution Go back to top Go back to TOC Delay Frame Arrival Delay or Latency is the round-trip delay experienced by a frame as it traverses the fiber link or network. The difference between the transmitted time and received time is the measured delay.
Page 444 FC - Throughput - Delay Go back to top Go back to TOC Frame Rate Summary Graphical representation of the Frame rates and Data rates. FC-BERT/FC-Throughput - Frame Rate Summary Go back to top Go back to TOC Frame Rate Details Tabular representation of the Transmitted and Received frames and the corresponding Data Rates in Mbps.
Page 445 Go back to top Go back to TOC Signal Level (Page 1) The Signal tab displays the Level and Frequency screen. Page 1 displays the level measurement Loss of Signal (LOS), and the Saturation level for optical signals is shown graphically, including the level measurement in dBm. FC-BERT/FC-Throughput Signal - Level (Page 1) Optical Information (Page 2) Page 2 displays the Optical module XFP information which includes Vendor name, Part number, and Optical Wavelength.
Page 446 Frequency (Page 3) Page 3 displays the Frequency information which includes: Current [bps]: Indicates current frequency level. Offset [ppm]: Indicates the frequency offset. Min [ppm]: Indicates the minimum frequency detected. Max [ppm]: Indicates the maximum frequency detected. FC-BERT/FC-Throughput Signal - Frequency (Page 3) Go back to top Go back to TOC 16.3 RFC 2544 The RFC 2544 Ethernet test suite is adapted to Fiber Channel circuits to verify 1Gbps, 2Gbps, 4Gbps, 8Gbps, 10Gbps and 16Gbps SAN...
Page 447 The Loopback function can be found on the Fiber Channel Home menu. FC-1/2 Manual Loopback Setup Modes of operation: Manual and Responder (future) Mode (FC layer): FC-1 or FC-2 Layer loopbacks are supported. In FC-2 mode, the destination and source IDs (D_ID and S_ID) are swapped including any other relevant Header fields (e.g., OX_ID, RX_ID, etc.).
Page 448 2. Enter a name for the results file, and then press Apply to save the file. The file is saved under the Files folder on the unit in pcap format. The file can be later exported to a PC and analyzed using Wireshark. Capture Mode Filter Capture Save...
Page 449: Interface Specifications
17.0 CPRI/OBSAI Testing Overview Interface Specifications CPRI Testing Test Ports Test Modes CPRI Unframed Setup Test Pattern Traffic Pattern Error Injection CPRI Unframed Results Summary Signal Errors Alarms Events CPRI Layer 1 Framed Testing Setup Results L1 RTD CPRI Layer 2 Framed Testing Setup Results CPRI Round Trip Delay...
Page 450 CPRI specification defines only Layer 1 and Layer 2 Specification written with the goal to be generic enough to support scalable rates, physical access medium type, and air interface technologies Go back to top Go back to TOC Protocol Stack Go back to top Go back to TOC Physical Layer The following Line bit rates are defined from the standard:...
Page 451 The symbols are chosen so that there is a limit of 5 consecutive equal bits and the difference of the count of 0s and 1s is no more than 2. The goal is to achieve DC balance by having a running disparity of 1s and 0s and to provide enough state changes to allow clock recovery.
Page 452 17.2 CPRI/OBSAI Ports and Test Modes Test Ports TX300S Module TX320S/MTTplus-320S Modules TX340S Module RXT-3900 Module Multi-Service Test Module Manual Rev C00 Page 452 of 544...
Page 453 Test Modes Refer to the latest specification sheet for a breakdown of available test modes for each platform and module. Available test modes vary depending on the test platform and module, but may include the following: CPRI/OBSAI Unframed CPRI Layer 1 Framed (CPRI Layer 1 Testing) CPRI Layer 2 CPRI Layer 2 Monitor Available CPRI test rates vary depending on the test platform and module, but may include the following:...
Page 454 17.2.1 CPRI/OBSAI Unframed BERT Setup Tap on Test Mode and select CPRI / OBSAI Unframed Testing from the menu to access this feature. CPRI/ OBSAI Home Before proceeding with BER testing, configure the Header, Traffic, and Error Injection tabs under Setup (BERT button > Setup). When finished configuring BERT settings, press the Start button to run the tests.
Page 455 Layer 1 Unframed 3.072G Layer 1 Unframed 4.9152G Layer 1 Unframed 6.144G Go back to top Go back to TOC 17.2.1.1 Test Pattern Header Configuration Tap on the Data button to reach the Header Configuration and select a test pattern. Tap the close button , located at the top right corner of the screen to apply configurations and return to the previous screen.
Page 456 The error type is fixed as Bit at Single error injection. An error injects each time the Error Injection button is pressed. Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 456 of 544...
Page 457 17.2.2 CPRI/OBSAI Unframed BERT Results Pressing the Start button brings up the Results screen. Go back to top Go back to TOC 17.2.2.1 Summary The following screen displays a Summary of the test results: Summary tab Line Rate (bps): Negotiated rate of the interface. This value is always fixed since it depends on the maximum capacity of the link under test, hence the test interface that is configured.
Page 458 Go back to top Go back to TOC 17.2.2.2 Signal Signal Diagram The Signal tab shows Receiver Saturation and Loss of Signal thresholds. Tx and Rx optical power levels are measured by the Multi-Service Test Module Manual Rev C00 Page 458 of 544...
Page 459 transceiver. Page 2 displays the Optical module (SFP or XFP) information which includes Vendor name, Part Number and Optical Wavelength. Go back to top Go back to TOC 17.2.2.3 Errors Tap on the Errors tab to view test measurements. Bits: Indicates errors related to test pattern (Bit Error or LSS [Pattern Loss]) BER: Bit Error Ratio Errors tab Go back to top Go back to TOC...
Page 460 This Events tab displays a list of events for the test in progress. Events tab Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 460 of 544...
Page 461 17.3 CPRI Layer 1 Framed Testing CPRI Layer 1 Main Menu Go back to top Go back to TOC 17.3.1 Setup The Setup page has four tabs for setting up test parameters: Signal, Measurements, General, and SDT tabs. Setup Menu Configure the following: Signal Hierarchy: CPRI Speed Selection from 614.4Mbps to 12.168Gbps.
Page 462 Interface: CPRI Clock Selection Internal/External. If the unit is set as Master emulation mode, the following options are available: Internal: The clock for the transmitter is derived from the internal clock. The internal clock has an accuracy of +/- 3.5ppm conforming to G.812 recommendations. External Clock Sources: 1.5MHz, 2MHz, 1.5Mbit/s, 2Mbit/s, 10MHz.
Page 463 Configure a test to run for a fixed duration or a delayed start. Mode: Manual, Timed, and Auto selections are available. Manual: This is linked to the Start/Stop function. Timed: The test duration can be set by the user. The test duration can be set in seconds, minutes, hours or days. The test is activated by the Start/Stop function.
Page 464 Auto Save: OFF / ON. Automatically Save the test results. Measurement Clock Source: Select the Measurement clock source used for Frequency measurement. For Master: Internal or TX clock source (if external clock source is used) For Slave: Internal Service Disruption Test (SDT) A service disruption is triggered by any qualifying error or alarm determined by the user and continues to count until the error-free condition (Gate Time) is met.
Page 465 In the simplified example above, two events occur with 150ms of error free time in between. A gate time of 300ms counts them as one service disruption because the error-free section is less that the gate time. Using a gate time of 100ms to evaluate the same situation would count two service disruptions, because the Gate Time condition is met within the error-free section.
Page 466 Count: Specific count for 0.1s, 1s, 10s, 100s when button is tapped Error Injection: Error Mode: Pattern: BIT - Bit error injection in test pattern CPRI: Code: Code violation error injection Error Flow: Single Count: Enter the value Rate: 1E-3, 5E-4, 2E-4, 1E-4, 5E-5, 2E-5, 1E-5, 5E-6, 2E-6, 1E-6, 5E-7, 2E-7, 1E-7, 5E-8, 2E-8, 1E-8, 5E-9, 2E-9, 1E-9 Press Start to start the test.
Page 467 Tapping the individual soft LED will automatically link directly to the applicable result screen which provides detailed information. Go back to top Go back to TOC Errors/Alarms (Page 2) - CPRI Page 2 lists CPRI Errors/Alarms associated with the signal under test. Some options may not be available depending on the platform and module.
Page 468 Go back to top Go back to TOC Signal Signal The Signal tab displays the frequency and level result screen. Page 1 displays the level measurement. Loss of Signal (LOS) and the Saturation level for optical signals is shown graphically including the level measurement in dBm. Frequency (Page 2) Frequency: The received signal frequency and offset is measured and displayed.
Page 469 Signal Page 3 Signal - Optical Information (Page 3) Page 3 displays the Optical module (SFP or XFP) information which includes Vendor name, Part number, and Optical Wavelength. Signal - Optical Information (Page 4) Page 4 displays the Optical module (SFP or XFP) Power Measurement Graph. Signal Page 4 Multi-Service Test Module Manual Rev C00 Page 469 of 544...
Page 470 Go back to top Go back to TOC Histogram The Histogram tab a historical record of the Alarms and Errors recorded during the measurement interval. A dedicated Page is available for CRPI and BERT errors and alarms. Histogram Go back to top Go back to TOC Graph The Graph tab displays a log of the Errors recorded during the measurement interval.
Page 471 Go back to top Go back to TOC Service Disruption Test (SDT) Results SDT Results If SDT is enabled in Setup, the SDT tab will display time measurements of detected errors/alarms specified by the user in SDT setup. SDT Measurement ends after the Gate time is elapsed, to allow the capture of multiple smaller events. The total time from the beginning of the first event to the end of the last event (within the Gate Time) is the reported SD time.
Page 472 Go back to top Go back to TOC 17.3.3 L1 Round Trip Delay With a loopback at the far-end, the test set inserts a bit error in the transmitted data stream and measures the time it takes for the error to be received in order to evaluate round trip delay. This measures the total fiber length and equipment delay combined. The loopback can be fiber optics or logical (triggered inside network elements).
Page 473 17.4 CPRI Layer 2 Framed Testing Refer to the Getting Started section, in the TX300S, MTTplus, RXT-1200, or UX400 platform manuals for more information on how to launch test applications. CPRI Layer 2 Main Menu Go back to top Go back to TOC 17.4.1 Setup Setup Menu Go back to top Go back to TOC...
Page 474 Interface: CPRI Clock Selection Internal/External (Master mode only). Slave uses RX signal recovered clock. If the unit is set as Master emulation mode, the following options are available: Internal: The clock for the transmitter is derived from the internal clock. The internal clock has an accuracy of +/- 3.5ppm conforming to G.812 recommendations.
Page 475 Slow C&M Rate: None: HDLC channel disabled Configurable rate: 240kb/s to 2400 kb/s HDLC channel data rate depending on CPRI Link speed Fast C&M Enabled: Ethernet channel, configurable start of Ethernet channel pointer in Control word or channel disabled. OFF: Ethernet Channel disabled ON: Ethernet Channel enabled, configure Ethernet pointer location from 20 to 63 Auto-negotiation can be used for Master/Slave to negotiate their maximum C&M channels capabilities Payload...
Page 476 Configure a test to run for a fixed duration or a delayed start. Mode: Manual, Timed, and Auto selections are available. Manual: This is linked to the Start/Stop function. Timed: The test duration can be set by the user. The test duration can be set in seconds, minutes, hours or days. The test is activated by the Start/Stop function.
Page 477 Results on start: OFF / ON. Shows the results screen on pressing Start. Auto Save: OFF / ON. Automatically Save the test results. Measurement Clock Source: Select the Measurement clock source used for Frequency measurement. For Master: Internal or TX clock source (if external clock source is used) For Slave: Internal Go back to top Go back to TOC Service Disruption Test (SDT)
Page 478 The alarm and error functions are used in conjunction with the drop-down menu which has dedicated buttons for error injection and alarm generation. The alarm section features a range of different anomalies that can be generated in the transmit signal. Alarm generation modes include: CPRI Alarms: LOS: Trigger a Loss of Signal event (Laser OFF)
Page 479 Summary The Summary tab displays a summary of test results and parameters. At a glance, the user is able to see if there are any alarms, errors, or signal failure pertaining to the signal and its payload. Go back to top Go back to TOC Alarms and Errors The Error/Alarm tab displays several pages showing the errors and alarm status.
Page 480 Go back to top Go back to TOC Errors/Alarms (Page 2) - CPRI Page 2 lists CPRI Errors/Alarms associated with the signal under test. Some options may not be available depending on the platform and module. LOS: Loss of Signal detection in seconds Code: 8b/10b code violation detected count and rate Running Disparity: 8b/10b running disparity error K30.7: Control word K30.7 detection...
Page 481 Go back to top Go back to TOC Signal Signal (Page 1) The Signal tab displays the frequency and level result screen. Page 1 displays the level measurement. Loss of Signal (LOS) and the Saturation level for optical signals is shown graphically including the level measurement in dBm. Page 2 includes: Frequency: The received signal frequency and offset is measured and displayed.
Page 482 Signal (Page 3) Signal - Optical Information (Page 3) Page 3 displays the Optical module (SFP or XFP) information which includes Vendor name, Part number, and Optical Wavelength. Signal - Optical Information (Page 4) Page 4 displays the Optical module (SFP or XFP) Power Measurement Graph. Signal (Page 4) Multi-Service Test Module Manual Rev C00 Page 482 of 544...
Page 483 Go back to top Go back to TOC Histogram The Histogram tab displays a historical record of the Alarms and Errors recorded during the measurement interval. A dedicated Page is available for CPRI and BERT errors and alarms. Histogram (Page 1) Go back to top Go back to TOC Graph The Graph tab displays a log of the Errors recorded during the measurement interval.
Page 484 Go back to top Go back to TOC 17.4.3 CPRI Round Trip Delay CPRI Standard Cable Delay Measurement reference points: Toffset = Frame offset delay between Slave RX and Slave TX T 1,4 = Frame delay between Master TX and Master RX Cable Delay (round trip) = T 1,4 –...
Page 485 Go back to top Go back to TOC 17.4.4 Service Disruption Test (SDT) Results Refer to SDT Results in the CPRI Layer 1 Framed section for more information on test results. Go back to top Go back to TOC 17.4.5 Control Words Display of Control words content in the 64 Subchannels.
Page 486 Capture up to 5000 Hyperframes CSV, IQ, or raw frame format Compression (gzip format) Capture file written directly to USB drive Frame Capture Setup Go back to top Go back to TOC 17.4.7 Wander Measurements Wander Setup Refer to Wander Measurements and Analysis for a description of the Wander function, test setup, and results.
Page 487 TIE Monitor Graph The real time monitoring TIE graph shows current test results as the test is running. Based on current test measurements, users can decide to continue with long term testing or change configuration settings. The Y scale is auto-ranging and displays the last seven minutes of measurement results.
Page 488 17.5 CPRI Layer 2 Monitor CPRI Layer 2 Monitor Main Menu CPRI bi-directional monitoring can be configured with dual port pass through monitoring or with optical splitters. It also offers the following features: Troubleshoot protocol interop with Control words display Link status and alarm display Hyperframe capture Go back to top Go back to TOC...
Page 489 The Setup page has four tabs for setting up test parameters: Signal, Measurements, General, and SDT tabs. Go back to top Go back to TOC Configure the following: Signal Hierarchy: CPRI Speed Selection from 614.4Mbps to 12.168G. Check with SFP+ manufacturer specifications to make sure rates are supported.
Page 490 Payload: CPRI Layer 2 configuration CPRI Emulation Type: CPRI Slave emulation is chosen by default CPRI Protocol: Version 1 supported #Z.0.1 Byte: Sync Control Word Z.0.1 set to D16.2 or D5.6 Channels: Single: PRBS test pattern monitored on one AxC All: PRBS test pattern monitored on all AxC Control and Management (C&M) channel configuration: Slow C&M Rate:...
Page 491 Go back to top Go back to TOC Measurements Measurements Setup Configure a test to run for a fixed duration or a delayed start. Mode: Manual, Timed, and Auto selections are available. Manual: This is linked to the Start/Stop function. Timed: The test duration can be set by the user.
Page 492 General Setup Audible Alarm: OFF / ON. A sound will be generated every time there is an alarm. This feature is not available on all test sets. Results on start: OFF / ON. Shows the results screen on pressing Start. Auto Save: OFF / ON.
Page 493 Go back to top Go back to TOC 17.5.2 Results Results for both ports are displayed in each tab. Results Summary Summary The Summary tab displays a summary of test results and parameters. At a glance, the user is able to see if there are any alarms, errors, or signal failure pertaining to the signal and its payload.
Page 494 Gray: Indicates that the measurements are masked by a higher layer alarm or error. Alarms/Errors for Port 1 are featured on the left, while Alarms/Errors for Port 2 are on the right. Alarms and Errors Page 1 (Port 1 & Port 2) Tapping on an individual colored block will automatically link directly to the applicable result screen which provides detailed information.
Page 495 Errors/Alarms (Page 3) - BERT Page 3 lists BERT Errors/Alarms associated with the signal under test. LSS: Loss of test pattern seconds. Bit: Number of test pattern bit errors. Displays count and rate. Go back to top Go back to TOC Signal Signal - Level - Page 1 (Port 1) Signal - Level - Page 2 (Port 2)
Page 496 The Signal tab displays the frequency and level result screen. Page 1 & 2 displays the level measurement. Loss of Signal (LOS) and the Saturation level for optical signals is shown graphically including the level measurement in dBm. Each page displays measurements for an individual port. Frequency (Page 3 &...
Page 497 Signal - Optical Information (Page 5 & 6) Page 5 & 6 display the Optical module (SFP or XFP) information which includes Vendor name, Part number, and Optical Wavelength. Signal - Optical Information (Page 7 & 8) Page 7 & 8 display the Optical module (SFP or XFP) Power Measurement Graph. Histogram showing the fluctuation in RX optical signal level.
Page 498 Histogram showing BERT alarms and errors events. Go back to top Go back to TOC Graph The Graph tab displays a log of the Errors recorded during the measurement interval. A dedicated page is available for each of the error types. Port 1 results are displayed on the left;...
Page 499 Go back to top Go back to TOC Event Log 1 & 2 Logs CPRI Alarms and Errors events along with corresponding count and duration for each event. Event Log 1 refers to Port 1 events, while Event Log 2 refers to Port 2 events. Event Log 1 (Port 1) Event Log 2 Go back to top Go back to TOC...
Page 500 Control Words Byte Analyzer Control Words Byte Analyzer Go back to top Go back to TOC Frame Capture Multi-Service Test Module Manual Rev C00 Page 500 of 544...
Page 501 When configured in L2 Monitoring mode, the unit captures P1 and P2 simultaneously. The following lists Frame capture options: Capture up to 5000 Hyperframes CSV or raw frame format Compression (gzip format) Capture file written directly to USB drive Frame Capture Setup Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 501 of 544...
Page 502: Getting Started
Per IEEE, the LOS condition is declared upon receiving two or more errors in eight consecutive framing patterns, and cleared upon receiving eight consecutive correct framing patterns. VeEX test sets repot Frame (induced) LOS and Signal (induced) LOS separately to provide extra information to users for better problem isolation and troubleshooting purposes.
Page 503 The C37.94 optical data rate is very low by today’s standards and not all modern SFPs are compatible with it (most are designed for rates ≥ 100 Mbit/s). Only use SFPs recommended by VeEX, which have are non- blocking and have a clock and data recovery (CDR) capable of working at 2048 kbit/s.
Page 504 Signal The C37.94 Test Application uses VeEX’s signature layered test signal configuration user interface, allowing users to build the desired test signal using an intuitive flow chart structure. Tap on each box to have access to all applicable parameters that can be configured.
Page 505 Mode: Manual: User starts and stops the test. Timed: Allows user to program the duration of the test. When the set time has elapsed, the test set automatically stops the test. Auto: Programmable start time. Users can enter the exact date and time when they want the test to start and its duration.
Page 506 ST: Start Time. Date and time when the test started. ET: Elapsed Time. Total time that the current test has been running. RT: Remaining Time. During timed tests it indicates how much time is still left before the test stops. The bottom banner shows the overall status, while the individual fields at the top provide more information about which layers may have been affected.
Page 507 Graph Displays the behavior of individual error or alarm in a bar graph format over time. It is used to identify the severity of each event over time to understand its behavior. User can zoom in and zoom out using the [+] and [-] buttons to view the results in hours, minutes or seconds.
Page 508 With a loopback at the far-end, the test set can measure the time it takes for test bits to make the round trip. This measures the total fiber length and equipment delay combined. The loopback can be fiber optics, electrical (in case it terminates in other Datacom interface) or logical (triggered inside network elements).
Page 509 The OWD test must work with C37.94 bursty behavior (data transmitted every 125μs) and be compatible with any Nx64k data rate, network element, multiplexer, DSn, PDH, SDH or SONET equipment in the path, to achieve meaningful resolution and accuracy. OWD is a coordinated test that requires both test sets (and users) to be ready and following each other’s status over the phone or any other communication mean.
Page 510 One-Way Delay: Site B to A Keep both test sets in the One Way Delay screen. If one of the test sets leaves the OWD test feature, the other test set may start reporting invalid results. Stop the test and save the results before quitting the OWD application. In Dual Port mode, the test set allows running a bi-directional OWD test with only one meter.
Page 511 19.0 G.703 64k Codirectional 19.1 Setup Setup - Signal 19.1.1 Signal Tap on the Signal tab to set up the interfaces and associated test parameters prior to running a test. The configuration is grouped into a simple yet intuitive block diagram. Signal parameters can be modified by tapping the applicable block which displays a new dialog window displaying additional input and specific selection settings.
Page 512 The Tx Interface Setup screen features the following options: Test Port: The electrical interface is selected as the only option for this application Clock Source: Can be configured as follows: Internal clock: The clock for the transmitter is derived from the internal oscillator. The internal clock has an accuracy of +/- 3.5ppm conforming to G.812 recommendations.
Page 513 Go back to top Go back to TOC 19.1.2 Measurements Setup - Measurements Tapping the Measurements tab opens the setup screen for the Timer, Performance Analysis, and General configurations. Configure a test to run for a fixed duration or a delayed start. Mode: Manual, Timed, and Auto selections are available Manual: This is linked to the Start/Stop button.
Page 514 19.1.3 General The General setup page configures the audible alarm, Save, and Measurement Clock Source. Setup - General Audible Alarm: Unit emits a sound if an alarm is detected. This feature is not available on all units. Result on start: On or Off. Provides an automatic move to Result screen when it starts. Auto Save: Tap Auto Save and set it to ON to automatically save the results file.
Page 515 The Error/Alarm tab displays several pages showing the errors and alarm status. Alarms/Errors results provides an overview of all the Errors and Alarms applicable to the signal or network under test. The color of the page tab is normally blue; however, it will turn red when an alarm error condition has been detected or recorded.
Page 516 Errors/Alarms (Page 3) Page 3 lists the Errors in logical order that are associated with the signal under test. All alarms are evaluated and stored. Errors/Alarms - BERT (Page 4) Errors/Alarms (Page 4) Page 4 lists the Bit Error Performance (BERT) associated with the signal under test. Go back to top Go back to TOC 19.2.3 Event Log The Event log tab displays the screen listing the Error and Alarm events recorded during a test.
Page 517 Go back to top Go back to TOC 19.2.4 Signal The Signal tab displays the frequency and level result screen. Signal Frequency: The received signal frequency and offset is measured and displayed. For E1 signals, the measurement is performed on both balanced 100 ohm and unbalanced 75 ohm interfaces.
Page 518 Voltage: Measures the Peak voltage value of the incoming signal. Go back to top Go back to TOC 19.2.5 Histogram The Histogram tab displays a historical record of the Alarms and Errors recorded during the measurement interval. A dedicated page is available for errors and alarms including BER. Scroll through the various pages to display the anomalies of interest. Histogram - Codirectional (Page 1) A graphical timeline on the horizontal axis indicates when the event occurred since the test was started.
Page 519 Histogram - Codirectional (Page 2) Go back to top Go back to TOC 19.2.6 Graph The Graph tab displays a screen displaying a log of the errors recorded during the measurement interval. A dedicated page is available for each error type. Scroll through the various pages to display the anomaly of interest. Graph A graphical timeline on the horizontal axis indicates when the event occurred while the vertical axis indicates the logarithmic scale of errors.
Page 520 The Analysis tab displays measured objectives from ITU-T performance tests selected from the Measurements tab (Setup > Measurements). Evaluation According to ITU-T G.821 This recommendation was originally specified for international circuit-switched N x 64kbps connections. ES, SES, AS and UAS are evaluated and can be performed on the following events: Bit errors (TSE, Test Sequence Error) The following signals can be measured when performing G.821 evaluation of bit errors (TSE): Unframed patterns...
Page 521 Error Insertion Error Mode: Pattern: Bit Codirectional: Code Error Flow: Injects different anomalies into the transmit signal. Error insertion flow modes include: Single: Inserts a single error every time the insertion button is tapped Count: Specific count or number of errors when the insertion button is tapped Rate: Specific rate between 1x10 and 5x10 Alarm Generation/Error Insertion...
Page 522 Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 522 of 544...
Page 523 20.0 Clock Wander & Phase Measurement Refer to Advanced Clock Wander & Phase Measurements for more information on PDV Analysis. Go back to TOC Multi-Service Test Module Manual Rev C00 Page 523 of 544...
Page 524 21.0 1588v2/PTP Through Mode & PDV Analysis 1588v2/PTP Home Menu When placed in 1588v2/PTP Through Mode, the TX320S makes use of both ports to analyze network 1588v2/PTP traffic exchanged between Master and Slave. The unit can be inserted on the network path in passthrough mode between P1 and P2 or non- intrusively via a network tap.
Page 525 In 1588v2/PTP Through mode, traffic forwarding between P1 and P2 becomes active as soon as it is connected on the network, however measurements and statistics are only active after pressing Start. Go back to top Go back to TOC 21.1 Port Setup Port setup is accessed via the Setup menu located on the Home page.
Page 526 1 GE Copper Port Setup 1 GE Copper Port Auto Negotiation: On or Off. Matches the test set's negotiation settings to those of the link partner. Speed (only when Auto Negotiation is Off): 10 Mbps or 100 Mbps. Duplex (only when Auto Negotiation is Off): Half or Full. Advertisement (only when Auto Negotiation is On): Default-All or Custom.
Page 527 The Status tab lists current port settings. Please note that the Status tab is only available if a fiber port option is selected from the Test Port Selection menu. Test units shipped before January 2012 support up to +/- 50 ppm offset only. Units shipped from 2012 onwards, support up to +/- 150 ppm offset.
Page 528 Delay Measurement: End to End (M>S, S>M) and BC-TE measurements are the same value, except that BC-TE measurements have additional parameters. Both modes require a 1 PPS clock source (Ext. 1PPS, Atomic 1PPS, or GPS 1PPS). End to End (M>S, S>M): Measures the M>S Master to Slave (T1, T2) and S > M Slave to Master (T3, T4) delay based on the monitored messages Sync and Delay_req/Delay_response timestamps.
Page 529 Forward TE Threshold: When enabled, triggers an event when the measured Forward TE (T1) exceeds the configured threshold. Threshold values are from 100ns to 1000 us. Reverse TE Threshold: When enabled, triggers an event when the measured Reverse TE (T4) exceeds the configured threshold.
Page 530 Indicator Symbols A T indicates that the test set is in Through mode. A green light indicates a successful connection. If the Light is gray, it indicates that there is no valid 1588v2/PTP traffic detected. Go back to top Go back to TOC 21.3 Packet Capture Please refer to the Packet Capture section in V300 Common Functions Manual for more information on this feature.
Page 531 Additional message information is displayed on the Messages screen. Messages The Messages screen gives a further breakdown by message type. The total and per second average message rates are displayed. Messages Decoder The Tracer shows the 1588v2 messages from both Master and Slave clock devices. There are four function keys: Pause/Continue - to pause or continue the tracer.
Page 532 Decoded Message TE Events TE Events tab The TE Events tab displays TE Threshold crossing events with a timestamp. Go back to top Go back to TOC 21.5 Ethernet Stats Multi-Service Test Module Manual Rev C00 Page 532 of 544...
Page 533 Ethernet Stats include 1588v2/PTP traffic and non 1588 traffic. It displays Port 1 and Port 2 Ethernet traffic measurements. Tap on P1 and P2 to switch between port 1 and port 2 measurements. For more information on Ethernet traffic tabs and measurements, please refer to the BERT Results section.
Page 534 Reverse TE: Measures Reverse Path (Slave to Master) Time Error, based on Delay_response (t4) message and t’3 measured by test set in Through Mode and configured cable delay. 2Way TE: Uses Forward TE and Reverse TE measurements to computed 2Way TE. Refer to Time Error Test for Boundary Clock for a graphical representation of Forward, Reverse, and 2Way TE.
Page 535 Sync PDV: Monitors TIE of Sync Messages Follow Up PDV: Monitors TIE of Follow_Up Messages Slave Wander: Monitors Slave TIE based on Delay_Request Messages (Note that t3 delay_request timestamp is not always present in the messages originating from the slave). Delay Req PDV: Monitors TIE of Delay_Request messages based on Delay_Response (t4) timestamps.
Page 536 Tap on PDV Analysis to view the PDV graph and perform Delay/PDV Analysis per ITU-T G.8261.1 standard. The objective of this category of PDV metrics is to study the population of timing packets within a certain fixed cluster range starting at the observed floor delay.
Page 537 W = Window interval K = W/τP = number of packets transmitted in the window interval Floor Packet Count (FPC) with Sliding window Floor Packet Rate (FPR) with Sliding window Floor Packet Percent (FPP) with Sliding window ITU-T G.8261.1 Network Limits: 1.
Page 538 22.0 Profiles Profiles can be created in any application that has a "Profiles" drop-down menu available. The PDH, SDH, OTN, Ethernet and Fiber Channel applications, among others, all have the ability to save profiles. Profiles can also be managed from the Utilities button > Files > Saved. Options include the ability to filter, rename, delete, export, and import files.
Page 539 Go back to top Go back to TOC Multi-Service Test Module Manual Rev C00 Page 539 of 544...
Page 540: Common Functions
23.0 Common Functions Please refer to the TX300S, MTTplus, RXT-1200, or UX400 platform manuals for the following functions: IP Tools: Ping, Trace Route Net Wiz WiFi Wiz Advanced Tools Utilities Files R-Server Backlight VeExpress M.Upgrade Go back to TOC Multi-Service Test Module Manual Rev C00 Page 540 of 544...
Page 541: Warranty And Software
Replace hardware which proves to be defective provided that the products that the customer elects to replace is returned to VeEX Inc. by the customer along with proof of purchase within thirty (30) days of the request by the customer, freight prepaid.
Page 542: Product Specifications
25.0 Product Specifications The product specifications are available for download in PDF format on the VeEX customer website. Please note that Adobe Reader version 9.0 or higher is needed to open and view the file. To get the latest free version of Adobe Reader, click here.
Page 543: Certifications And Declarations
All applicable products imported into the EU market after July 1, 2006 must pass RoHS compliance. For more information about RoHS as it relates to VeEX Inc, go to the VeEX web site at www.veexinc.com/RoHS...
Page 544: About Veex
27.0 About VeEX VeEX Inc., the Verification EXperts, is an innovative designer and manufacturer of test and measurement solutions addressing numerous technologies. Global presence through a worldwide distribution channel provides uncompromised product support. Visit us online at www.veexinc.com for latest updates and additional documentation.
