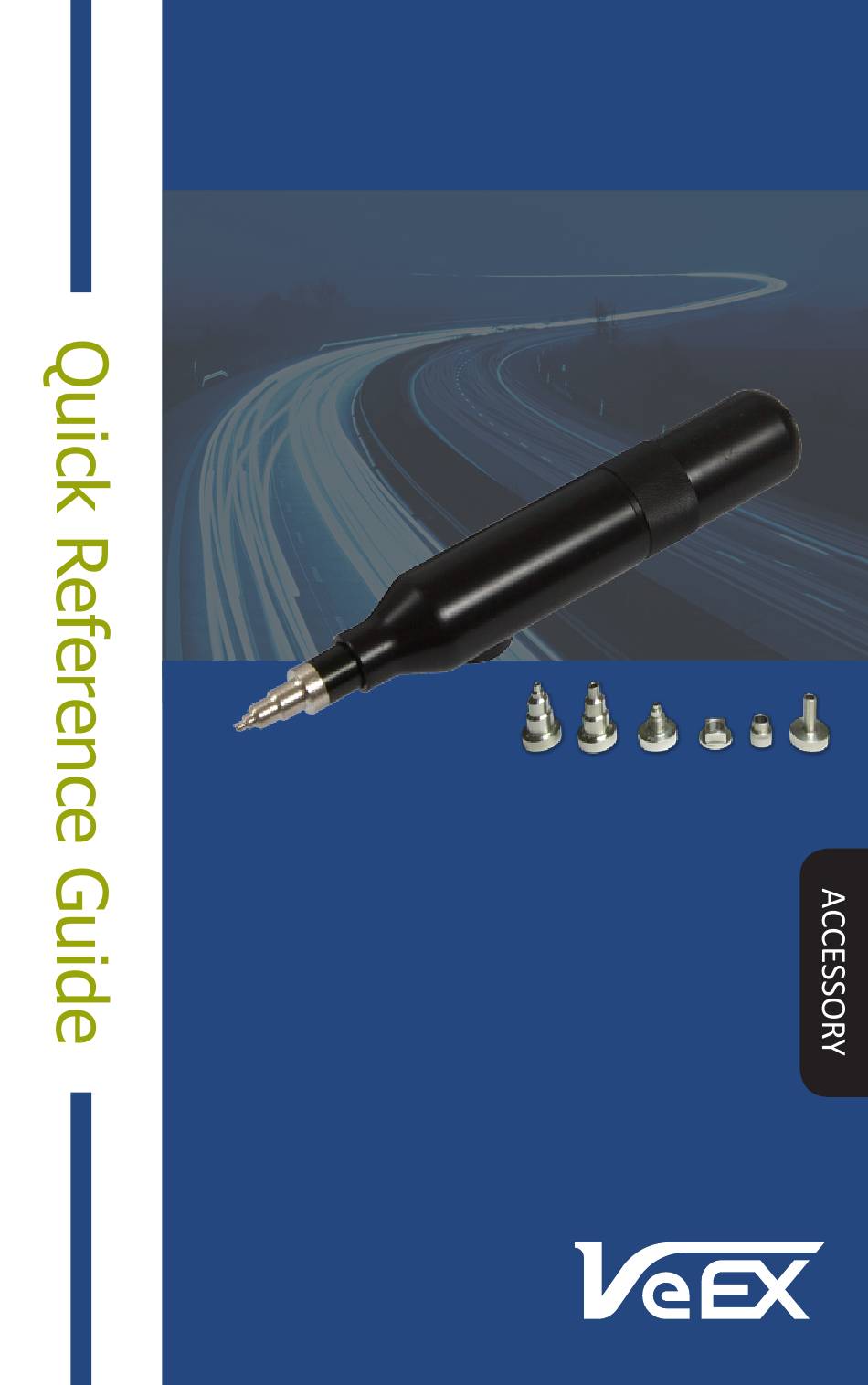

- Page 1 Fiber Testing Fiber Scope Inspector T he Veri fication E xper ts...
- Page 2 Fiber Testing Fiber Scope Inspector Quick Reference Guide Setup and Configuration Connect the Fiber Scope to the USB port on the left hand side of your TX/MX/CX300 unit. Go to Tools > Advanced > Fiber Scope. Capture Views From the Setup tab, configure the Capture file name. From the Capture tab, press the button to view the video scopes.
- Page 3 Fiber Testing Fiber Scope Inspector Quick Reference Guide Adjust Focus and Save Image You can use the rotary dial on the Fiber Scope to adjust the focus. Press the button to store the image. File Comparison To compare stored views, from the Captured Files tab, select the files you want to compare.
- Page 4 − Tip, LC female connector − Tip, SC/APC female connector © 2011 VeEX Inc. All rights reserved. VeEX Inc. VeEX is a registered trademark of VeEX Inc. The 2827 Lakeview Court information contained in this document is accurate. Fremont, CA 94538 USA However, we reserve the right to change any Tel: +1.510.651.0500...
