- Page 1 FX150+ Quick Start Guide OTDR / OPM / OLS / ORL / Fiber Scope Including EZ Mode 11/477 Warrigal Rd, Moorabbin, VIC 3189 Tel: 1300 468 469 TELECOMTEST SOLUTIONS sales@telecomtest.com.au...

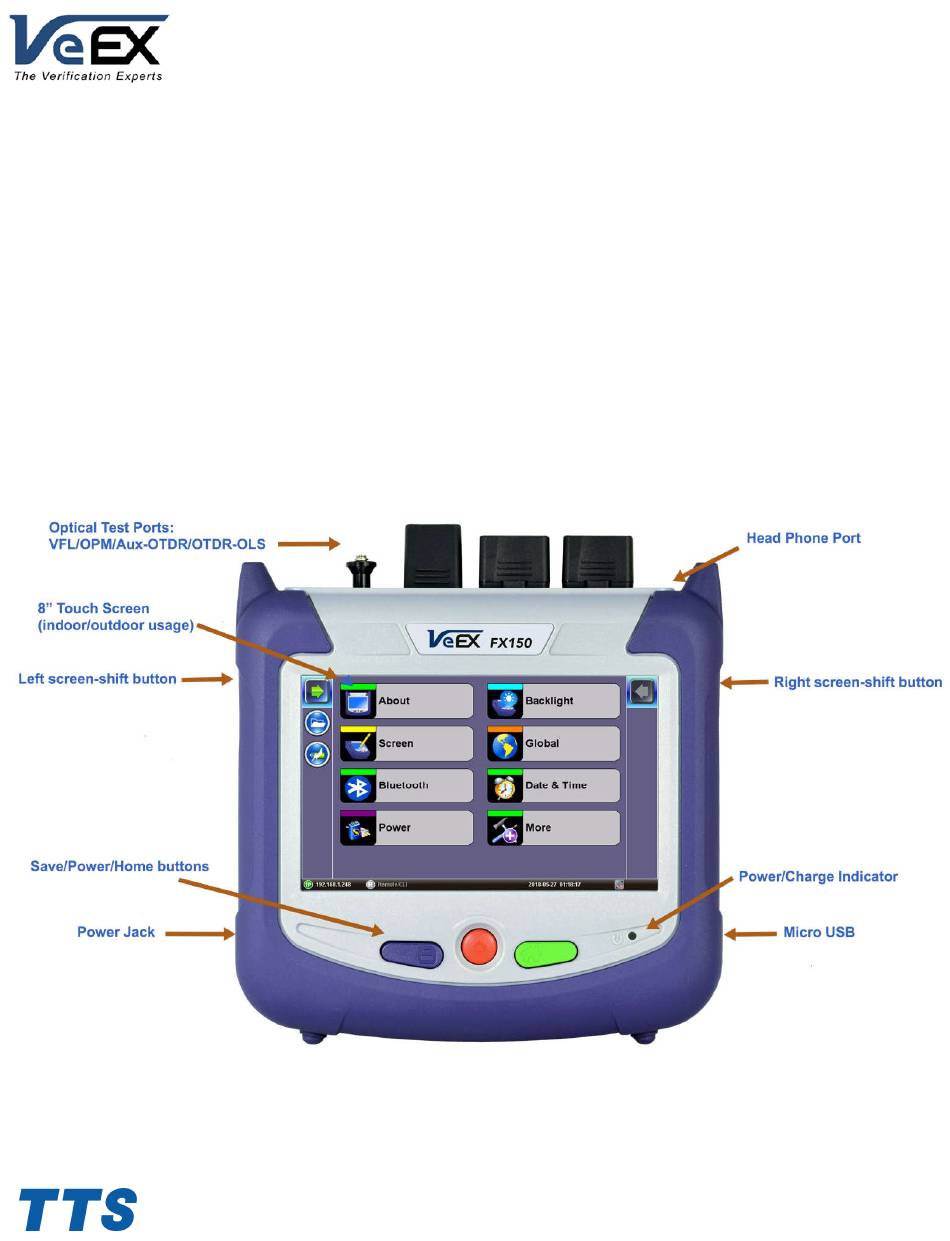

- Page 2 Powering On/Off: Press the red power button for about 3 seconds until your hear a beep. Do the same thing if you want to power off. Softkeys: Home – Tap to return to the OTDR Main Menu Escape/Exit – Tap to return to the previous screen. Tap to hide/unhide the side menus V key / Fiber –...
- Page 3 OTDR Modes press the V key or Fiber key at the bottom left corner EZ-OTDR : Choose this mode if you don’t want to configure any optical settings. The unit will make the best selection for the optical pulse settings. V-Scout LinkMap : Choose this mode if you are mainly interested in the Link Map rather than traces.
- Page 4 EZ-OTDR Mode Choose the wavelengths you want to test. The tester will select the best settings for resolutions, pulse width and distance. If you have spans on your link, ex: initial launch fiber at your side or the remote side, then go to Span and insert the span information V-Scout is for automating several tests sequentially with different settings and then combining them all into one diagram to accurately characterize all events that might require different pulsewidths and resolution.
- Page 5 Expert OTDR Mode press the V key or Fiber key at the bottom left corner OTDR SETUP: Choose the wavelengths you want to test. In Manual mode you can configure all the settings for the optical pulse. In Auto Mode the tester will select the best settings for resolutions, pulse width and distance. If you have spans on your link, ex: initial launch fiber at your side or the remote side, then go to Span and insert the span information V-Scout is for automating several tests sequentially with different settings and then combining them all into...
- Page 6 OTDR Test Results: You can see the test results in several forms: V-Scout, Trace and Events Table V-Scout: Shows a schematic of the link which is easy to interpret along with events table Events: Shows a table of events found on the link based on the Analysis thresholds set earlier Traces: Select the traces you want to see/overlay on the screen.
- Page 7 Power Meter Mode (OPM) Press the V key or Fiber key at the bottom left corner and choose OPM Optical Power will be measured continuously by default in dBm/nW Press Hold to stop any further measurements. Press Hold again to resume measuring Acquiring: Press “Acquire”...
-
Page 8: Other Modes
Other Modes: Press the V key For more information, please refer to the following documents: VS500 Fiber Scope User Manual FX150+ platform User Manual / OTDR User Manual Link Link Fiberizer User Manual Fiberizer Quick Start Guide Link Link Page | 8...
