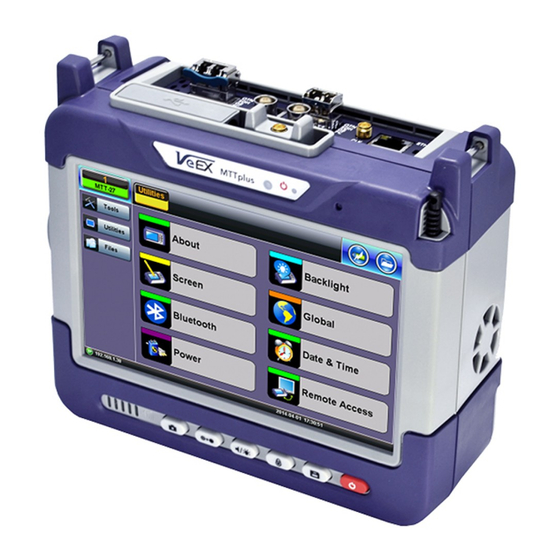

VeEX MTTplus User Manual

Multi-service modular test platform
Hide thumbs Also See for MTTplus:
Table of Contents

Advertisement

Quick Links

MTTplus e_Manual D07-00-096P RevA00
Page 1 of 66

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTTplus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VeEX MTTplus

Summary of Contents for VeEX MTTplus

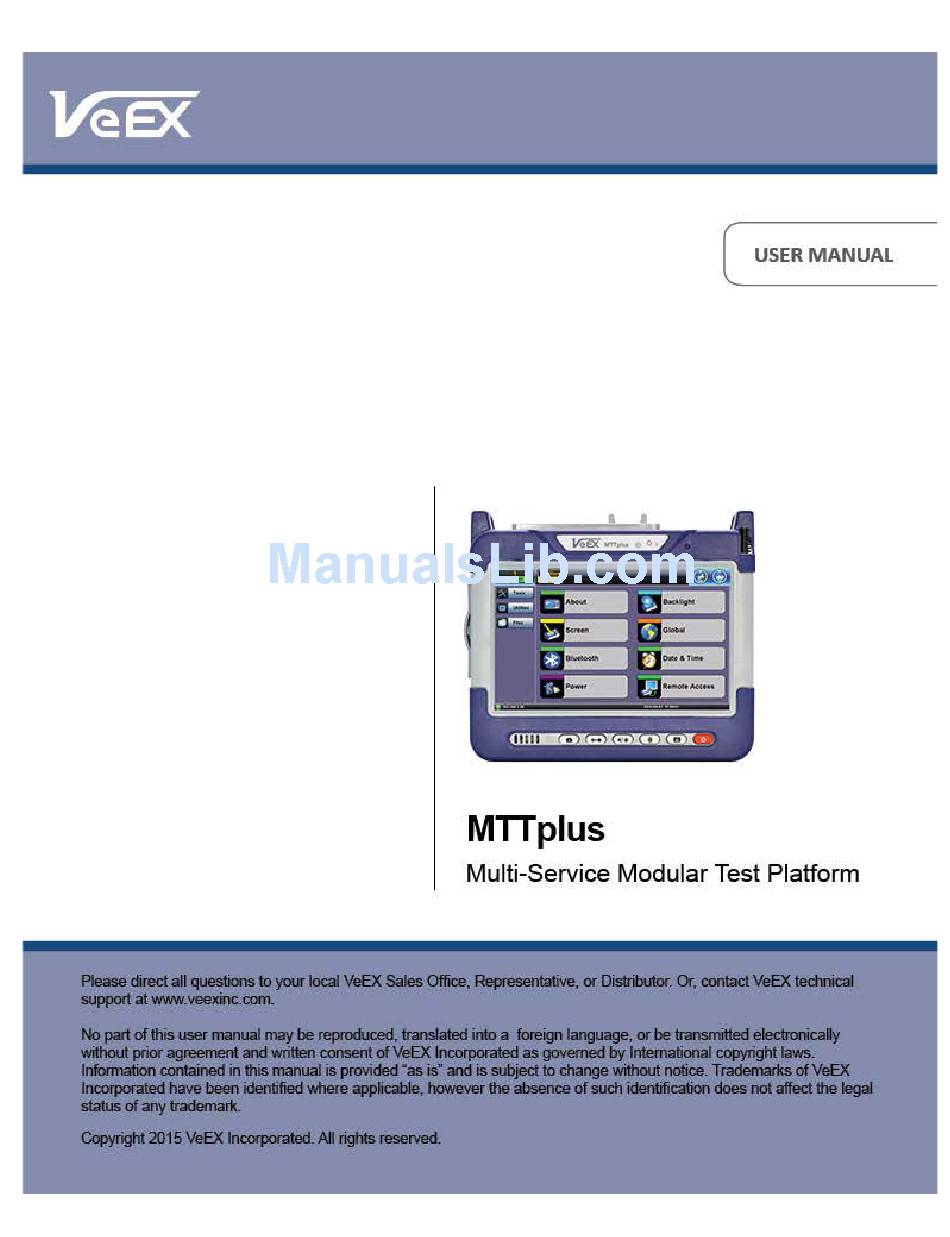

  • Page 1 MTTplus e_Manual D07-00-096P RevA00 Page 1 of 66...

  • Page 2: Table Of Contents

    MTTplus e_Manual D07-00-096P RevA00 Page 2 of 66 Table of Contents 1.0 About This User Manual 2.0 Safety Information 3.0 Introduction 3.1 Platform Overview 3.2 Front Panel Buttons 3.3 Hardware Configurations 3.4 Home Screen 3.5 Quick Access Menu 4.0 Getting Started 4.1 Launching Test Applications...
  • Page 3 MTTplus e_Manual D07-00-096P RevA00 Page 3 of 66 8.0 Warranty and Software 9.0 Certification and Declarations 10.0 About VeEX Go back to TOP...

  • Page 4: About This User Manual

    (c) Copyright 2015 VeEX Inc. All rights reserved. VeEX, VePAL are registered trademarks of VeEX Inc. and/or its affiliates in the USA and certain other countries. All trademarks or registered trademarks are the property of their respective companies. No part of this document may be reproduced or transmitted electronically or otherwise without written permission from VeEX Inc.

  • Page 5: Safety Information

    Do not operate the instrument in the presence of flammable gases or fumes or any other combustible environment. VeEX Inc. assumes no liability for the customer's failure to comply with safety precautions and requirements.
  • Page 6 Access, Business, Carrier Ethernet, Transport and Core services. The new MTTplus platform builds on the legacy of the legendary MTT, providing a modular test toolkit for wide ranging and evolving test needs. MTTplus supports business class SHDSL, residential VDSL2/ADSL2+, as well as the latest Vectoring and G.fast technologies that are enabling Service Providers to continue offering competitive services over their copper networks.
  • Page 7 MTTplus e_Manual D07-00-096P RevA00 Page 7 of 66 3.1 MTTplus Overview Side View Go back to TOC...

  • Page 8: Front Panel Buttons

    MTTplus e_Manual D07-00-096P RevA00 Page 8 of 66 3.2 Front Panel Buttons Power: Press for 2 seconds to turn the test set ON or OFF (prevents accidental ON/OFF) If a test is running when the power off is started, test is terminated and...

  • Page 9: Home Screen

    3.3.1 Inserting/ Removing Test Modules Turn the test set OFF before Inserting or Removing MTTplus and/or MTT modules from a chassis Insert: Align the module with the the guides and carefully insert it into place. Use the thumb screws to secure it.

  • Page 10: Quick Access Menu

    MTTplus e_Manual D07-00-096P RevA00 Page 10 of 66 Go back to TOC 3.5 Quick Access Menu This multi-tasking section provides convenient and immediate access to system features, connectivity, accessories, results, etc., always at your fingertip. Those features are always available, independently of whether tests are running or not.

  • Page 11: Getting Started

    MTTplus e_Manual D07-00-096P RevA00 Page 11 of 66 4.0 Getting Started 4.1 Launching Test Applications A Quick Guide is always presented in the Home screen after boot up. Note: This procedure can be started at any time, from any screen or menu 1.

  • Page 12: Understanding Test Application Gui

    MTTplus e_Manual D07-00-096P RevA00 Page 12 of 66 4.2 Understanding Test Application GUI A. Background Test Application Tap this button to bring its GUI forward Or press the App rubber button to toggle B. Active Test Application GUI - Shows the Test Port Group being used and the Test App ID (Rate / Technology) Tap on this button to release the Test App or change its Test Mode C.

  • Page 13: Utilities

    MTTplus e_Manual D07-00-096P RevA00 Page 13 of 66 5.0 Utilities 5.1 Platform Settings This section provides settings for the global parameters of the test set or platform (system settings). Settings Menu 5.1.1 About This section provides information about the software version, serial number, and MAC address of the management port of the unit, as well as a list of software licenses (optional test features) currently loaded in the test set.
  • Page 14 5.1.3 Bluetooth VeEX products support a micro USB Bluetooth adaptor offering wireless connectivity up to 10 meters (30 feet). Ultra compact and portable, the adaptor provides an untethered connection between the tester and other Bluetooth compatible devices such as a Notebook PC or cell phone, so the user can transfer test result files quickly and easily without having to hassle with memory sticks or Ethernet connections.
  • Page 15 Page 15 of 66 Bluetooth Adaptors - Compatibility Not all Bluetooth adaptors on the market are supported by the V300 product series. Please use adaptors that have been tested and supplied by VeEX only to ensure compatibility and correct operation. Bluetooth Setup Insert the Bluetooth adaptor into the USB port on the side of unit.
  • Page 16 MTTplus e_Manual D07-00-096P RevA00 Page 16 of 66 Bluetooth - Connection - Passcode Setup Press Scan to check for available bluetooth devices. Once scanning is complete, a list of discovered Bluetooth devices will be listed. Please ensure the peripheral device is set to Discoverable during Scanning and Pairing operation.
  • Page 17 MTTplus e_Manual D07-00-096P RevA00 Page 17 of 66 5.1.4 Power This section provides information about current power source and information about the battery gauge. Tap on the battery icon, on the top bar, to bring battery charge and estimated autonomy information.
  • Page 18 MTTplus e_Manual D07-00-096P RevA00 Page 18 of 66 5.1.6 Global Settings General Setting Language: An alternative language for the user interface Units: Measurement system (English - feet or Metric - meter) File Name Prefix: Once entered the prefix will be added to any file exported from the test set Show Password: Hides/unhides username and password information associated with FTP and related IP functions User Interface: The USA user interface version presents SONET/DSn application-oriented menus, while the International setting is more open to all settings.
  • Page 19 ReVeal PC software This VeEX application allows users to connect to the test set, using the platform’s IP address. ReVeal intuitive user interface offers the following functions: Test Profiles Management: Create, Edit, upload and download complex Ethernet and Fibre Channel test profiles (BERT, Throughput, RFC2544, Y1564 SAM, Scan, IP, Ping/Trace, Packet Capture, etc) Test Results Management: Download results from the test set, manage local test results (PC HDD), generate detailed test reports, export to CSV or PDF, and print.
  • Page 20 MTTplus e_Manual D07-00-096P RevA00 Page 20 of 66 After configuring these settings in the Remote Access menu, run VNC on the PC. A message box will prompt the user to enter a Server number, which is the test set IP address.
  • Page 21 MTTplus e_Manual D07-00-096P RevA00 Page 21 of 66 Web Browser - Password Prompt...
  • Page 22 MTTplus e_Manual D07-00-096P RevA00 Page 22 of 66 Web Browser - Remote Access Menu 5.1.9 High Precision Clock Source Precision Clock References GPS Receiver (HW Option) The optional high-sensitivity GPS module (built-in) provides accurate Phase alignment and Coordinated Universal Time (UTC) synchronization to the test set, in the form of internal pulse-per-second (1PPS) clock synchronized to the standard second and time stamps.

  • Page 23: Help

    MTTplus e_Manual D07-00-096P RevA00 Page 23 of 66 The GPS Time of Day (ToD) can also be used to precisely set the local date and time in the test set, using the Sync ToD function, which will apply the local time zone correction before applying it to the test set system real time clock.

  • Page 24: Veexpress

    Page 24 of 66 5.3 VeExpress VeExpress is a cloud-based asset management system. VeEX VeExpress cloud services is included with every test set. It allows the following services / functions: Delivers Software/Firmware Updates and Upgrades directly to the test set.
  • Page 25 MTTplus e_Manual D07-00-096P RevA00 Page 25 of 66 Up-to-date list of licenses assigned Permanent = Purchased, owned (users can still share permanent licenses by releasing the option from one test set and assign it to another) Leased = Rented, temporary...
  • Page 26 MTTplus e_Manual D07-00-096P RevA00 Page 26 of 66 2. The install package is in internal memory 3. Turn the test set OFF 6. Power the test set ON 7. The test set software is now up-to-date Go back to TOC...
  • Page 27 MTTplus e_Manual D07-00-096P RevA00 Page 27 of 66 5.4 R300 Server (Advanced Management) The R-Server is a centralized server repository for test results. Technicians in the field can register their test set on the R-Server and upload test results directly to the server.
  • Page 28 MTTplus e_Manual D07-00-096P RevA00 Page 28 of 66 3. When the test set registration is complete and approved by the R-Server manager you can select Check function key to verify that your test set is authorized. Once your test set is authorized, you can proceed to Upload.

  • Page 29: Software Upgrade

    MTTplus Platform includes the bootloader, OS and system-wide (common) features. Its software update package can be identified as mttplus-veex-arm.tar.gz. The MTTplus Platform uses the traditional V300 upgrade procedure to update the System. The software upgrade packages can be downloaded from www.veexinc.com, or using the test set’s built-in VeExpress client.
  • Page 30 4. The test applications are up-to-date. Notes: The built-in VeExpress client downloads the uncompressed MTTplus-xxxx.tar.gz upgrade packages directly to the root of the memory stick attached to the test set, so the M.Upgrade process can be started right away The process may need to be repeated if two different blade types are loaded.
  • Page 31 MTTplus e_Manual D07-00-096P RevA00 Page 31 of 66 If an older MTT module is inserted into an updated MTT Carrier, the MTTplus may start the MTT firmware upgrade process. A message will be presented on the screen indicating the version discrepancy.

  • Page 32: File Manager

    MTTplus e_Manual D07-00-096P RevA00 Page 32 of 66 6.0 File Management V300 Style File Manager 6.1 File Manager: Working with Saved Results, Profiles, Images From Utilities go to >Files >Saved Displays all results stored in the test set Use the check box to select the desired files.
  • Page 33 MTTplus e_Manual D07-00-096P RevA00 Page 33 of 66 Makes it easier to isolate desired types of results from all other test results stored in the test set Reduces the number of pages displayed Activate Filters Use the stylus to tap on the Y+ icon...

  • Page 34: Usb Memory Browser

    MTTplus e_Manual D07-00-096P RevA00 Page 34 of 66 6.2 USB Memory Browser USB Tool The USB tool can be found in the Utilities section, under >Files >USB. It provides users with basic memory stick management tools, to browse and interact with its contents without the need of a PC:...

  • Page 35: Manage Sd Card

    >Files >Saved >To USB backup utility or Delete function if the Data partition is nearly full. The Format function is exclusively a maintenance tool. Use ONLY when instructed by a VeEX Customer Care representative. It erases all the information stored in the test set.

  • Page 36: Tools

    MTTplus e_Manual D07-00-096P RevA00 Page 36 of 66 7.0 Tools 7.1 IP Tools The 10/100BaseT management port is located on the right hand side of the unit. This port can be used to connect to the unit for management purposes (results retrieval, software upgrade, remote connectivity ...).
  • Page 37 MTTplus e_Manual D07-00-096P RevA00 Page 37 of 66 Static Setup 7.1.2 IP Connection Status Ensure the Status is PASS before continuing with any IP tests. If the connection fails, go back to the setup screen to verify that the parameters are entered correctly. Verify that the Ethernet cable is properly connected on the management port.
  • Page 38 MTTplus e_Manual D07-00-096P RevA00 Page 38 of 66 Number of Pings: Press the field and use the alphanumeric keypad to enter the number of ping attempts that will be performed to reach the network device. Note: If Continuous Ping is selected, the user is not required to enter the number of pings. The test set will continuously ping the target host until the user presses Stop.
  • Page 39 MTTplus e_Manual D07-00-096P RevA00 Page 39 of 66 7.1.4 Trace Route Trace Route is a common method used to find the route to the destination IP address or URL. It is often used to identify routing problems and unreachable destinations. All the remote IP addresses and their response times are displayed indicating possible network congestion points.
  • Page 40 MTTplus e_Manual D07-00-096P RevA00 Page 40 of 66 Go back to TOC...

  • Page 41: Net Wiz

    MTTplus e_Manual D07-00-096P RevA00 Page 41 of 66 7.2 Net Wiz Net Wiz verifies the status of each IP address in the user selected range, by using ARP (Address Resolution Protocol) and ICMP test. 7.2.1 Net Wiz Setup Profile: Drop-down selections are Default, Delete, Save, Save As...
  • Page 42 MTTplus e_Manual D07-00-096P RevA00 Page 42 of 66 Global reports: Total number of devices found Number of devices (Routers, Servers, Hosts) Net Wiz Results - Devices - Global Detail displays the Attribute, MAC and IP Addresses, and Ping test results of each device discovered.

  • Page 43: Wifi Wiz

    Plug the WiFi adaptor into the USB port. Allow at least 30-45 seconds for the unit to detect the wireless adaptor and for the software driver to load. Note: Products support USB wireless adaptors supplied by VeEX only and have the necessary software driver built into the test set.
  • Page 44 MTTplus e_Manual D07-00-096P RevA00 Page 44 of 66 BSSID (MAC address) of the AP 802.11 protocol version supported by the AP Max data rate supported by the AP AP's radio channel number Lock symbol indicates if security is set on the AP (WEP, WPA or WPA2).
  • Page 45 MTTplus e_Manual D07-00-096P RevA00 Page 45 of 66 Status The Status Tab displays the following information on the connection: Connection Status ESSiD: Name connected to BSSiD: MAC address of wireless router/device connected to Channel: WiFi Channel # connected to Encryption: Encryption type...
  • Page 46 MTTplus e_Manual D07-00-096P RevA00 Page 46 of 66 Go back to TOC...
  • Page 47 Cracks are not permitted in neither core nor cladding Equipped with 400x magnification, the VeEX Fiber Scope Inspector is well suited for general installation and maintenance checks on both single mode and multi mode fiber types. Contamination or damage that cannot be viewed at this magnification is unlikely to impact practical connector performance;...
  • Page 48 Instead of adding the extra complexity, fragility, cost, size and weight of other electromechanical focusing systems currently available in the market, VeEX’s auto focus detection technology still relies on the incredible fast response and finesse of human hands, but leave the focus assessment, image capturing and analysis to the test set. Users could even try with their eyes closed and still achieve a perfectly focused image of the connector end-face in a few seconds.
  • Page 49 MTTplus e_Manual D07-00-096P RevA00 Page 49 of 66 File Prefix: String of alphanumeric characters to be appended at the beginning of the file name, every time the results are saved. For example Fiber0239- Starting #: Every time a result is saved, this suffix number will automatically increment. Users can manually enter the initial value here.
  • Page 50 MTTplus e_Manual D07-00-096P RevA00 Page 50 of 66 MMF/SMF: Selects the type of connector/fiber to be analyzed and loads the correct Pass/Fail mask. Please note that the label in the button DOES NOT indicate the current mask type. It indicates that the mask would be changed to if activated.
  • Page 51 MTTplus e_Manual D07-00-096P RevA00 Page 51 of 66 Analyze: This soft button opens a more detailed analysis and report generation. Use the check boxes to select the images to be analyzed Image File: shows the name of the picture currently being displayed. Use the Open button to navigate, select and load any other file.
  • Page 52 MTTplus e_Manual D07-00-096P RevA00 Page 52 of 66 Results Table: Shows the defects and scratches count by sizes and position, used for the evaluation of the Pass/Fail criteria, according to the IEC 61300-3-35 standard. 7.4.2 Optical Power Meter (OPM)
  • Page 53 MTTplus e_Manual D07-00-096P RevA00 Page 53 of 66 This function works in conjunction with Optical Power Meter dongles (USB), such the optional UPM-100. Insert the OPM dongle to on of the test set’s USB port before launching this application. Optical Power and Loss Measurements Wavelength: This pull-down menu provides a list of calibrated wavelengths to match the signal being measured.
  • Page 54 MTTplus e_Manual D07-00-096P RevA00 Page 54 of 66 Loss Limits: Similar to power limits, user can set Minimum and Maximum amounts of optical power loss that are acceptable for the application or specified for the cable or installation. User can simply specify the total amount of attenuation in dB. Alternatively user can select the dB/km or dB/mi if the results are being compared against cable specifications.
  • Page 55 MTTplus e_Manual D07-00-096P RevA00 Page 55 of 66 Display Summary Planar view: Reports current, average, and maximum signal amplitude for each wireless frequency Topographic view: Emphasizes which frequencies are the busiest across the entire spectrum Spectral view: Historical view of wireless spectrum use at a point in time...
  • Page 56 MTTplus e_Manual D07-00-096P RevA00 Page 56 of 66 Topographic View Similar to a density map - plots frequency versus amplitude Uses a special color scheme to assign colors to frequency amplitude points and to identify how often a particular coordinate is...
  • Page 57 MTTplus e_Manual D07-00-096P RevA00 Page 57 of 66 Signatures The Signatures button presets are available to identify unknown sources of RF activity (e.g., microwave oven) Select a device in the sidebar and click the pattern in the Topographic view to identify a device...
  • Page 58 To establish an IP connection using a data card, please make sure that the data card is connected on the USB port. Note that only datacards provided by VeEX are supported and have the driver necessary for connection. The Data Card icon, as shown below, will appear at the bottom of the screen.
  • Page 59 MTTplus e_Manual D07-00-096P RevA00 Page 59 of 66 Press the Dial Up key. In the IP Tools Setup menu, the Port will be displayed as "Datacard Port." The D for Data icon in the bar on the lower end of the screen will have a red cross to show that datacard is not connected - Select the configuration parameters, then press Connect.
  • Page 60 When the AP is unsecured, no lock symbol is displayed Signal strength of the AP Access Points in the 5.0GHZ spectrum can only be displayed if the VeEX USB Wifi adapter supports 802.11a/n or 802.11 a/n/ac. Refer to the USB Wifi adapter specifications.
  • Page 61 MTTplus e_Manual D07-00-096P RevA00 Page 61 of 66 5GHZ Channel 4. Tap the Graph tab of the respective Channel to view the results in a graphical presentation. Graph Use the Right/Left/Up/Down function keys or the arrow keys on the unit's keypad to navigate the graph and get additional information for the access points.
  • Page 62 MTTplus e_Manual D07-00-096P RevA00 Page 62 of 66 7.4.6 OTDR Viewer This functionality allows the test platform to open and analyze standard OTDR .SOR files created by the TX300S-OTDR, RXT-4100 OTDR, FX300 OTDR or SunLite OTDR test sets. It can also be used to control the wireless OPX BOX OTDR via Bluetooth or USB connection, offering full-featured OTDR functionality.

  • Page 63: Browser

    The built in web browser uses the management port IP connection. An active IP connection can be established either through Ethernet, WiFi or datacard ports. The web browser defaults to VeEX's website. Use the Web browser's navigation bar to enter the name of the website you wish to reach.
  • Page 64 Replace hardware which proves to be defective provided that the products that the customer elects to replace is returned to VeEX Inc. by the customer along with proof of purchase within thirty (30) days of the request by the customer, freight prepaid.
  • Page 65 Use of this logo implies that the unit conforms to requirements of European Union and European Free Trade Association (EFTA). EN61010-1 For a copy of the CE Declaration of Conformity relating to VeEX products, please contact VeEX customer service. What is RoHS? RoHS is the acronym for Restriction of Hazardous Substances.
  • Page 66 Page 66 of 66 10.0 About VeEX VeEX Inc., the Verification EXperts, is an innovative designer and manufacturer of test and measurement solutions addressing numerous technologies. Global presence through a worldwide distribution channel provides uncompromised product support. Visit us online at www.veexinc.com...
