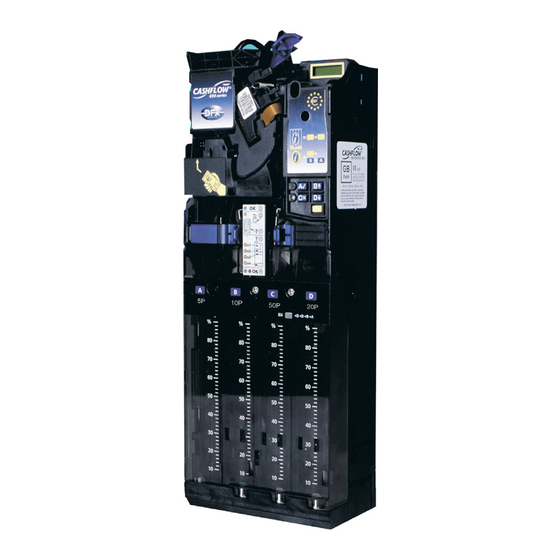

MEI Cashflow 690 series Quick Reference Card

Using the Multi-Function Program Keys

A B
C D
Mode
Each (Blue) key has two functions. General operation and
Menu function.
General Operation Menu Function
A Dispense coin A
B Dispense Coin B
C Dispense Coin C
D Dispense Coin D
There are two configuration modes available. Service Mode
and Set-up mode.
Service Mode: gives access to the most frequently used
product configuration options. (See Service Mode Options)
Set-up Mode: gives access to general product
configuration options that are required when setting up your
changegiver. (See Set-up Mode Options)
To access either mode or to view tube audit data the mode
key will need to be pressed as shown below.
Quick press to access Service Mode
Mode
Press & Hold for 2 seconds. to access Set-up Mode
Mode
Press twice to view tube audit data. Only
Mode Mode
operates when tube cassette is fitted.
Parking dispenser arms. Only operates when
Mode Mode
tube cassette is not fitted
Part Number – TBA
Press Press
A
Mode
A
Mode
A
Mode
A
Mode
A
Mode
B
Mode
B
Mode
B
Mode
Mode B
C
Mode
Mode D
D
Mode
Enter / Confirm
Scroll Up
Exit
G
Scroll Down
Blinks Off
Flashing
Flashing
Rev R1

SERVICE MODE OPTIONS

Description / Action
Float-up coin tubes / Insert coins
Clear credit accumulated – (Not MDB) &
A
Clear Clean Me Message
B
Float level reset
C
Float down coin tubes
D
Float teach / Insert coins
Inhibit a coin / Insert a coin
Enable a coin / Insert a coin
A
View coin details
B View coin-set
Price Teach
Custom tube cassette teach
? ?
Pre-defined tube cassette teach

THE LED HELP GUIDE

Changegiver OK
On
Cycles
Changegiver OK
X 3
Normal power up sequence / Reset
Coin accepted / rejected
(Refer to Green LED codes)
Programme mode selected
(Refer to Green LED codes
On
Changegiver operation inhibited by VMC
Changegiver maintenance required
(Refer to Amber LED Codes)
Changegiver has no power or No power
Off loom connected. Is the power switched ON?
Faulty changegiver
Alternating (Take it out and return it for repair)

GREEN LED CODES

Press
Slow Flash
Mode
Mode
Fast Flash
Button
1 x Blink
1.5s
Reject
2 x Blinks
Lever
Mode
3 x Blinks
Mode
Mode
Mode

AMBER LED CODES

Mode
The Amber LED helps you to diagnose changegiver
Reject
faults in the field.
Lever
The LED can flash between 0 and 4 times to indicate
a repairable fault to a specific changegiver module.
More information is given on a label, which is stuck
onto the separator solenoid bank.
Number of Flashes
1 x •
2 x •
•
3 x
•
4 x •
Predefined Cassettes
?
Code A
Mode DAA 10c
Mode DAB 10c
Mode DAC 10c
Mode DAD 10c
Mode DBA 10c
Mode DBB 10c
Mode DBC 10c
Mode DBD 10c
Mode DCA 10c
Mode DCB NOT
Changegiver "MODE" button has been
pressed. Changegiver is now in service
mode.
Changegiver Set-up mode has been
activated.
Coin Accepted
Coin Rejected (not recognised)
Coin Rejected (Inhibited by machine
/changegiver program settings)
Module Requiring Service
Discriminator
Accept Gate
Separator Top Level Sensors
Tube Cassette Top Level Prisms
Dispenser
B C D
50c 20c 20c
10c 20c 20c
10c 20c 10c
50c 20c $1
50c 20c $2
50c 20c 10c
20c 20c $1
20c 20c 20c
20c $1 $2
USED
