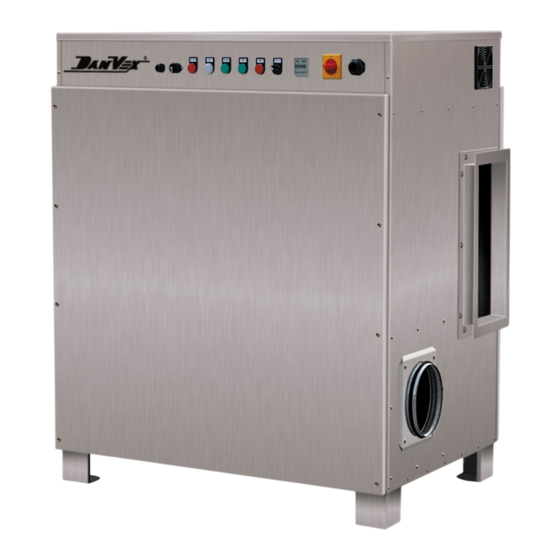

- Page 1 DanVex AD-3000 Adsorption air dehumidifier Operation manual...
- Page 2 www.danvex.fi...
-
Page 3: Table Of Contents
CONTENT Safety instructions........................3 Introduction..........................4 Purpose............................4 Design............................4 Operation principle........................5 Dimensions and weight......................5 Installation..........................6 Technical data..........................7 Commissioning..........................7 Maintenance..........................8 Transportation..........................8 Warranty obligations........................9 www.danvex.fi... -
Page 4: Safety Instructions
The dehumidifier maintenance and inspection works should be performed in accordance with a fixed schedule. Only original spare parts should be used. It is required to receive a written approval from «DanVex Оу» or from its local representative for any changes or modifications of the dehumidifier. www.danvex.fi... -
Page 5: Introduction
This specification is a technical document that certifies the DanVex AD-3000 dehumidifier parameters and characteristics. Purpose DanVex AD-3000 (in short AD-3000) is designed for efficient air dehumidification with the air humidity up to 100%, at the temperature from –20ºС to +40ºС with minimum energy consumption. -
Page 6: Operation Principle
Pic.1. Dehumidifier air flows diagram Dimensions and weight Table 1 Insignificant design changes are possible! Dehumidified Height Reactivation Moist air Length Depth Dry air Weight 180 kg 1210mm 856mm 1305mm ø 400 mm ø 200 mm ø 200 mm 450x225mm www.danvex.fi... -
Page 7: Installation
Installation Installation and the covered area AD-3000 dehumidifier is designed for indoor installation. It should be positioned upright on an even surface. It is recommended to fix the dehumidifier. It is required to leave some free space (1000 mm) in front and above the dehumidifier for filters, fans and rotor maintenance and inspection. -
Page 8: Technical Data
Technical data of AD-3000 о Moisture output 20 kg/hour (at +20 C and RH 60%) Table 2 Parameter Unit Value Dehumidified air* 3000 Rated air consumption m /hour Pressure Reactivation air* Rated air consumption m /hour 1100 Pressure Electric power and rated current 24.8... -
Page 9: Maintenance
Upon delivery it is required to check the dehumidifier for transportation damages. The dehumidifier should be protected from rain and snow. The dehumidifier should always be in upright condition. It is not allowed to put heavy objects on the dehumidifier. www.danvex.fi... -
Page 10: Warranty Obligations
The warranty does not cover wearable parts such as filters. The warranty covers the defects in workmanship and materials. During the warranty period DanVex repairs and replaces the part having a defect of material or an manufacturing error. DanVex completely fulfills its warranty obligations when it supplies the Customer a repaired or a spare part. - Page 11 www.danvex.fi...
