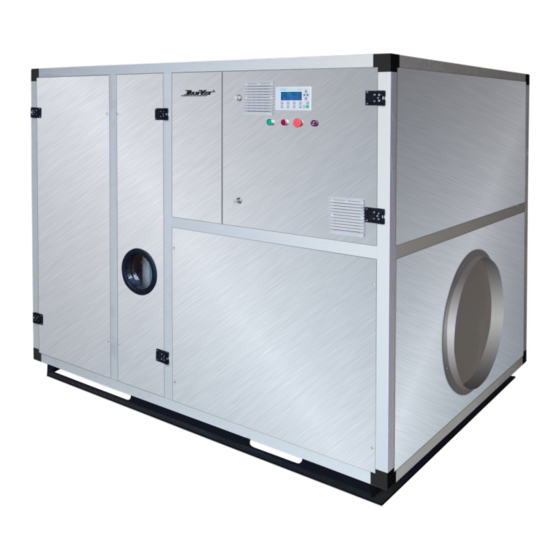

- Page 1 DanVex AD-10000 Adsorption air dehumidifier Operation manual...
- Page 2 www.danvex.fi...
-
Page 3: Table Of Contents
CONTENT Safety instructions........................3 Introduction..........................4 Purpose............................4 Operation principle........................4 Design............................5 Dimensions and weight......................5 Installation..........................6 Technical data..........................7 Commissioning..........................7 Maintenance..........................11 Transportation..........................12 Parts list...........................12 Attachment..........................13 Warranty obligations........................16 www.danvex.fi... -
Page 4: Safety Instructions
The dehumidifier maintenance and inspection works should be performed in accordance with a fixed schedule. Only original spare parts should be used. It is required to receive a written approval from «DanVex Оу» or from its local representative for any changes or modifications of the dehumidifier. www.danvex.fi... -
Page 5: Introduction
Purpose DanVex AD-10000 (in short AD-10000) is designed for efficient air dehumidification with the air humidity up to 100%, at the temperature from –20ºС to +40ºС with minimum energy consumption. It can be used either as an independent unit for installation inside and outside of premises where air humidity control is required or along with an air treatment system. -
Page 6: Design
Reactivation air heater The reactivation air heater consists of a heating element. Control panel DanVex AD- dehumidifier is equipped with an automatic control system. All commands are input using the buttons located on the control panel with a LCD-display. Dimensions and weight... -
Page 7: Installation
Installation Installation and the covered area AD-10000 dehumidifier is designed for indoor installation. It should be positioned upright on an even surface. It is recommended to fix the dehumidifier. It is required to leave some free space (1500 mm) in front and above the dehumidifier for filters, fans and rotor maintenance and inspection. -
Page 8: Technical Data
Technical data of AD-10000 Table 2 Parameter Unit Value Dehumidified air* 10000 Rated air consumption m /hour Pressure Reactivation air* Rated air consumption m /hour 3500 Pressure Electric power and rated current Total power 380/400 Voltage (3 phase, 50 Hz) - Page 9 10. Press «ESC» to enter the setting menu «Setting data 1». Enter temperature, relative humidity and regeneration temperature by pressing «▼» or «▲» buttons till the required values are set. Press «ENTER». 11. Press «▼» or «▲» for navigation, correction of temperature and relative humidity range. Press «ENTER». www.danvex.fi...
- Page 10 In case of a minor problem a buzzer will sound and the failure cause will be displayed on the screen. An acoustic signal is the indication of improper operation. Press «F2» to switch the acoustic signal off. Press «ENTER» www.danvex.fi...
- Page 11 www.danvex.fi...
-
Page 12: Maintenance
The rotor is maintenance free. However for cleaning purposes it can be flushed out by compressed air. A rotor cleaning procedure requires special knowledge, for this reason it is recommended to call the manufacturer's representative for assistance. The rotor bearing and the rotor surface should be checked once a year. www.danvex.fi... -
Page 13: Transportation
The dehumidifier should always be in upright condition. It is not allowed to put heavy objects on the dehumidifier. Parts list Table 3 Number per Name dehumidifier Rotor drive motor Condenser Belt pulley Rotor drive belt Belt tensioner Dehumidified air fan Regeneration air fan Heater Rotor www.danvex.fi... -
Page 14: Attachment
Attachment www.danvex.fi... - Page 15 www.danvex.fi...
- Page 16 www.danvex.fi...
-
Page 17: Warranty Obligations
The warranty does not cover wearable parts such as filters. The warranty covers the defects in workmanship and materials. During the warranty period DanVex repairs and replaces the part having a defect of material or an manufacturing error. DanVex completely fulfills its warranty obligations when it supplies the Customer a repaired or a spare part.
