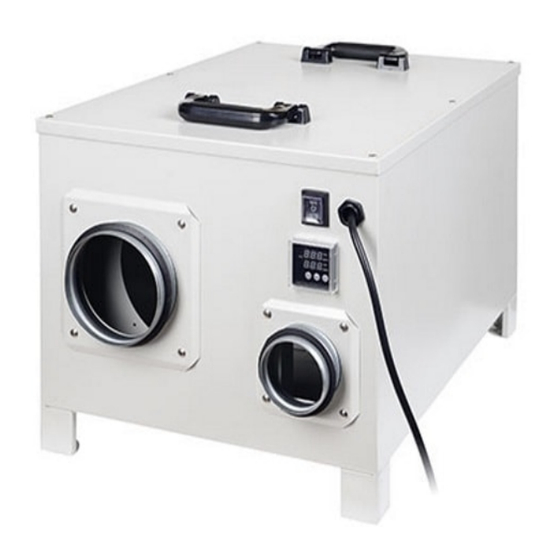

- Page 1 DanVex AD-400 Adsorption air dehumidifier Operation manual...
- Page 2 www.danvex.fi...
-
Page 3: Table Of Contents
Introduction..........................4 Purpose............................ 4 Design............................4 Operation principle........................5 Dimensions and weight......................5 Installation..........................6 Technical data.......................... 7 Commissioning......................... 7 Maintenance..........................8 Transportation.......................... 8 Parts list........................... 9 Warranty obligations ......................10 www.danvex.fi... -
Page 5: Safety Instructions
The dehumidifier maintenance and inspection works should be performed in accordance with a fixed schedule. Only original spare parts should be used. It is required to receive a written approval from «DanVex Оу» or from its local representative for any changes or modifications of the dehumidifier. www.danvex.fi... -
Page 6: Introduction
Purpose DanVex AD-400 (in short AD-400) is designed for efficient air dehumidification with the air humidity up to 100%, at the temperature from –20ºС to +40ºС with minimum energy consumption. It can be used either as an independent unit for installation inside and outside of premises where air humidity control is required or along with an air treatment system. -
Page 7: Operation Principle
С and when passing through a small sector it removes the moisture trapped by the rotor material. The moisture is removed from the rotor in the form of humid air (MOIST AIR) which is discharged outside the dehumidified loop. Dry air Process air Adsorption rotor www.danvex.fi... - Page 8 The air to be dehumidified passes through the rotor. Water molecules are absorbed by the rotor. о · The rotor is reactivated by another air flow preheated to 120 C. The moisture is removed from the room in the form of moist air. Pic.1. Dehumidifier air flows diagram Pic. 2. AD-400 dehumidifier dimensions www.danvex.fi...
-
Page 9: Installation
Installation and the covered area AD-400 dehumidifier is designed for indoor installation. It should be positioned upright on an even surface. It is recommended to fix the dehumidifier. It is required to leave some free space (1000 mm) in front and above the dehumidifier for filters, fans and rotor maintenance and inspection. -
Page 10: Technical Data
Technical data of AD-400 о Moisture output 2 kg/hour (at +20 C and RH 60%) Table 2 Parameter Unit Value Dehumidified air* /hour Rated air consumption Reactivation air* /hour Rated air consumption Electric power and rated current Total power Voltage (1 phase, 50 Hz) -
Page 11: Maintenance
Upon delivery it is required to check the dehumidifier for transportation damages. џ The dehumidifier should be protected from rain and snow. џ The dehumidifier should always be in upright condition. џ It is not allowed to put heavy objects on the dehumidifier. џ www.danvex.fi... -
Page 12: Parts List
Parts list Table 3 Number per Name dehumidifier Rotor drive motor Condenser Belt pulley Rotor drive belt Belt tensioner Dehumidified air fan Regeneration air fan Heater Rotor www.danvex.fi... -
Page 13: Warranty Obligations
The warranty does not cover wearable parts such as filters. The warranty covers the defects in workmanship and materials. During the warranty period DanVex repairs and replaces the part having a defect of material or an manufacturing error. DanVex completely fulfills its warranty obligations when it supplies the Customer a repaired or a spare part.
