- Page 1 560W PUDDLE RESIDUE PUMP MODEL NO: CPRP560 PART NO: 7230296 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC08/ 22...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE submersible pump. The CLARKE range of submersible pumps are suitable for discharging pools, ponds, fountains, pits and any waste water drainage. They can handle foul water containing suspended material as stated in the specification. The pumps are not suitable for handling inflammable, corrosive, explosive or dangerous liquids. -
Page 3: Overview And Features

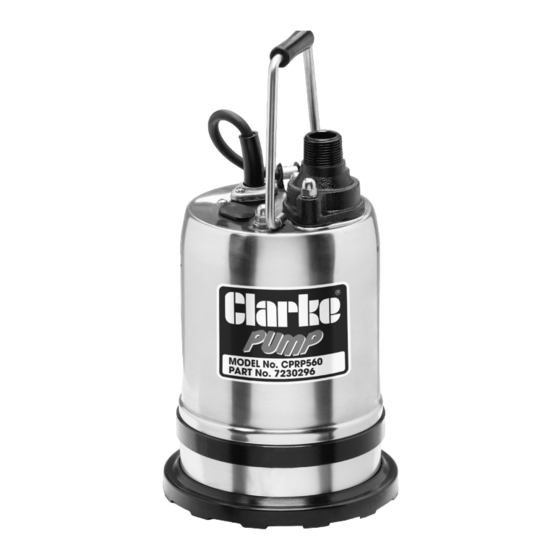

OVERVIEW & FEATURES 1. Water inlet screen 2. Power cable with plug 3. Outlet hose adaptor 4. Lifting handle Pump Performance curve Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 4: Safety Precautions
3. NEVER use this pump if any part is damaged. ALWAYS check the plug, mains cable for damage before use. Have any damage inspected and repaired by your local CLARKE dealer. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 5: Servicing & Repairs
SERVICING & REPAIRS 1. ALWAYS have the pump serviced by your local CLARKE dealer, using only identical replacement parts. This will ensure the safety of the pump is maintained. The use of non standard parts could be hazardous. -
Page 6: Environmental Recycling Policy
4. If the power cable becomes damaged, it must be replaced rather than repaired. 5. Your CLARKE water pump has been designed to give long and trouble free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, take the unit to your local CLARKE dealer. -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. -
Page 8: Connecting The Pump
• The outlet adaptor fitting allows for connection of 25 mm (1”) hose which should be secured with a hose clamp. • Suitable hoses are available from your local CLARKE dealer. POSITIONING THE PUMP 1. It may be safer to raise and lower the pump into deep water using a rope attached to the lifting handle. -
Page 9: Using The Pump
USING THE PUMP WARNING: CHECK THE PUMP FOR DAMAGE BEFORE USE, DO NOT USE THE PUMP IF IT IS DAMAGED IN ANY WAY. 1. Plug in the pump and switch on the power supply. • The pump will begin to drain water. 2. -
Page 10: Cleaning, Maintenance And Storage
6. If the pump shows signs of wear or damage, contact your CLARKE dealer for advice. Do not attempt to repair the pump yourself, as you may damage the waterproof seals and invalidate your guarantee. -
Page 11: Troubleshooting
5. The impeller may be jammed. Disconnect from the mains supply and remove any objects that may be obstructing the impeller. 6. If the pump still fails to start, consult your CLARKE dealer. PUMP WILL 1. Check that the inlet is not blocked. -
Page 12: Component Parts
COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 13 COMPONENT PARTS Cable fastener Motor housing Handle O-ring Hose connector Bearing housing Power cable & plug Mechanical seal Gasket O-ring Motor housing O-ring Gasket Intermediate plate Bolt Oil seal Motor cover Shaft sleeve Capacitor Impeller O-ring Bearing housing Housing ring Bearing Gasket Rotor &...
- Page 14 DECLARATION OF CONFORMITY-UK Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 15: Declaration Of Conformity-Eu
DECLARATION OF CONFORMITY-EU Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
