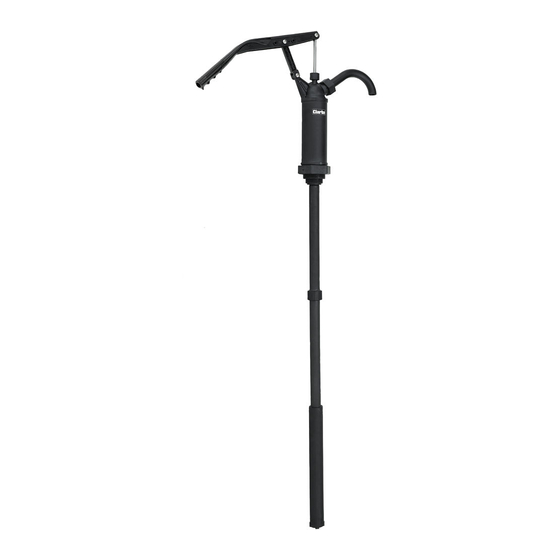

CHEMICAL PLUNGER PUMP
INTRODUCTION
Thank you for purchasing this CLARKE chemical plunger pump,
Suitable for water, alcohol, petroleum, diesel, paraffin, lubricant, water-based chemicals, acid and alkaline solutions.
Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully.
LIST OF CONTENTS
• 1 x Pump
• 1 x Handle assembly
• 2 x Nuts and Bolts
ASSEMBLY

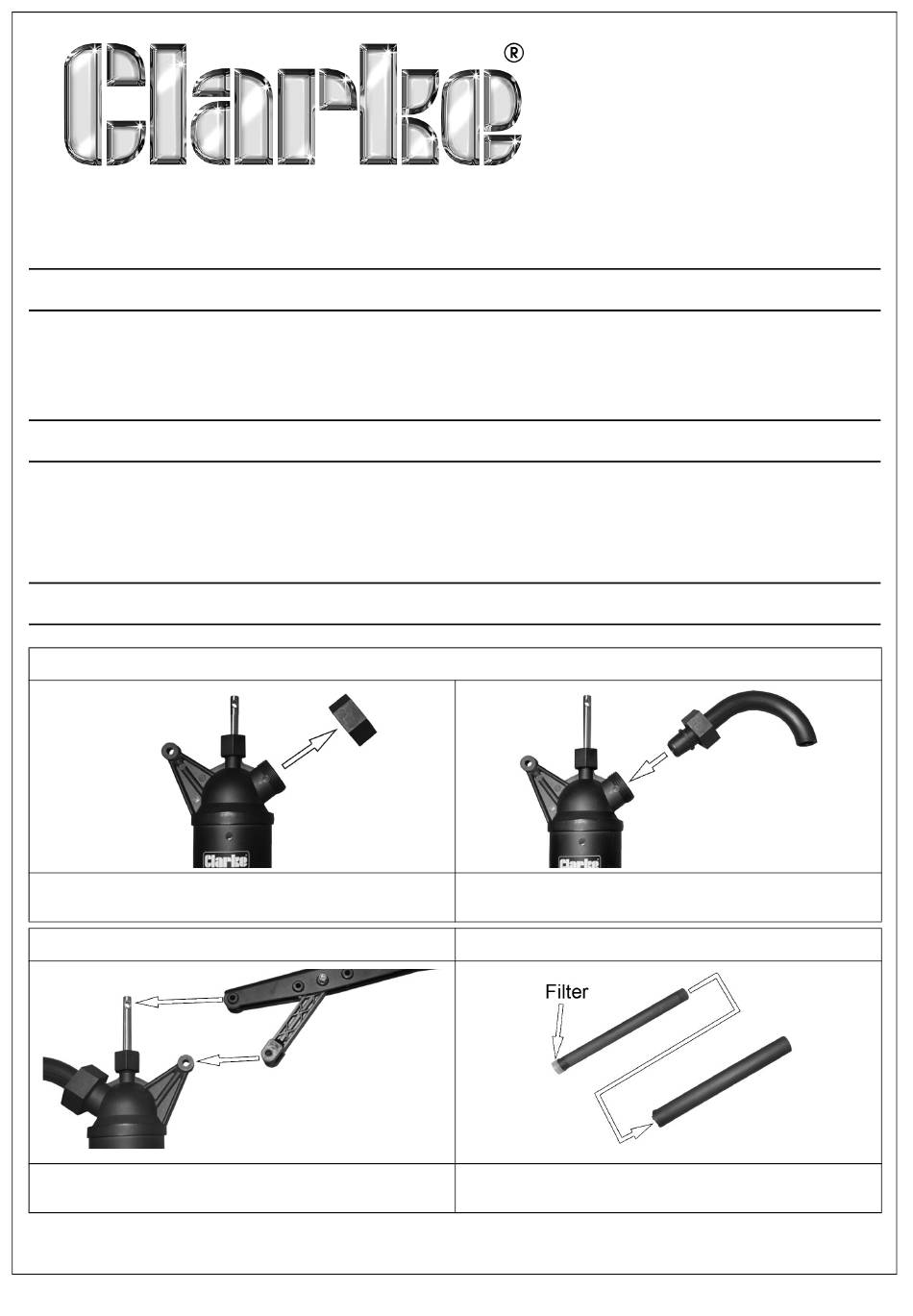

1. Remove the nut from the pump as shown.
FITTING THE
1. Connect the handle as shown and secure at
each point using the small nuts and bolts.
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
FITTING THE OUTLET TUBE
HANDLE ASSEMBLY
• 1 x Outlet tube
• 1 x Extension Inlet tube
• 1 x 2 piece telescopic extension with filter
2. Place the nut over the outlet tube and back
onto the pump
FITTING THE TELESCOPIC EXTENSION TUBE
1. Fit the telescopic extension with filter together
as shown
MODEL NO: CPPRSS
PART NO:
PART NO: 6499630
