Summary of Contents for Clarke CPE Series

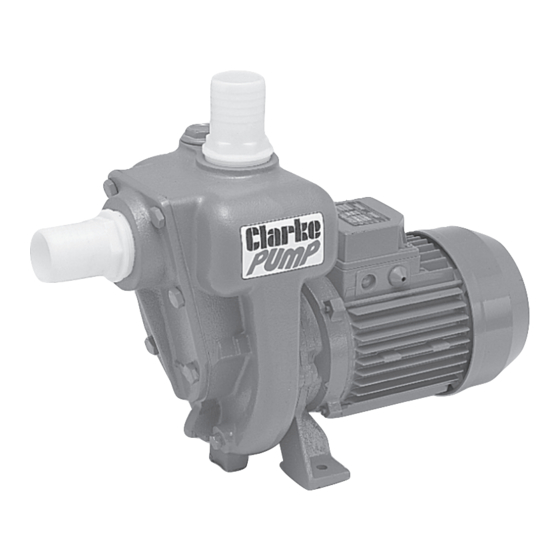

- Page 1 CPE RANGE PUMPS CPE RANGE PUMPS MODEL Nos: CPE15A1•15A3•20A1•20A3•30A1•30A3 PART Nos: 7120305• 7120310• 7120315• 7120320• 7120325• 7120330 OPERATION & MAINTENANCE INSTRUCTIONS GC0514...
-
Page 2: Table Of Contents
Contents Specifications .................. 2 Guarantee : ..................3 Safety Precautions ................4 Water Connections ................ 5 Electrical Connection : ..............6 Maintenance : ................7 Trouble Shooting ................7 Parts (CPE15) : ................. 9 & 10 Parts (CPE20) : ..............11 & 12 Parts (CPE30) : .............. -
Page 3: Specifications
Specifications SIZE MOTOR MAX FLOW WEIGHT PART MODEL INCHES VOLTS/PH HEAD M CPE15A1 1½” 230/1 14.0 7120305 CPE15A3 1½” 400/3 14.0 7120310 CPE20A1 2” 230/1 14.5 7120315 CPE20A3 2” 400/3 14.5 7120320 CPE30A1 3” 230/1 15.5 7120325 CPE30A3 3” 400/3 15.5 7120330... -
Page 4: Guarantee
It is suitable for pumping clean tap and rain water , and will handle small solids in suspension. Your CLARKE CPE PUMP is designed to give you trouble free service provided it is installed and used in the correct way. -
Page 5: Safety Precautions
Safety Precautions WARNING: As with all machinery, there are certain hazards involved with their operation and use. Exercising respect and caution will considerably lessen the risk of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator even damage to the pump or property, may result. -
Page 6: Water Connections
Because of the variety of possible installations, no plumbing accessories are supplied with your pump, however accessories designed specifically for this range of pumps is available from your nearest CLARKE dealer. The pump must always be installed and operated in an upright position i.e. with the outlet port facing vertically upwards. -
Page 7: Electrical Connection
Again installation should be carried out by a qualified electrician, using I.E.E cable and fittings, and in accordance with I.E.E Regulations. To connect the cable to the motor see electrical connections inside the terminal cover. Delta Connection Star Connection IF IN ANY DOUBT, contact CLARKE International Service on 020 8988 7400... -
Page 8: Maintenance
If any signs of wear or damage are found, contact your nearest Clarke dealer. If you suspect that your pump is blocked by mud, silt , leaves etc, disconnect from the mains supply and backflush. - Page 9 PARTS DIAGRAM (CPE15)
- Page 10 PARTS LIST (CPE15) Index No Part No Description GML330 Connection 1½” x 38 GM5853 Valve Body GM6010 Check Valve GM6162 Washer GM6186 Flexolite Washer GM6209 Tap ¼” GM6213 Tap 1” GM6230 Screw GM6268 Screw GM6334 Mechanical Seal GM7103 GM7702 Counterface GM7776 Cover Disk GM8048...
- Page 11 PARTS DIAGRAM (CPE20) -11-...
- Page 12 PARTS LIST (CPE20) Index No Part No Description GM1010 Connection 2” x 50 GM5342 Washer GM5571 Pump Body GM5854 Valve Body GM6012 Check Valve GM6029 Flexolite Gasket GM6162 Washer GM6186 Flexolite Washer GM6209 Tap ¼” GM6213 Tap 1” GM6235 Screw GM6236 Screw GM6334...
- Page 13 PARTS DIAGRAM (CPE30) -13-...
- Page 14 PARTS LIST (CPE30) Index No Part No Description GM5342 Washer GM5574 Pump Body GM5857 Valve Body GM6013 Check Valve GM6029 Flexolite Gasket GM6162 Washer GM6209 Tap ¼” GM6211 Tap 1” GM6235 Screw GM6261 Screw GM6334 Mechanical Seal GM6346 Counterface GM7103 GM8613 Impeller GMF156...
- Page 15 ENGINEERING MANAGER Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the machines data plate...
