Summary of Contents for Clarke CPE15A1

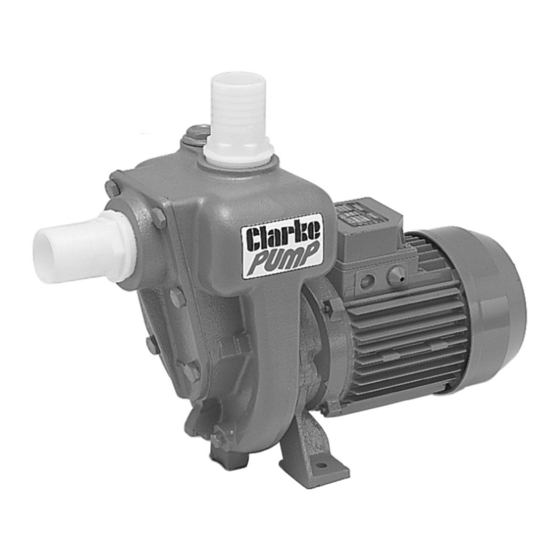

- Page 1 CPE WATER PUMP MODEL NO: CPE15A1 PART NO: 7120305 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1120...
- Page 2 This water pump has been designed to give long and trouble free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, take the unit to your local Clarke dealer. Please keep these instructions in a safe place for future reference.
-
Page 3: Pump Specification
PUMP SPECIFICATION Water Classification Clean Maximum Delivery 325 L/min Rated Head 2-14 m Maximum Suction Lift 16 m Supply 230V / 50Hz Outlet Thread Size 1.5” BSP Weight 14 kg Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 4: General Safety Precautions
9. NEVER modify this pump in any way. Use it ONLY for the purpose for which it is designed. 10. ALWAYS have the pump serviced by your local Clarke dealer, using only identical replacement parts. This will ensure the safety of the pump is maintained. -
Page 5: Installation
Because of the number of possible installations, no accessories are supplied with your pump except for a pair of male inlet/outlet adaptors. However accessories are available from your nearest Clarke dealer. NOTE: It is recommended that the end user should consult a qualified installer if there are any doubts as to the suitability of this product for a particular installation. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the pump on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate or on the junction box cover on top of the motor. -
Page 7: Pipe/Hose Connections
PIPE/HOSE CONNECTIONS The pump inlet and discharge ½ ports are both 1 ” BSP (38 mm) female threads and accept the adaptors supplied. Hoses with the same diameter should be used and secured to the adaptor with a suitable hose clip. - Page 8 • WARNING:-DO NOT place any such obstruction on the suction side (inlet Port) of the pump unless it is an isolator valve in a gravity fed system. It is also IMPORTANT to note, that these pumps should not be operated with the delivery valve completely closed. •...
-
Page 9: Operation
1. Do not allow the pump to run dry otherwise the seal between the pump and motor may be damaged. If a leak occurs at this point, allowing water to pass from the pump to the motor, take the pump to your Clarke dealer for overhaul. -
Page 10: Maintenance
Re-prime the pump when returning to service. In the event that overhaul of the pump or motor is necessary, contact your Clarke service department. ENVIRONMENTAL RECYCLING POLICY Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling &... -
Page 11: Troubleshooting
Tighten as required. Air leaks through Renew seal. damaged seal. Impeller damaged and Return to your Clarke making poor seal. dealer for repair Impeller / mechanical Return to your Clarke seal is badly worn. dealer for repair. - Page 12 Release plug in impeller pipeline. housing to release air. Damaged impeller Return to your Clarke dealer for repair. GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
- Page 13 PARTS DIAGRAM - CPE15 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 14 PARTS LIST - CPE15 ID DESCRIPTION ID DESCRIPTION ANUF ANUF Connector 1½” (38 mm) GML330 Rear motor cover GM5114 Valve body GM5853 Elastic washer GM5119 Check valve GM6010 GM5293 Washer GM6162 Fan cover GM5319 Flexolite washer GM6186 Bearing GM5375 Drain plug GM6209 Motor stator GM5387...
-
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
