Summary of Contents for Clarke CPE20A1

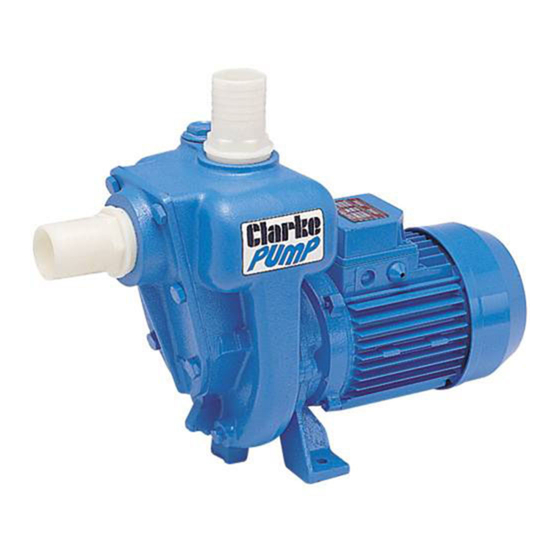

- Page 1 CPE WATER PUMP MODEL NO: CPE20A1 PART NO: 7120310 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1120...
- Page 2 This water pump has been designed to give long and trouble free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, take the unit to your local Clarke dealer. Please keep these instructions in a safe place for future reference.
-
Page 3: Pump Specification
PUMP SPECIFICATION Water Classification Clean Maximum Delivery 500 L/min Rated Head 2-14 m Maximum Suction Lift 18 m Supply 230V / 50Hz Motor HP Outlet Thread Size 2” BSP Weight 14.5 kg Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 4: General Safety Precautions
9. NEVER modify this pump in any way. Use it ONLY for the purpose for which it is designed. 10. ALWAYS have the pump serviced by your local Clarke dealer, using only identical replacement parts. This will ensure the safety of the pump is maintained. -
Page 5: Installation
Because of the number of possible installations, no accessories are supplied with your pump except for a pair of male inlet/outlet adaptors. However accessories are available from your nearest Clarke dealer. NOTE: It is recommended that the end user should consult a qualified installer if there are any doubts as to the suitability of this product for a particular installation. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the pump on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate or on the junction box cover on top of the motor. -
Page 7: Pipe/Hose Connections
PIPE/HOSE CONNECTIONS The pump inlet and discharge ½ ports are both 1 ” BSP (38 mm) female threads and accept the adaptors supplied. Hoses with the same diameter should be used and secured to the adaptor with a suitable hose clip. - Page 8 • WARNING:-DO NOT place any such obstruction on the suction side (inlet Port) of the pump unless it is an isolator valve in a gravity fed system. It is also IMPORTANT to note, that these pumps should not be operated with the delivery valve completely closed. •...
-
Page 9: Operation
1. Do not allow the pump to run dry otherwise the seal between the pump and motor may be damaged. If a leak occurs at this point, allowing water to pass from the pump to the motor, take the pump to your Clarke dealer for overhaul. -
Page 10: Maintenance
Re-prime the pump when returning to service. In the event that overhaul of the pump or motor is necessary, contact your Clarke service department. ENVIRONMENTAL RECYCLING POLICY Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling &... -
Page 11: Troubleshooting
Tighten as required. Air leaks through Renew seal. damaged seal. Impeller damaged and Return to your Clarke making poor seal. dealer for repair Impeller / mechanical Return to your Clarke seal is badly worn. dealer for repair. - Page 12 Release plug in impeller pipeline. housing to release air. Damaged impeller Return to your Clarke dealer for repair. GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
- Page 13 PARTS DIAGRAM - CPE20A Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 14 PARTS LIST - CPE20A ID DESCRIPTION ID DESCRIPTION ANUF ANUF Connector 2” (50 mm) GM1010 Bearing GM5466 Washer GM5342 Motor bracket GM5503 Pump body GM5571 Condenser GM6994 Valve body GM5854 Elastic washer GM6996 Check valve GM6012 Rear motor cover GM6997 Flexolite gasket GM6029 GM6998...
-
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
