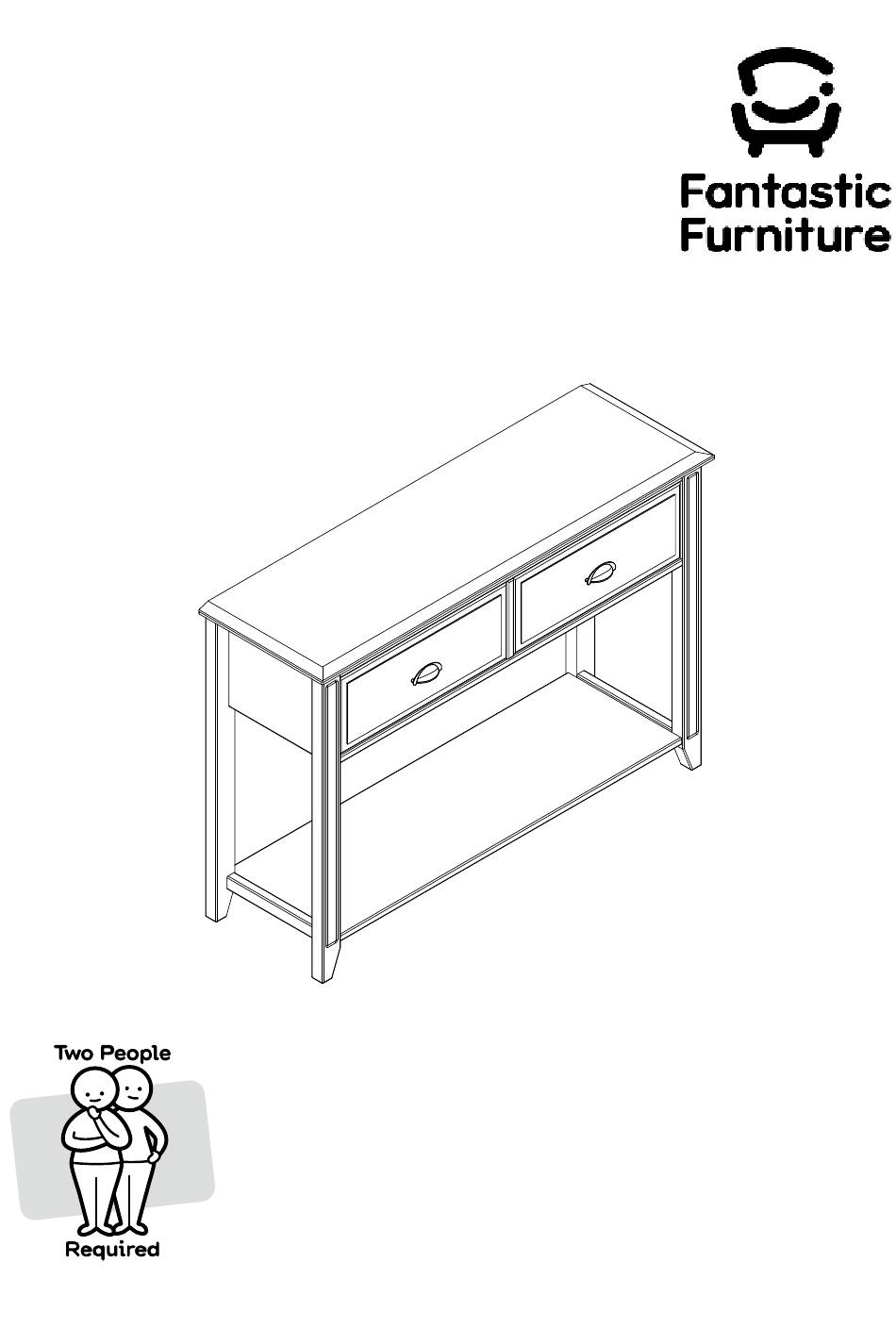

- Page 1 Version 1.0 Torkay Hall Table 2 Drawer White Walnut fantasticfurniture.com.au...
- Page 2 第二页PDF...
-
Page 3: Assembly Checklist
Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled. -
Page 4: What You Need
What you Need Drawer Support Right Drawer Rail(P15) Side (P12) To assemble the product Drawer Back (P13) Drawer Base (P14) Other tools you need: Phillips Head Screwdriver Mallet (soft headed) Left Drawer Side (P11) Drawer Front (P10) Top Pan (P1) Part List 1 x Top Panel (P1);... - Page 5 Step 1 You will need: (H1)x8 8 x Large Phillips Head Screwdriver Cam Bolts (H1) (P1) Attach 8 x large cam bolts (H1) to top panel (P1) using a phillips head screwdriver. Step 2 You will need: (P4) Mallet (soft 7 x Wooden headed) Dowels (H3)
- Page 6 Step 3 You will need: 6 x Large 3 x Small Cam Bolts Screws (H7)x3 (H1) (H7) (H1)x6 2 x Wooden Phillips Head Dowels Screwdriver (H3) (H11) 1 x Left (P2) Runner Track Mallet (soft (H7) (H11) headed) (H3)x2 Attach 6 x large cam bolts (H1) to left side (P2) using a phillips head screwdriver. Insert 2 x wooden dowels (H3) into left side (P2).
- Page 7 Step 5 (P9) (P8) Attach middle foot (P9) to bottom shelf (P8) by turning clockwise to fully lock. Step 6 You will need: 2 x Large Phillips Head Cam Bolts Screwdriver (H1) (H1)x2 4 x Wooden Dowels Mallet (soft (H3) headed) (P7) (H3)x4...
- Page 8 Note: the left side of the centre panel (P6) has cam nut holes at the top. Step 7 first hole (H7) (H3)x4 You will need: 4 x Wooden 6 x Small (H12) Dowels Screws (H12) (P6) (H3) (H7) 1 x Left Phillips Head second hole Runner Track...
- Page 9 Step 9 You will need: (H2)x2 Phillips Head 2 x Large (P7) Screwdriver Cam Nuts (H2) (P2) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 10 Step 11 (P5) You will need: (P5) (H2) Phillips Head 1 x Large Screwdriver Cam Nut (H2) (H2) (P2) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 11 Step 13 Step 13 (P6) (P5) You will need: (H4) (P3) 1 x Large Phillips Head 6 x Large Screw (H4) Screwdriver Cam Nuts (H2) This is how a cam nut works..The head of the cam (H2)x6 (P2) bolt goes into the open mouth of the cam nut.
- Page 12 Step 15 You will need: (H9)x5 10 x Small Phillips Head Cam bolts (H9) Screwdriver (P10) Attach 5 x small cam bolts (H9) to drawer front (P10) using a phillips head screwdriver. Repeat this process for the other drawer front. Step 16 You will need: (P12)
- Page 13 Step 17 You will need: (P15) (H10) Phillips Head 2 x Small Cam Nuts (H10) Screwdriver This is how a cam nut works..(P10) The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 14 Step 19 (H8)x6 You will need: (P13) (P12) 12 x Medium Phillips Head Screws(H8) Screwdriver (P11) Attach 1 x drawer back panel (P13) to drawer sides (P11, P12) and drawer support rail (P15) using 6 x medium screws(H8), tightening with a phillips head screwdriver. Repeat this process for the other drawer back panel (P13).
- Page 15 Step 21 You will need: (H7)x3 (H14) 12 xSmall 2 x Left 2 x Right Phillips Head Screws (H7) Runners (H13) Runners (H14) Screwdriver (H13) (H13) (H7)x3 (P11) (P11) Attach 1 x left runner (H13) and 1 x right runner (H14) to the bottom of drawer sides (P11, P12), ensuring the stoppers are at the back of the assembled drawer, using 6 x small screws (H7) and tightening with a phillips head screwdriver.
- Page 16 Step 23 You will need: 2 x Medium 2 x Wall straps Screws (H8) (H15) We strongly advise that you use the wall safety strap provided to prevent the unit toppling. Phillips Head 2 x Washers Screwdriver (H16) (H15)x2 (H16)x2 (H8)x2 Attach 2 x wall straps (H15) to the back of the top panel (P1) using 2 x medium screws (H8) and 2 x washers (H16), tightening using a phillips head screwdriver.
- Page 17 Step 24 You will need: (H16)x2 Phillips Head 2 x Washers Screwdriver (H16) Screw and Wall Plug are not provided. Please use appropriate fixtures for your wall. Seek advice from a qualified trades person on how to attach safety strap to the wall .
- Page 18 Step 25 Page 18 fantasticfurniture.com.au...
