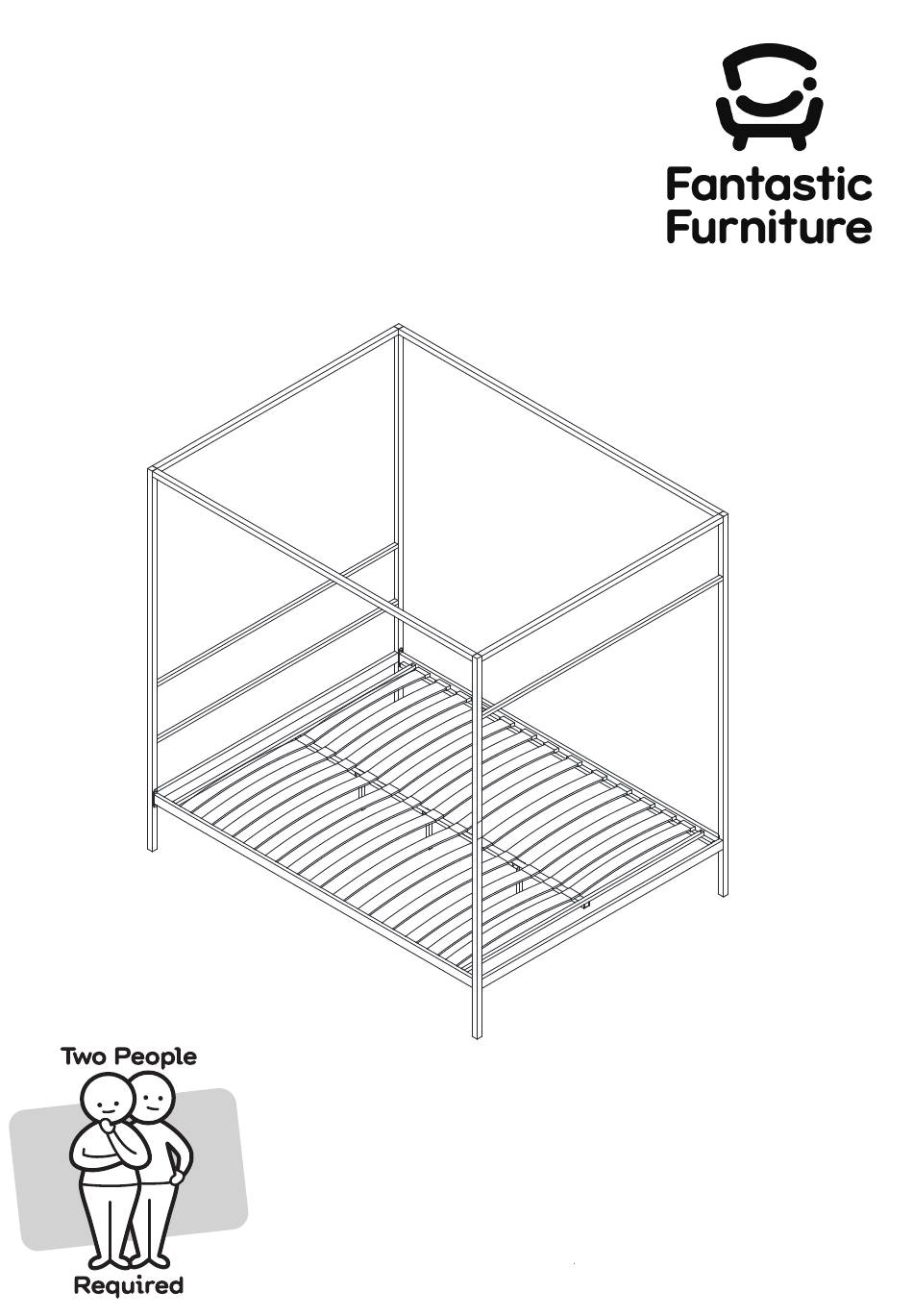

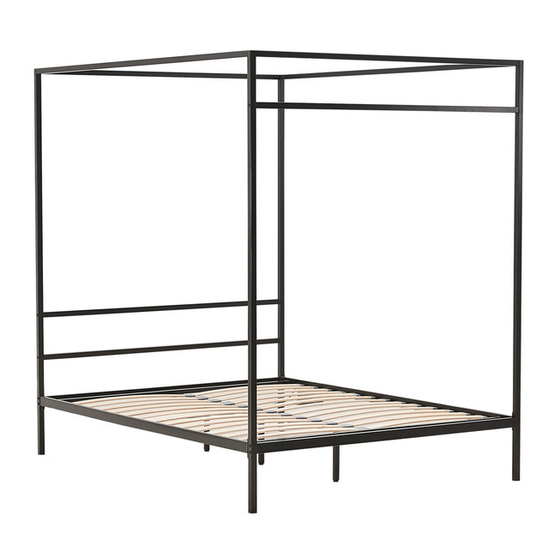

- Page 1 Version 1.0 Toulon Double fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...
- Page 3 Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten screws Identify and lay out all of the components before you begin assembly . until the item is fully assembled.
- Page 4 1x Headboard Leg What you need (P2) to assemble the product 2x Short Canopy Bar (P7) 1x Headboard Leg (P1) 1x Center Rail (P7) (P2) (P6) (P8) (P6) 2x Long Canopy Bar (P1) 2x Cross Bar (P7) (P6) (P9) (P3) (P3) 3x Strong Connect Bar (P3)
- Page 5 Step 1 (P7) You will need (P7) 14 X Big Bolts (P1) M8 x 45mm (P3) (H1) (P11) (P2) (P3) 1 x Large Allen Key (P3) (H11) (P12) (P4) (P4) 8 x Thin Short Bolts M6 x 14mm (H4) Attach short Canopy Bar (P7) 1 x Small to Headboard Leg (P1 &...
- Page 6 Step 3 You will need (P1) 8 x Thin Bolts M6 x 25mm ( H5 ) 2 x Small (P2) Allen Key ( H10 ) (P11) 8 x Metal Washer (P5) ( H7 ) (P5) (P12) 8 x Metal Cap M6 x 18mm ( H6 ) Attach 2 x Side Rails (P5) to Headboard Leg (P1&P2) and Footboard Leg (P11&P12) with 8 x Metal...
- Page 7 Step 5 You will need 1 x Small Allen Key ( H10 ) 4 x Thin Short Bolts (P9) M6 x 14mm (P8) (H4) (P9) (P9) (P8) Attach the Center Rail (P8) under the Crossbar (P9) using 4 x Thin Short Bolts (H4), Tighten with a small Allen Key (H10).
- Page 8 Step 7 (P13) You will need: (P15) 26 x Plastic Slat Caps (P13) (P14) 13 x Center Plastic (P15) Slat Caps (P14) (P13) Push 2 x Slat Caps (P13), 2 Slats (P15) and 1 x Centre Plastic Slat Caps (P14) together. Lower the fully assembled slat into side rails (P5).
