Summary of Contents for fantastic furniture Torkay Bedside 2 Drawer

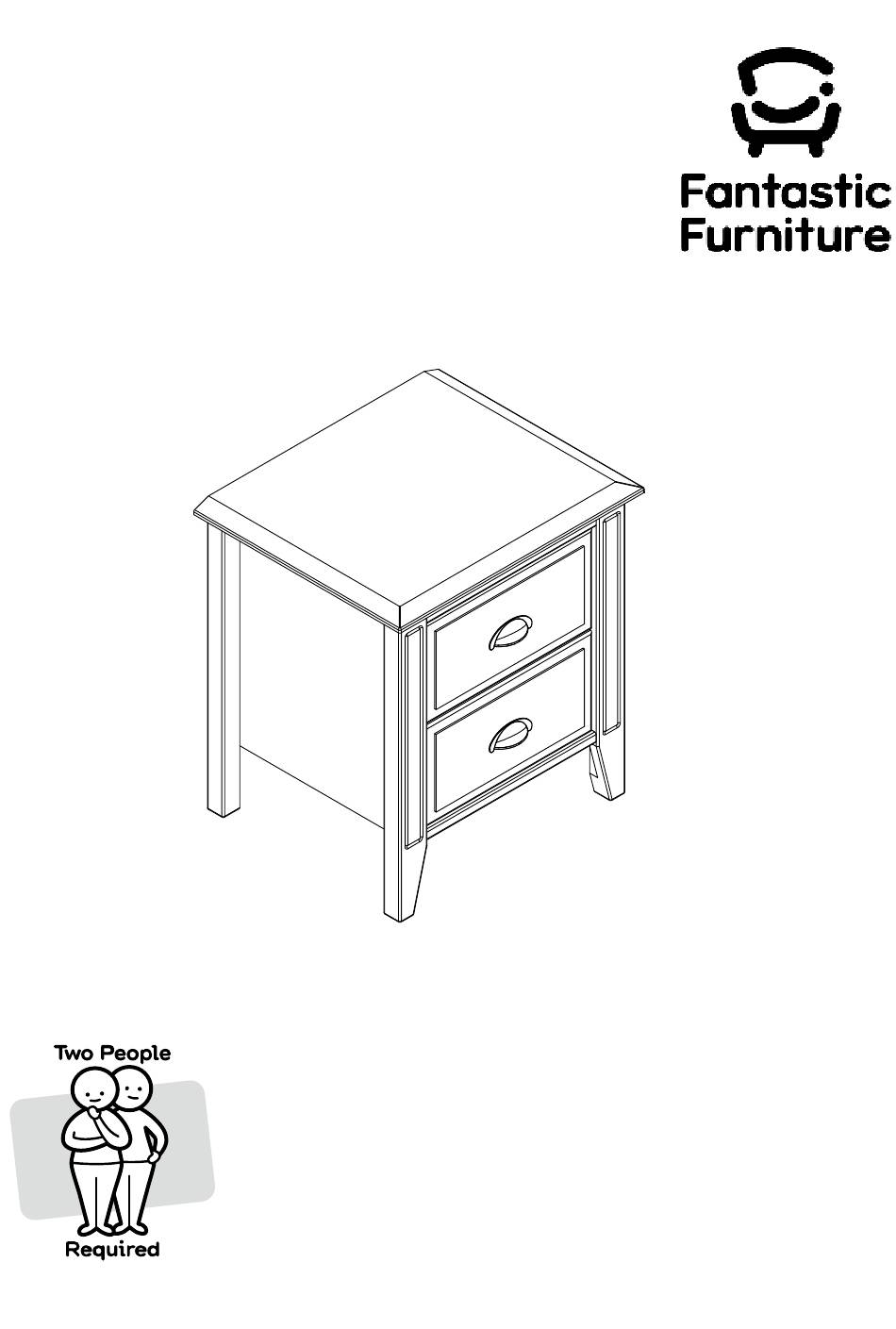

- Page 1 Version 1.0 Torkay Bedside 2 Drawer White Walnut fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au fantasticfurniture.com.au...
-
Page 3: Assembly Checklist
Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled. -
Page 4: What You Need
What you Need Drawer Back Right Drawer (P11) Side (P10) To assemble the product Drawer Base (P12) Other tools you need: Phillips Head Screwdriver Soft Headed Mallet Left Drawer Drawer Front Side (P9) (P8) Top Pan (P1) Part list 1 x Top Panel (P1); 1 x Left Side (P2);... - Page 5 Step 1 You will need: (H1)x6 6 x Large Cam Phillips Head Bolts (H1) Screwdriver (P1) Attach 6 x large cam bolts (H1) to top panel (P1), tightening using a phillips head screwdriver. Step 2 You will need: (H3) Soft Headed 4 x Wooden Mallet Dowels (H3)
- Page 6 Step 3 (H1)x3 (H11) You will need: (H9)x6 (H11) 6 x Small 3 x Large Screws Cam Bolts (H9) (H1) 2 x Wooden Dowels Phillips Head (P2) (H3) Screwdriver (H3) 2 x Left Runner Soft Headed (H9) Tracks (H11) Mallet (H3) (H11) Attach 3 x large cam bolts (H1) to left side (P2), tightening using a phillips head screwdriver.
- Page 7 Step 5 (P4) You will need: large hole face bottom (H2) Phillips Head 1 x Large Screwdriver Cam Nut (H2) (P2) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 8 Step 7 (P6) You will need: (H2) (P6) (P2) Phillips Head 1 x Large Screwdriver Cam Nut (H2) (P2) (H2) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 9 Step 9 paper lamination face inside (P7) Slide the back panel (P7) into the grooves on the left and right side (P2, P3). Step 10 (P1) You will need: 1 x Long Phillips Head 6 x Large Cam Screw (H4) Screwdriver Nuts (H2) (H2)x6...
- Page 10 Step 11 You will need: 4 x Back Panel 4 x Medium Phillips Head Suports (H5) Screws (H6) Screwdriver (H5)x4 (P7) (H6)x4 Insert 4 x back panel support (H5) into each corner of the back panel (P7) and secure using 4 x medium screws (H6), tightening with a phillips head screwdriver. Step 12 You will need: (H17)x4...
- Page 11 Step 13 You will need: (P10) 4 x Small Phillips Head (P9) (H18)x4 Cam Nuts (H18) Screwdriver This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam (P8) nut so it tightens over the bolt.
- Page 12 Step 15 You will need: (P11) 8 x Large Phillips Head (P10) Screws (H10) Screwdriver (H10)x4 (P9) Attach drawer back (P11) to drawer sides (P9, P10) using 4 x large screws (H10), tightening using a phillips head screwdriver. Repeat process for other drawer. Step 16 You will need: 2 x Handles...
- Page 13 Step 17 You will need: 12 xSmall 2 x Left Phillips Head (H9)x6 2 x Right Screws (H9) Runners (H13) Screwdriver Runners (H14) (H9) (H9) (H13) (H14) (H9) (H13) (P9) (P9) Attach 1 x left runner (H13) and 1 x right runner (H14) to the bottom of drawer sides (P9, P10) using 3 x small screws (H9).
- Page 14 Step 19 You will need: Phillips Head 1 x Large 1 x Wall Strap 1 x Washer Screwdriver Screws (H10) (H15) (H16) We strongly advise that you use the wall safety strap provided to prevent the unit toppling. (H15) (H16) (H10) Attach wall strap (H15) to back of the top panel (P1) using 1 x large screw (H10) and 1 x washer (H16).
- Page 15 Step 20 You will need: Phillips Head 1 x Washer Screwdriver (H16) Screw and Wall Plug are not provided. Please use appropriate fixtures for your wall. Seek advice from a qualified trades person on how to attach safety strap to the wall .
- Page 16 Step 21 Page 16 fantasticfurniture.com.au...
