FCI DM10-FM Quick Start Manual

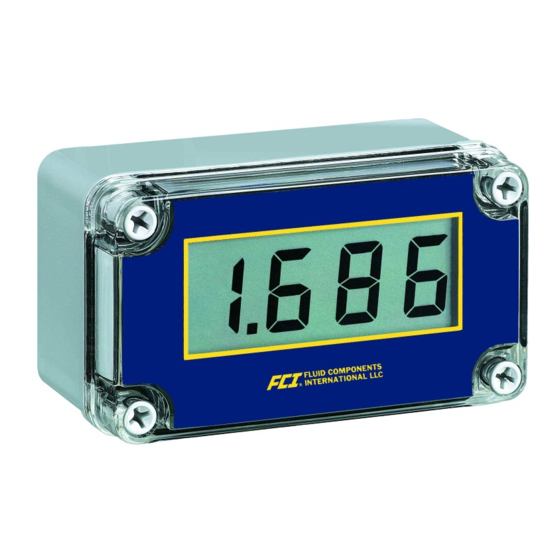

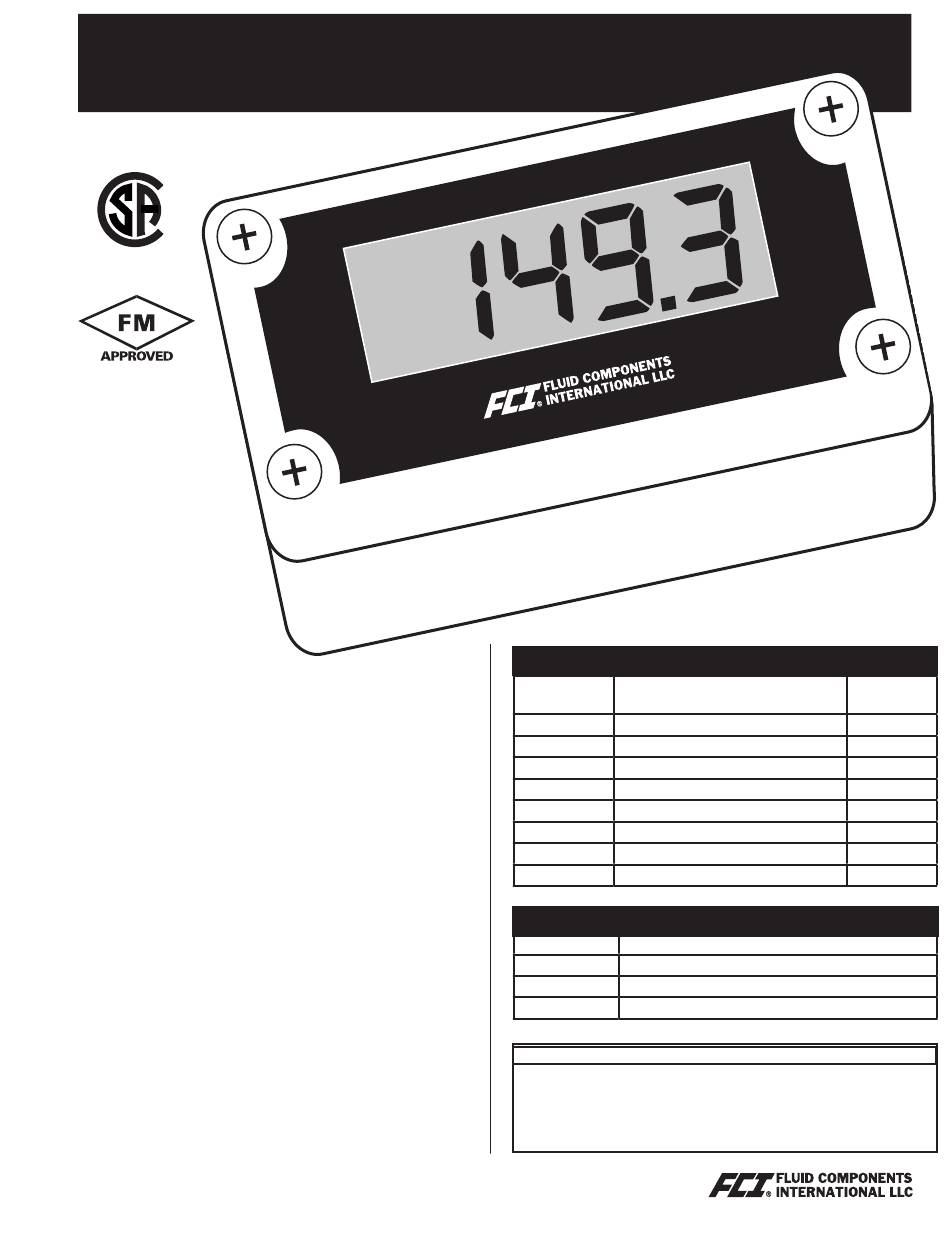

MODEL DM10-FM & DM10-CSA 3½ DIGIT NEMA 4X
LOOP-POWERED METER
®
• 1 V Drop
• 1" High
Display
• Operates
Down to
-40°

SPECIFICATIONS

Except where noted all specifications apply to operation at +25°C.
APPROVAL: FM Approved and CSA Certified as intrinsically safe
with entity, for use in Class I, II, III, Division 1, Groups A, B, C, D,
E, F, G; T-codes = T4; hazardous locations. Non-incendive for use in
Class I, II, III, Division 2, Groups A, B, C, D, F, G.
ENTITY PARAMETERS: V
max
C = 0 µF, L = 0 µH, P 1.3 W
i =
i i
FM APPROVED: Intrinsically Safe, Class I Zone 0
See Control Drawing LIM686FC-2 for complete installation
instructions.
ENCLOSURE: Impact-resistant glass filled polycarbonate body,
color: gray; impact-resistant clear polycarbonate cover; NEMA 4X,
Type 4X, IEC 529, IP67
DISPLAY: 1.0" (25.4 mm) high LCD, -1000 to 1999
INPUT: 4-20 mA
Calibration: Two-step; non-interacting low and high
CALIBRATION RANGE: 4 mA input: -1000 to +1000; 20 mA
between 20 and 2000 counts > 4 mA display (up to 1999)
ACCURACY: ±0.1% of span ±1 count
CONVERSION RATE: 2.5 conversions/second
MAXIMUM INPUT CURRENT: 30 mADC
MAXIMUM VOLTAGE DROP: 1 V at 20 mA
CONNECTIONS: Screw terminal block
OPERATING TEMPERATURE RANGE: -40 to 85°C
(-40 to 185°F); -40 to 40°C (-40 to 104°F) for Canadian installations
WARRANTY: 1 year parts and labor
DISCLAIMER:
The information contained in this document is subject
to change without notice. Fluid Components International LLC makes
no representations or warranties with respect to the contents hereof, and
specifically disclaims any implied warranties of merchantability or fitness for
a particular purpose.
FLUID COMPONENTS INTERNATIONAL LLC
= 30 V, I = 175 mA,
max

ORDERING INFORMATION

Model Description
DM10-FM FM Approved Loop-Powered Meter
DM10-FM-R FM Approved Loop-Powered Meter
DM10-FM-T FM Approved Loop-Powered Meter
DM10-FM-N FM Approved Loop-Powered Meter
DM10-CSA CSA Certified Loop-Powered Meter
DM10-CSA-R CSA Certified Loop-Powered Meter
DM10-CSA-T CSA Certified Loop-Powered Meter
DM10-CSA-N CSA Certified Loop-Powered Meter

ACCESSORIES

Model Description
DM10-KIT1 Panel Mount Kit (does not provide NEMA 4X seal to panel)
DM10-KIT2 2˝ Pipe Mounting Kit (zinc plated steel)
DM10-KIT3 2˝ Pipe Mounting Kit (stainless steel)
YOUR LOCAL DISTRIBUTOR IS:
ACTUAL SIZE
½" Conduit
Hole Location
Bottom
Rear
Top
None
Bottom
Rear
Top
None
