FCI ST100A Series Installation, Operation And Maintenance Manual

Thermal mass flow meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST100A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FCI ST100A Series

Summary of Contents for FCI ST100A Series

  • Page 2 (and does not include manufacture or processing uses). Any other use is strictly prohibited without the prior written consent of FCI. © Copyright 2020 by Fluid Components International LLC. All rights reserved. FCI is a registered trademark of Fluid Components International LLC. Information subject to change without notice.

  • Page 3: Table Of Contents

    Basic Commissioning and Start-Up ..............................Configuring the ST100A Series ............................... Verify Engineering Units .................................. System Faults, Alarms and Logging Indication ..........................ST100A Series Configuration Software Application (User Password: 2772) .................. Real Time Clock ....................................Totalizer Setup ....................................Process Data Logging ..................................
  • Page 4 APPENDIX A DRAWINGS ................................APPENDIX B ADDITIONAL INFORMATION ............................ Parameters Report from the ST100A Series Configuration Software (Sample) ................HMI Menu Outline ..................................ST100A Series Configuration Software Menu Outline (v3.2.0.x) ....................Instructions: Installing Sun Shield on ST100A Series Integral Enclosure ..................

  • Page 5: List Of Figures

    Figure 18 – Bus Configuration 2 mm Jumper Headers and DIP Switch ....................Figure 19 – Input Power Wiring ................................Figure 20 – ST100A Series Ferrite Core Installation (Auxiliary Board Not Shown for Clarity) ..............Figure 21 – Flow Element Connections, TB1 and TB2 (Dual Element Models) ..................
  • Page 6 Figure 55 – Digital Bus Deactivation Warning When Enabling HART ....................Figure 56 – Field Communicator Easy Upgrade Utility, Import DD ......................Figure 57 – ST100A Series Configuration Software Output Tab with Modbus Selected ................ Figure 58 – ST100A Series Configuration Software Modbus Tab, Serial Interface Configuration............
  • Page 7 Table 12 – HART Universal Commands ..............................Table 13 – HART Common Practice Commands ........................... Table 14 – ST100A Series HART Device Specific Command Groupings ....................Table 15 – HART Device Specific Commands ............................Table 16 – Command Status Bytes, Bit Assignments ..........................

  • Page 8: Typographical Conventions

    06EN003480 Rev. A ST100A Series Flow Meter Typographical Conventions Important notes or warnings are shown like the following: Note: A note is additional information that adds to or supplements the topic. Caution: A caution indicates an action that can cause equipment damage, loss of data or software, or minor injury.

  • Page 9: General

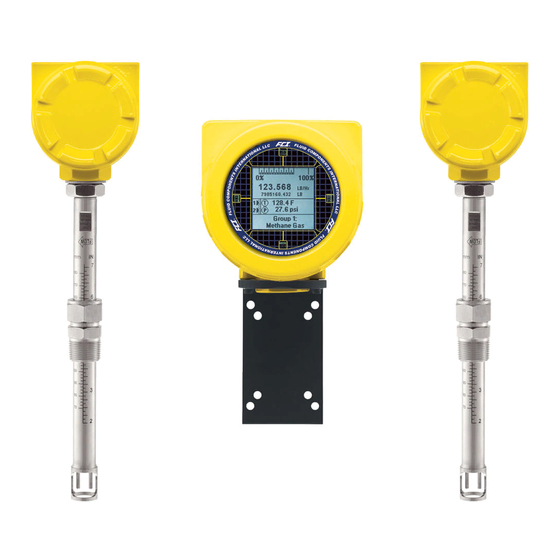

    Product Description The ST100A Series is a thermal dispersion, industrial process grade air/gas flow meter. It is suitable for all air and gas flow measurement applications in line sizes from 1" to 100" [25 to 2500 mm] and larger. The instrument provides direct mass flow measuring and measures flow rate, totalized flow and temperature, and the STP versions add pressure measurement.
  • Page 10 STP100A – Single point insertion element with flow, temperature and pressure process output STP110A – Single point insertion element with flow and temperature process output, VeriCal option Documentation and Accessories 06EN003480 ST100A Series Installation, Operation, & Maintenance Manual 06EN003481 ST100A Series Configuration Software Manual Calibration Certification Documentation...

  • Page 11: Technical Specifications

    ST100A Series Flow Meter GENERAL ■ Temperature Coefficient Technical Specifications With optional temperature compensation; valid from 10% to Instrument 100% of full scale calibration ■ Measuring Capability Flow: Maximum ±0.015% of reading / °F up to 850 °F [±0.03% of reading / °C up to 454 °C]...
  • Page 12 GENERAL ST100A Series Flow Meter Flow Element ■ Models ST100A, ST102A, ST110A, ST112A, STP100A, STP102AA, STP112A, Process Connections and Insertion ■ Material of Construction Lengths All-welded 316L stainless steel; Hastelloy-C optional Compression Fittings: Models ST100A and ST102AA only ■ Operating Pressure ¾"...
  • Page 13 One 4-20 mA input channel for FCI-administered special configura- Includes the Readout/Display Option 1 items, plus adds four tions to allow ST100A Series to accept inputs from external devices keypad/buttons for the user interface. such as gas analyzers, gas composition, or pressure sensors.
  • Page 14 GENERAL ST100A Series Flow Meter Other Options ■ Vortab Flow Conditioners Available for all line size applications; standard choice with Model ST100AL (in-line). ■ Sun Shield Shades main transmitter, electronics, and display from direct sunlight; 316L stainless steel. FCI P/N 023241-01 Integral transmitter FCI P/N 023237-01 Remote transmitter ■...

  • Page 15: Installation

    Consult the manufacturer if dimensional information on the flameproof joints is necessary. The painted surface of the ST100A Series Flow Meter may store electrostatic charge and become a source of ignition in applications with a low relative humidity < 30% relative humidity where the painted surface is relatively free of surface contamination such as dirt, dust, or oil.

  • Page 16: Figure 2 - Compression Fitting Installation, Dimensions

    Compression Fitting FCI single point insertion flow meters are calibrated at the centerline of the process pipe. The flow element is properly mounted when the tip of the flow element is located 0.50 inches (13 mm) past the pipe centerline. See Figure 2 below.

  • Page 17: Figure 3 - Example Flange Mount Installation

    ST100A Series Flow Meter INSTALLATION Flange Mount The flange mount flow element is shown in Figure 3 below. Attach the process mating flange with care. Correctly orient the flow element's reference flat to ensure the instrument's calibrated accuracy. ● Verify the process media flow matches the flow direction arrow on the flow element.

  • Page 18: Figure 5 - Retractable Packing Gland Installation

    A retractable low and medium pressure packing gland, with 1¼" MNPT threads or ANSI/DIN flange, and graphite or Teflon packing, is a process connection option. FCI single point flow meters are calibrated at the centerline of the process pipe. The flow element is properly mounted when the tip of the flow element is located .50 inches (13 mm) past the pipe centerline.
  • Page 19 FCI retractor tool, part no. 026854-01, must be used to safely insert the probe into the process. The FCI packing gland and retractor tool are rated to a maximum pressure of 500 psig (35 barg).

  • Page 20: Figure 6 - Flow Element Installation Using Fci Retractor Tool 026854-01

    Caution: For applications where the process media is pressurized to greater than 50 psig (3.5 barg), FCI retractor tool, part no. 026854-01, must be used to safely retract the probe from the process (does not apply to applications using the medium pressure packing gland assembly with support rods).
  • Page 21 If a ball valve is not being used, make sure to first depressurize the process line before removing the flow element. Flow Element Retraction Using FCI Retractor Tool 026854-01 (Pressure: 500 psig (35 barg) max.) Install the FCI retractor tool to the flow element as described in Insertion/Installation Procedure, page 10, steps ‘a,’...

  • Page 22: Stp100A Flow Element Installation

    INSTALLATION ST100A Series Flow Meter STP100A Flow Element Installation Model STP100A adds pressure transducer measurements as a third process variable output. The process connections available on the STP model include the standard ST model connections except the compression fitting. Available process connections include: ●...

  • Page 23: Figure 8 - 2-Point Flow Element Installation (Compression Fitting Shown)

    ST100A Series Flow Meter INSTALLATION Compression Fitting, ¾" or 1" NPT Figure 8 – 2-Point Flow Element Installation (Compression Fitting Shown) Flow Element Wiring The ST102AA/ST112AA can be configured with one integral and one remote flow element or with two separate flow elements and remote electronics.

  • Page 24: St100Al In-Line Process Connection

    Use power wiring with a minimum 90 °C rating. ESD Precautions Caution: FCI flow meters contain static-sensitive devices. To avoid damage to the instrument observe the ESD precautions listed below before opening the instrument for wiring. ● Use a wrist band or heel strap with a 1 MΩ resistor connected to ground.

  • Page 25: Figure 10 - Integral Electronics Installation (Compression Fitting Shown)

    Lock Nut Torque Specification: 30-35 ft-lbs (40-47 N-m) Provide integral electronics with additional support/bracing in applications where excessive vibration is present. A mounting bracket is available from FCI to support the electronics when additional support is required. See Figure 10 below.

  • Page 26: Figure 11 - Remote Installation, Mounting Bracket On Wall

    INSTALLATION ST100A Series Flow Meter Remote Electronics A mounting bracket is supplied when the transmitter is ordered for remote mounting. The bracket mounting details are shown in Figure 11 below. Refer to the outline installation drawings in Appendix A for additional mounting details. The electronics can be easily mounted on a wall or pipe.

  • Page 27: Figure 12 - Remote Installation, Mounting Bracket On 1" - 1½" Pipe

    ST100A Series Flow Meter INSTALLATION Remote Pipe Mounting Refer to the figures below for remote transmitter pipe mounting details. Figure 12 – Remote Installation, Mounting Bracket on 1" – 1½" Pipe 2x 3/16"-16 ST100A SERIES U BOLTS, SST TRANSMITTER 2x M4 SCREWS (FCI PROVIDED) 2"...

  • Page 28: Figure 14 - Remote Installation, Optional Stainless Steel Bracket On 2" Pipe

    INSTALLATION ST100A Series Flow Meter (9.25) ST100A SERIES 2" PIPE (4.25) TRANSMITTER 2x ¼"-20 U BOLTS, SST 4x ¼" HEX NUT 2x M4 SCREWS (FCI PROVIDED) C01247-2-1 Figure 14 – Remote Installation, Optional Stainless Steel Bracket on 2" Pipe Fluid Components International LLC...

  • Page 29: Instrument Wiring

    Figure 15 – Recommended Wiring Routing, Base Electronics Enclosure Table 2 below shows the smallest copper wire (maximum AWG number) that can be used for the listed cabling. Contact FCI concerning greater distances than those listed in the chart. Refer to...

  • Page 30: Figure 16 - St100A Series I/O Connector Locations

    Figure 16 below shows the location of the ST100A Series I/O connectors as well as the lid set screw access holes in the enclosure body. Note that some of the connectors shown are present only with certain options or model numbers (e.g., connector TB2 is present for dual element models only).

  • Page 31: Figure 17 - St100A Series Electronics Enclosure Label

    INSTALLATION Electronics Enclosure Label Affixed to the inside of the blind lid is a label that identifies the ST100A Series’ jacks and connectors (with terminal assignment). See Figure 17 below. Use this label as a guide when wiring the instrument. Note that the PCB silkscreen also provides connector identification.

  • Page 32: Figure 18 - Bus Configuration 2 Mm Jumper Headers And Dip Switch

    INSTALLATION ST100A Series Flow Meter Configuration Jumpers/DIP Switch When wiring the instrument for Modbus/Fieldbus/PROFIBUS make sure that the instrument is properly configured as shown in Figure 18 below. Refer to Modbus Connections on page Foundation Fieldbus/PROFIBUS Connections (Option) on page for details.

  • Page 33: Figure 20 - St100A Series Ferrite Core Installation (Auxiliary Board Not Shown For Clarity)

    P1 connector terminals. The ferrite core clamp (supplied with the instrument as ferrite kit FCI p/n 023638-02) protects the instrument against the adverse effects of EMI/RFI electrical noise. Figure 20 – ST100A Series Ferrite Core Installation (Auxiliary Board Not Shown for Clarity) Power overload protection is provided by a clip-mounted SMT fuse.

  • Page 34: Figure 21 - Flow Element Connections, Tb1 And Tb2 (Dual Element Models)

    Figure 21 below, connect the ST100A Series flow element sensor wires to the detachable 9-position connector plug TB1 on the main board. For dual element models, connect the second flow element sensor wires to the detachable 9-position connector plug TB2 on the auxiliary board.

  • Page 35: Figure 22 - Hart And Ch. 1 & Ch. 2 4-20 Ma Connections, J25

    ST100A Series Flow Meter INSTALLATION HART Connections below, connect the installation HART wiring to the appropriate J25 Phoenix connector terminals depending on the Referencing Figure 22 application. Similar to flow element connector TB1 the J25 connector is a detachable plug that plugs into the header socket on the board.

  • Page 36: Figure 23 - Single Connection And Multidrop Hart Setups

    INSTALLATION ST100A Series Flow Meter Network P.S. Internal Loop Power External Loop Power 24 VDC HART HART– HART+ HART HART Master LOAD J25-1 J25-1 HART ST100A ST100A Master LOAD HART HART – J25-2 J25-2 – J25-4 (a) HART Single Connection Network P.S.

  • Page 37: Figure 25 - Modbus/Profibus/Fieldbus Connections, J8

    J9, J10 & J11 (see Table in manual) C01531-1-1 Figure 25 – Modbus/PROFIBUS/Fieldbus Connections, J8 Connect the ST100A Series to a Modbus device/network using a 2-wire RS-485 connection scheme as shown in Figure 26 below. For details on Modbus operation refer to Modbus Operation, page 77.

  • Page 38: Figure 27 - Fieldbus/Profibus Wiring

    Figure 27 below. Note that devices are connected in parallel (star fashion).Use a terminator as appropriate for your application. For details on PROFIBUS operation refer to the ST100A Series PROFIBUS PA manual 06EN003483. For details on F Fieldbus operation refer to the ST100A Series F...

  • Page 39: Figure 28 - Source/Sink Outputs, Pressure Input, And Ext. 4-20 Ma Input Connections, J9

    ST100A Series Flow Meter INSTALLATION Fieldbus/PROFIBUS Configuration OUNDATION Refer to Figure 18 on page 24. To set J8 for FF/PROFIBUS operation install a 2 mm jumper shunt onto the J12 and J13 jumper pins as shown in Table 5 below.

  • Page 40: Figure 29 - Source Output

    INSTALLATION ST100A Series Flow Meter Source/Sink Output Connections The source/sink outputs are available from the auxiliary board Phoenix connector J9 terminals J9-1 (source), J9-2 (com.), and J9-3 (sink). Refer to Figure Wire the terminals as required for your device (using source or sink output as appropriate) as shown in...

  • Page 41: Post Installation Check

    ST100A Series Flow Meter INSTALLATION External 4-20 mA Input ST100A Series, except STP model instruments, come with a 4-20 mA input on Phoenix connector J9. Refer to Figure 28. Connect the external current loop input to J9-5 (IN) and J9-6 (RTN/GND). The 4-20 mA input is used for extended operation mode functions: ●...
  • Page 42 INSTALLATION ST100A Series Flow Meter This Page Intentionally Left Blank Fluid Components International LLC...

  • Page 43: Operation

    HMI Option, Basics The HMI (Human-Machine Interface) option provides the ST100A Series with a built-in setup tool. Four IR (infrared) sensor buttons located at the 3, 6, 9, and 12 o’clock positions on the display provide access to basic setup parameters. The HMI setup menu can be accessed through the window without removing the electronics enclosure lids.

  • Page 44: Figure 33 - Hmi Display Ir Sensor Functions

    The optional HMI interface provides for quick adjustments using only a subset of instrument programming commands. Use the ST100A Series configuration software application for in-depth programming. A menu item with an asterisk (*) is inaccessible due to an active connection to a PC running the configurator software (only one master can be active at a time), or an extended mode is in effect which restricts group selection.

  • Page 45: Figure 34 - Basic Setup Options, Hmi

    ST100A Series Flow Meter OPERATION Basic Setup Options, HMI Figure 34 below summarizes the basic setup options using the optional HMI. Enter the HMI user password as required when changing a setup parameter. Note: The setup options described in this section (except Language) can also be changed via the configuration software.

  • Page 46: Figure 36 - Display Setup Options

    OPERATION ST100A Series Flow Meter Instrument setup includes the following parameters: Flow – Sets flow parameters including flow type and flow timebase. Table 6 below summarizes the Flow parameters. The default is • Vel Flow, SFPS (Standard Feet Per Second).

  • Page 47: Verify Engineering Units

    System Faults, Alarms and Logging Indication The ST100A Series optional display shows system faults, alarms, and data logging activity by displaying three different icons when these conditions are present. As shown in Figure 38 below, these icons appear directly above the flow rate indication on the main process data screen.

  • Page 48: St100A Series Configuration Software Application (User Password: 2772)

    Use a passive, straight-through USB 2.0 cable with a type-A male connector on one end and a type-B square plug on the other end (as supplied with the instrument). Connect one end of the USB cable to the computer’s USB port. Connect the other cable end to the ST100A Series’ USB port (remove blind lid to access USB connector on main board).

  • Page 49: Real Time Clock

    Real Time Clock The ST100A Series system time is maintained by a battery-powered real time clock that is set to Pacific Time at the factory. Synchronize the instrument’s system time to the installed location’s local time using the configuration software. The real time clock cannot be set using the HMI menu interface.

  • Page 50: Totalizer Setup

    ST100A Series Flow Meter Click Get from Device. This displays the current date and the ST100A Series system time. If needed, set the correct date using the field's calendar date picker and time using the field's spinner buttons. Click Send to Device to save the changes to the instrument.

  • Page 51: Process Data Logging

    Process Data Logging The ST100A Series has the ability to log process data (date and time, flow rate, temperature, pressure, totalized flow rate and the faults code – all in customer units. This information is stored on the microSD card in the comma separated values (.csv) format. Use the supplied configuration software to set up the process data logging feature.

  • Page 52: Table 7 - Log File Filename Format Lgabcdxx.csv

    OPERATION ST100A Series Flow Meter Table 7 below summarizes the log file’s filename format. Table 7 – Log File Filename Format LGabcdxx.csv YEAR MONTH (b) DAY (c) HOUR (d) MINUTE (xx) Letter  Year Letter  Month Alphanumeric  Day Letter ...
  • Page 53 Upload Selected Log File(s) to a PC Using a USB Cable and the ST100A Series Configuration Software It is possible to upload selected log file(s) to a PC using a USB cable and the ST100A Series configuration software without the need to remove the memory card from the flow meter.

  • Page 54: Configuring For Ast™ Or Constant Power Measurement Methods

    OPERATION ST100A Series Flow Meter Configuring for AST™ or Constant Power Measurement Methods The default factory sensor heater configuration is AST™ (Adaptive Sensing Technology) in which the instrument automatically transitions between constant Delta T operation (heater power to maintain Delta T proportional to flow) and constant power operation (constant heater power and sensor Delta T proportional to flow) to measure the flow rate.

  • Page 55: Flow Filtering

    AST™ (Adaptive Sensing Technology) configuration. Use the configurator software to adjust the flow damping setting (Advanced Setup/User Parameters) as required for your application. Refer to the ST100A Series Configuration Software manual 06EN003481 for details.

  • Page 56: Namur Setup

    Figure 48 – NAMUR Fault Use the ST100A Series configuration software to enable/configure the NAMUR feature. The optional front panel HMI interface cannot access NAMUR.

  • Page 57: Figure 49 - Namur Output Level Selection (4-20 Ma User Tab)

    ST100A Series Flow Meter OPERATION Note: The NAMUR settings field in the 4-20 mA User tab will only show when the output is set for Flow or HART Flow. If Temperature output is selected the NAMUR settings will not show up. NAMUR only works on Flow outputs.

  • Page 58: Internal Delta-R Resistor (Idr) Check

    By passing the same sensor excitation current used to power the RTDs across three high precision idR resistors (60 Ω, 100 Ω, and 150 Ω) trendng patterns can be established. Periodically run the idR check to verify proper operation of the ST100A Series electronics. Use the idR check as a troubleshooting tool to isolate a fault between the sensor and the electronics.

  • Page 59: Figure 51 - Example Internal Delta R Scheduled Screen (After Clicking "Run Test Now

    ST100A Series Flow Meter OPERATION Figure 51 – Example Internal Delta R Scheduled Screen (After Clicking "Run test now...") View idR files using the idRTest Logs tab. Add these files to the microSD card for further analysis by clicking Add to SD Card Logs.

  • Page 60: Figure 54 - Internal Delta-R Resistor Check (Idr) Hmi Display Sequence

    OPERATION ST100A Series Flow Meter HOT KEY 1. Normal Operation Display: 2. Select Diagnostics. 3. Select Self Test. Select and hold the hot key for 3 seconds. 4. Select FE1 IDR (FE 2 applicable 5. Input Password E#C. 6. Select (Enter) Password.

  • Page 61: Using Digital Outputs

    OUNDATION time. When a particular digital output is specified at order time the unit is configured appropriately at the factory. Use the ST100A Series configuration software (Configuration/Output) to change the digital output selection. Refer to the ST100A Series Configuration Software manual 06EN003481 for details.

  • Page 62: Hart Operation

    The primary function of the instrument’s HART interface is to present process data via process data commands 1, 3 and 9. The ST100A Series does not implement the HART Burst mode. A HART master that supports HART 7.0 and higher is required. If using a HART communicator, a unit that supports HART 7.0 or higher is required (i.e.

  • Page 63: Service Data Operation

    Service Data Operation Shown below is example service information as provided by the Emerson 475 HART communicator with FCI’ s DD files loaded. The same information seen by the 475 is shown in the DCS (Distributed Control System) when the ST80/ST80L HART DD files are loaded. The screens shown below are a subset of the total 475 HART communicator information for the ST80/ST80L.
  • Page 64 Totalizer, review and change device information, reset the operation of the ST100A Series to the factory settings, enable or disable the write protect, and PV Setup.
  • Page 65 ST100A Series Flow Meter OPERATION Engineering Units Example (from Basic Setup) Device Configuration (from Advance Setup  Device Setup) Use the device configuration function to view/set up the flow meter’s 4-20 mA current output channels. Raw DA counts are shown for 4 mA and 20 mA and the output variable is shown as OFF, Flow, Temperature, or Pressure.
  • Page 66 OPERATION ST100A Series Flow Meter Device Factory Calibration Example (from Advance Setup  Device Setup) The Device Factory Calibration function lets you review the limits that have been set for the Flow, Temperature, and Pressure process parameters. Fluid Components International LLC...

  • Page 67: Hart Command List Reference

    ST100A Series HART Universal Commands The ST100A Series HART supports Universal Commands 0 through 22 and 38 and 48. Commands 4 and 5 are reserved under Universal Command Specification Rev. 7.1 (HCF_SPEC-127, Revision 7.1) and not implemented in this specification. There is no HART command Table 12 below summarizes the instrument’s HART Universal command set and the data associated with each command.
  • Page 68 OPERATION ST100A Series Flow Meter Command 2: Read Primary Variable Loop Current and Percent of Range Byte Format Description Request Data Bytes None Response Data Bytes 0–3 Float Primary Variable Loop Current (mA) 4–7 Float Primary Variable Percent of Range (%)
  • Page 69 ST100A Series Flow Meter OPERATION Command 9: Read Device Variables with Status Byte Format Description Request Data Bytes Unsigned-8 Slot 0: Device Variable Code Unsigned-8 Slot 1: Device Variable Code Unsigned-8 Slot 2: Device Variable Code Unsigned-8 Slot 3: Device Variable Code...
  • Page 70 OPERATION ST100A Series Flow Meter Command 11: Read Unique Identifier Associated with Tag Byte Format Description Request Data Bytes 0–5 Packed Tag, Packed ASCII Response Data Bytes Unsigned-8 1–2 Enum Expanded Device Type Unsigned-8 Minimum number of preambles from master to slave...
  • Page 71 ST100A Series Flow Meter OPERATION Command 15: Read Device Information Byte Format Description Request Data Bytes None Response Data Bytes Enum Flow Alarm Selection Code Enum Flow Transfer Function Code (not supported) Enum Flow Upper and Lower Range Value Units Code 3–6...
  • Page 72 OPERATION ST100A Series Flow Meter Command 20: Read Long Tag Byte Format Description Request Data Bytes None Response Data Bytes 0–31 Latin-1 Long Tag Response Codes Table 17, page 74, for response code list. Command 21: Read Unique Identifier Associated with Long Tag...
  • Page 73 ST100A Series Flow Meter OPERATION Command 48: Read Additional Device Status Byte Format Description Request Data Bytes 0–5 Bits Device-Specific Status (only first 6 bytes used, see page additional info) Bits Extended Device Status. Normally “0”; set to “1” (0x01) if maintenance is required.

  • Page 74: Table 13 - Hart Common Practice Commands

    OPERATION ST100A Series Flow Meter ST100A Series HART Common Practice Commands The ST100A Series supports Common Practice commands 35, 40, 42, 44, 45, 46, 50 and 51. Table 13 below summarizes the instrument’s HART Common Practice command set and the data associated with each command.
  • Page 75 ST100A Series Flow Meter OPERATION Command 46: Trim DAC Gain – Measured Current Chan #1 (in mA) Byte Format Description Request Data Bytes 0–3 Float Ext. Measured Current Ch. #1 Level (20 mA GainDAC) Response Data Bytes 0–3 Float Actual Measured Current Ch. #1 Level (20 mA GainDAC)

  • Page 76: Table 14 - St100A Series Hart Device Specific Command Groupings

    ST100A Series HART Device Specific Commands The ST100A Series Manufacturer Specific or Device Specific commands start at command 137. Use the device specific commands to setup and configure the ST100A Series instrument via HART. The ST100A Series device specific commands are grouped in functional...
  • Page 77 ST100A Series Flow Meter OPERATION Command 145: Read Customer Engineering Units Byte Format Description Request Data Bytes None — — Response Data Bytes Unsigned-8 Units Code for Flow Unsigned-8 Units Code for Temperature Unsigned-8 Units Code for Totalizer Unsigned-8 Units Code for Pressure...
  • Page 78 OPERATION ST100A Series Flow Meter Command 151: Read Calibration Flow Limits Byte Format Description Request Data Bytes None — — Response Data Bytes 0–3 Float Flow Lower Limit Value 4–7 Float Flow Upper Limit Value Response Codes Table 17, page 74, for response code list.
  • Page 79 ST100A Series Flow Meter OPERATION Command 163: Write (4-20 mA) Output Channel #2 Parameters Byte Format Description Request Data Bytes 0–1 Unsigned-16 D/A Setting for 4 mA Out (OUTZ2) 2–3 Unsigned-16 D/A Setting for 4 mA Out (OUTF2) Unsigned-8 Channel #2 Out Variable Response Data Bytes 0–1...
  • Page 80 OPERATION ST100A Series Flow Meter Command 179: Write/Set Calibration Group Byte Format Description Request Data Bytes Unsigned-8 Write/Set Calibration Group Response Data Bytes Unsigned-8 Write/Set Calibration Group Response Codes Table 17, page 74, for response code list. Command 180: Read Calibration Group...
  • Page 81 ST100A Series Flow Meter OPERATION Command 187: Read KFactor3 Byte Format Description Request Data Bytes 0–3 Float Read KFactor3 Response Data Bytes 0–3 Float Read KFactor3 Response Codes Table 17, page 74, for response code list. Command 188: Read KFactor4...

  • Page 82: Table 16 - Command Status Bytes, Bit Assignments

    OPERATION ST100A Series Flow Meter Table 16 – Command Status Bytes, Bit Assignments Error/Status Description Byte Communication Error Cmd-Specfic Response Code (No Comm Error) Reserved – Bit cleared to zero. Buffer Overflow – The message was too long for the received buffer of the device.

  • Page 83: Table 18 - Command 48, Additional Device Status Bytes Bit Assignments

    ST100A Series Flow Meter OPERATION Command 48, Additional Device Status Bytes Table 18 below summarizes the Command 48 Additional Device Status bytes. This is a 6-byte field. The remaining status bytes are reserved for future use. A status bit is cleared (0) for no error. A status bit is set (1) when an error (or condition) is detected.

  • Page 84: Table 19 - Hart Engineering Units Codes

    OPERATION ST100A Series Flow Meter HART Engineering Units Codes Table 19 below summarizes the HART codes used to represent the instrument’s engineering units. Table 19 – HART Engineering Units Codes Units Type HART Code Unit Description HART Code Unit Description...

  • Page 85: Modbus Operation

    Modbus wiring info. The ST100A Series Modbus physical layer uses the flow meter’s asynchronous RS-485 serial port. There is no high speed Modbus over Ethernet. The ST100A Series offers the two basic traditional transmission serial interface modes: RTU and ASCII message coding.

  • Page 86: Figure 58 - St100A Series Configuration Software Modbus Tab, Serial Interface Configuration

    ST100A Series Process Data Registers Two data type registers are set up in the ST100A Series to access the process data. One uses integer data registers (4000) and the other uses the Daniel extension data registers (5000). All designated registers must be read for each variable value to extract the floating-point number. Conversion must be started manually with the 4000 registers.

  • Page 87: Table 21 - St100A Series Modbus Process Data

    4115 and 4116 for which values above 65,535.996 are not permitted. The default value of 65,535.996 for TOTALIZER 1 provides a resolution 0.01 to the ST100A Series Totalizer value. ������������ ���� ���� ���� ���� �������� ( ���������������� ) = ������������ ���� ���� ���� ���� �������� 2 ������������ ���� ���� × ������������ ���� ���� ���� ���� �������� 1 ������������ ������������ ���� ���� + ������������ ���� ���� ���� ���� �������� 1 ������������ ���� ����...

  • Page 88: Table 22 - Modbus Service Data - Service And Setup Functions

    ● Reset Command for Totalizer – Use the Function 03 holding command via 4117 integer register to manually reset the ST100A Series totalizer count. This is a write only command. If another master has control on write, the function returns a “write protected” error message.
  • Page 89 ST100A Series Flow Meter OPERATION Checking the Totalizer 2 (Upper Count/Rollover Count) Value Starting/Stopping the Totalizer Count ● Referring to Checking the Totalizer 1 (Lower Count) Value above, ● Referring to Checking the Totalizer 1 (Lower Count) Value above, repeat step 1, but specify register #4113 instead (Length =2).

  • Page 90: Table 23 - St100A Series Modbus Engineering Unit Codes

    OPERATION ST100A Series Flow Meter Modbus Engineering Units Codes Table Table 23 below summarizes the Modbus codes used to represent the instrument’s engineering units. Table 23 – ST100A Series Modbus Engineering Unit Codes Temperature Modbus Code Unit Description Modbus Code...

  • Page 91: Table 24 - St100A Series Modbus Exception Codes

    ST100A Series Flow Meter OPERATION Modbus Exception Codes Table Table 24 below summarizes the possible Modbus exception codes for the ST100A Series. Table 24 – ST100A Series Modbus Exception Codes Code Exception Description The Data address received in the query is not an...

  • Page 92: Extended Operation Modes

    External Control Group Switching (EGS) Use the ST100A Series configuration software (configurator) to set up an extended mode. The optional front panel HMI menu cannot be used to set up this feature. Once the instrument is set up with an extended operation mode, the mode’s initials (EFI or EGS) are shown on the optional front panel display to show that the mode is active.

  • Page 93: Figure 61 - Example Extended Op. Mode Tab (Configuration)

    This mode connects two separate ST100A Series flow meters for continuous flow averaging. This is done by sending 4-20 mA output current (relative to flow rate) from one ST100A Series flow meter (Slave) to the Auxiliary Input port of the other ST100A Series flow meter (Master).

  • Page 94: Figure 63 - External St100A Series Flow Input (Efi) Setup Screen

    OPERATION ST100A Series Flow Meter Figure 63 – External ST100A Series Flow Input (EFI) Setup Screen At window bottom, check the Set System Mode to ‘Running’ when Send checkbox. Click Send to Device to send the EFI programming to the instrument. Observe return to normal operation with Running showing in System Mode field.

  • Page 95: Figure 65 - External Control Group Switching (Egs) Setup Screen

    OPERATION External Control Group Switching (EGS) This mode automatically changes the ST100A Series calibration group based on a 4-20 mA output current from another device fed into the ST100A Series auxiliary input port. Start the application. Click USB Connect on the home screen. Select the Configuration branch from the menu tree on the window's left side.

  • Page 96: Figure 66 - Example Process Data Screen With Egs Mode Shown

    OPERATION ST100A Series Flow Meter Figure 66 – Example Process Data Screen with EGS Mode Shown Fluid Components International LLC...

  • Page 97: Maintenance

    Use operation experience to establish the frequency of each type of maintenance. Calibration To ensure compliance with EPA 40 CFR Part 98, Subparts A and HH, FCI recommends checking the calibration of the ST100A Series flow meter every 24 months and recalibrating the instrument if required.

  • Page 98: Power Fuse Replacement

    MAINTENANCE ST100A Series Flow Meter Power Fuse Replacement Warning: Make sure system power is OFF before replacing the fuse. Input power overload protection is provided by a clip-mounted SMT fuse. Table 26 below summarizes the ST80/ST80L power fuse. Open the blind lid (refer to instructions in Accessing the I/O Connectors, page 22) to access the power fuse.

  • Page 99: Lithium Battery Replacement

    ST100A Series Flow Meter MAINTENANCE Lithium Battery Replacement A 3-volt lithium coin cell battery powers the ST80/ST80L real time clock (RTC). Typical service life of the battery is two years. Replace the battery every two years with the CR2450N coin cell battery listed in Table 27 below.

  • Page 100: Figure 68 - Instrument Disassembly For Lithium Coin Cell Battery (Cr2450N) Replacement

    MAINTENANCE ST100A Series Flow Meter Figure 68 – Instrument Disassembly for Lithium Coin Cell Battery (CR2450N) Replacement Fluid Components International LLC...

  • Page 101: Troubleshooting

    ST100A Series Flow Meter TROUBLESHOOTING TROUBLESHOOTING Warning: Instrument testing/troubleshooting limited to qualified personnel only. The operator assumes all responsibilities for safe practices while troubleshooting. Caution: The flow transmitter contains electrostatic discharge (ESD) sensitive devices. Use standard ESD precautions when handling the flow transmitter. See Precautions, page for details.

  • Page 102: General Function Check

    Small size flat blade screwdriver (for sensor wiring connection) Verifying Setup Connect the flow meter via USB to a computer or laptop running the ST100A Series configuration software supplied with the instrument. Refer to the ST100A Series Configuration Software manual 06EN003481 for details.

  • Page 103: Troubleshooting The Flow Element

    ST100A Series Flow Meter TROUBLESHOOTING Troubleshooting the Flow Element Check the Resistance of the Flow Element Turn flow transmitter power OFF. Remove the TB1/TB2 connector plug from the sensor wiring pin socket (pull plug straight out). Measure the resistance between the terminals of the pulled connector plug and compare with the values shown in Table 28 below.

  • Page 104: Figure 69 - Example Heater Values Tab (Diagnostics)

    TROUBLESHOOTING ST100A Series Flow Meter If the instrument has been off for some time, the resistance of the active RTD will be the same as the reference RTD. For Remote Units – If the measured resistances correspond to Table 29, but not to...

  • Page 105: Verification Of The Electronics

    ON (no blink, continuous) System controller halted (hang). Cycle the power to see if the instrument recovers from a possible system controller hang. Contact FCI Technical Support for assistance if the system status LED is still not blinking. SYSTEM STATUS LED,...

  • Page 106: Table 32 - Instrument Power Supply Voltages

    Transmitter Power Supply Use the ST100A Series configuration software to check the power supply voltages. Refer to ST100A Series Configuration Software manual 06EN003481 for details. Select the Factory branch from the menu tree on the window's left side. Select the SIL Adj tab. The screen shows power supply voltage readings for +24 VDC and +5 VDC.

  • Page 107: Constant Power Configuration Troubleshooting

    Verify the Delta R data sheet has the same serial number and group number as the flow meter calibration that is being verified. Turn transmitter power OFF. Disconnect a flow element sensor from the ST100A Series transmitter (TB1/TB2) and connect the FES-200 cable connector in its place. See Figure 72.

  • Page 108: Figure 72 - Connecting Fes-200 To St100A Series Transmitter

    REMOTE ELECTRONICS FES-200 CABLE FOR ST100A TP1 HEATER THUMBWHEEL CURRENT SWITCHES Figure 72 – Connecting FES-200 to ST100A Series Transmitter TB1 (& TB2 For Dual Point Models) 1 HTR EXC #1 10 W 2 HTR RTN 3 ACT EXC Reference Sensor...

  • Page 109: Defective Parts

    FCI, freight prepaid, for disposition. Customer Service In the event of problems or inquiries regarding the instrument, contact an authorized FCI field agent for the region or country. Refer to the FCI website: http://www.fluidcomponents.com/...

  • Page 110: Reference: Error/Status Register Information

    TROUBLESHOOTING ST100A Series Flow Meter Reference: Error/Status Register Information Summarized below are various registers that provide the instrument with error/status information. This information is normally presented in the configuration software’s Fault Log tab. Digital busses (such as HART) can also access this information via a read operation using the appropriate register address.

  • Page 111: Table 34 - Detailed Core Fault Register (Core 2V Command)

    ST100A Series Flow Meter TROUBLESHOOTING Table 34 – Detailed CORE Fault Register (CORE 2V Command) Octet-Bit Status Description Fault Type Hex Bit Map Device Error: If any of these errors occurs: I2C error, UART error, Mutex error, watchdog reset Fatal...

  • Page 112: Table 35 - Fe Fault Register (Fe Df Command)

    TROUBLESHOOTING ST100A Series Flow Meter Table 35 – FE Fault Register (FE DF Command) Octet-Bit Fault Name Fault Description Fault Type Hex Bit Map FCI Reserved (Not Used) 0x00000001 FCI Reserved (Not Used) 0x00000002 The heater current analog-to-digital converter shows...

  • Page 113: Appendix Adrawings

    ST100A Series Flow Meter APPENDIX A – DRAWINGS APPENDIX A DRAWINGS This appendix contains ST100A Series technical drawings. Table 36 below summarizes the drawings. Table 36 – ST100A Series Drawings in Appendix A Dwg. No. Dwg. Type Page No. Description C01490-1 System...
  • Page 114 APPENDIX A – DRAWINGS ST100A Series Flow Meter This Page Intentionally Left Blank Fluid Components International LLC...
  • Page 115 ST100A Series Flow Meter APPENDIX A – DRAWINGS Fluid Components International LLC...
  • Page 116 APPENDIX A – DRAWINGS ST100A Series Flow Meter Fluid Components International LLC...
  • Page 117 ST100A Series Flow Meter APPENDIX A – DRAWINGS Fluid Components International LLC...
  • Page 118 APPENDIX A – DRAWINGS ST100A Series Flow Meter Fluid Components International LLC...
  • Page 119 ST100A Series Flow Meter APPENDIX A – DRAWINGS Fluid Components International LLC...
  • Page 120 APPENDIX A – DRAWINGS ST100A Series Flow Meter Fluid Components International LLC...
  • Page 121 ST100A Series Flow Meter APPENDIX A – DRAWINGS Fluid Components International LLC...
  • Page 122 APPENDIX A – DRAWINGS ST100A Series Flow Meter Fluid Components International LLC...
  • Page 123 ST100A Series Flow Meter APPENDIX A – DRAWINGS Fluid Components International LLC...
  • Page 124 APPENDIX A – DRAWINGS ST100A Series Flow Meter Fluid Components International LLC...
  • Page 125 ST100A Series Flow Meter APPENDIX A – DRAWINGS Fluid Components International LLC...
  • Page 126 APPENDIX A – DRAWINGS ST100A Series Flow Meter Fluid Components International LLC...
  • Page 127 ST100A Series Flow Meter APPENDIX A – DRAWINGS Fluid Components International LLC...
  • Page 128 APPENDIX A – DRAWINGS ST100A Series Flow Meter Fluid Components International LLC...
  • Page 129 ST100A Series Flow Meter APPENDIX A – DRAWINGS Fluid Components International LLC...
  • Page 130 APPENDIX A – DRAWINGS ST100A Series Flow Meter Fluid Components International LLC...
  • Page 131 ST100A Series Flow Meter APPENDIX A – DRAWINGS Fluid Components International LLC...
  • Page 132 APPENDIX A – DRAWINGS ST100A Series Flow Meter Fluid Components International LLC...
  • Page 133 ST100A Series Flow Meter APPENDIX A – DRAWINGS Fluid Components International LLC...
  • Page 134 APPENDIX A – DRAWINGS ST100A Series Flow Meter Fluid Components International LLC...
  • Page 135 ST100A Series Flow Meter APPENDIX A – DRAWINGS Fluid Components International LLC...
  • Page 136 APPENDIX A – DRAWINGS ST100A Series Flow Meter Fluid Components International LLC...
  • Page 137 ST100A Series Flow Meter APPENDIX A – DRAWINGS Fluid Components International LLC...
  • Page 138 APPENDIX A – DRAWINGS ST100A Series Flow Meter Fluid Components International LLC...
  • Page 139 ST100A Series Flow Meter APPENDIX A – DRAWINGS Fluid Components International LLC...
  • Page 140 APPENDIX A – DRAWINGS ST100A Series Flow Meter Fluid Components International LLC...
  • Page 141 ST100A Series Flow Meter APPENDIX A – DRAWINGS Fluid Components International LLC...
  • Page 142 APPENDIX A – DRAWINGS ST100A Series Flow Meter Fluid Components International LLC...

  • Page 143: Appendix Badditional Information

    ST100A Series Flow Meter APPENDIX B – ADDITIONAL INFORMATION APPENDIX B ADDITIONAL INFORMATION This appendix contains the following information: ● Parameters Report from the ST100A Series Configuration Software (Sample) ● HMI Menu Outline ● ST100A Series Configuration Software Menu Outline (v3.2.0.x) ●...

  • Page 144: Parameters Report From The St100A Series Configuration Software (Sample)

    APPENDIX B – ADDITIONAL INFORMATION ST100A Series Flow Meter Parameters Report from the ST100A Series Configuration Software (Sample) Fluid Components International LLC...
  • Page 145 ST100A Series Flow Meter APPENDIX B – ADDITIONAL INFORMATION Fluid Components International LLC...
  • Page 146 APPENDIX B – ADDITIONAL INFORMATION ST100A Series Flow Meter Fluid Components International LLC...
  • Page 147 ST100A Series Flow Meter APPENDIX B – ADDITIONAL INFORMATION Fluid Components International LLC...
  • Page 148 APPENDIX B – ADDITIONAL INFORMATION ST100A Series Flow Meter Fluid Components International LLC...
  • Page 149 ST100A Series Flow Meter APPENDIX B – ADDITIONAL INFORMATION Fluid Components International LLC...
  • Page 150 APPENDIX B – ADDITIONAL INFORMATION ST100A Series Flow Meter Fluid Components International LLC...
  • Page 151 ST100A Series Flow Meter APPENDIX B – ADDITIONAL INFORMATION Fluid Components International LLC...
  • Page 152 APPENDIX B – ADDITIONAL INFORMATION ST100A Series Flow Meter Fluid Components International LLC...

  • Page 153: Hmi Menu Outline

    ST100A Series Flow Meter APPENDIX B – ADDITIONAL INFORMATION HMI Menu Outline ● ○ Boot Screen Set-up ● ■ Process Data Screen Instrument □ ◘ Percentage of Flow Group ‘X’ [current active group] □ Flowrate – Flow: [eng units] □...

  • Page 154: St100A Series Configuration Software Menu Outline (V3.2.0.X)

    APPENDIX B – ADDITIONAL INFORMATION ST100A Series Flow Meter ST100A Series Configuration Software Menu Outline (v3.2.0.x) ST100A Series Configuration Software ● F ACTORY ■ ST100A ▬ Factory Parameters ● P ▬ Identification ROCESS USTOMER NITS ▬ 4-20mA Factory ■ FLOW (display) ▬...

  • Page 155: Instructions: Installing Sun Shield On St100A Series Integral Enclosure

    ST100A Series Flow Meter APPENDIX B – ADDITIONAL INFORMATION Instructions: Installing Sun Shield on ST100A Series Integral Enclosure Step 1. Remove top of sun shield assembly. Step 2. Remove existing tag screws. Step 3. Attach enclosure to lower portion of sun shield using supplied screws Step 4.

  • Page 156: Instructions: Installing Sun Shield On St100A Series Remote Enclosure

    APPENDIX B – ADDITIONAL INFORMATION ST100A Series Flow Meter Instructions: Installing Sun Shield on ST100A Series Remote Enclosure Step 1. Remove top of sun shield assembly. Step 2. Remove existing tag screws. Step 3. Attach enclosure and lower portion of sun shield to remote bracket Step 4.

  • Page 157: Appendix Cglossary

    Definitions Active RTD The flow element part that senses the fluid flow rate. Adaptive Sensing An FCI exclusive flow measurement technique that combines both constant Technology (AST™) Delta T and constant power measuring techniques in a single device. Resistance Differential The difference in resistance between the active and reference RTDs.
  • Page 158 APPENDIX C – GLOSSARY ST100A Series Flow Meter This Page Intentionally Left Blank Fluid Components International LLC...

  • Page 159: Appendix Dapproval Information

    ST100A Series Flow Meter APPENDIX D – APPROVAL INFORMATION APPENDIX D APPROVAL INFORMATION EU Information Fluid Components International LLC...

  • Page 160: Safety Instructions

    Ex tb IIIC T85°C...T135°C Db IP66/67 The ST100A Series consist of a sensing element and associated integral or remote mounted electronics mounted in a type “d” flameproof enclosure. The relationship between the temperature class, the maximum surface temperature, the ambient...
  • Page 161 4) Consult the manufacturer if dimensional information on the flameproof joints is necessary. 5) The painted surface of the ST100A Series flow meter may store electrostatic charge and become a source of ignition in applications with a low relative humidity < 30% relative humidity where the painted surface is relatively free of surface contamination such as dirt, dust, or oil.
  • Page 162 F B L Français - Consignes de sécurité Ces consignes de sécurité sont valables pour le modèle série ST100A de la société Fluid Components (FCI) conforme au certificat d’épreuves de type FM20ATEX0022X / IECEx FMG20.0025X (numéro du certificat sur l’étiquette signalétique) conçu pour les applications dans lesquelles un matériel de la catégorie II 2 G / II 2 D est nécessaire.
  • Page 163 6) Non sostituire la batteria interna in caso di presenza di gas esplosivi nell’atmosfera. NL B Nederlands - Veiligheidsinstructies Deze veiligheidsinstructies gelden voor de flow meter uit de ST100A-serie van Fluid Components (FCI) overeenkomstig het EG- typegoedkeuringscertificaat met nummer FM20ATEX0022X / IECEx FMG20.0025X (nummer van het certificaat op het typeplaatje) voor gebruik in een explosieve atmosfeer volgens Categorie II 2 G / II 2 D.
  • Page 164 6) No reemplace la batería interna cuando se encuentre en una atmósfera con presencia de gas explosivo. Svenska - Säkerhetsanvisningar Säkerhetsanvisningarna gäller för Fluid Componenets flödesmätare, typ ST100A Series, enligt EG-typgodkännandeintyg nr FM20ATEX0022X / IECEx FMG20.0025X (intygsnumret återfinns på typskylten) för användning i explosiv gasblandning i kategori II 2 G / II 2 D.

  • Page 165: Appendix Ecustomer Service

    Attn: Customer Service Department By Phone Contact the area FCI regional representative. If a field representative is unable to be contacted or if a situation is unable to be resolved, contact the FCI Customer Service Department toll free at 1 (800) 854-1993.
  • Page 166 Contact an FCI field representative to request field service. A field service technician is dispatched to the site from either the FCI factory or one of the FCI representative offices. After the work is com- plete, the technician completes a preliminary field service report at the customer site and leaves a copy with the customer.
  • Page 167 ST100A Series Flow Meter APPENDIX E – CUSTOMER SERVICE Fluid Components International LLC...
  • Page 168 APPENDIX E – CUSTOMER SERVICE ST100A Series Flow Meter Fluid Components International LLC...
  • Page 169 ST100A Series Flow Meter APPENDIX E – CUSTOMER SERVICE WARRANTIES Goods furnished by the Seller are to be within the limits and of the sizes published by the Seller and subject to the Seller’s standard tolerances for variations. All items made by the Seller are inspected before shipment, and should any of said items prove defective due...
  • Page 170 (and does not include manufacture or processing uses). Any other use is strictly prohibited without the prior written consent of FCI. © Copyright 2020 by Fluid Components International LLC. All rights reserved. FCI is a registered trademark of Fluid Components International LLC. Information subject to change without notice.

This manual is also suitable for:

St100aSt102aSt110aSt112aStp100aStp102aa ... Show all

Table of Contents

Save PDF
