PROSOURCEFIT POWER TOWER Instruction Manual page 4

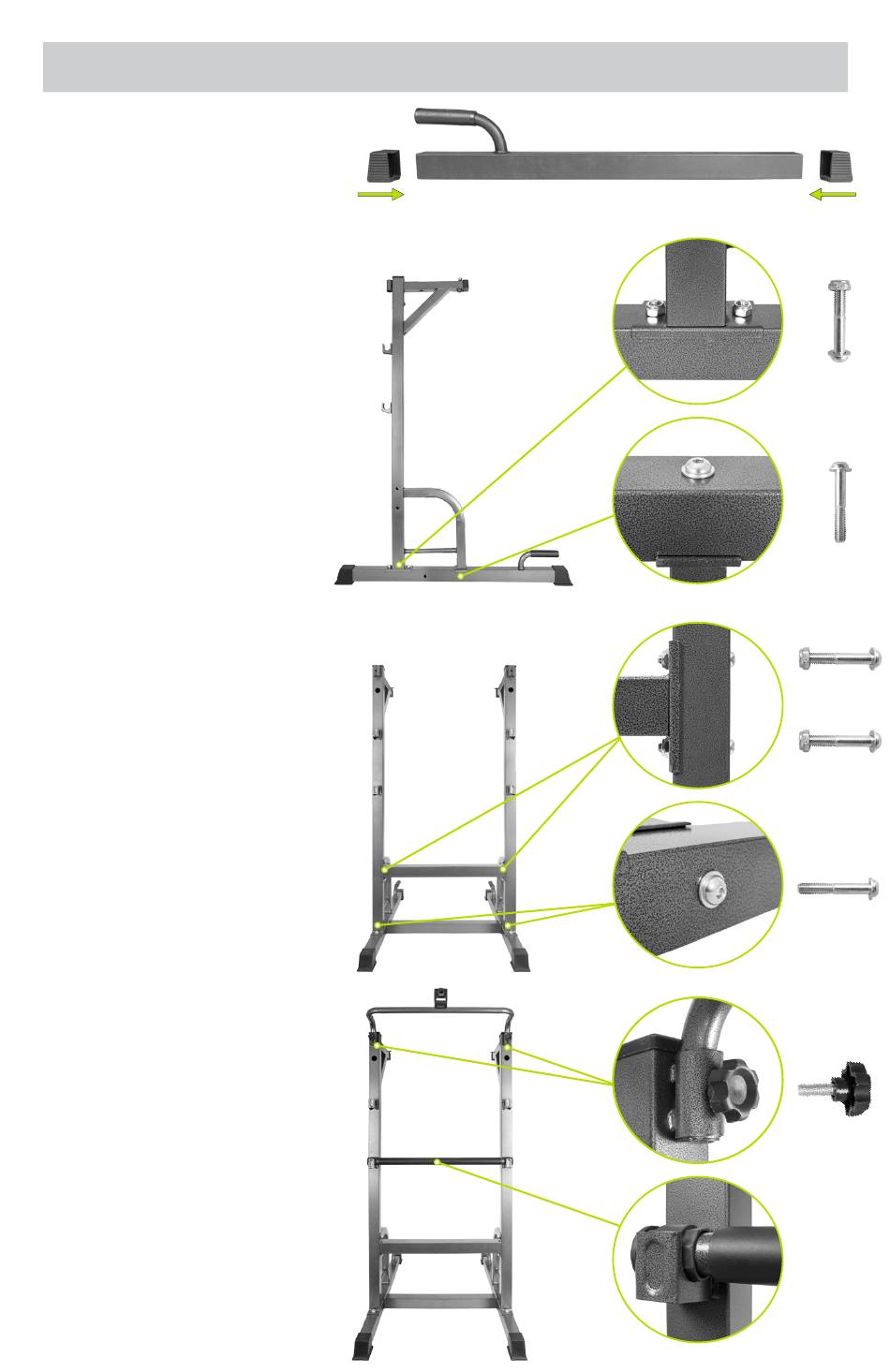

POWER TOWER ASSEMBLY INSTRUCTIONS
STEP 1
Slide two rubber boots (M) onto
the ends of both base frames (F).
STEP 2
Align the holes at the bottom of
the dip frame (A) with the holes
of the base frame (F). Insert 2
frame button head screws (S)
and 2 washers (Y) from the
bottom of the base frame (F)
and secure each screw with a
lock nut (X) on the opposite end.
Insert another frame button head
screw (S) with a washer (Y) from
the bottom of the base frame (F),
it will screw directly into the dip
frame (A).
STEP 3
Attach the lower base connector
(D) to both base frames (F) with
2 frame button head screws (S)
and 2 washers (Y). Next, attach
the upper base connector (E)
with 4 frame button head screws
(S) and 4 washers (Y). Secure
each screw with a locknut (X)
on the opposite end.
STEP 4
Place the cross bar (I) on the
hooks on the back of the dip
frame (A). Next, attach the
back bar (H) to the dip frame
(A) with the back bar knobs
(Q).
