DESCRIPTION
Steel structure Ø76
Hot Dip Galvanised
3.00m x 2.00m
CONFORM
European Standard
EN 749
The assembly time of a goal is estimated, for 1 person, at 15 minutes. (without sealing).
In application of the above regulation, this goal must be sealed when it is used.
According to the regulation, for the first installation the goal must be tested like below:
-Put 180kg at 20cm from the ground and in the middle of the crossbar during 1min.
-Apply an horizontal force of 110 kg on the middle of the crossbar, thanks to a 3 meters rope, during
1min.
After these tests, the equipment and the fixation system should not have break, move or show residual deformation.
During the first installation, this stability and solidity test is compulsory.
Every time that the equipment is assembled, a visual check of the stability and solidity must be realized.
The owner must regularly check the condition of the product.
For an optimal use of our products, we advise to follow the installation and maintenance instructions.
The equipement has to be regularly maintained by the owner. It is adviced to:
- Check every week that all the screws are correctly tightened
- Fix paint defects if the module has been damaged, using the adapted paint, specified by the manufactu-
rer.
- Replace all damaged or missing parts with a spare part recommended by the manufacturer.
- Clean the product by using dishwasher soap, clean water, and soft cloth.It is adviced to do this cleaning
once or twice a year, or more in case of aggressive environmental conditions (seaside...).
One full year parts and labor guarantee. Every claim regarding condition of the delivered equipment has to
be done within the legal period of the reception of the material. The warranty will not apply to:
-
all degradation during the transport.
-
all degradation due to use differing from which was intended.
-
all degradation due to poor maintenance.
-
any defect claimed after the end of the legal period.
-
any damaged due to a faulty installation and assembly of the module

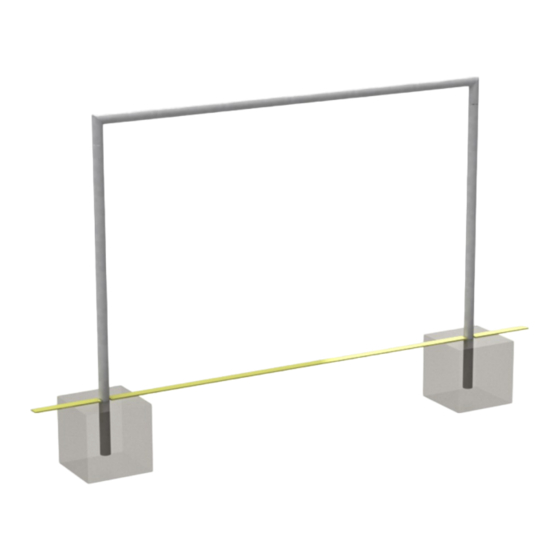

MULTI-FUNCTION GOAL, 3x2M
PRODUCT REF
Assembly TIME
TEST AFTER INSTALLATION
MAINTENANCE
WARRANTY
PRODUCT SHEET
S18020GC
UNIT
Advertisement
Table of Contents
Related Manuals for Sodex Sport S18020GC
Summary of Contents for Sodex Sport S18020GC

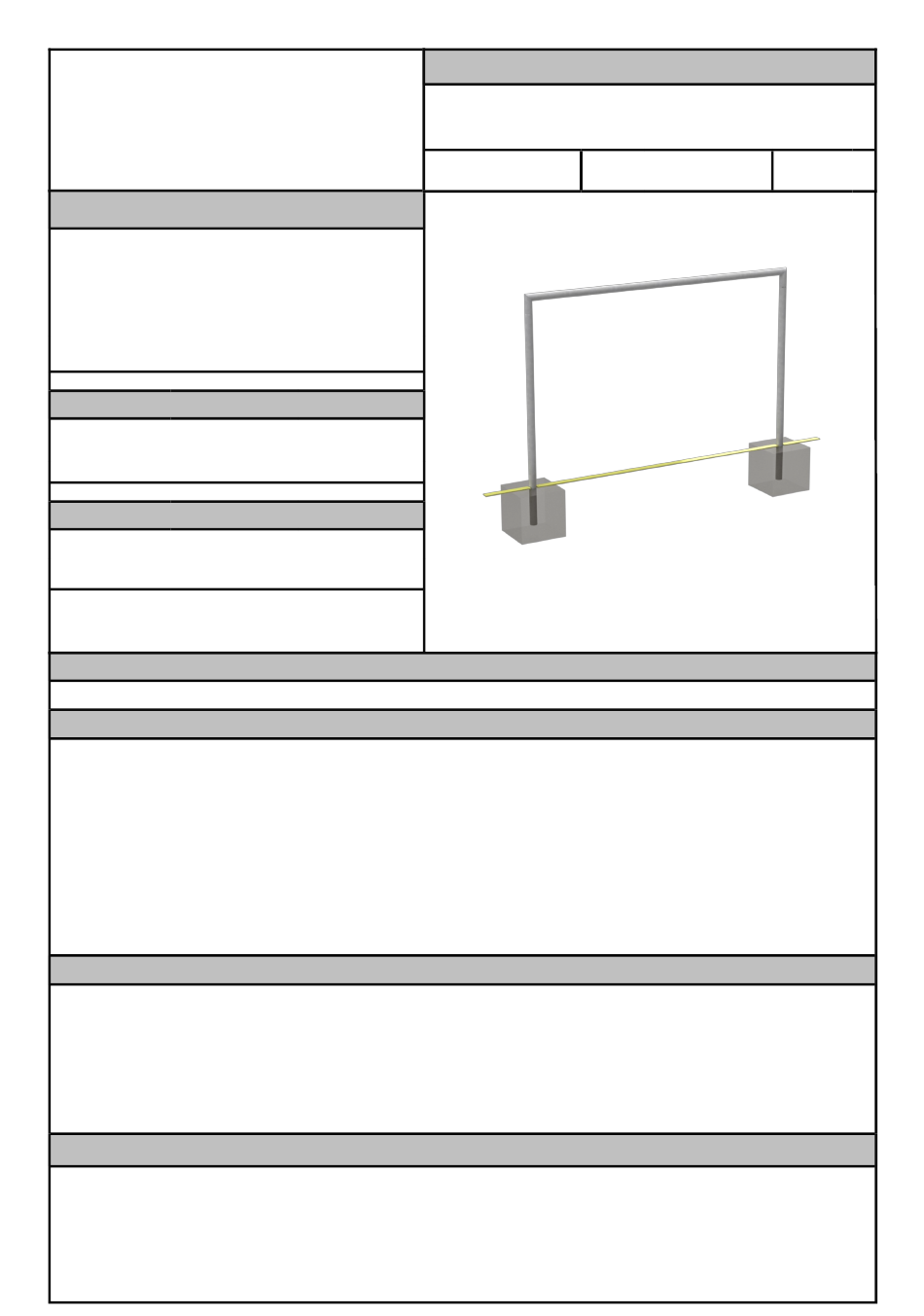

- Page 1 PRODUCT SHEET MULTI-FUNCTION GOAL, 3x2M UNIT S18020GC PRODUCT REF DESCRIPTION Steel structure Ø76 Hot Dip Galvanised 3.00m x 2.00m CONFORM European Standard EN 749 ASSEMBLY TIME The assembly time of a goal is estimated, for 1 person, at 15 minutes. (without sealing).
- Page 2 FIXATION AND SEALING Sealing Goal line Axis of the penalty point Post axis 1538mm 1538mm 3076mm NB: All the dimension are in millimeter. - Dig the holes for the front sealing according to the written dimensions. - Seal with concret CPJ45 dosed by 350 kg and wait at least 72 hours (6 days during win- ter ).
- Page 3 ASSEMBLY NECESSARY TOOLS (NOT INCLUDED) Wrench 17mm INCLUDED ITEMS 1- ASSEMBLY OF THE POSTS TO THE CROSSBARS (x2) SS Screws M10x20+ SS Washers 10 NECESSARY ITEMS...
- Page 4 PACKING LIST MULTI-FUNCTION GOAL, 3M x 2M PRODUCT REF S18020GC Index C UNIT NOMENCLATURE Pack- Quanti- Weight Dim. Index Designation Description Packing Method age N° (kg) (mm) S18020GC-01 Crossbar No packing 15.5 3160x210x80 S18020GC-02 Post No packing 10.5 2340x80x80 S18020GC-02...
