DESCRIPTION
Steel Structure ø101.6
Powder coated
7.32m x 2.44m
CONFORM
European Standard
EN 748
According to the reglementation, for the first installation the goal must be tested like below :
Put a vertical and static charge of 320 kg, at the jonction of the pannel and the basket , at 0.20m of the ground, du-
ring one minute.
During the first installation, this stability and solidity test is compulsory.
Every time that the equipment is assembled, a visual check of the stability and solidity must be realized.
The owner must regularly check the condition of the product.
The equipment has to be regularly maintained by the owner. It is advised to:
- Check every week that all the screws are correctly tightened
- Fix paint defects if the module has been damaged, using the adapted paint, specified by the manufacturer.
- Replace all damaged or missing parts with a spare part recommended by the manufacturer.
- Clean the product by using dishwasher soap, clean water, and soft cloth.
It is advised to carry out this cleaning once or twice a year, or even more regularly according to the environmental
conditions (saline environment, ...).If the forecast planned a bad weather (strong wind,...), the goal should be remo-
ved from the sheaths and put on the ground.
One full year parts and labor guarantee. Every claim regarding condition of the delivered equipment has to be done
within the legal period of the reception of the material. The warranty will not apply to:
-
all degradation during the transport.
-
all degradation due to use differing from which was intended.
-
all degradation due to poor maintenance.
-
any defect claimed after the end of the legal period.
-
any damaged due to a faulty installation and assembly of the module
FOOTBALL GOAL, TUBE 101.6
PRODUCT
TEST AFTER INSTALLATION
MAINTENANCE
WARRANTY
ASSEMBLY INSTRUCTION
S12200
REF:
PAIR
Advertisement
Related Manuals for Sodex Sport S12200
Summary of Contents for Sodex Sport S12200

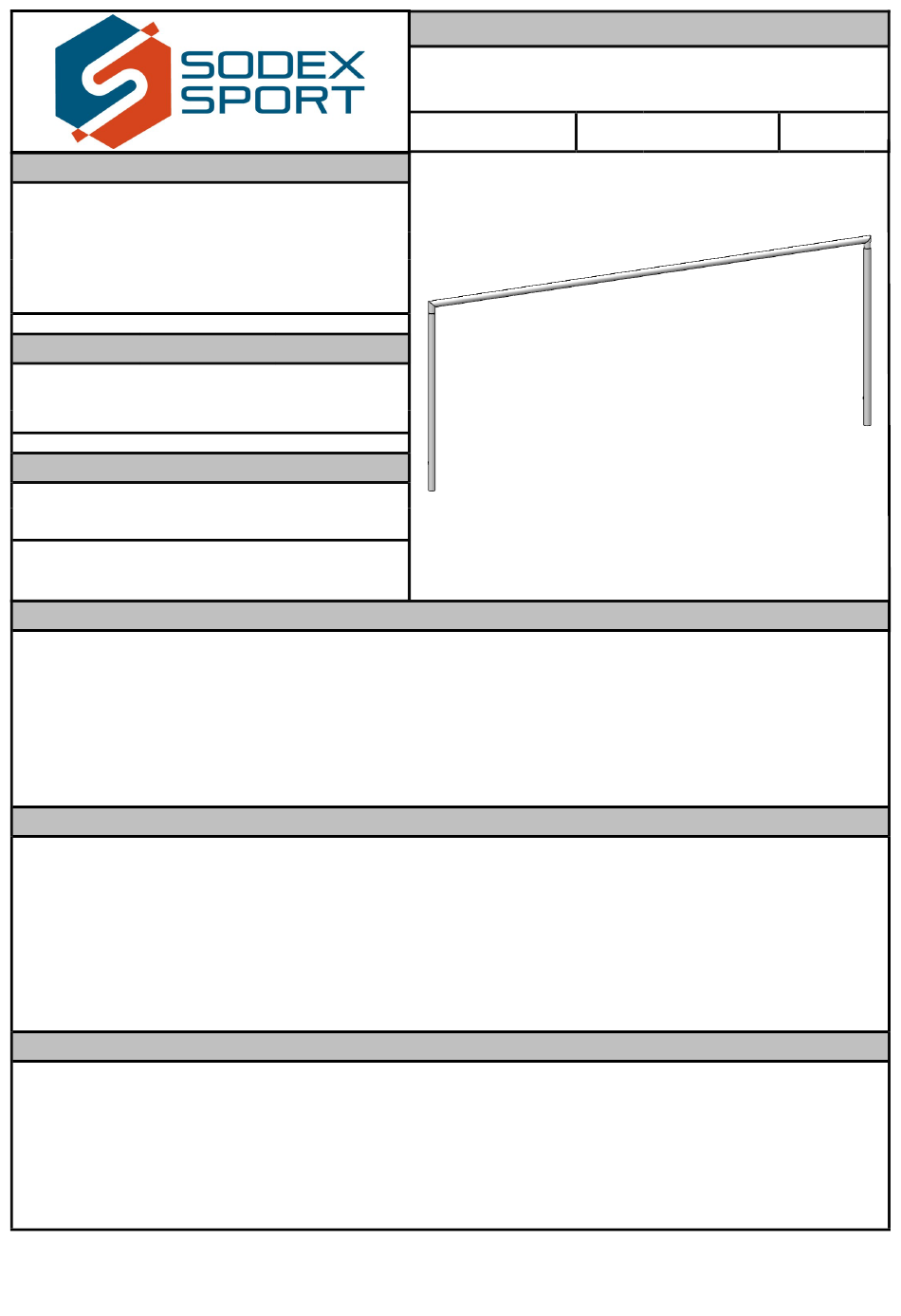

- Page 1 ASSEMBLY INSTRUCTION FOOTBALL GOAL, TUBE 101.6 S12200 PAIR PRODUCT REF: DETAILS SODEX INTERNATIONAL 18 rue de l’avenir – Bât. 224 14650 CARPIQUET Tel: + 33 (0) 2.31.53.78.70 Email: karine.chaigneau@sodexinternational.com DESCRIPTION Steel Structure ø101.6 Powder coated 7.32m x 2.44m CONFORM European Standard...
- Page 2 IMPLANTATION & SOCKETED Concrete socketed NB: All the dimension are in millimeter - Dig the holes for the sealing of the sockets accor- ding to the dimensions indicated on drawing below - Fill the sealings with CPJ 45 concrete dosed at 350 kg/m³.
- Page 3 ASSEMBLY NECESSARY TOOLS (NOT INCLUDED) Wrench 17mm INCLUDED ITEMS 1- ASSEMBLY OF THE POSTS TO THE CROSSBAR (x4) Bolt BC M10x25 + Washer 10 NECESSARY TOOLS...
- Page 4 PACKING LIST FOOTBALL GOAL, TUBE 101.6 PRODUCT REF S12200 Index A PAIR NOMENCLATURE Package Weight Dim. Index Designation Description Quantity Packing method Nº (kg) (mm) Plastic bubbles + S12200-01 Crossbar 7560X210X130 cardboard 5 layers Plastic bubbles + S12200-01 Crossbar 7560X210X130...
