A3LB Test Procedures

Figure 29 on page 46
A3LB commands shown.
The H2TU-C can be looped back by sending the Addressable Office Repeater (AOR) LPBK activation code
1111-1111-0001-1110 (FF1E) for at least 5 seconds. This causes the H2TU-C to enter the NLOC state. The
Loopback Time-Out setting determines the duration of this loopback unless it is overridden by the reception of a
second identical 16-bit loopup command before the timer expires. When this time-out override state exists, the
only method to loop the H2TU-C down is to issue one of the three loopdown commands listed in
automatic time-out mode is restored during subsequent loopback sessions.
Table 25 on page 47 summarizes the codes required to execute Addressable 3 (A3LB) repeater loopback
commands. All code sequences must be present for at least 5 seconds.
46
Loopbacks Toward Network
=
=
Loopbacks Toward Customer
Loopbacks From H2TU-R Front Panel

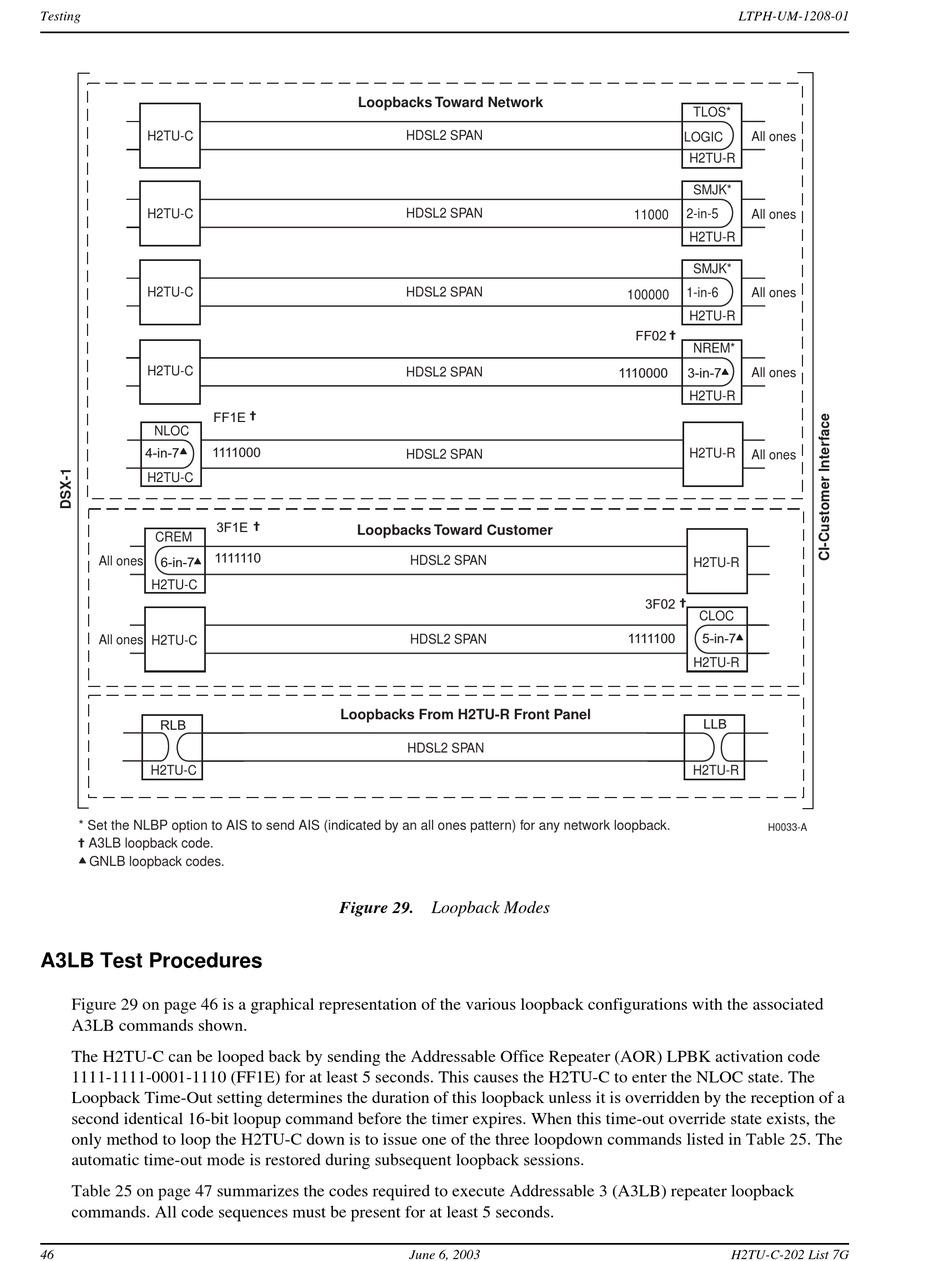

Figure 29. Loopback Modes
