Table 4. Navigational Keys for the Maintenance Terminal Screens
(a)
Key
SPACEBAR
ENTER
ESC or F11 (VT100 only)
↑ or CTRL + E
or CTRL + X
↓
→
CTRL D
or +
←
CTRL S
or +
CTRL + R
(a) Legacy management units require use of control keys instead of arrow keys.
Most VT100 emulation programs support a print screen option. For Windows-based programs,
such as Procomm or HyperTerminal, see the Help menu for instructions.
H2TU-C-202 List 7G
Circuit ID Date and Time

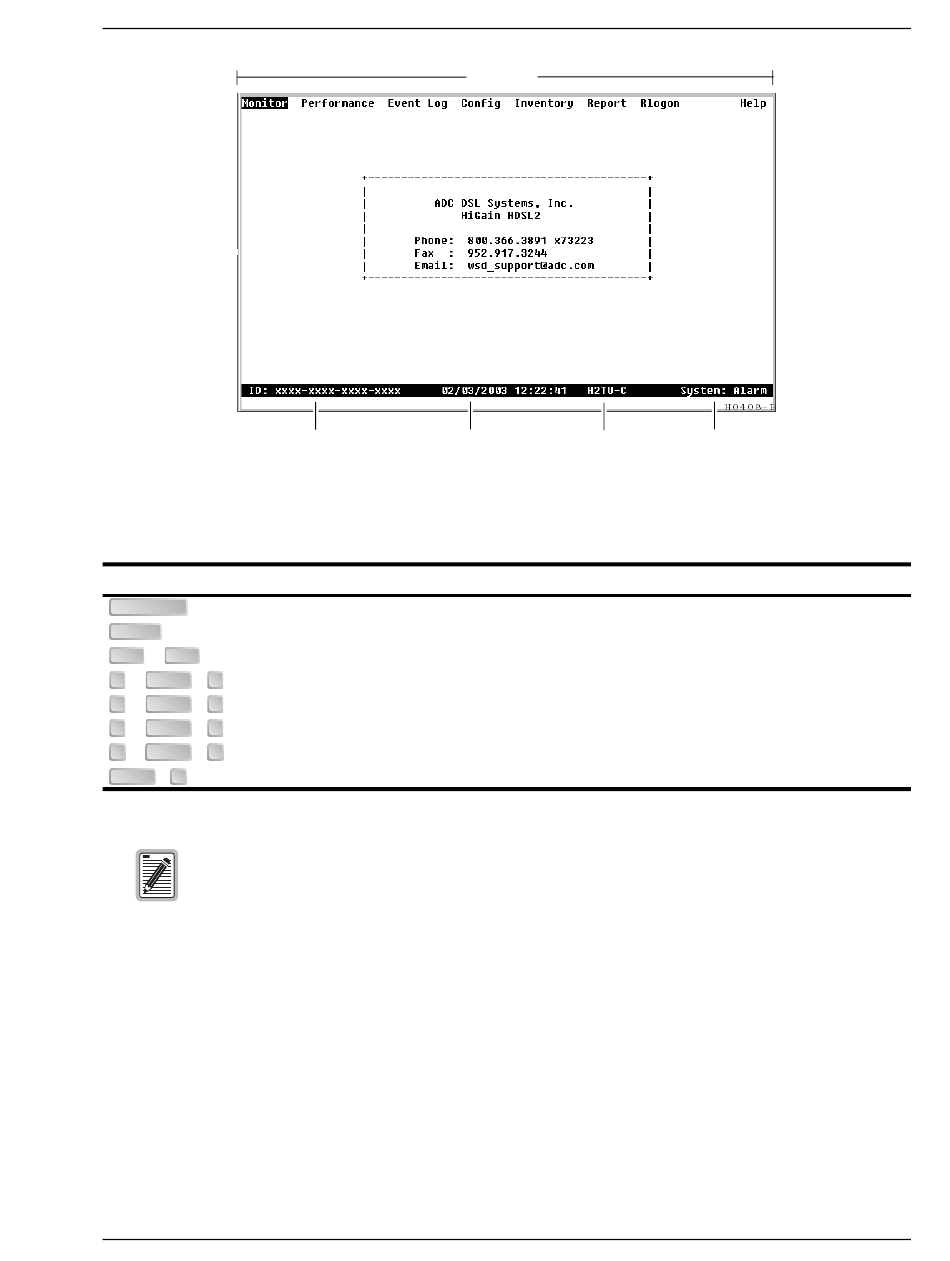

Figure 4. Logon Screen
Function
Cycle through selections.
Activate the current setting or choice, or display a menu.
Return to the parent menu.
Select the submenu or item above the current one, or return to the previous menu.
Select the submenu or item below the current one.
Select the menu or item to the right of the current one.
Select the menu or item to the left of the current one, or return to the previous menu.
Refresh the screen.
