ASSEMBLY INSTRUCTIONS
RiverRidge
®

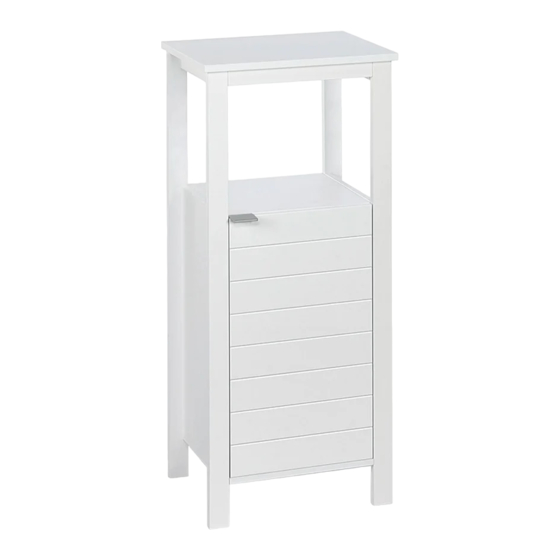

Madison Single Door Floor Cabinet
ITEM #: 06-111 White
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken in
unpacking and assembling this item to keep small parts away from children.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
Advertisement
Related Manuals for RiverRidge Madison 06-111
Summary of Contents for RiverRidge Madison 06-111
- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge ® Madison Single Door Floor Cabinet ITEM #: 06-111 White ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF OR TOP BOARD FOR A TOTAL OF 80 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 20 POUNDS OR 80 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 20 POUNDS PER SHELF OR 80 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM THE WALL AND CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Top Board Bottom Board Left Side Panel Right Side Panel Cross Bar Shelf Adjustable Shelf Door Back Board... - Page 4 PARTS LIST PARTS DESCRIPTION 12PCS Cam Bolt 12PCS Cam Lock 12PCS Wood Dowel (6 x 30mm) 4PCS Metal Shelf Holder 2PCS Hinge 1PCS Handle 14PCS Screw (4 x 12mm) Screw (4 x 10mm) Bracket 12PCS Screw (2.5 x 10mm) Plastic Anchor Screw (5 x 40mm) Silicon pad TOOLS NEEDED FOR ASSEMBLY: FLAT &...
- Page 5 STEP 1 1. Screw 4 cam bolts (A) into pre-threaded holes on top board (1). 2. Attach bracket (I) to shelf (6) by inserting 1 screw (H) through hole on bracket (I), then tighten to shelf (6). STEP 2 1. Screw 4 cam bolts (A) into pre-threaded holes on left side panel (3). 2.
- Page 6 STEP 4 Attach top board (1) to left side panel (3) and right side panel (4) by inserting cam bolts into cam lock holes on left side panel (3) and right side panel (4). Insert 4 cam locks (B) into cam lock holes on left side panel (3) and right side panel (4), then rotate clockwise to secure cam bolts in place.
- Page 7 STEP 6 Attach 2 hinges (E) to door (8) by inserting 4 screws (G) through holes on hinges, then tighten to door (8). Attach handle (F) to door (8) by inserting 2 screws (G) through holes on handle (F), then tighten to door (8).
- Page 8 STEP 8 1. Place drawing with hole position on wall in desired location and drill hole on wall. 2. Insert plastic anchor (K) into hole on wall. 3. Align hole on cabinet with hole on wall, then insert screw (L) through hole on bracket (I) and tighten to plastic anchor (K) in wall.
- Page 9 ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children. WARNING Please make sure your item is secured to the wall, per assembly instructions.
- Page 10 Cabinet! Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge ® items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com RiverRidge is a registered trademark of Sourcing Solutions, Inc., Hudson, WI 54016...
