ASSEMBLY INSTRUCTIONS
RiverRidge
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
®

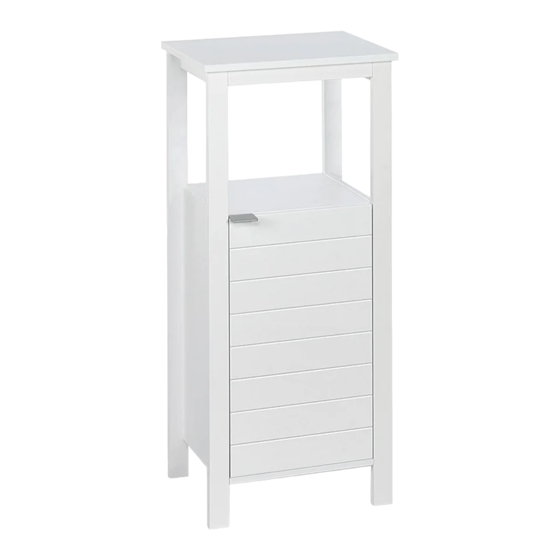

Madison Single Door Floor Cabinet
ITEM#: 06-111
ITEM#: 06-122
ADULT ASSEMBLY REQUIRED
SEE FULL WARNING ON PAGE 2
White
Gray
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RiverRidge Madison 06-111
Summary of Contents for RiverRidge Madison 06-111
- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge ® Madison Single Door Floor Cabinet ITEM#: 06-111 White ITEM#: 06-122 Gray ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF OR TOP BOARD FOR A TOTAL OF 80 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 20 POUNDS OR 80 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 20 POUNDS PER SHELF OR 80 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM THE WALL AND CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Top Board Bottom Board Left Side Panel Right Side Panel Cross Bar Shelf Adjustable Shelf Door Back Board... - Page 4 PARTS LIST PARTS DESCRIPTION 12PCS Cam Bolt 12PCS Cam Lock 12PCS Wood Dowel 4PCS Shelf Holder 2PCS Hinge 1PCS Handle 12PCS Screw (4x12mm) Screw (4x10mm) Adjustable Anchor Bracket 12PCS Screw (2.5x10mm) Plastic Anchor Screw (4x30mm) Silicon pad 2PCS Screw (3.5x12mm) TOOLS NEEDED FOR ASSEMBLY: FLAT &...
- Page 5 STEP 1 1. Screw 4 cam bolts (A) into cam bolt holes on top board (1). 2. Attach bracket (I) to shelf (6) by inserting 1 screw (H) through hole on bracket (I), then tighten to shelf (6). STEP 2 1.
- Page 6 STEP 4 1. Attach top board (1) to left side panel (3) and right side panel (4) by inserting cam bolts into cam lock holes on left side panel (3) and right side panel (4). 2. Insert 4 cam locks (B) into cam lock holes on left side panel (3) and right side panel (4), then rotate clockwise to secure cam bolts in place.
- Page 7 STEP 6 1. Attach 2 hinges (E) to door (8) by inserting 4 screws (G) through holes on hinges, then tighten to door (8). 2. Attach handle (F) to door (8) by inserting 2 screws (N) through holes on handle (F), then tighten to door (8).
- Page 8 STEP 8 Option #1: Securing to Drywall 1. Position cabinet against wall in desired location. Using a pencil, make small mark on wall through hole on bracket (I). Move cabinet away from wall and screw plastic anchor (K) into wall on pencil mark. Place cabinet against wall, insert screw (L) through hole on bracket (I), then tighten to plastic anchor (K).
-
Page 9: Care Instructions
ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children. WARNING Please make sure your item is secured to the wall, per assembly instructions. CARE INSTRUCTIONS: Wipe clean with a water dampened cloth. - Page 10 Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
