ASSEMBLY INSTRUCTIONS
RiverRidge
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
®

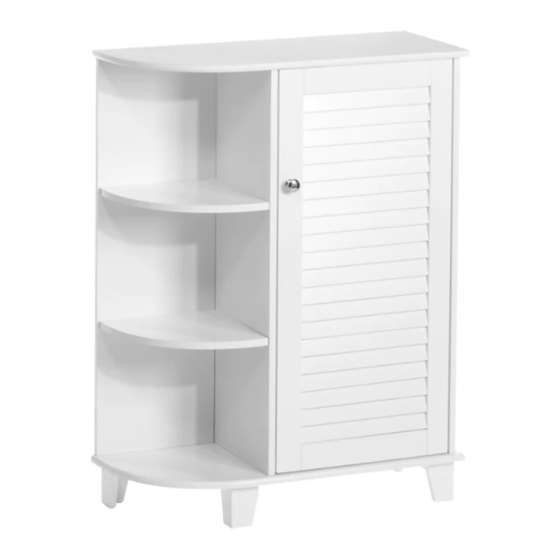

Ellsworth Floor Cabinet with Side Shelves
ITEM#: 06-025
ITEM#: 06-026
ITEM#: 06-129
ADULT ASSEMBLY REQUIRED
SEE FULL WARNING ON PAGE 2
White
Espresso
Taupe
Advertisement
Related Manuals for RiverRidge 06-025
Summary of Contents for RiverRidge 06-025
- Page 1 ASSEMBLY INSTRUCTIONS ® RiverRidge Ellsworth Floor Cabinet with Side Shelves ITEM#: 06-025 White ITEM#: 06-026 Espresso ITEM#: 06-129 Taupe ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS. OVERLOADING WITH MORE THAN 25 POUNDS PER SHELF OR 75 POUNDS TOTAL WEIGHT MAY CAUSE DAMAGE TO THE SHELF AND MAY CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Top Board Bottom Board 2PCS Arch Shelf Rear Support Board Center Support Panel Right Side Panel Door Shelf Back Board 4PCS... - Page 4 PARTS DESCRIPTION 12PCS Cam Bolt 12PCS Cam Lock 16PCS Wood Dowel Knob Machine Screw (4x18mm) 4PCS Shelf Holder 2PCS Metal Pin Magnet Magnet Plate Screw (3x10mm) 2PCS Screw (3x14mm) 16PCS Screw (4x20mm) 2PCS Screw (4x30mm) 2PCS Plastic Anchor 2PCS Adjustable Anchor Bracket 2PCS Screw (4x10mm) TOOLS NEEDED FOR ASSEMBLY: FLAT &...
- Page 5 STEP 1 1. Insert 3 wood dowels (C) into dowel holes on top board (1). 2. Screw 6 cam bolts (A) into cam bolt holes on top board (1). 3. Insert 2 screws (S) through holes on adjustable anchor bracket (R), then tighten to top board (1).
- Page 6 STEP 3 Insert 4 wood dowels (C) into dowel holes on arch shelf (3). Repeat above step for another arch shelf (3). STEP 4 1. Insert 2 wood dowels (C) into dowel holes on edge of rear support board (4).
- Page 7 STEP 5 1. Attach magnet (H) to center support panel (5). 2. Insert 2 screws (M) through holes on magnet (H) and tighten to center support panel (5). STEP 6 1. Insert 1 screw (K) through hole on magnet plate (J) and tighten to door (7). 2.
- Page 8 STEP 7 1. Overturn bottom board (2) and attach one leg (10) to bottom board (2) by inserting 4 screws (N) through holes on leg (10) and tighten to bottom board (2). 2. Repeat above step to assemble other 3 legs. STEP 8 1.
- Page 9 STEP 9 1. Attach center support panel (5) to rear support board (4) and arch shelves (3) by inserting wood dowels into holes on center support panel (5). STEP 10 1. Attach rear support board (4), center support panel (5) and right side panel (6) to bottom board (2) by inserting cam bolts into cam lock holes and inserting wood dowels into dowel holes on rear support board (4), center support panel (5) and right side panel (6).
- Page 10 STEP 11 1. Slide back board (9) into grooves on center support panel (5), right side panel (6) and bottom board (2). STEP 12 Attach door (7) to assembled unit by inserting pin (G) into hole on bottom board (2).
- Page 11 STEP 13 1. Attach top board (1) to pre-assembled cabinet by inserting cam bolts into cam lock holes, wood dowels into dowel holes and pin into holes on rear support board (4), center support panel (5), right side panel (6) and door (7). 2.
-
Page 12: Care Instructions
ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children. WARNING Please make sure your item is secured to the wall, per assembly instructions. CARE INSTRUCTIONS: Wipe clean with a water dampened cloth. - Page 13 Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
