ASSEMBLY INSTRUCTIONS
RiverRidge
®

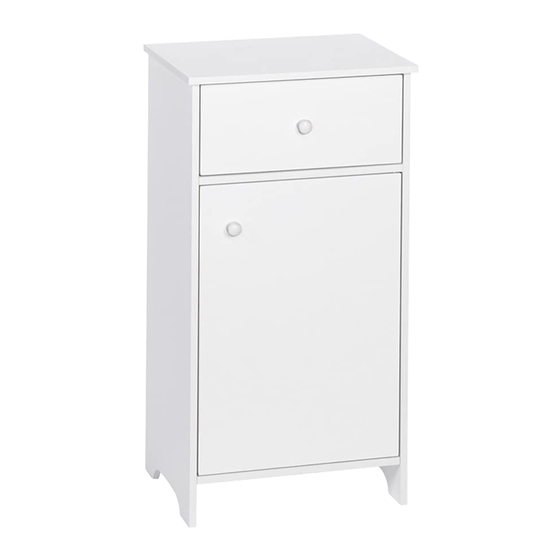

Medford Single Door Floor Cabinet
ITEM #: 06-102 White
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
Advertisement
Related Manuals for RiverRidge 06-102
Summary of Contents for RiverRidge 06-102
- Page 1 RiverRidge ® Medford Single Door Floor Cabinet ITEM #: 06-102 White ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 THIS CABINET WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS OR 75 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 25 POUNDS PER SHELF OR 75 POUNDS TOTAL WEIGHT CABINET MAY TIP FROM WALL AND CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Top Board Left Side Panel Right Side Panel Cross Bar Back Board Door Adjustable Shelf Bottom Board Drawer Front Board Drawer Left Side Panel Drawer Right Side Panel Drawer Back Board Drawer Bottom Board... - Page 4 PARTS DESCRIPTION 10PCS Cam Bolt (5x35mm) 10PCS Cam Lock (15x10mm) 4PCS Wood Dowel Magnet 6PCS Screw (3x14mm) Adjustable Anchor Bracket 1PCS Screw (3x10mm) 4PCS Shelf Holder 4PCS Screw (4x35mm) Magnet Plate 2PCS Door Pin 2PCS Screw (4x25mm) 2PCS Knob Screw (4x30mm) Plastic Anchor 4PCS Plastic Bracket...
- Page 5 STEP 1 1. Screw 4 cam bolts (A) into cam bolt holes on top board (1). 2. Attach 1 metal bracket (F) to top board (1) by inserting 1 screw (X) through hole on metal bracket (F) and tighten to top board (1). 3.
- Page 6 STEP 3 1. Attach magnet (D) to cross bar (4) by inserting 2 screws (E) through holes on magnet (D) and tighten to cross bar (4). 2. Insert 2 wood dowels (C) into wood dowel holes on left side panel (2). 3.
- Page 7 STEP 5 1. Insert 2 wood dowels (C) into wood dowel holes on cross bar (4) and bottom board (8). 2. Attach right side panel (3) to cross bar (4) and bottom board (8) by inserting wood dowels (C) and cam bolts (A) into wood dowel holes and cam lock holes on cross bar (4) and bottom board (8).
- Page 8 STEP 7 1. Screw 4 cam bolts (Q) into cam bolt holes on drawer front board (9). 2. Attach drawer left side panel (10) and drawer right side panel (11) to drawer back board (12) by inserting 4 screws (I) through holes on drawer left side panel (10) and drawer right side panel (11), then tighten to drawer back board (12).
- Page 9 STEP 9 1. Attach drawer slide (V) and (W) to bottom of assembled drawer by inserting 4 screws (S) through holes on drawer slide (V) and (W), then tighten to bottom of assembled drawer. STEP 10 1. Insert 4 shelf holders (H) into holes on left side panel (2) and right side panel (3), making sure all 4 shelf holders (H) are on same level.
- Page 10 STEP 11 Attach 4 brackets (P) to back of cabinet by inserting 4 screws (E) through holes on brackets (P) and tighten to cabinet. STEP 12 Option #1: Securing to Drywall 1. Position cabinet against wall in desired location. Using a pencil, make small mark on wall through hole on bracket (F).
- Page 11 ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children. WARNING Please make sure your item is secured to the wall, per assembly instructions. CARE INSTRUCTIONS: Wipe clean with a water dampened cloth.
- Page 12 Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
