ASSEMBLY INSTRUCTIONS
RiverRidge
®

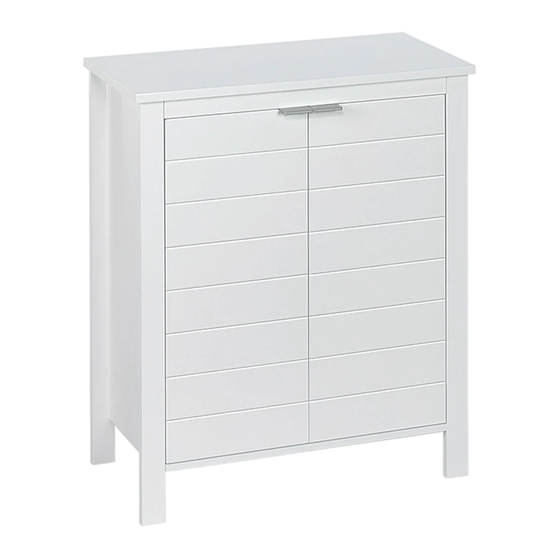

Madison Two-Door Floor Cabinet
ITEM #: 06-110 White
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken in
unpacking and assembling this item to keep small parts away from children.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
Advertisement
Related Manuals for RiverRidge Madison 06-110
Summary of Contents for RiverRidge Madison 06-110
- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge ® Madison Two-Door Floor Cabinet ITEM #: 06-110 White ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF OR TOP BOARD FOR A TOTAL OF 60 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 20 POUNDS OR 60 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 20 POUNDS PER SHELF OR 60 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM THE WALL AND CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Top Board Bottom Board Left Side Panel Right Side Panel Cross Bar Adjustable Shelf Left Door Right Door Upper Back Panel Lower Back Panel... - Page 4 PARTS LIST PARTS DESCRIPTION 8PCS Cam Bolt 8PCS Cam Lock 8PCS Wood Dowel (6 x 30mm) Metal Shelf Holder 4PCS 4PCS Hinge 2PCS Handle 28PCS Screw (4 x 12mm) Plastic Connection Strip 2PCS Screw (4 x 14mm) 2PCS Bracket 16PCS Screw (2.5 x 10mm) 2PCS Plastic Anchor...
- Page 5 STEP 1 1. Screw 4 cam bolts (A) into pre-threaded holes on top board (1). 2. Attach 2 brackets (J) to top board (1) by inserting 2 screws (I) through holes on bracket (J) and tighten to top board (1). STEP 2 1.
- Page 6 STEP 4 1. Attach top board (1) to left side panel (3) and right side panel (4) by inserting cam bolts into cam lock holes on left side panel (3) and right side panel (4). 2. Insert 4 cam locks (B) into cam lock holes on left side panel (3) and right side panel (4), then rotate clockwise to secure cam bolts in place.
- Page 7 STEP 6 1. Attach 2 hinges (E) to left door (7) by inserting 4 screws (G) through holes on hinges (E) then tighten to left door (7). 2. Attach handle (F) to left door (7) by inserting 2 screws (G) through holes on handle (F) then tighten to left door (7).
- Page 8 STEP 8 1. Place drawing with hole positions on wall you desire to mount cabinet and drill holes on wall. 2. Insert 2 plastic anchors (L) into holes on wall. 3. Align brackets on cabinet with anchors in wall and fix cabinet to wall by inserting 2 screws (M) through hole on brackets (J) and tighten to plastic anchors (L) in wall.
- Page 9 Cabinet! Thank you for purchasing this RiverRidge ® Home item. We hope you enjoy it and consider purchasing other RiverRidge ® items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com RiverRidge ®...
