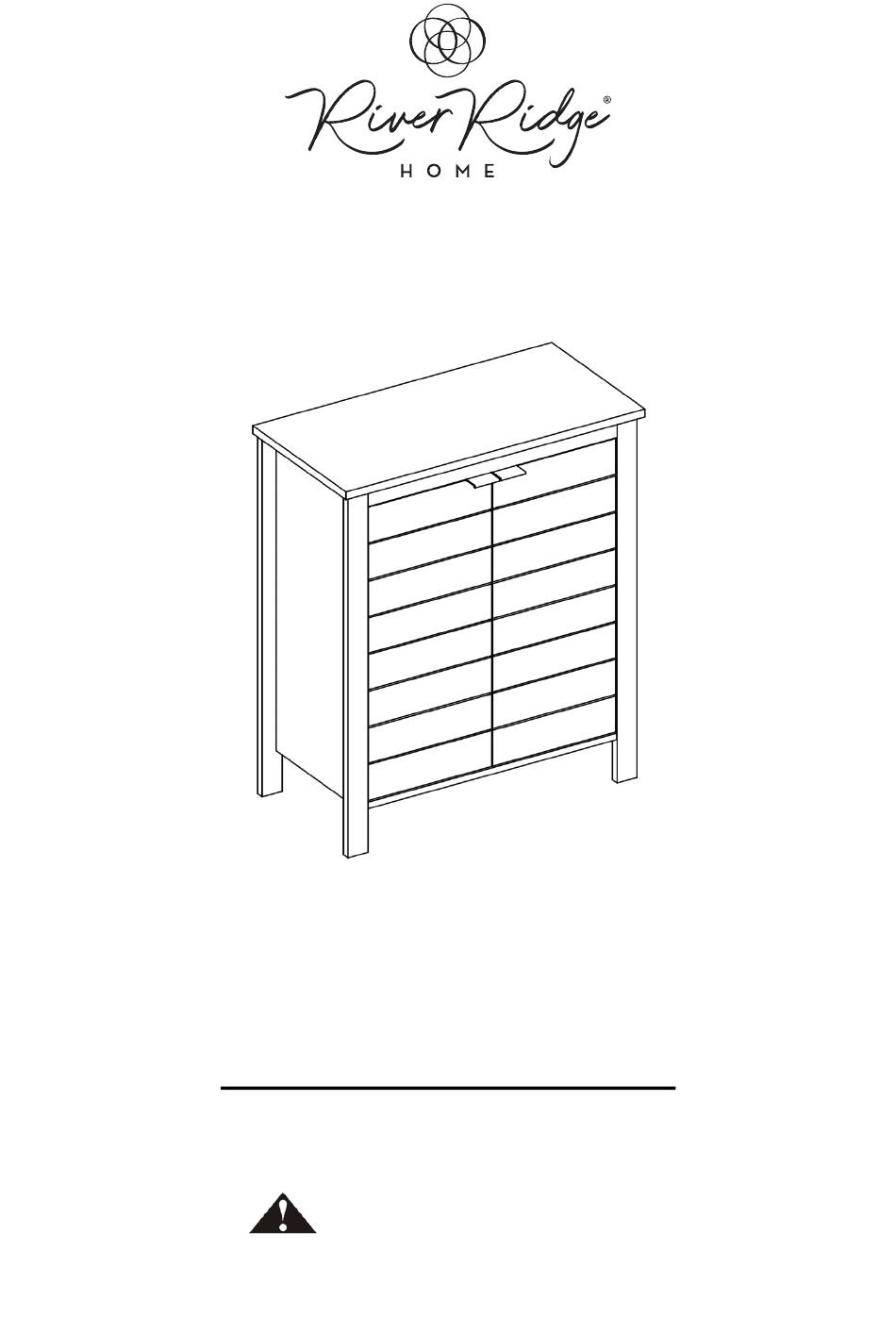

ASSEMBLY INSTRUCTIONS
RiverRidge
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
®

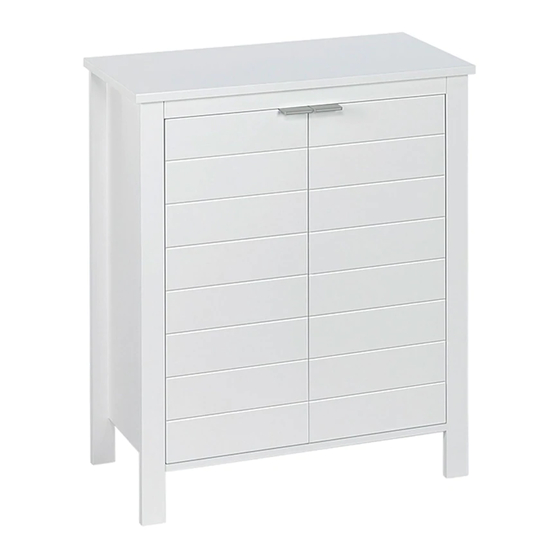

Madison Two-Door Floor Cabinet
ITEM#: 06-110
ITEM#: 06-121
ADULT ASSEMBLY REQUIRED
SEE FULL WARNING ON PAGE 2
White
Gray
Advertisement
Related Manuals for RiverRidge Madison 06-110
Summary of Contents for RiverRidge Madison 06-110
- Page 1 ASSEMBLY INSTRUCTIONS ® RiverRidge Madison Two-Door Floor Cabinet ITEM#: 06-110 White ITEM#: 06-121 Gray ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF OR TOP BOARD FOR A TOTAL OF 60 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 20 POUNDS OR 60 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 20 POUNDS PER SHELF OR 60 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM THE WALL AND CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Top Board Bottom Board Left Side Panel Right Side Panel Cross Bar Adjustable Shelf Left Door Right Door Upper Back Panel Lower Back Panel... - Page 4 PARTS LIST PARTS DESCRIPTION 8PCS Cam Bolt 8PCS Cam Lock 8PCS Wood Dowel 4PCS Shelf Holder 4PCS Hinge 2PCS Handle 24PCS Screw (4x12mm) Plastic Connection Strip 2PCS Screw (4x14mm) 2PCS Adjustable Anchor Bracket 16PCS Screw (2.5x10mm) 2PCS Plastic Anchor 2PCS Screw (4x30mm) 4PCS Screw (3.5x12mm)
- Page 5 STEP 1 1. Screw 4 cam bolts (A) into cam bolt holes on top board (1). 2. Attach 2 brackets (J) to top board (1) by inserting 2 screws (I) through holes on bracket (J) and tighten to top board (1). STEP 2 1.
- Page 6 STEP 4 1. Attach top board (1) to left side panel (3) and right side panel (4) by inserting cam bolts into cam lock holes on left side panel (3) and right side panel (4). 2. Insert 4 cam locks (B) into cam lock holes on left side panel (3) and right side panel (4), then rotate clockwise to secure cam bolts in place.
- Page 7 STEP 6 1. Attach 2 hinges (E) to left door (7) by inserting 4 screws (G) through holes on hinges (E), then tighten to left door (7). 2. Attach handle (F) to left door (7) by inserting 2 screws (N) through holes on handle (F), then tighten to left door (7).
- Page 8 STEP 8 Option #1: Securing to Drywall Position cabinet against wall in desired location. Using a pencil, make two small marks on wall through holes on brackets (J). Move cabinet away from wall and screw 2 plastic anchors (L) into wall on pencil marks. Place cabinet against wall, insert 2 screws (M) through holes on brackets (J), then tighten to plastic anchors (L).
-
Page 9: Care Instructions
ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children. WARNING Please make sure your item is secured to the wall, per assembly instructions. CARE INSTRUCTIONS: Wipe clean with a water dampened cloth. - Page 10 Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
