ASSEMBLY INSTRUCTIONS
RiverRidge

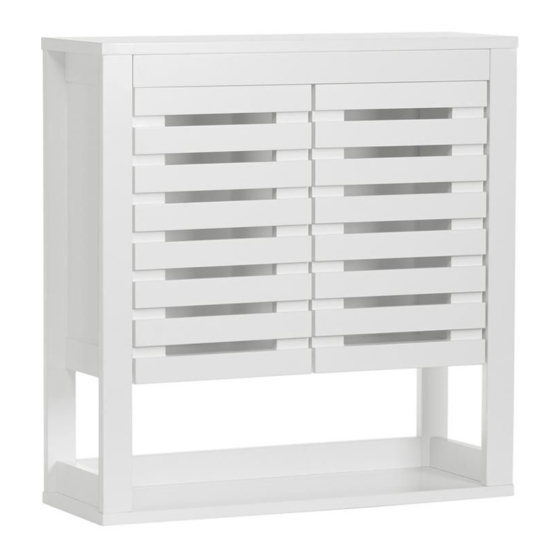

Bayfield Two-Door Wall Cabinet
®
ITEM #: 06-115 White
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.

Advertisement

loading

Related Manuals for RiverRidge Bayfield 06-115

Summary of Contents for RiverRidge Bayfield 06-115

  • Page 1 ASSEMBLY INSTRUCTIONS RiverRidge Bayfield Two-Door Wall Cabinet ® ITEM #: 06-115 White ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
  • Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF OR A TOTAL OF 60 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 20 POUNDS OR 60 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH. MORE THAN 20 POUNDS PER SHELF OR 60 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM THE WALL AND CAUSE SERIOUS INJURY OR DEATH.

  • Page 3: Parts List

    PARTS LIST DESCRIPTION Top board Left side panel Right side panel Front cross bar Adjustable shelf Shelf Lower cross bar Bottom shelf 2PCS Back board 2PCS Door Rear cross bar...
  • Page 4 PARTS LIST PARTS DESCRIPTION 8PCS Cam Bolt 8PCS Cam Lock 26PCS Wood Dowel 4PCS Shelf Holder 4PCS Hinge 6PCS Screw (4x35mm) 16PCS Screw (4x12mm) 3PCS Screw (4x45mm) Plastic Connection Strip 14PCS Screw (2.5x10mm) 3PCS Plastic Anchor Wall Mounting Paper Template TOOLS NEEDED FOR ASSEMBLY: FLAT &...
  • Page 5 STEP 1 1. Insert 2 cam bolts (A) into cam bolt holes on left side panel (2). 2. Insert 2 cam bolts (A) into cam bolt holes on right side panel (3). STEP 2 1. Insert 4 cam bolts (A) into cam bolt holes on top board (1). STEP 3 1.
  • Page 6 STEP 4 1. Insert 6 wood dowels (C) into wood dowel holes on left side panel (2). 2. Attach front cross bar (4), shelf (6), lower cross bar (7) and rear cross bar (11) to left side panel (2) by inserting wood dowels (C) into wood dowel holes and insert cam bolts (A) into cam lock holes on front cross bar (4), shelf (6), lower cross bar (7) a rear cross bar (11).
  • Page 7 STEP 6 1. Insert 8 wood dowels (C) into wood dowel holes on top board (1). 2. Attach top board (1) to left side panel (2), right side panel (3), front cross bar (4) and cross bar (11) by inserting wood dowels (C) into wood dowel holes and inserting cam bolts (A) into cam lock holes on left side panel (2), right side panel (3), front cross bar (4) and rear cross bar (11).
  • Page 8 STEP 8 1. Slide 2 back boards (9) into grooves on plastic connection strip (I). 2. Attach 2 back boards (9) to back of cabinet by inserting 14 screws (J) through holes on back boards (9), then tighten to cabinet. STEP 9 1.
  • Page 9 STEP 10 G×2 G×2 G×2 1. Attach doors (10) to cabinet by inserting 8 screws (G) through holes on hinges (E), then tighten to left side panel (2) and right side panel (3). 2. Note: Tightening screw in position “a” will adjust doors up or down; tightening screw in position “b”...

  • Page 10: Care Instructions

    STEP 11 OPTION #1 OPTION #2 DRYWALL DRYWALL WOOD STUD SCREW WALL ANCHOR ONLY WITH SCREW Option #1: Securing to Drywall 1. Using paper wall mounting template to determine position, screw 3 plastic anchors (K) into drywall. 2. Place cabinet against wall and insert 3 screws (H) into holes inside cabinet and into plastic anchors (K) and tighten.
  • Page 11 ® Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. ® To order replacement parts at no cost to you,email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
