RiverRidge Bayfield 06-114 Assembly Instructions Manual

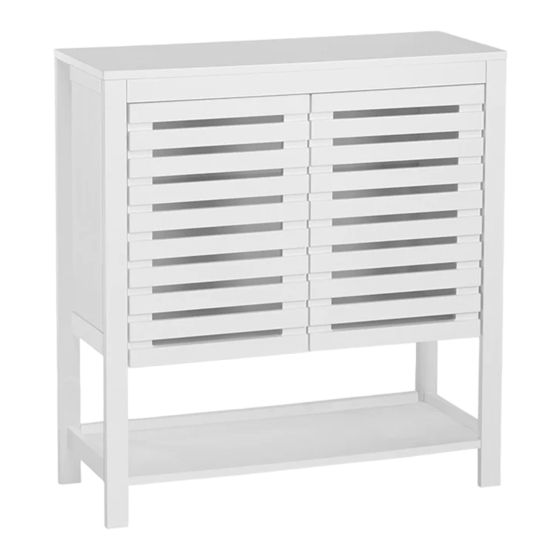

Two-door floor cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
RiverRidge
Bayfield Two-Door Floor Cabinet
®
ITEM #: 06-114 White
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bayfield 06-114 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverRidge Bayfield 06-114

Summary of Contents for RiverRidge Bayfield 06-114

  • Page 1 ASSEMBLY INSTRUCTIONS RiverRidge Bayfield Two-Door Floor Cabinet ® ITEM #: 06-114 White ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
  • Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF OR TOP BOARD FOR A TOTAL OF 80 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 20 POUNDS OR 80 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 20 POUNDS PER SHELF OR 80 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM THE WALL AND CAUSE SERIOUS INJURY OR DEATH.
  • Page 3 DESCRIPTION Top Board Left Side Panel Right Side Panel Upper Cross Bar Adjustable Shelf Shelf Lower Cross Bar Bottom Shelf Upper Back Board Lower Back Board 2PCS Door...

  • Page 4: Parts List

    PARTS LIST PARTS DESCRIPTION 12PCS Cam Bolt 12PCS Cam Lock 22PCS Wood Dowel 4PCS Shelf Holder 4PCS Hinge 3PCS Screw (4x35mm) 16PCS Screw (4x12mm) 2PCS Screw (4x30mm) 2PCS Screw (4x12mm) 14PCS Screw (2.5x10mm) 2PCS Plastic Anchor 2PCS Adjustable Anchor Bracket Plastic Connection Strip TOOLS NEEDED FOR ASSEMBLY: FLAT &...
  • Page 5 STEP 1 1. Insert 4 cam bolts (A) into cam bolt holes on left side panel (2). 2. Insert 4 cam bolts (A) into cam bolt holes on right side panel (3). STEP 2 1. Insert 4 cam bolts (A) into cam bolt holes on top board (1). 2.
  • Page 6 STEP 4 1. Attach 2 hinges (E) to door (11) by inserting 4 screws (G) through holes on hinges (E), then tighten to door (11). 2. Repeat this step to assemble 2 hinges (E) to another door (11). STEP 5 Insert 7 wood dowels (C) into wood dowel holes on left side panel (2).
  • Page 7 STEP 6 1. Insert 7 wood dowels (C) into wood dowel holes on right side panel (3). 2. Attach right side panel (3) to upper cross bar (4), shelf (6), bottom shelf (8) and lower cross bar (7) by inserting wood dowels (C) into wood dowel holes and insert cam bolts (A) into cam lock holes on upper cross bar (4), shelf (6) and bottom shelf (8).
  • Page 8 STEP 8 1. Slide 2 back boards into grooves on plastic connection strip (M). 2. Attach upper back board (9) and lower back board (10) to back of cabinet by inserting 14 screws (J) through holes on upper back board (9) and lower back board (10), then tighten to cabinet.
  • Page 9 STEP 10 G×2 G×2 G×2 1. Attach doors (11) to cabinet by inserting 8 screws (G) through holes on hinges (E), then tighten to left side panel (2) and right side panel (3). 2. Note: Tightening screw in position “a” will adjust doors up or down; tightening screw in position “b”...

  • Page 10: Care Instructions

    STEP 11 OPTION #1 OPTION #2 DRYWALL DRYWALL WOOD STUD SCREW WALL ANCHOR ONLY WITH SCREW Option #1: Securing to Drywall 1. Position cabinet against wall in desired location. Using a pencil, make 2 small marks on wall through holes on brackets (L).
  • Page 11 ® Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. ® To order replacement parts at no cost to you,email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
