ASSEMBLY INSTRUCTIONS

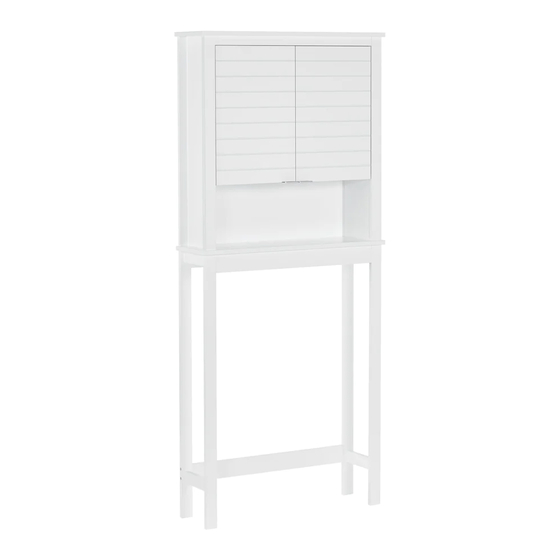

RiverRidge
Madison Spacesaver
®
ITEM #: 06-117 White
ITEM #: 06-118 Gray
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken in
unpacking and assembling this item to keep small parts away from children.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Madison Spacesaver 06-117 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverRidge Madison Spacesaver 06-117

Summary of Contents for RiverRidge Madison Spacesaver 06-117

  • Page 1 ASSEMBLY INSTRUCTIONS RiverRidge Madison Spacesaver ® ITEM #: 06-117 White ITEM #: 06-118 Gray ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children.
  • Page 2 THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS. IF LOADED WITH MORE THAN 25 POUNDS PER SHELF, THIS MAY CAUSE DAMAGE TO THE SHELF AND MAY CAUSE SERIOUS INJURY OR DEATH.

  • Page 3: Parts List

    PARTS LIST DESCRIPTION Top Board Upper Left Side Panel Upper Right Side Panel Lower Left Side Panel Lower Right Side Panel Upper Cross Bar Adjustable Shelf Fixed Shelf Open Shelf Upper Back Panel Middle Back Panel Lower Back Panel 2PCS Middle Cross Bar Lower Rear Cross Bar Left Door...
  • Page 4 PARTS LIST PARTS DESCRIPTION 16PCS Cam Bolt 16PCS Cam Lock 10PCS Wood Dowel 4PCS Hinge 28PCS Screw (4x12mm) 21PCS Screw (3x12mm) 2PCS Handle 4PCS Shelf Holder 2PCS Plastic Anchor 2PCS Adjustable Anchor Bracket 2PCS Screw (4x10mm) 5PCS Screw (4x35mm) 4PCS Screw (4x60mm) Screw (4x30mm) 2PCS...
  • Page 5 STEP 1 Screw 2 cam bolts (A) into pre-threaded holes on lower left side panel (4). Screw 2 cam bolts (A) into pre-threaded holes on lower right side panel (5). STEP 2 Insert 2 wood dowels (C) into wood dowel holes on lower left side panel (4). Attach lower left side panel (4) to 2 middle cross bars (13) by inserting cam bolts (A) into cam lock holes and wood dowels (C) into wood dowel holes on middle cross bars (13).
  • Page 6 STEP 3 Screw 2 cam bolts (A) into pre-threaded holes on upper left side panel (2). Screw 2 cam bolts (A) into pre-threaded holes on upper right side panel (3). STEP 4 Insert 1 wood dowel (C) into wood dowel hole on upper cross bar (6). Attach upper cross bar (6) and fixed shelf (8) to upper left side panel (2) by inserting cam bolts (A) into cam lock holes and wood dowel (C) into wood dowel hole on upper cross bar (6), and fixed shelf (8).
  • Page 7 STEP 5 Screw 4 cam bolts (A) into pre-threaded holes on top board (1). Attach 2 adjustable anchor brackets (J) to top board (1) by inserting 2 screws (K) through holes on adjustable anchor brackets (J), then tighten to top board (1). STEP 6 Insert 2 wood dowels (C) into wood dowel holes on upper cross bar (6).
  • Page 8 STEP 7 Screw 4 cam bolts (A) into pre-threaded holes on open shelf (9). Insert 2 wood dowels (C) into wood dowel holes on opposite side of open shelf (9). Attach open shelf (9) to upper left side panel (2) and upper right side panel (3) by inserting wood dowels (C) into wood dowel holes on upper left side panel (2) and upper right side panel (3).
  • Page 9 STEP 9 Attach lower assembled section to upper assembled section by inserting cam bolts (A) into cam lock holes on lower left side panel (4) and lower right side panel (5). Insert 4 cam locks (B) into cam lock holes on lower left side panel (4) and lower right side panel (5), then rotate clockwise to secure cam bolts in place.
  • Page 10 STEP 11 Attach 2 hinges (D) to left door (15) by inserting 4 screws (E) through holes on 2 hinges (D), then tighten to left door (15). Attach 1 handle (G) to bottom of left door (15) by inserting 2 screws (E) through holes on handle (G), then tighten to bottom of left door (15).

  • Page 11: Care Instructions

    STEP 13 OPTION #1 OPTION #2 DRYWALL DRYWALL WOOD STUD SCREW WALL ANCHOR ONLY WITH SCREW Option #1: Securing to Drywall Position spacesaver against wall in desired location. Using a pencil, make 2 small marks on wall through holes on adjustable anchor brackets (J). Move cabinet away from wall and screw 2 plastic anchors (I) into wall on pencil marks.
  • Page 12 ® Thank you for purchasing this RiverRidge ® Home item. We hope you enjoy it and consider purchasing other RiverRidge ® items. To order replacement parts at no cost to you,email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
