ASSEMBLY INSTRUCTIONS
RiverRidge

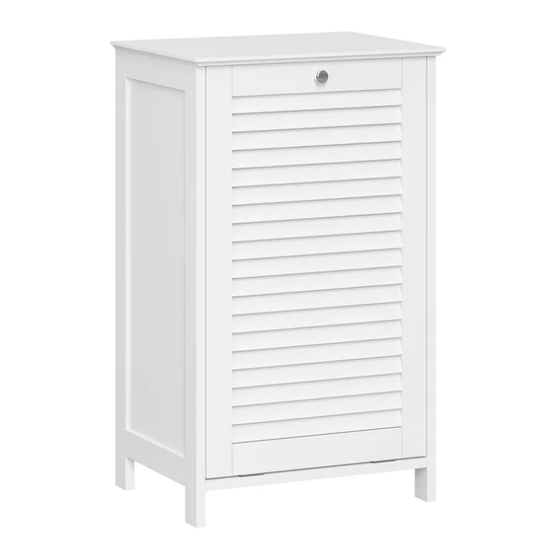

Ellsworth Tilt-Out Laundry Hamper
®
ITEM #: 06-140 White
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ellsworth Tilt-Out Laundry Hamper 06-140 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverRidge Ellsworth Tilt-Out Laundry Hamper 06-140

Summary of Contents for RiverRidge Ellsworth Tilt-Out Laundry Hamper 06-140

  • Page 1 ASSEMBLY INSTRUCTIONS RiverRidge Ellsworth Tilt-Out Laundry Hamper ® ITEM #: 06-140 White ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
  • Page 2 THIS UNIT WILL HOLD UP TO 25 POUNDS PER SHELF AND 15 POUNDS PER CLOTH HAMPER OR A TOTAL OF 40 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS, EACH CLOTH HAMPER WITH MORE THAN 15 POUNDS OR 40 POUNDS TOTAL WEIGHT.

  • Page 3: Parts List

    PARTS LIST DESCRIPTION Hamper Front Door Hamper Back Panel 2PCS Hamper Side Panel Hamper Bottom Board 2PCS Hamper Support Bar Hamper Left Cross Bar Hamper Right Cross Bar 2PCS Wooden Rod Cloth Hamper Top Board Left Side Panel Right Side Panel Bottom Board Back Board...
  • Page 4 PARTS LIST PARTS DESCRIPTION 8PCS Cam Bolt Cam Lock 8PCS Wood Dowel 8PCS Hamper Stopper 2PCS 2PCS Hinge Machine Screw (4x18mm) Knob Screw (4x10mm) 4PCS Screw (4x15mm) 20PCS Screw (4x20mm) Screw (4x30mm) Screw (3x12mm) 8PCS Screw (2.5x10mm) 12PCS Adjustable Anchor Bracket Plastic Anchor TOOLS NEEDED FOR ASSEMBLY: FLAT &...
  • Page 5 STEP 1 Attach 2 hinges (E) to hamper front door (1) by inserting 4 screws (L) through holes on hinges (E), then tighten to hamper front door (1). Attach knob (G) to hamper front door (1) by inserting machine screw (F) through hole on hamper front door (1), then tighten to knob (G).
  • Page 6 STEP 4 Attach 2 hamper side panels (3) to hamper front door (1) by inserting 6 screws (J) through holes on hamper side panels (3), then tighten to hamper support bars (5). STEP 5 Slide hamper bottom board (4) into groove on hamper front door (1). Attach hamper back panel (2) to hamper side panels (3) and hamper bottom board (4), make sure hamper bottom board (4) slides into groove on hamper back panel (2).
  • Page 7 STEP 6 Screw 2 cam bolts (A) into cam bolt holes on left side panel (11). Screw 2 cam bolts (A) into cam bolt holes on right side panel (12). STEP 7 Insert 4 wood dowels (C) into wood dowel holes on left side panel (11) and right side panel (12).
  • Page 8 STEP 8 Screw 4 cam bolts (A) into cam bolt holes on top board (10). Attach adjustable anchor bracket (N) to top board (10) by inserting 1 screw (H) through hole on adjustable anchor bracket (N), then tighten to top board (10). STEP 9 Insert 4 wood dowels (C) into wood dowel holes on top board (10).
  • Page 9 STEP 10 Attach assembled hamper to outside cabinet by inserting 4 screws (L) through hinges (E), then tighten to bottom board (13). STEP 11 Attach back board (14) to back of cabinet by inserting 12 screws (M) through holes on back board (14), then tighten to back of cabinet.
  • Page 10 STEP 12 OPTION #1 OPTION #2 DRYWALL DRYWALL WOOD STUD SCREW WALL ANCHOR ONLY WITH SCREW Option #1: Securing to Drywall Position cabinet against wall in desired location. Using a pencil, make 1 small mark on wall through hole on bracket (N). Move cabinet away from wall and screw 1 plastic anchor (O) into wall on pencil mark.

  • Page 11: Care Instructions

    STEP 14 Insert 2 wooden rods (8) through tabs on cloth hamper (9). Place wooden rods (8) and cloth hamper (9) in cabinet as shown. Insert wooden rods (8) into grooves on hamper side panels (3) to avoid movement. ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts.
  • Page 12 ® Thank you for purchasing this RiverRidge ® Home item. We hope you enjoy it and consider purchasing other RiverRidge ® items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
