LMX2594PSEVM Evaluation Instructions

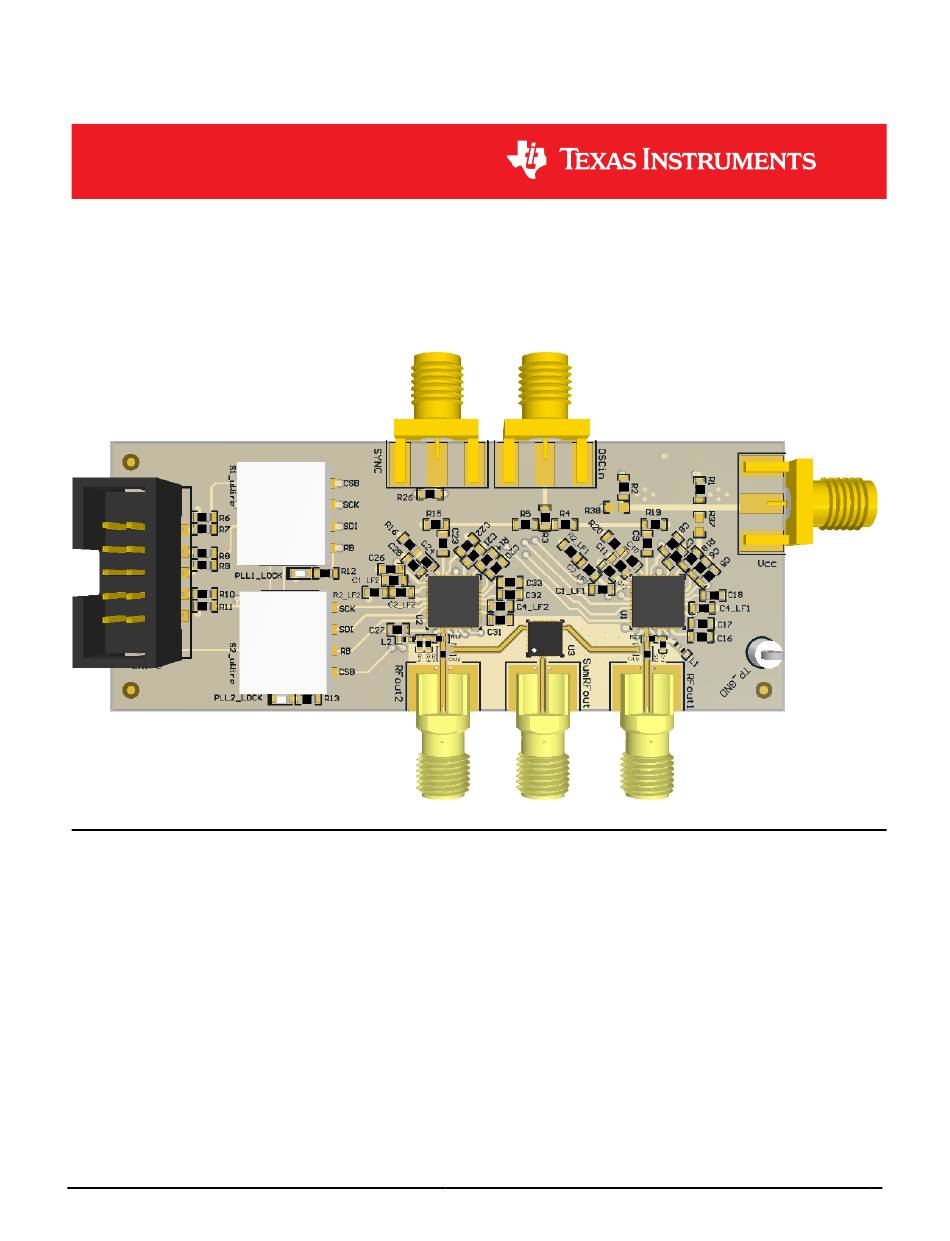

The LMX2594PSEVM uses two LMX2594 synthesizers to generate two phase-coherent outputs with very fine
phase adjustment capability. The outputs of the synthesizers can also be combined to produce lower noise and
jitter than is possible with just one.
The LMX2594 is a high-performance, wideband synthesizer that can generate any frequency from 10 MHz to 15
GHz without using an internal doubler, thus eliminating the need for sub-harmonic filters.
1.1 Evaluation Module Contents..............................................................................................................................................
1.2 Evaluation Setup Requirement..........................................................................................................................................
1.3 Resources..........................................................................................................................................................................
2
Setup........................................................................................................................................................................................4
2.1 Connection Diagram..........................................................................................................................................................
2.2 Power Supply.....................................................................................................................................................................
Clock.................................................................................................................................................................4
2.4 SYNC Input........................................................................................................................................................................
Output...........................................................................................................................................................................4
2.6
Programming......................................................................................................................................................................4
2.7 Evaluation Software...........................................................................................................................................................
Measurement..............................................................................................................................................................6
3.1 Category 3 Synchronization...............................................................................................................................................
Improvement.................................................................................................................................................7
SNAU278 - JULY 2022
Submit Document Feedback
ABSTRACT

Table of Contents

Module.....................................................................................................................................3
Copyright © 2022 Texas Instruments Incorporated
Table of Contents
LMX2594PSEVM Evaluation Instructions
3
3
3
4
4
4
5
6
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMX2594PSEVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments LMX2594PSEVM

  • Page 1: Table Of Contents

    LMX2594PSEVM Evaluation Instructions ABSTRACT The LMX2594PSEVM uses two LMX2594 synthesizers to generate two phase-coherent outputs with very fine phase adjustment capability. The outputs of the synthesizers can also be combined to produce lower noise and jitter than is possible with just one.
  • Page 2 9.3 Typical Output Characteristics............................9.4 Firmware Update................................18 Trademarks PLLatinum ™ is a trademark of Texas Instruments. Windows ® is a registered trademark of Microsoft Corporation. All trademarks are the property of their respective owners. LMX2594PSEVM Evaluation Instructions SNAU278 – JULY 2022 Submit Document Feedback Copyright ©...
  • Page 3: Lmx2594Psevm Evaluation Module

    ® 7 or more recent version • An oscilloscope • A high quality signal generator • Texas Instruments Clocks and Synthesizers TICS Pro software • Texas Instruments PLLatinum ™ Simulator Tool (optional) 1.3 Resources Related evaluation and development resources include: •...
  • Page 4: Setup

    EVM modification. 2.6 Programming Connect the ribbon cable from the Reference PRO to the LMX2594PSEVM. Connect the USB cable from a PC to the USB port on the Reference PRO board. This provides a power supply to the Reference PRO board and communication with the TICS Pro software. A firmware update may be required.
  • Page 5: Evaluation Software

    Download and install TICS Pro to a PC. Run the software and follow the following steps to get started. 1. Go to Select Device → PLL + VCO → LMX2594. 2. Go to Default Configuration → Default Mode. SNAU278 – JULY 2022 LMX2594PSEVM Evaluation Instructions Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 6: Typical Measurement

    If it is a category 3 synchronization, VCO_PHASE_SYNC should be checked to put the devices in SYNC mode. After programming, the outputs from the two LMX2594 devices may not be phase-aligned. Figure 3-2. Output Phases Before Synchronization LMX2594PSEVM Evaluation Instructions SNAU278 – JULY 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 7: Phase Noise Improvement

    3-5, the blue trace shown the phase noise of individual LMX2594 device while the black trace respresented the phase noise of the combined signal. SNAU278 – JULY 2022 LMX2594PSEVM Evaluation Instructions Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 8 Typical Measurement www.ti.com Figure 3-5. Combined Phase Noise LMX2594PSEVM Evaluation Instructions SNAU278 – JULY 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 9: Schematic

    Schematic 4 Schematic Figure 4-1. LMX2594PSEVM Schematic (Page 1) Figure 4-2. LMX2594PSEVM Schematic (Page 2) SNAU278 – JULY 2022 LMX2594PSEVM Evaluation Instructions Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 10 Schematic www.ti.com Figure 4-3. LMX2594PSEVM Schematic (Page 3) LMX2594PSEVM Evaluation Instructions SNAU278 – JULY 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 11: Pcb Layout And Layer Stack-Up

    FR4 (Er = 4.2) 8 mil Bottom layer Figure 5-1. PCB Layer Stack-Up 5.2 PCB Layout Figure 5-2. Top Layer Figure 5-3. GND Layer SNAU278 – JULY 2022 LMX2594PSEVM Evaluation Instructions Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 12 PCB Layout and Layer Stack-up www.ti.com Figure 5-4. Power Layer Figure 5-5. Bottom Layer LMX2594PSEVM Evaluation Instructions SNAU278 – JULY 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 13: Bill Of Materials

    CAP, CERM, 10 µF, 16 V, EMK212BB7106KG-T Taiyo Yuden 10%, X7R, 0805 C1_LF1, C1_LF2 CAP, CERM, 390 pF, 50 V, 06035A391JAT2A 5%, C0G/NP0, 0603 SNAU278 – JULY 2022 LMX2594PSEVM Evaluation Instructions Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 14: Evm Modification

    SMA connectors. To evaluate the phase noise improvement by summing the two outputs together, do the following modifications. • Move C13 to C13p • Move C30 to C30p Figure 7-1. EVM Modification for Phase Noise Reduction LMX2594PSEVM Evaluation Instructions SNAU278 – JULY 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 15: Troubleshooting Guide

    Verify that the EVM is in working order before you make modifications to the EVM or change the default settings • Register readback requires the correct hardware and software setup. • The POR current of the LMX2594PSEVM is approximately 400 mA. Figure 8-1. Trouble Shooting Guide SNAU278 – JULY 2022 LMX2594PSEVM Evaluation Instructions Submit Document Feedback...
  • Page 16: Reference Pro

    The Reference PRO board is used to program the LMX2594PSEVM and provide a clean reference clock to LMX2594PSEVM at the same time. The board has several control pins dedicated for control of output format, output frequency, and output enable control. These control pins are configurable through the jumpers by strapping the center pin to Vdd position or GND position.
  • Page 17: Output Format Selection

    50-Ω to VCC – 2-V termination is required on receiver. 100-Ω differential termination (R31) is provided onboard. Removing this termination is possible if the differential termination is available on the receiver. SNAU278 – JULY 2022 LMX2594PSEVM Evaluation Instructions Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 18: Typical Output Characteristics

    Simply follow the pop-up instructions to complete the update. This is necessary to ensure that the USB connection between the PC and the Reference PRO board is properly set up, otherwise the programming to LMX2594PSEVM will not be successful. 1. When you see this message, press the OK button.
  • Page 19 Figure 9-8. Update Firmware 5. Press the Upgrade Firmware button to start the firmware upgrade. Press the Close button after the upgrade is complete. SNAU278 – JULY 2022 LMX2594PSEVM Evaluation Instructions Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 20 6. Go to USB communications → Interface to check the USB connection in TICS Pro. Make sure the USB Connected button is now green. Figure 9-10. USB Communications LMX2594PSEVM Evaluation Instructions SNAU278 – JULY 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
