Rotel RC-1082 Technical Manual

T echnical
Manual

Table of Contents

Specification...................................... 1
Parts List ........................................... 2~7
Case Outlines.................................... 8
Safety Caution................................... 8
PCB Assembly .................................. 9~10
Schematic Diagram .......................... 11~13
Specifications
Total Harmonic Distortion (20Hz-20kHz)
Intermodulation Distortion (60 Hz : 7 kHz, 4:1)
Input Sensitivity / Impedance
Phono - MC
Phono - MM
Line Level
Phono Overload (MC/MM)
Output Sensitivity / Impedance
Frequency Response
Phono Input
Line Level Input
Signal to Noise Ratio (IHF "A" weighted)
Phono - MC/MM
Line Level
Power Requirements
USA Version
European Version
Power Consumption
Standby Power Consumption
Dimensions (W x H x D)
Weight (net)
SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA-KU,
TOKYO 150-0045, JAPAN

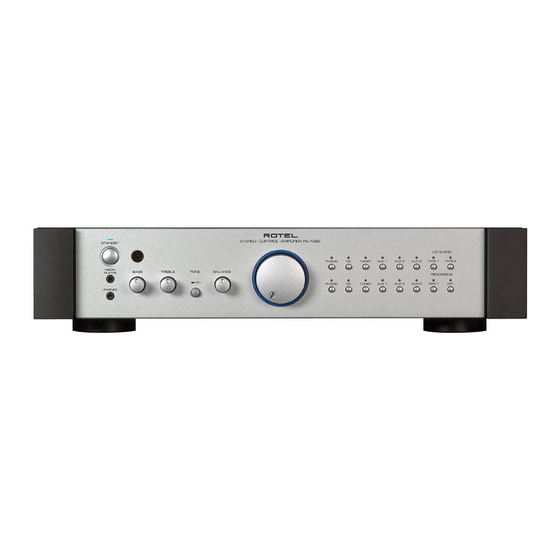

STEREO CONTROL AMPLIFIER
RC-1082
< 0.004%
< 0.004% at 1V output
250 µV / 100 ohms
2.5 mV / 47 kOhms
150 mV / 220 kOhms
16 mV / 160 mV
1 V/ 100 Ohms
20Hz-20kHz, ± 0.2dB
4Hz-100kHz, ± 0.5dB
70 dB/75 dB
100 dB
120 Volts, 60 Hz
230 Volt, 50 Hz
15 Watts
2.5 Watts
432 x 92 x 344 mm
17 x 3 / x 13 / "
5 9
8 16
7.5 kg, 16.53 lbs.
Serial. NO.
Beginning
Y-402A-0707/pdf
