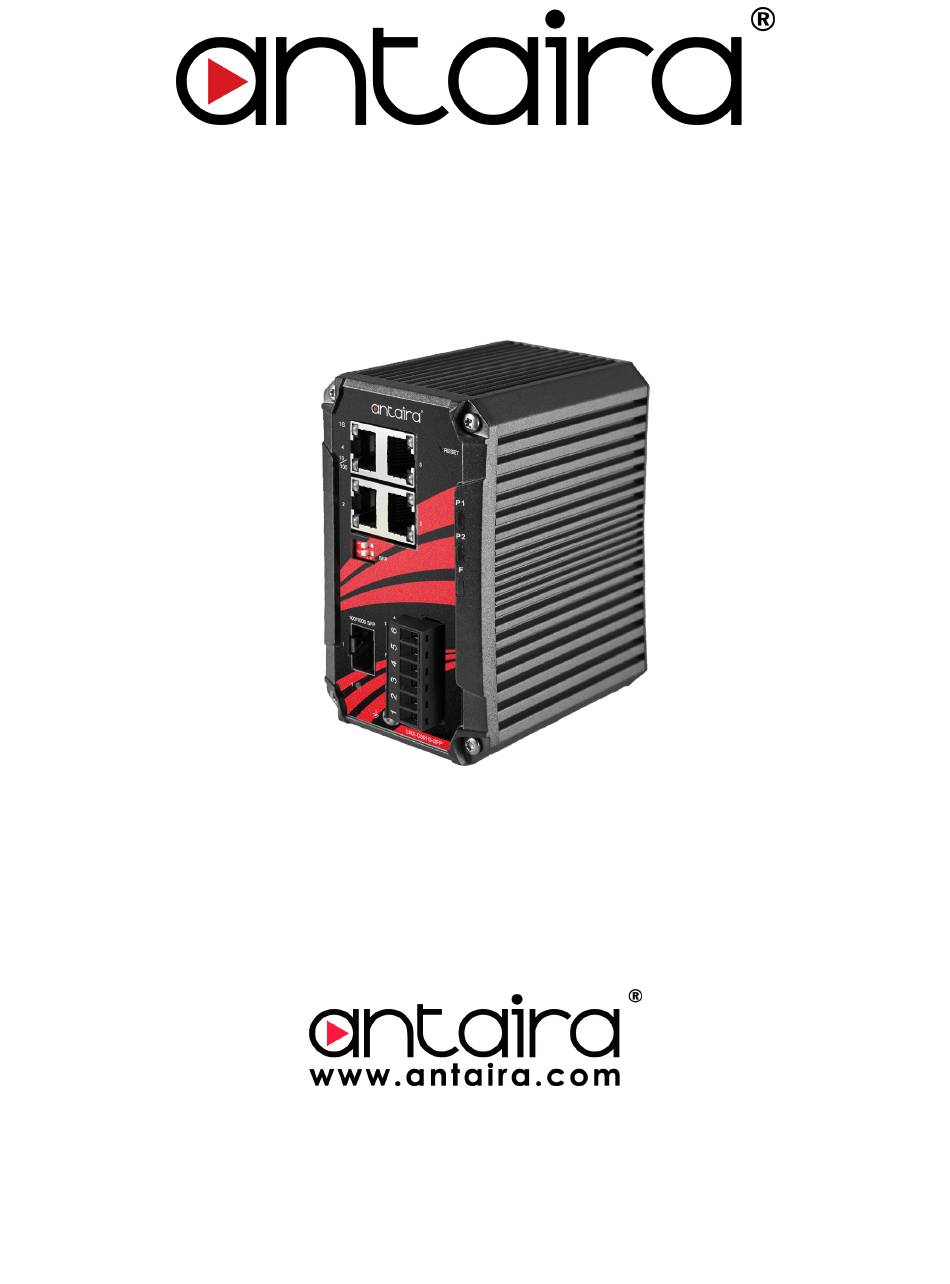

- Page 1 LNX-C501G-SFP Series 5-Port Industrial Compact Gigabit Unmanaged Ethernet Switch, with 4*10/100/1000Tx and 1*100/1000 SFP Slot Hardware Manual Version 1.0 (July 2022)
- Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Avertissement FCC Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la partie 15 des règles de la FCC.
- Page 4 Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Package Contents 1.3 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 LED Indicators 2.4 DIP Switch... -
Page 6: Overview

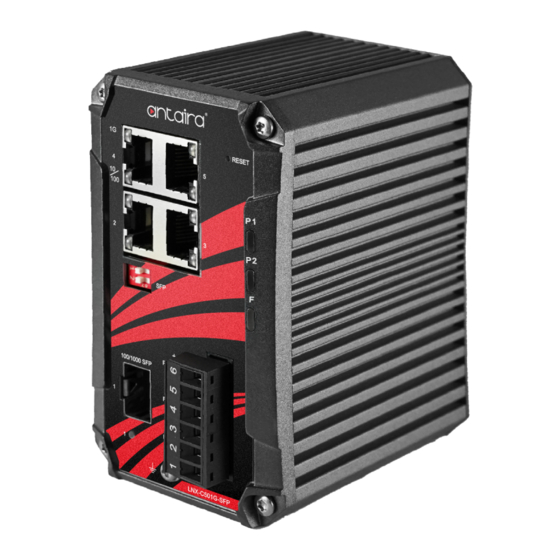

LNX-C501G-SFP Series - Hardware Manual - v1.0 1 Overview Antaira Technologies’ LNX-C501G-SFP series is a compact 5-port industrial gigabit unmanaged Ethernet switch. The small form factor of this metal IP40 rated design is 50% smaller which allows for a more versatile implementation. The LNX-C501G-SFP series is equipped with 4*10/100/1000Tx Ethernet ports and 1*100/1000Tx SFP ports. -
Page 7: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 DC cable- 18AWG & DC jack 5.5 x 2.1mm**Wire: White (+) / Black (-) Dust cover set 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. -
Page 8: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 64.9mm x 89.8mm x 110mm... -
Page 9: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel... -
Page 10: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 2.3 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 11: Dip Switch
Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 2.4 DIP Switch The DIP switch is used to control SFP speed. OFF (Default) Control SFP speed at 100Mbps Control SFP speed at 1Gbps Table 2.3 - DIP Switch Functions Note: The device will reboot when the dip switch setting is changed. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 1 / RX+ 3 / TX+ 1 / RX+ 1 / TX+ 2 / RX- 6 / TX- 2 / RX- 2 / TX- 3 / TX+... -
Page 13: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 2.8 Wiring the Power Inputs Caution: Please follow the steps below when inserting the power wire. Attention: Veuillez suivre les étapes ci-dessous lors de l'insertion du câble d'alimentation. -
Page 14: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 2.9 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.13. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only), and form a normal open circuit. -
Page 15: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 2.10 Grounding Note Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown below in Figure 2.14. -
Page 16: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. -
Page 17: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. - Page 18 Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 Figure 3.4 - Remove DIN-Rail bracket from the Switch Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5 - Wall Mounting Bracket Dimensions...
-
Page 19: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 20: Maintenance And Service
Check for loose power connections, power losses, or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot... -
Page 21: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet Standards IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber... - Page 22 Antaira Technologies - Industrial Ethernet Switches LNX-C501G-SFP Series - Hardware Manual - v1.0 Protection 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable; EIA/TIA-568 100-ohm (100m) Network Cable 100Base-TX: 2-pair 2-pair UTP/STP Cat. 5 cable; EIA/TIA-568 100-ohm (100m) 1000BaseTX: 4-pair UTP/STP Cat. 5/5E cable; EIA/TIA-568 100-ohm (100m)
- Page 23 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
