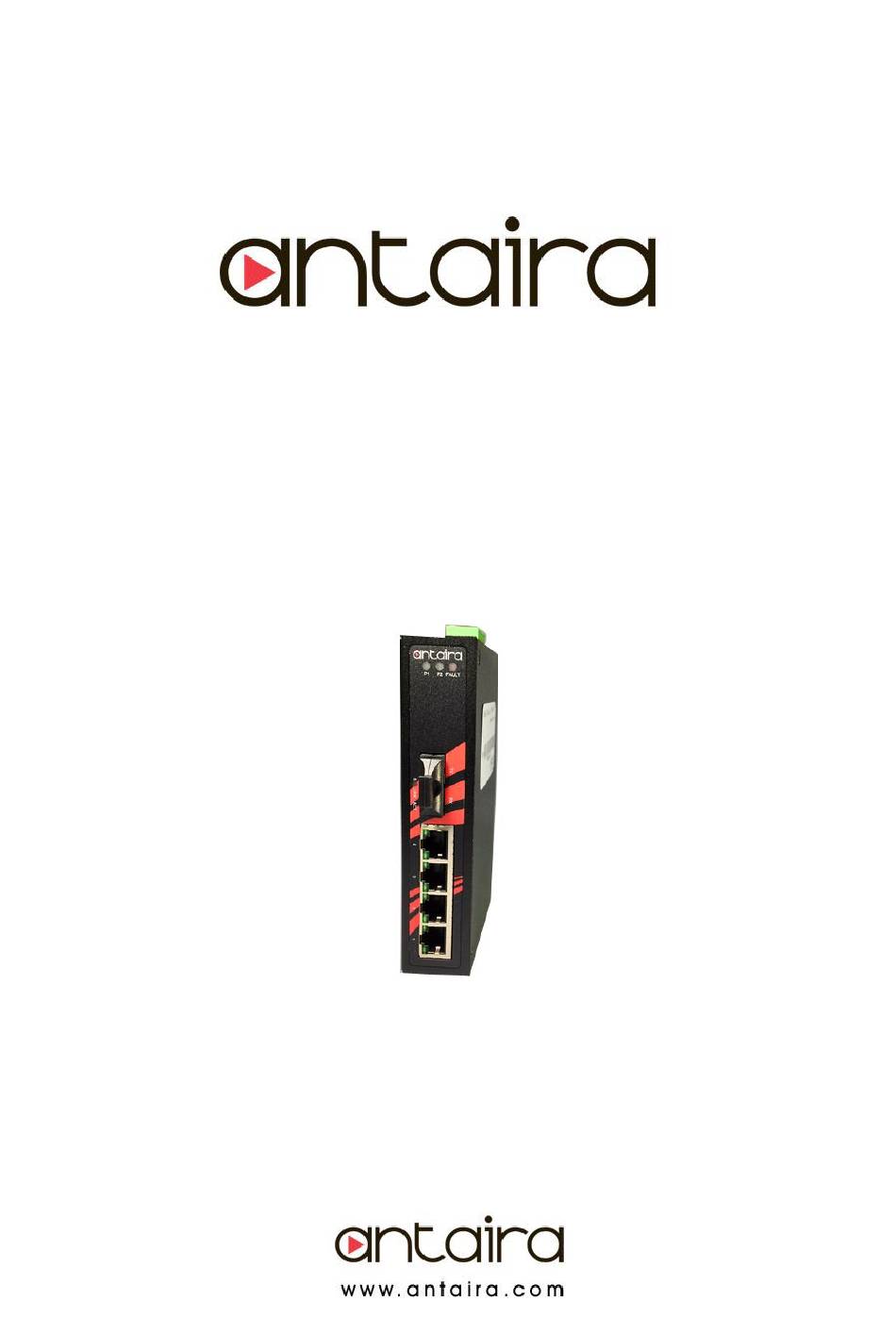

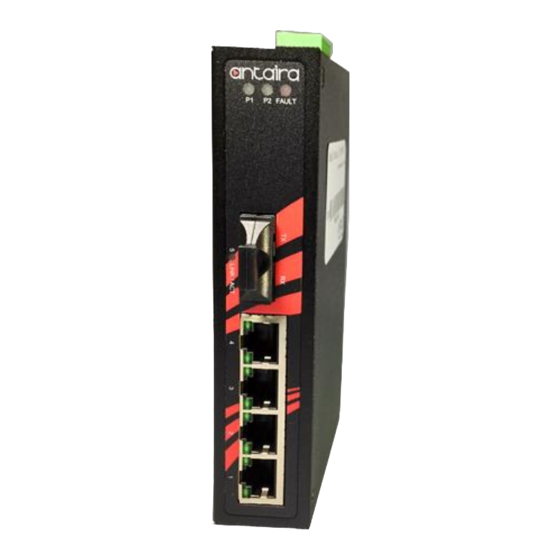

- Page 1 LNX-0501 series 5-port Industrial Unmanaged Ethernet Switches 4*10/100Tx + 1*100Fx User Manual...
- Page 2 FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
-
Page 3: Table Of Contents
Content Introduction ..............1 Features ..............1 Package Contents ............ 2 Hardware Description ..........3 Physical Dimension ..........3 Front Panel .............. 4 Top View ..............4 LED Indicators ............5 Ports ................. 6 Cabling ..............8 Wiring the Power Inputs ........... 9 Wiring the Fault Alarm Contact ...... -
Page 4: Introduction
Switches supporting 4-Port 10/100Tx Fast Ethernet and 1-Port 100Fx of SC or ST type connector and support Multi-mode in 2Km, or Single-mode in 30Km. The LNX-0501 series switches support 12~48VDC power inputs. This series switches offer Extend Operating Temperature model (w/-T) supports -40°C ~ 75°C. It supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, MDI/MDI-X auto sensing... -
Page 5: Package Contents
Package Contents Please refer to the package contents list below. LNX-0501 series - 5-Port Industrial Unmanaged Switch with Fiber w/DIN Rail Bracket User Manual Removable Terminal Block Wall-mount Kit (2 Wall-mount Plates with Screws) Compare the contents of the industrial switch with the checklist above. If any item is damaged or missing, please contact Antaira or Antaira’s authorized channel partners for... -
Page 6: Hardware Description
Hardware Description The Industrial switch’s hardware spec, port, cabling information, and wiring installation will be described. Physical Dimension The LNX-0501 series - 5-Port Industrial Unmanaged Ethernet Switch with Fiber dimension: (W x D x H) is 30mm x 99mm x 142mm... -
Page 7: Front Panel
Front Panel The Front Panel of the Industrial Switch is shown below: Front Panel of the Industrial Switch Top View The top view of the Industrial Switch has one terminal block connector of two DC power inputs and relay circuit contact. Top View of the Industrial Switch... -
Page 8: Led Indicators
LED Indicators The diagnostic LEDs located on the front panel of the industrial switch provide real-time information of the system and optional status. The following table provides the description of the LED status. Color Description Power input 1 is active Green Power input 1 is inactive Power input 2 is active... -
Page 9: Ports
Ports RJ-45 ports The (RJ-45) Fast Ethernet ports will auto-sense for 10Base-T or 100Base-TX connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing straight through or crossover cabling. Please refer to the table below for RJ-45 pin assignment. - Page 10 The following figures show the cable schematic for both straight-through type and crossover type. Straight Through Cable Schematic Cross Over Cable Schematic Fiber Port The fiber port of SC type connector can work in multi mode or single mode. When you connect the fiber port to another one, please follow the figure below to connect accordingly.
-
Page 11: Cabling
Cabling Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded twisted pair (STP) cable. The cable must comply with the IEEE 802.3u 100Base TX standard (e.g. Category 5, 5e, or 6). The cable between the equipment and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. -
Page 12: Wiring The Power Inputs
Wiring the Power Inputs Please follow the steps below to insert the power wire. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+,V2-) contacts on the terminal block connector. Tighten the wire-clamp screws to prevent the wires from loosening. ... -
Page 13: Wiring The Fault Alarm Contact
Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below. By Inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normally open circuit. An application example for the fault alarm contact is shown as below: ... -
Page 14: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail is screwed on the industrial switch from the factory. If the DIN-Rail is not screwed on the industrial switch, please see the following pictures to screw the DIN-Rail on the switch. Follow the steps below to hang the industrial switch. Use the screws to screw the DIN-Rail bracket on the rear side of the industrial switch. - Page 15 DIN-Rail on to the track. Then, lightly pull down the bracket on to the rail. Check if the bracket is mounted tight on the rail. To remove the industrial switch from the rail, reverse steps above.
-
Page 16: Wall Mounting
Wall Mounting Follow the steps below to mount the industrial switch using the wall mount bracket. 1. Remove the DIN-Rail bracket from the industrial switch; loosen the screws to remove the DIN-Rail. 2. Place the wall mount bracket on the top and bottom of the industrial switch. 3. -
Page 17: Hardware Installation
Hardware Installation This section is to explain how to install the LNX-0501 series – 5-Port Industrial Unmanaged Ethernet Switch with Fiber. Installation Steps 1. Unpack the Industrial switch packing. 2. Check if the DIN-Rail bracket is screwed on the Industrial switch. If the DIN-Rail is not screwed on the Industrial switch, please refer to the DIN-Rail Mounting section for DIN-Rail installation. -
Page 18: Network Application
Network Application This segment provides an example of an industrial switch application. -
Page 19: Troubleshooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira or Antaira’s authorized channel partners for technical support service, if the problem still cannot be resolved. -
Page 20: Technical Specification
Technical Specification The LNX-0501 series - 5-Port Industrial Unmanaged Ethernet Switch with Fiber technical specifications is shown below. IEEE 802.3 10Base-T Ethernet Standard IEEE 802.3u 100Base-TX Fast Ethernet IEEE802.3x Flow Control and Back Pressure Protocol CSMA/CD 14,880 pps for 10Base-T Ethernet port... - Page 21 Max Power 7.5 Watts Consumption Installation DIN Rail Mounting, Wall Mounting Standard Operating Temperature: -10 C to 70 Operating Temp. Extend Operating Temperature: -40 C to 75 Operating 5% to 95% (Non-Condensing) Humidity Storage C to 85 Temperature Case Dimension IP-30, 30mm (W) x 99mm (D) x 142mm (H) FCC Class A CE EN61000-4-2/3/4/5/6/8...
