- Page 1 Antaira Technologies - Industrial Ethernet Switches LNX-C800 Series User Manual V1.0 LNX-C800G Series 8-Port Compact Industrial Unmanaged Gigabit Ethernet Switch, with 8*10/100/1000Tx Version 1.0 User Manual...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Industrial Grade Unmanaged Gigabit Ethernet Switches User Manual Version 1.0 (March 2020) This manual supports the following models: • LNX-C800G • LNX-C800G(-T) This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNX-C800G Series User Manual V1.0 Table of Contents 1. Overview ..............1 1.1 Key Features ............. 1 1.2 Package Contents..........2 1.3 Safety Precaution ..........2 2. Hardware Description ..........3 2.1 Physical Dimensions ......... 3 2.2 Front Panel ............ -
Page 5: Overview

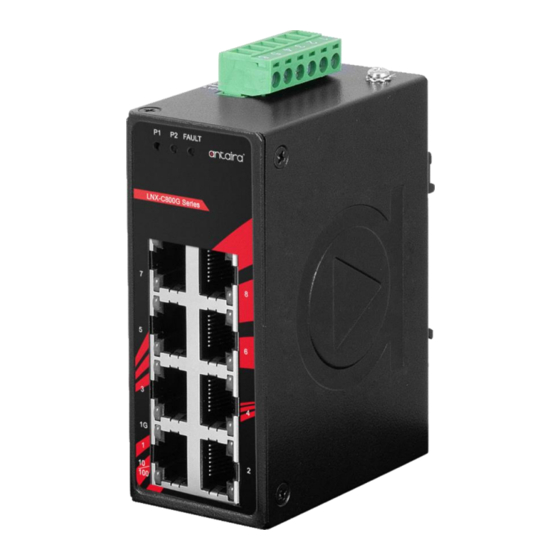

The LNX-C800G is equipped with 8*10/100/1000Tx RJ45 Ethernet ports; with a backplane speed of 16gbps. The industrial-grade design and compact size of the LNX-C800G series makes this ideal unit for integration into projects or other applications that need a small footprint. -
Page 6: Package Contents
Antaira Technologies - Industrial Ethernet Switches LNX-C800G Series User Manual V1.0 1.2 Package Contents ➢ 1 - LNX-C800G(-T): 8-port industrial compact unmanaged Gigabit Ethernet switch with 8*10/100/1000Tx ➢ 2 - Wall mounting brackets and screws ➢ 1 - DC cable –18 AWG & DC jack 5.5x2.1mm ➢... -
Page 7: Hardware Description
2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNX-C800G series: 8- port compact industrial unmanaged Gigabit Ethernet switch with 8*10/100/1000TxRJ45 ports. (W x D x H) is 40mm x 70mm x 95mm Figure 2.1... -
Page 8: Front Panel
Front Panel of the LNX-C800G Series 2.3 Top View Figure 2.3, below, shows the top panel of the LNX-C800G series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (12-48 VDC). Figure 2.3... -
Page 9: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LNX-C800G Series User Manual V1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Gigabit Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.4. -
Page 10: Cabling
Antaira Technologies - Industrial Ethernet Switches LNX-C800G Series User Manual V1.0 The “+” and “-” signs represent the polarity of the wires that make up each wire pair. Note: All ports on this industrial Ethernet switch support automatic MDI operations. Users can use straight-through cables (see figure below) for all network connections to PCs, servers, and other switches or hubs. -
Page 11: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LNX-C800G Series User Manual V1.0 Note: Cable size should be between 18~20 AWG and the torque should be tightened to 5lbs. 2.7 Wiring the Power Inputs Please follow the below steps to insert the power wire. -
Page 12: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNX-C800G Series User Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please refer to Figure 3.1 to learn how to install the DIN- Rail on the switch. -
Page 13: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNX-C800G Series User Manual V1.0 8. To remove the industrial Ethernet switch from the rail, do the opposite from the above steps. 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.2. -
Page 14: Hardware Installation
LNX-C800G Series User Manual V1.0 4. Hardware Installation Installation Steps This section will explain how to install Antaira Technologies’ LNX-C800G(-T): 8-port compact industrial compact unmanaged Gigabit Ethernet switch with 8*10/100/1000Txports. Installation Steps 1. Unpack the industrial Ethernet switch from the original packing box. -
Page 15: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira for technical support service, if the problem still cannot be resolved. •... -
Page 16: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNX-C800G Series User Manual V1.0 6. Technical Specifications Table 6.1 has the technical specifications for Antaira Technologies’ LNX-C800G series: 8-port industrial unmanaged Gigabit Ethernet switch with 8*10/100/1000Tx ports. IEEE 802.3 10Base-T 10Mbit/s Ethernet Standards IEEE 802.3u... - Page 17 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
