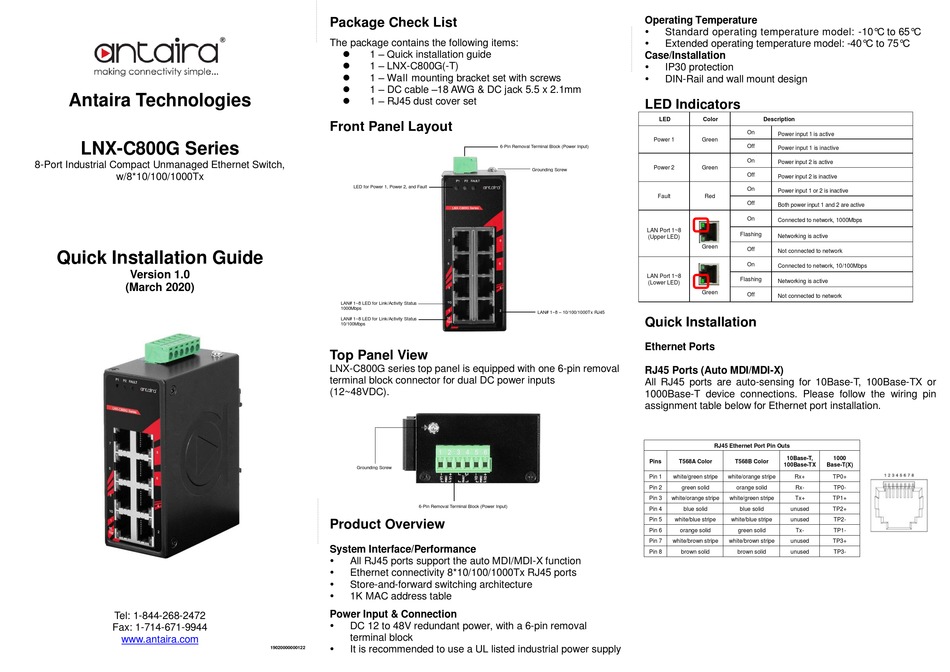

ANTAIRA LNX-C800G Series Quick Installation Manual

Antaira Technologies

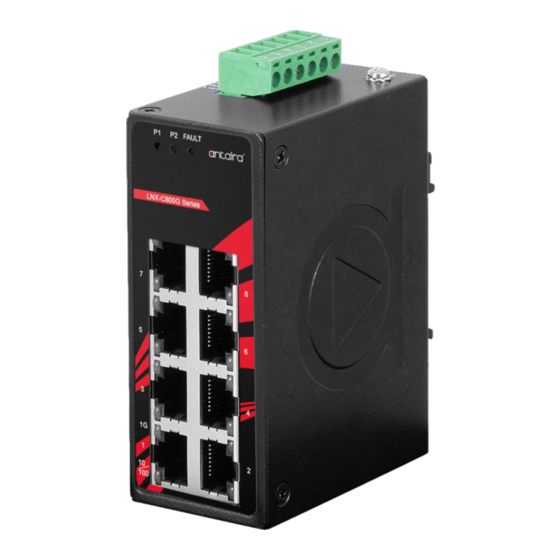

LNX-C800G Series
8-Port Industrial Compact Unmanaged Ethernet Switch,
w/8*10/100/1000Tx
Quick Installation Guide
Version 1.0
(March 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LNX-C800G(-T)
1 – Wall mounting bracket set with screws
⚫
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set
Front Panel Layout
LED for Power 1, Power 2, and Fault
LAN# 1~8 LED for Link/Activity Status
1000Mbps
LAN# 1~8 LED for Link/Activity Status
10/100Mbps
Top Panel View
LNX-C800G series top panel is equipped with one 6-pin removal
terminal block connector for dual DC power inputs
(12~48VDC).
Grounding Screw
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Ethernet connectivity 8*10/100/1000Tx RJ45 ports

Store-and-forward switching architecture

1K MAC address table
Power Input & Connection

DC 12 to 48V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply
19020000000122
Operating Temperature

Standard operating temperature model: -10°C to 65°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection

DIN-Rail and wall mount design
LED Indicators
LED
Power 1
6-Pin Removal Terminal Block (Power Input)
Power 2
Grounding Screw
Fault
LAN Port 1~8
(Upper LED)
LAN Port 1~8
(Lower LED)
LAN# 1~8 – 10/100/1000Tx RJ45
Quick Installation
Ethernet Ports
RJ45 Ports (Auto MDI/MDI-X)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
Pins T568A Color
Pin 1 white/green stripe
Pin 2
Pin 3 white/orange stripe
Pin 4
Pin 5 white/blue stripe
Pin 6 orange solid
Pin 7 white/brown stripe
Pin 8
Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Both power input 1 and 2 are active
On
Connected to network, 1000Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
RJ45 Ethernet Port Pin Outs
10Base-T, 1000
T568B Color
100Base-TX Base-T(X)
white/orange stripe Rx+ TP0+
green solid orange solid Rx- TP0-
white/green stripe Tx+ TP1+
blue solid blue solid unused TP2+
white/blue stripe unused TP2-
green solid Tx- TP1-
white/brown stripe unused TP3+
brown solid brown solid unused TP3-
