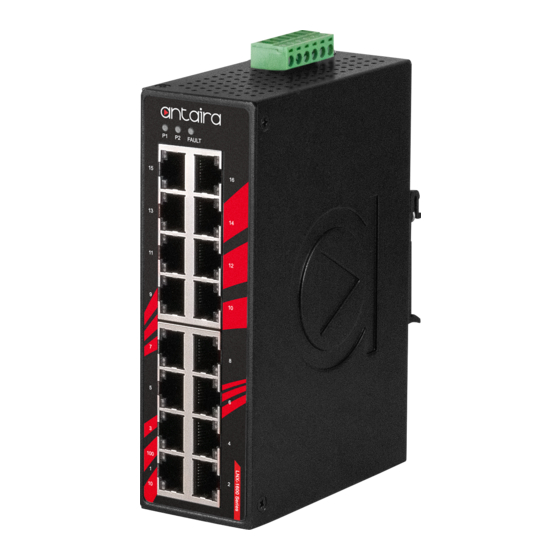

- Page 1 LNX-1600 Series 16-Port Industrial Unmanaged Ethernet Switch, with 16*10/100Tx Hardware Manual Version 2.0 (April 2021)
- Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Avertissement FCC Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la partie 15 des règles de la FCC.
- Page 4 Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Package Contents 1.3 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 Top View Panel 2.4 LED Indicators... -
Page 6: Overview
The LNX-1600 series has a hardened design providing high EFT and ESD protection to prevent any unregulated voltage. It also has a dual power input support of 12~48VDC. There are two wide operating temperature models to support either a -10˚C to 65˚C or - 40˚C to 75˚C environment. -
Page 7: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 Quick Installation Guide Wall mounting bracket set with screws DC cable- 18AWG & DC jack 5.5 x 2.1mm Dust cover set 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. -
Page 8: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 46mm x 99mm x 142mm... -
Page 9: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel... -
Page 10: Top View Panel
Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 2.3 Top View Panel Figure 2.3, below, shows the top panel of the product series: Figure 2.3 - Top View Panel 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. -
Page 11: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 2.5 Ethernet Ports ● RJ45 Ports RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10/100Base-T or 100Base-TX connections. Auto MDI/MDI-X means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. -
Page 12: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 Figure 2.6 - Power Terminal Block Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.7. Figure 2.7 - Power Terminal Block Caution: Only use copper conductors, 125°C, tighten to 5 lbs. -
Page 13: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 Figure 2.8 - Wiring the Fault Alarm Contact Caution: The wire gauge for the terminal block should range between 12 ~ 24 AWG. If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm. - Page 14 Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité électromagnétique...
-
Page 15: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. -
Page 16: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. - Page 17 Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 Figure 3.4 - Remove DIN-Rail bracket from the Switch Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5 - Wall Mounting Bracket Dimensions...
-
Page 18: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 19: Maintenance And Service
Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot... -
Page 20: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNX-1600 Series - Hardware Manual - v2.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology IEEE 802.3 10Base-T Ethernet Standards IEEE 802.3 100Base-TX Fast Ethernet Processing Type Store and Forward... - Page 21 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
