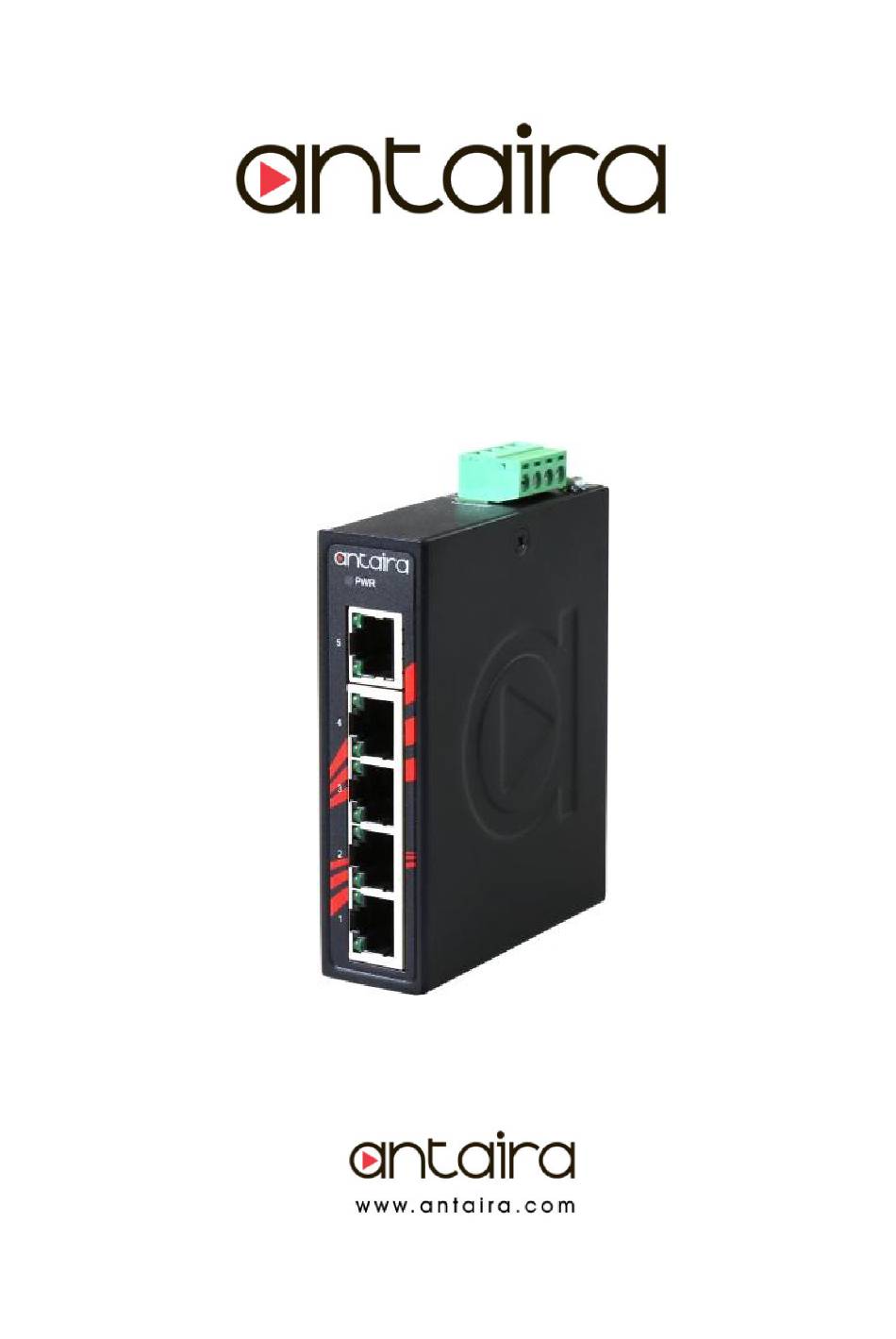

- Page 1 Antaira Technologies - Industrial Ethernet Switches LNX-C500G Series User Manual V1.1 LNX-C500G Series 5-Port Industrial Compact Gigabit Unmanaged Ethernet Switches with 5*10/100/1000Tx, 12~48VDC Power Input Version 1.1 User Manual...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Industrial Grade Unmanaged Ethernet Switches User Manual Version 1.1 (March 2018) This manual supports the following models: LNX-C500G LNX-C500G-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNX-C500G Series User Manual V1.1 Table of Contents 1. Overview ............... 1 1.1 Key Features ............1 1.2 Package Contents ..........2 1.3 Safety Precaution ..........2 2. Hardware Description ..........3 2.1 Physical Dimensions .......... 3 2.2 Front Panel ............ -
Page 5: Overview

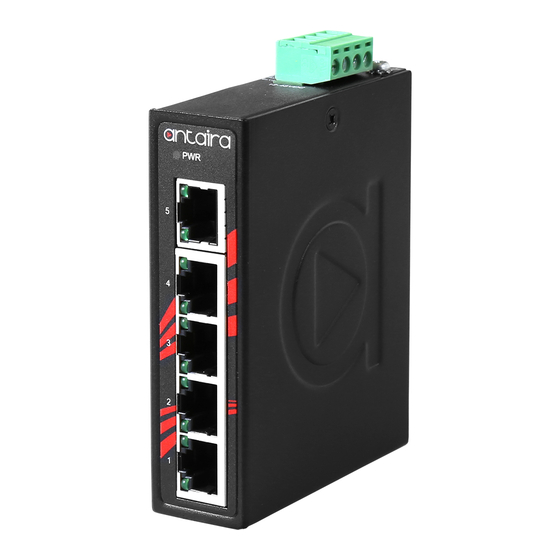

LNX-C500G Series User Manual V1.1 1. Overview Antaira Technologies’ LNX-C500G series is a compact 5-port industrial gigabit unmanaged Ethernet switch. The small form factor of this metal IP30 rated industrial switch is 30% smaller allowing for a more versatile implementation. The LNX-C500G is equipped with 5*10/100/1000 RJ45 Ethernet ports with a backplane speed of 10gbps that can handle high bandwidth applications in tight spaces. -
Page 6: Package Contents
Antaira Technologies - Industrial Ethernet Switches LNX-C500G Series User Manual V1.1 1.2 Package Contents 1 - LNX-C500G (-T): 5-port industrial compact gigabit unmanaged Ethernet switch with 5*10/100/1000Tx 2 - Wall mounting brackets and screws 1 - DC cable –18 AWG & DC jack 5.5x2.1mm 1.3 Safety Precaution... -
Page 7: Hardware Description
2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNX-C500G series: 5- port compact industrial gigabit unmanaged Ethernet switch with 5*10/100/1000Tx RJ45 ports. (W x D x H) is 26mm x 75mm x 95mm Figure 2.1... -
Page 8: Front Panel
Front Panel of the LNX-C500G Series 2.3 Top View Figure 2.3, below, shows the top panel of the LNX-C500G series switch that is equipped with one 4-pin removal terminal block connector for dual DC power inputs (12-48 VDC). Figure 2.3... -
Page 9: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LNX-C500G Series User Manual V1.1 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. - Page 10 Antaira Technologies - Industrial Ethernet Switches LNX-C500G Series User Manual V1.1 All ports on this industrial Ethernet switch support automatic MDI operations. Users can use straight-through cables (see figure below) for all network connections to PCs, servers, and other switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other end of the cable.
-
Page 11: Cabling
Antaira Technologies - Industrial Ethernet Switches LNX-C500G Series User Manual V1.1 2.6 Cabling Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded twisted pair (STP) cable. The cable must comply with the IEEE 802.3u 100Base TX standard (e.g. -
Page 12: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNX-C500G Series User Manual V1.1 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please refer to Figure 3.1 to learn how to install the DIN- Rail on the switch. -
Page 13: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNX-C500G Series User Manual V1.1 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. -
Page 14: Hardware Installation
LNX-C500G Series User Manual V1.1 4. Hardware Installation Installation Steps This section will explain how to install Antaira Technologies’ LNX-C500G (T): 5-port compact industrial compact gigabit unmanaged Ethernet switch with 5*10/100/1000Tx ports. Installation Steps 1. Unpack the industrial Ethernet switch from the original packing box. -
Page 15: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira for technical support service, if the problem still cannot be resolved. ... -
Page 16: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNX-C500G Series User Manual V1.1 7. Technical Specifications Table 7.1 has the technical specifications for Antaira Technologies’ LNX-C500G series: Compact 5-port industrial gigabit unmanaged Ethernet switch with 5*10/100/1000Tx ports. IEEE 802.3 10Base-T 10Mbit/s Ethernet Standards IEEE 802.3u...
