Antaira Technologies

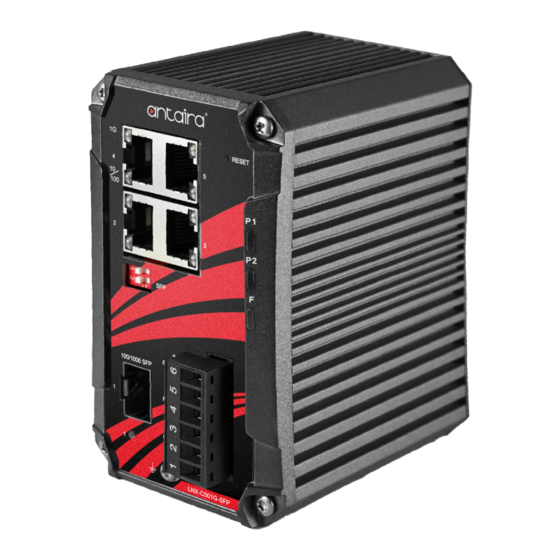

LNX-C501G-SFP Series
5-Port Industrial Compact Gigabit Unmanaged Ethernet Switch,
4*10/100/1000TX and 1*100/1000 SFP Slot
Quick Installation Guide
Version 1.0
(May 2022)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Checklist
The package contains the following items:
1 – Quick installation guide
•
1 – LNX-C501G-SFP(-T)
•
1 – Wall mounting bracket set with screws
•
1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
•
1 – Dust cover set
•

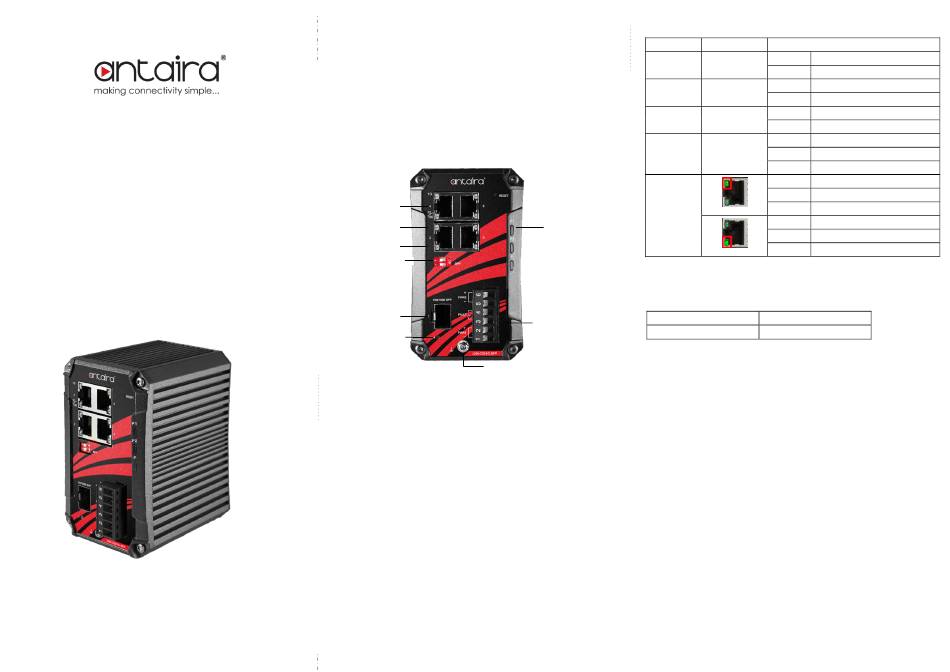

Front Panel Layout
LAN# 2~5 – 10/100/1000Tx RJ45
LAN# 2~5 LED for Link/Activity
Status 1000Mbps
LAN# 2~5 LED for Link/Activity Status
10/100Mbps
DIP Switch Setting for SFP Speed
SFP# 1 – 100/1000
SFP# 1 – LED for Link/Activity Status
Product Overview
System Interface/Performance
All RJ45 ports support the auto MDI/MDI-X function
•
Embedded 4*10/100/1000Tx RJ45 ports and 1*100/1000
•
SFP slots
Store-and-Forward switching architecture
•
8K MAC address table
•
Supports 10Kbytes jumbo frame
•
1Mbits memory buffer
•
Power Input & Connection
DC 12 to 48V redundant power, with a 6-pin removal
•
terminal block
It is recommended to use a UL listed industrial power supply
•
Operating Temperature
Standard operating temperature model: -10°C to 65°C
•
Extended operating temperature model: -40°C to 75°C
•
Case/Installation
IP40 protection
•
DIN-Rail and wall mount design
•
19020000000195
LED Indicators
Power 1
Power 2
SFP Port
LNK/ACT
LAN Port 2~5
LNK/ACT
LED for Power 1, Power 2, Fault
DIP Switch
The DIP switch is used to control SFP speed.
6-Pin Removal Terminal Block (Power Input)
Control SFP speed at 100Mbps
NOTE: The device will reboot when the dip switch setting is
changed.
Grounding Screw
LED
Color
Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
Off
No event happened
Fault
Red
1. Power input 1 or 2 is inactive
On
2. Port link-down / Broken
On
Connected to network, 100 or 1000Mbps
Green
Flashing
Networking is active
Speed
Off
Not connected to network
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
Green
Speed
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
Green
ON
OFF (Default)
Control SFP speed at 1Gbps
