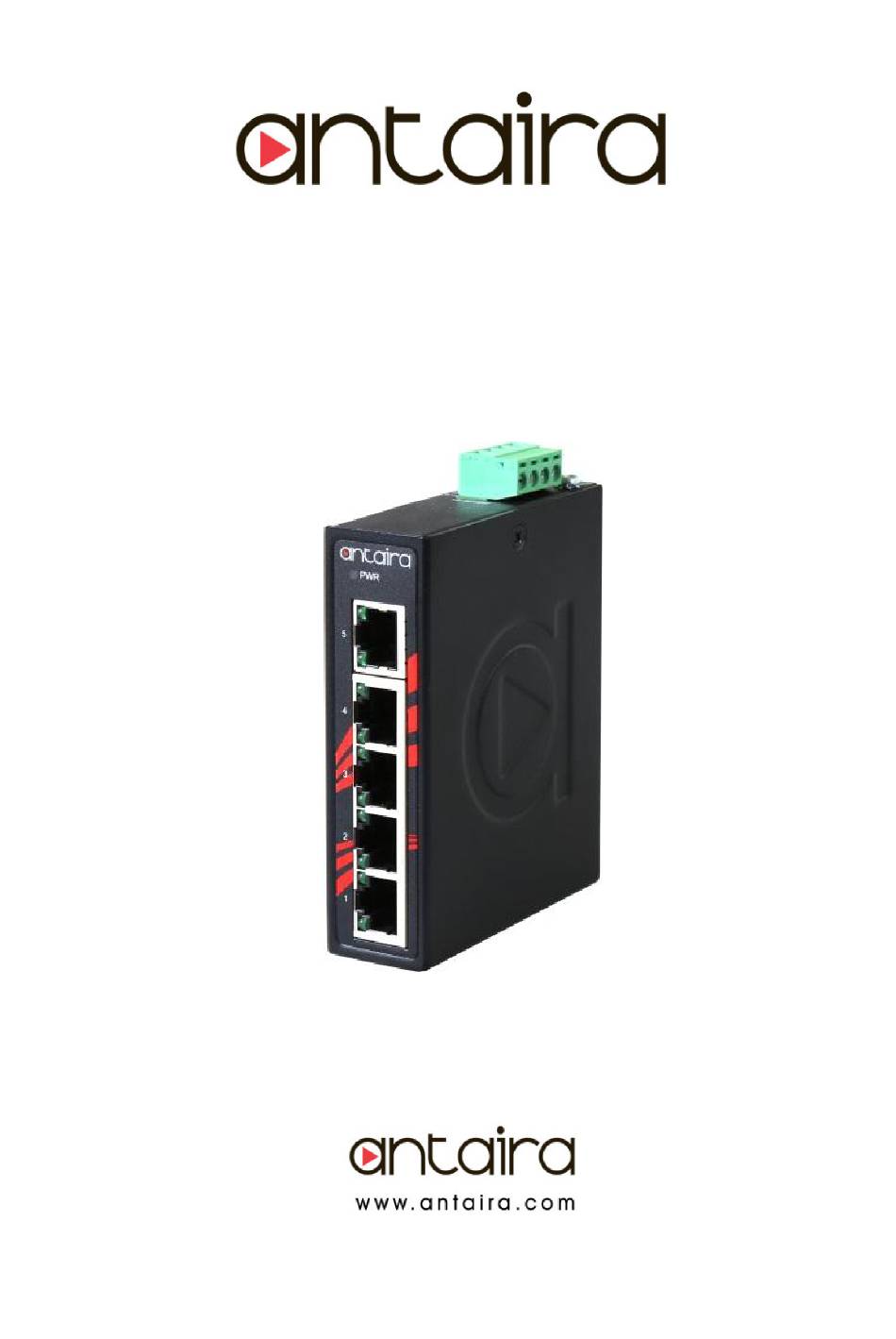

- Page 1 Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.1 LNX-C500 Series 5-Port Industrial Compact Unmanaged Ethernet Switches with 5*10/100Tx, 12~48VDC Power Input Version 1.1 User Manual...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Industrial Grade Unmanaged Ethernet Switches User Manual Version 1.1 (March 2018) This manual supports the following models: LNX-C500 LNX-C500-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.1 Table of Contents 1. Overview ............... 1 1.1 Key Features ............1 1.2 Package Contents ..........2 1.3 Safety Precaution ..........2 2. Hardware Description ..........3 2.1 Physical Dimensions .......... 3 2.2 Front Panel ............ -
Page 5: Overview

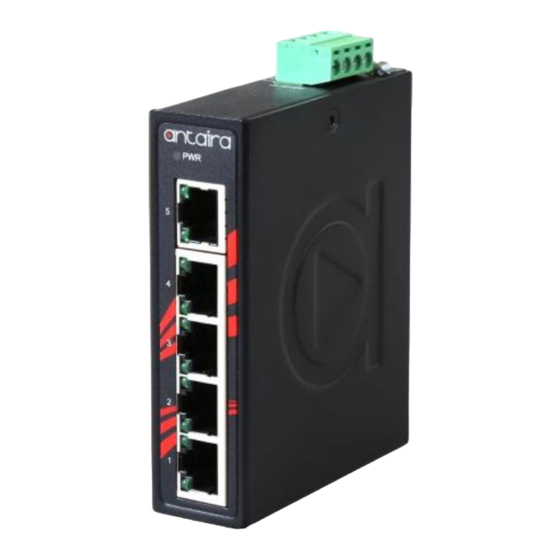

LNX-C500 Series User Manual V1.1 1. Overview Antaira Technologies’ LNX-C500 series is a compact 5-port industrial Ethernet switch. The small form factor of this metal IP30 rated industrial switch is 30% smaller allowing for a more versatile implementation. The LNX-C500 is equipped with 5*10/100 RJ45 Ethernet ports with a backplane speed of 1gbps and is designed for industrial network expansion applications with tight spaces. -
Page 6: Package Contents
Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.1 1.2 Package Contents 1 - LNX-C500 (-T): 5-port industrial compact unmanaged Ethernet switch with 5*10/100Tx 2 - Wall mounting brackets and screws 1 - DC cable –18 AWG & DC jack 5.5x2.1mm 1.3 Safety Precaution... -
Page 7: Hardware Description
2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNX-C500 series: 5- port compact industrial unmanaged Ethernet switch with 5*10/100Tx RJ45 ports. (W x D x H) is 26mm x 75mm x 95mm Figure 2.1... -
Page 8: Front Panel
Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.1 2.2 Front Panel The front panel of the LNX-C500 series: 5-port industrial compact unmanaged Ethernet switch with 5*10/100Tx. See Figure 2.2. 4-pin removal terminal block (power input) Grounding screw LED for PWR LAN Port # 1~5 –... -
Page 9: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.1 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 10: Cabling
Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.1 All ports on this industrial Ethernet switch support automatic MDI operations. Users can use straight-through cables (see figure below) for all network connections to PCs, servers, and other switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. -
Page 11: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.1 2.7 Wiring the Power Inputs Please follow the below steps to insert the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.6. -
Page 12: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.1 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please refer to Figure 3.1 to learn how to install the DIN- Rail on the switch. -
Page 13: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.1 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. -
Page 14: Hardware Installation
LNX-C500 Series User Manual V1.1 4. Hardware Installation Installation Steps This section will explain how to install Antaira Technologies’ LNX-C500 (T): 5-port compact industrial compact unmanaged Ethernet switch with 5*10/100Tx ports. Installation Steps 1. Unpack the industrial Ethernet switch from the original packing box. -
Page 15: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira for technical support service, if the problem still cannot be resolved. ... -
Page 16: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.1 7. Technical Specifications Table 7.1 has the technical specifications for Antaira Technologies’ LNX-C500 series: 5-port industrial unmanaged Ethernet switch with 5*10/100Tx ports. IEEE 802.3 10Base-T 10Mbit/s Ethernet Standards IEEE 802.3u...
