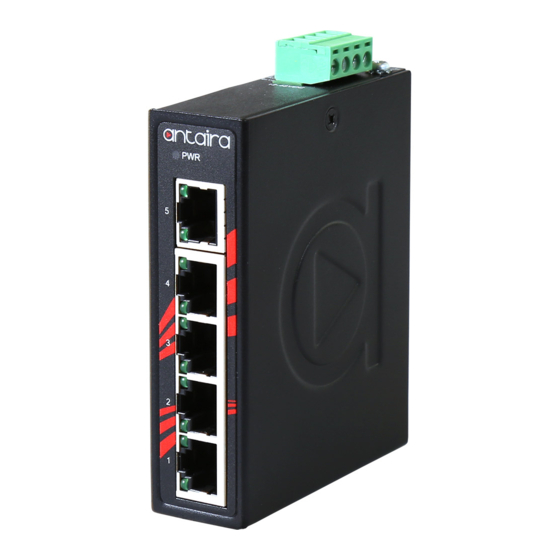

5-port industrial compact unmanaged ethernet switches with 5*10/100 tx, 12~48vdc power input; lnx-c500 series
Hide thumbs Also See for LNX-C500:

Advertisement

Quick Links

Antaira Technologies - Industrial Ethernet Switches

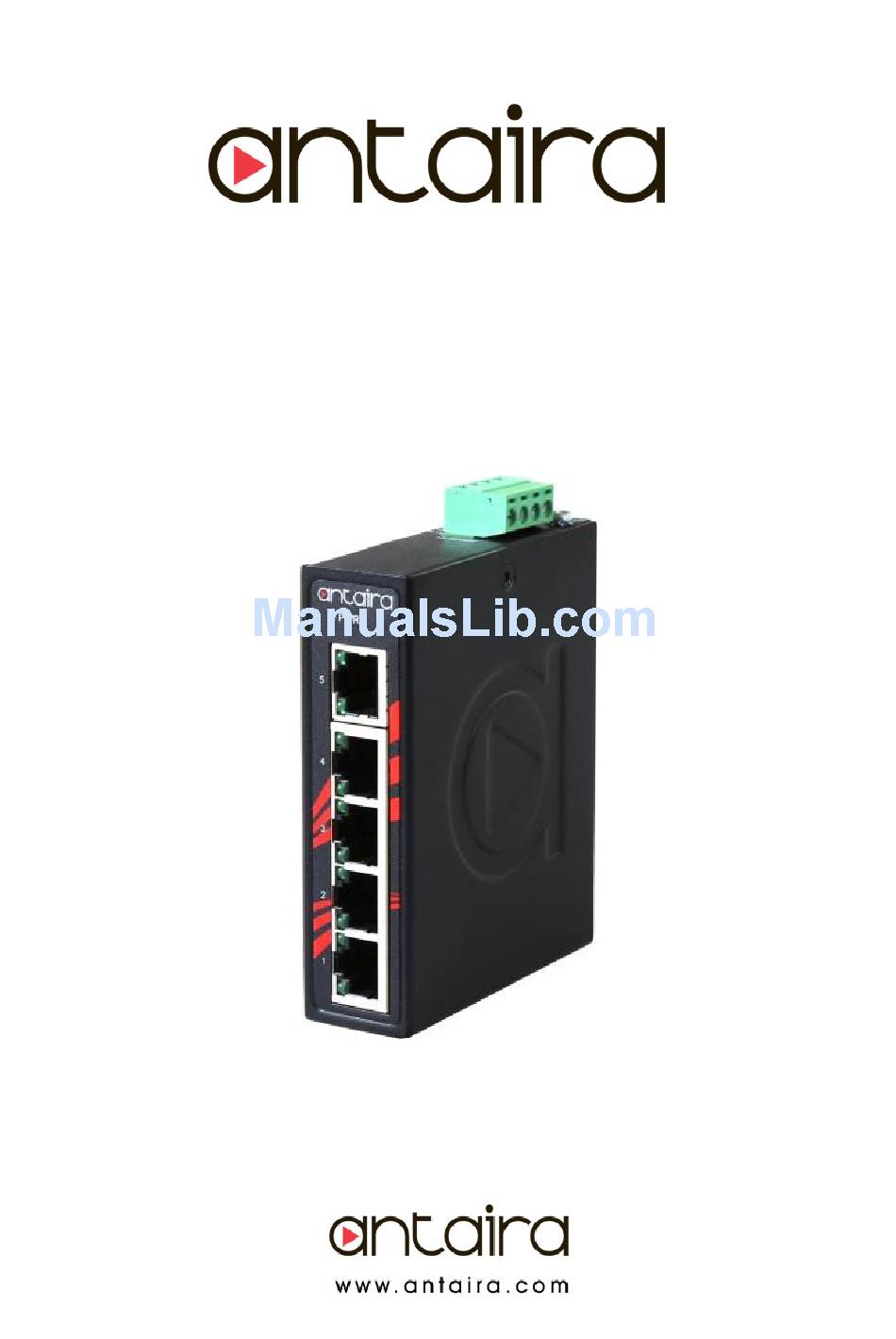

LNX-C500 Series User Manual V1.0
LNX-C500 Series
5-Port Industrial Compact Unmanaged Ethernet Switches with
5*10/100Tx, 12~48VDC Power Input
Version 1.0

User Manual

i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LNX-C500 and is the answer not in the manual?

Questions and answers

Summary of Contents for ANTAIRA LNX-C500

  • Page 1: User Manual

    Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.0 LNX-C500 Series 5-Port Industrial Compact Unmanaged Ethernet Switches with 5*10/100Tx, 12~48VDC Power Input Version 1.0 User Manual...
  • Page 2: Trademark Information

    Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
  • Page 3: Fcc Notice

    Industrial Grade Unmanaged Ethernet Switches User Manual Version 1.0 (January 2017) This manual supports the following models:  LNX-C500  LNX-C500-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
  • Page 4 Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.0 Table of Contents 1. Overview ............... 1 1.1 Key Features ............1 1.2 Package Contents ..........2 1.3 Safety Precaution ..........2 2. Hardware Description ..........3 2.1 Physical Dimensions .......... 3 2.2 Front Panel ............
  • Page 5: Key Features

    1gbps and is designed for industrial network expansion applications with tight spaces. The LNX-C500 supports high EFT & ESD protection to prevent damage from unregulated power coming into the unit. This compact media converter also supports redundant power inputs with reverse polarity and overload current protection.
  • Page 6: Package Contents

    Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.0 1.2 Package Contents  1 - LNX-C500 (-T): 5-port industrial compact unmanaged Ethernet switch with 5*10/100Tx  2 - Wall mounting brackets and screws  1 - DC cable –18 AWG & DC jack 5.5x2.1mm 1.3 Safety Precaution...
  • Page 7: Hardware Description

    2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNX-C500 series: 5- port compact industrial unmanaged Ethernet switch with 5*10/100Tx RJ45 ports. (W x D x H) is 26mm x 75mm x 95mm Figure 2.1...
  • Page 8: Front Panel

    Front Panel of the LNX-C500 Series 2.3 Top View Figure 2.3, below, shows the top panel of the LNX-C500 series switch that is equipped with one 4-pin removal terminal block connector for dual DC power inputs (12-48 VDC). Figure 2.3...
  • Page 9: Led Indicators

    Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1.
  • Page 10: Cabling

    Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.0 All ports on this industrial Ethernet switch support automatic MDI operations. Users can use straight-through cables (see figure below) for all network connections to PCs, servers, and other switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other end of the cable.
  • Page 11: Wiring The Power Inputs

    Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.0 2.7 Wiring the Power Inputs Please follow the below steps to insert the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.6.
  • Page 12: Mounting Installation

    Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please refer to Figure 3.1 to learn how to install the DIN- Rail on the switch.
  • Page 13: Wall Mounting

    Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
  • Page 14: Hardware Installation

    LNX-C500 Series User Manual V1.0 4. Hardware Installation Installation Steps This section will explain how to install Antaira Technologies’ LNX-C500 (T): 5-port compact industrial compact unmanaged Ethernet switch with 5*10/100Tx ports. Installation Steps 1. Unpack the industrial Ethernet switch from the original packing box.
  • Page 15: Trouble Shooting

    If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira for technical support service, if the problem still cannot be resolved. ...
  • Page 16: Technical Specifications

    Antaira Technologies - Industrial Ethernet Switches LNX-C500 Series User Manual V1.0 7. Technical Specifications Table 7.1 has the technical specifications for Antaira Technologies’ LNX-C500 series: 5-port industrial unmanaged Ethernet switch with 5*10/100Tx ports. IEEE 802.3 10Base-T 10Mbit/s Ethernet Standards IEEE 802.3u...
