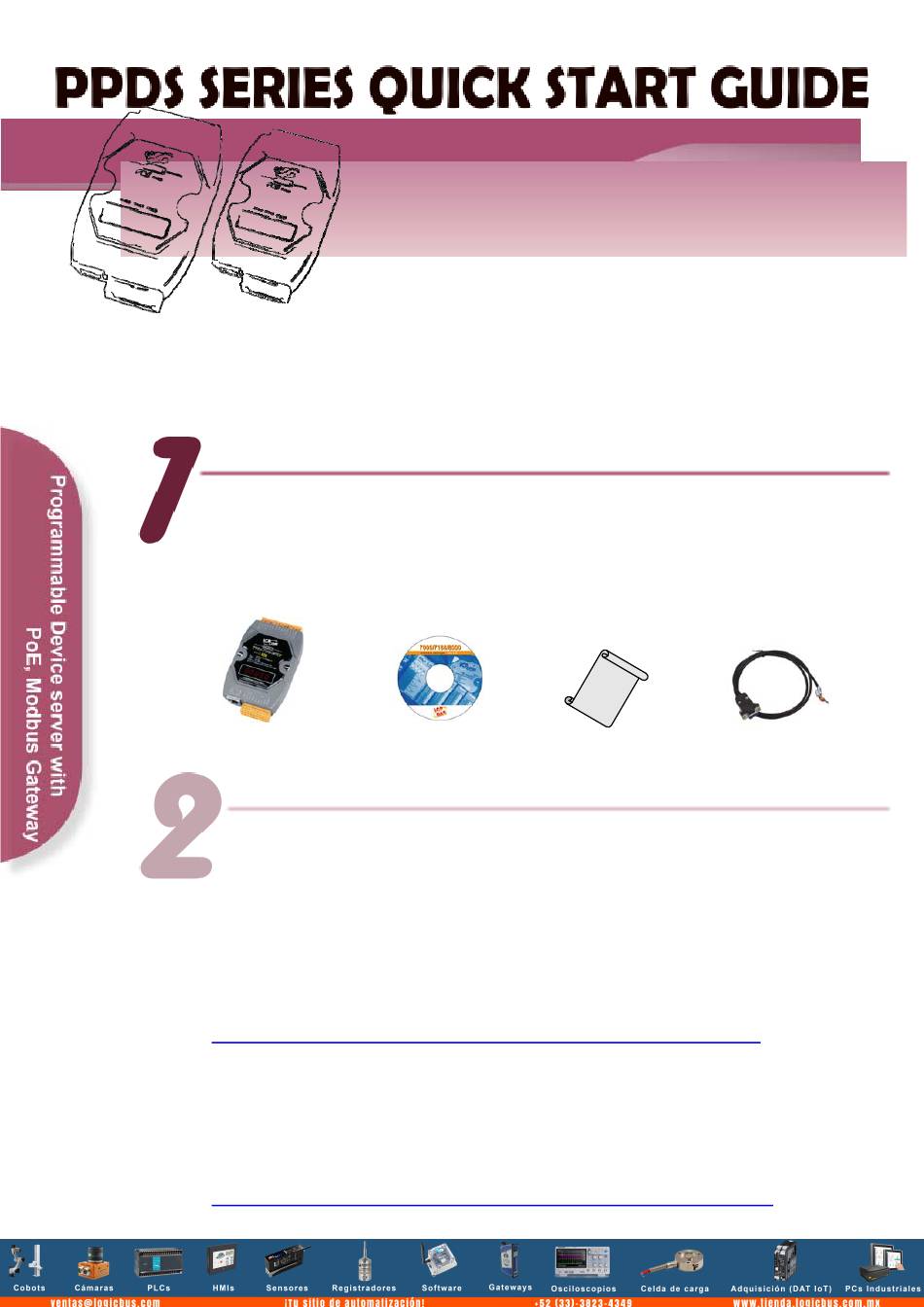

What's in the shipping package?
The package includes the following items:

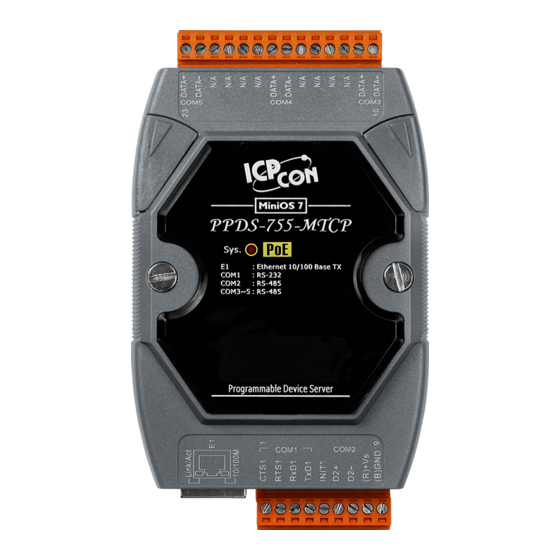

PPDS-700-MTCP
series

Installing software on your PC

1. Install VxComm Utility:
The software is located at:
CD: \NAPDOS\Driver\VxComm_Driver
http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/vxcomm_driver/
2. Install Modbus Utility:
The software is located at:
CD: \NAPDOS\Modbus\modubs_utility
http://ftp.icpdas.com/pub/cd/8000cd/napdos/modbus/modbus_utility/
For PPDS-700-MTCP Series
Software CD
Quick Start Guide
(This Document)
English/ August 2011/ Version 1.3
CA-0910 Cable

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPDS Series and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA PPDS Series

Summary of Contents for ICP DAS USA PPDS Series

  • Page 1 For PPDS-700-MTCP Series English/ August 2011/ Version 1.3 What’s in the shipping package? The package includes the following items: PPDS-700-MTCP Software CD Quick Start Guide CA-0910 Cable (This Document) series Installing software on your PC 1. Install VxComm Utility: The software is located at: CD: \NAPDOS\Driver\VxComm_Driver http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/vxcomm_driver/ 2.
  • Page 2 Connecting the Power and Host PC 1. Make sure your PC has workable network settings. 2. Disable or well configure your Windows firewall and Anti-Virus firewall first, else the “Search Servers” on page 3 may not work. (Please contact with your system Administrator) 3.
  • Page 3 Configuring Virtual COM Ports 1. Double click the VxComm Utility shortcut on the desktop. 2. Click the “Search Servers” button to search your PPDS-700-MTCP. Double click the name of PPDS-700-MTCP to open the configure server dialog box. 4. Contact your Network Administrator to obtain a correct network configuration (such as IP/Mask/Gateway).
  • Page 4 6. Click the “Add Server[s]” button. Assign a COM Port number and click “OK” to save your settings. 7. Click on PPDS-700-MTCP name and check the virtual COM port mappings on the PC. 8. Click “Tools” >> “Restart Driver”, and then click the “Restart Driver”...
  • Page 5 Testing Modbus device through Virtual COM Por 1. Double click the Modubs Utility shortcut on the desktop, and then click the “Modbus/TCP” button. 2. Click on “Client tools” >> “Modbus/RTU Client”. 3. Select your virtual COM port and baud rate (default: 9600) on PPDS-700-MTCP, and then click the “Open”...
  • Page 6 4. Refer to “Protocol Description” and type the command in the command field then click the “Send command” button. If the response data is correct, it means the test is success. Modbus/TCP to Modbus/RTU Gateway 1. Open web browser, type the URL address of the PPDS-700-MTCP and press “Enter”...
  • Page 7 3. Check the COM Port for Modbus gateway setting. 4. Back to Modbus Utility, and then click the “Client tools” >> “Modbus/TCP Client”. 5. Enter the IP address of PPDS-700-MTCP and then click “Connect” button to connect the PPDS-700-MTCP.
  • Page 8 6. Refer to “Protocol Description” and type command in the command field then click the “Send Command” button. If the response data is correct, it means the test is success. Note!! The flash protection function is disabled for factory default settings. User can modify the program or update the firmware.
