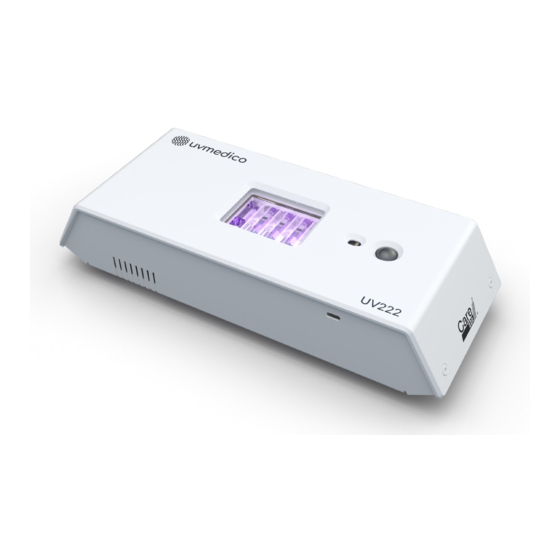

(Filtered Far UV-C)
Technical & Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UV222 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UV MEDICO UV222

Summary of Contents for UV MEDICO UV222

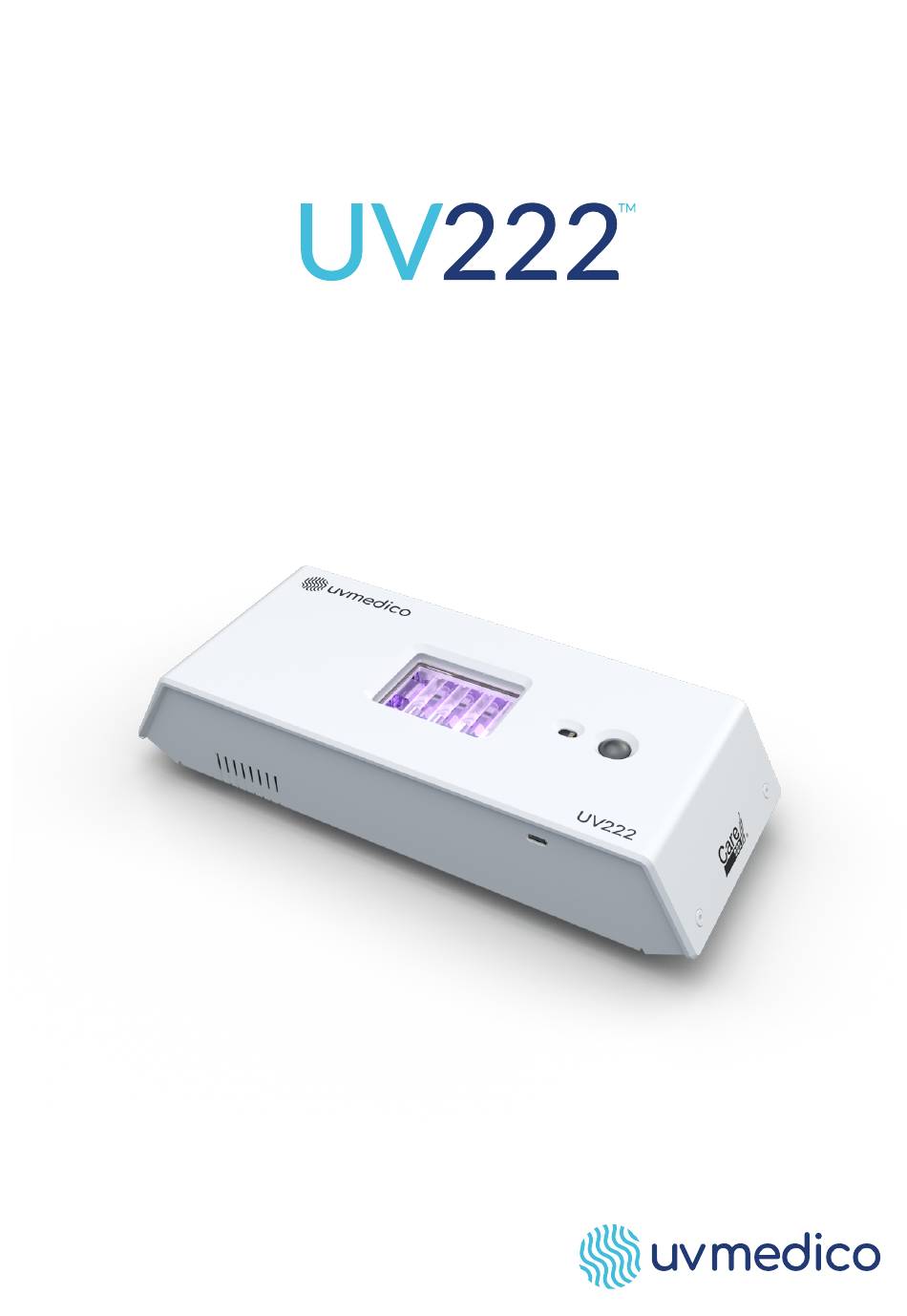

  • Page 1 (Filtered Far UV-C) Technical & Installation Manual...
  • Page 2 DO NOT USE THE PRODUCT BEFORE CAREFULLY READING THIS MANUAL. ALWAYS KEEP THIS MANUAL WITH THE PRODUCT AND CONSULT IT REGULARLY. UV222 Technical & Installation Manual UV Medico UV Warning Label H40xB95.indd 2 UV Medico UV Warning Label H40xB95.indd 2 24/08/2021 09.29 24/08/2021 09.29...

  • Page 3: Table Of Contents

    For information about specific adjustments, maintenance or repair jobs which are not dealt with in this manual, please contact your Product supplier or UV Medico A/S. If you suspect that the Product is damaged or detect a potential or actual danger when using the Product, immediately discontinue use of the Product and contact your supplier of the Product.

  • Page 4: Basic Safety Instructions

    To minimise the risk of injury, the following basic safety precautions should be observed with each use of the Product: Do not remove the sticker on the front of the unit until the UV222 is commissioned by a qualified installer.

  • Page 5: Disclaimers

    Product or personal injury caused by non-observance by the user of the safety instruc- tions in the Manual or the applicable laws. As such UV Medico A/S shall among others not be liable for any damage or injury if the Product is used contrary to or for purposes other than its intended use, is installed, used, maintained or repaired negligently or contrary to the instructions mentioned in the Manual or on the Product;...

  • Page 6: Modification

    3.4. Modification No modification of the product is allowed. All warranty and liability are void if any modifica- tions are done to the UV222. GENERAL CHARACTERISTICS AND TECHNICAL SPECIFICATIONS The Product is designed to emit Far UV-C radiation with a wavelength of 222 nm, in order to eliminate viruses, bacteria, fungi, and other pathogens, from air and surfaces.

  • Page 7: Construction

    CONSTRUCTION 303.45 mm 120.00 mm 175.00 mm 75.25 mm 85.00 mm...

  • Page 8: Installation Of The Product

    Open the box and carefully take the unit out of the box. Take the unit out of the plastic bag. Do not remove the protection label on the front of the UV222. The protection label is intended to avoid unexpected UV radiation. Make a visual inspection of the unit.

  • Page 9: Uv222 Fixture Installation

    175.00 mm 6.3. UV222 fixture installation The unit must be attached to a surface by means of at least 4 mounting pins, preferably 75.25 mm near electrical wires with grounding. The mounting pins and surface must be strong enough to hold 4 times the weight of the unit.

  • Page 10: Wiring The Product To Power Source

    (brown) (black) Neutral / Cold – (blue) (white) Earth (green/yellow) (green) How to wire the UV222 Take of the installation plate (foot plate) Unscrew 3x din965 with T15 screwdriver Take off the service plate. Unscrew 2x ph1 (cable blockage) Unscrew 2x ph1 (cable connector).

  • Page 11: Understanding The Unit's Operation

    22,0 mJ/cm² for an 8 h day, 40 h work week exposure to UV radiation at 222 nm. (UV Medico A/S expects positive changes into the ACGIH that will result in a higher expo- sure than allowed at this moment. If this changes, UV Medico A/S will update the software of the unit to align with the new threshold of exposure).
  • Page 12 If the UV222 was already installed, you can read out the setting of the unit by pressing “Get” all settings will be shown in the application. Check if software version is the latest version. If not, press “Update SW” button and confirm the pop up by pressing “Yes”.
  • Page 13 Select the correct software version and press “Open” to upload the software. When finished installing, the software should be up to date.
  • Page 14 Set the correct hour by pressing “Set Device Time”. The date and hour are now the same as your computer. Define the timing of the use (duty cycle) of the room where the UV222 is installed: “On time”: Time from which the room will be occupied by people.
  • Page 15 Add the pre and post cleaning cycle. The unit will/can light up before and after the duty cycle so you can ensure it when people enter or leave. Add the “Maximum Occupant Time”: how long the room is occupied during the duty cycle.
  • Page 16 The unit will turn itself back on after 10 sec. when/if the safety distance is regained. c. “Primary surface distance”: Distance from the unit to the main surface to disinfect. All measurements are in centimetres. UV222 Technical & Installation Manual...
  • Page 17 Change the intensity of the LED signal to the desired output. Save setup into template by pressing “Save Setup”. Name the template. This can be recalled whenever you have similar settings.
  • Page 18 Time If during the duty cycle a person comes closer to the unit than the programmed distance from the eye, UV222 will automatically stop, and it will resume the activity 10 sec. after this security distance is cleared. If movement in the room is detected during the pre or post disinfection cycle, the unit will stop working, and will resume its activity after no more movement is detected.
  • Page 19 If the information programmed into the UV222 when installed is different than the use/ occupancy of the room, UV Medico A/S cannot be held liable for any injuries or misuse of these units. If the room changes of use, occupancy or any change that has an influence on the risks of exposure, the installer needs to be contacted so the Product is reprogrammed.

  • Page 20: Understanding The Function Of The Signal Led

    Pre disinfection / after disinfection per seen movement. 6.8. Replacements The UV222 has an internal battery and fuse that can be replaced if broken/empty. Take the unit off the installation plate and unscrew the 3x din965. Take off the cover and you will see the fuse (T250V 500mA) and battery (3V CR2032).

  • Page 21: Product Failure

    White flash Power cycle the unit. Does not hold settings Replace battery. If the failure is unsolved or recurring, please return the unit to an official UV Medico dealer/ REPAIRS). service centre for repair or replacement (see point CLEANING AND MAINTENANCE Clean the external surfaces with a soft cloth and non-aggressive cleaning agents only.

  • Page 22: Light Source Replacement

    2-year warranty is given from invoice date regardless on the hours the unit is used. UV222™ and its logo are registered trademarks of UV Medico A/S. All rights reserved. No part of this manual may be copied or published by means of printing, photocopying, microfilm or otherwise without the prior written consent of the manufacturer.

  • Page 23: Notes

    NOTES:...
  • Page 24 UV Medico A/S Søren Frichs Vej 40E 8230 Åbyhøj Denmark +45 20 90 71 30 info@uvmedico.com www.uvmedico.com...
